Underbody Coating

Underbody coating

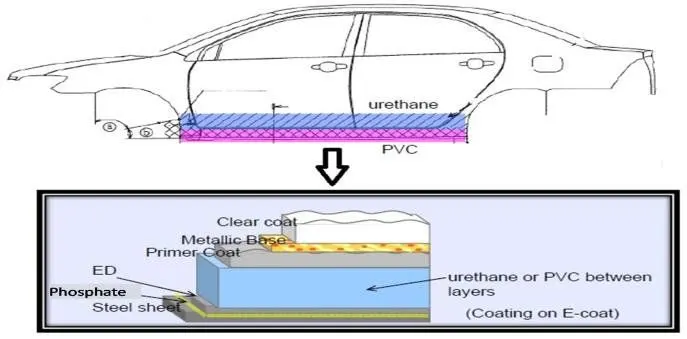

Underbody coating provides long term protection from corrosion to car's underbody. It also protects parts like internal body panels, frame rails and other inner cavities that are not physically accessible but are prone to corrosion Rust Preventio

Automotive Coating Processes

automotive coating methods consist of b They include the following steps:
.Pretreatment: removes and cleans excess metal and forms an appropriate surface structure enabling bonding of a corrosion protection layer.

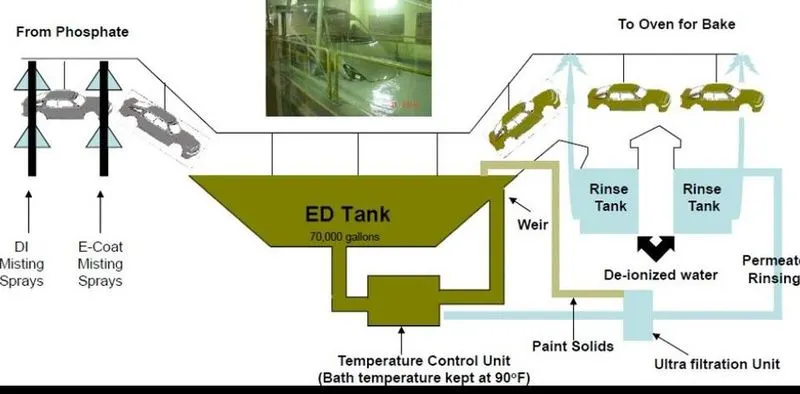

.The next step is electrodeposition (ED) of the anti‐corrosion or rust prevention layer. A sealer like Poly Vinyl Chloride (PVC) is applied for anti‐corrosion, elimination of water leaks,and minimization of chipping and vibrational noise.
. A primer is then applied to promote adhesion between the surface and the basecoat; it also imparts a smoother surface for subsequent layers and has anti‐chipping properties and the vehicle it turns a 360 degree of rotation of angle.
.Finally, the topd new and clean. Car manufacturers use thick paints and sealants for the underbody, but adding an underbody coat especially in coastal cities is useful. Salt water tends to corrode cars really badly

The current paper gave a semi-comprehensive and up-to-date review of these new processes and
coating technologies to be of value to industrial practitioners and researchers. New developments
in automotive coatings were chronicled and discussed, and then related to improvements in
production technologies and paints. Modern automotive coating procedures were also discussed in
detail. Finally, the discussion covered recent trends in automotive coating processes and potential
future developments.
