Week 8 - Challenge 4 - Coin Holder Design

Mesh the Given component with the Size of 5 Units. Create 1D elements on the following component with given cross-section and DOF a. Rod element Cross-Section: BOX- Dimension a= 12 mm                               dimension b=10 mm  …

Developement of Door Trims Project Created Thicken Part by using master section as a reference Created mounting features as per design guide lines  Created Tooling axis and done the Draft anlysis Created Dog house and Ribs

CV Joint Quick release mechanism

B - Pillar Master section develop 1. B pillar master section created with provider Class A surface. 2. Created Class B and Class C surfaces and Joint them. 3. Created solid body with A,B and C surface did draft analysis 4. Created Main tooling axis and side core axis. 5. Both tooling axis are satisfied the Draft analysis…

Door Applique design with provided Class A surface  1. Tooling axis created by perpendicular to class A surface. 2. Draft analysis also satisfied with tooling axis. 3. Created 4 way locators, 2 way locators and heat stacks along with Tooling axis diretion.

Design RIB and Dog hosuse On Coin holder

RIB design  1. i am design the ribs as per given standard dimension for Coin holder in Tooling direction. 2.All sketch with all ISO contrained.

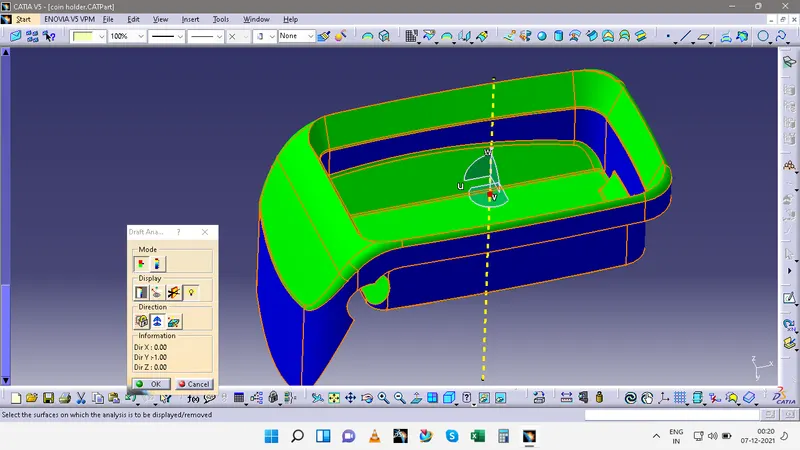

Core & Cavity design  Tooling axis drawn in bysecting method and with reference of Two plans. Draft analysis is shown surface full green,this Tooling axis is right for surface core and cavity direction. I design Core, Cavity , Partian surface and Partician line with proper tree structure. And mensioned different…

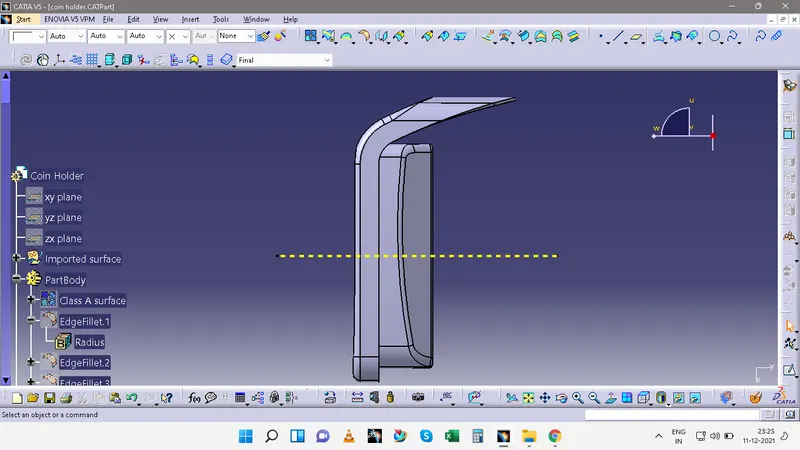

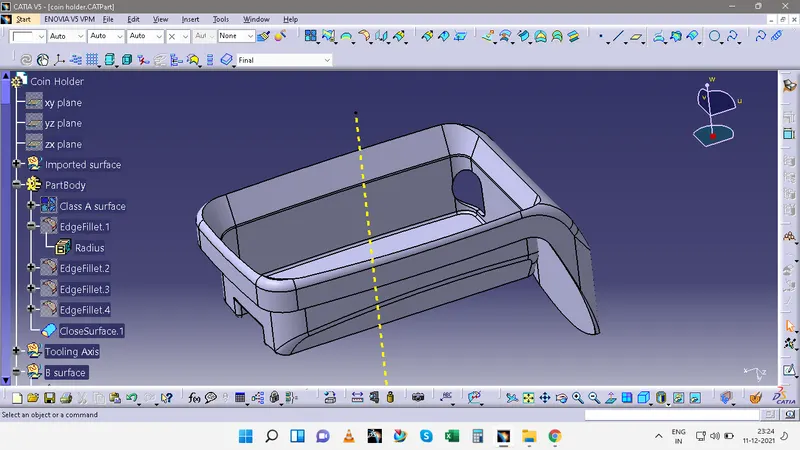

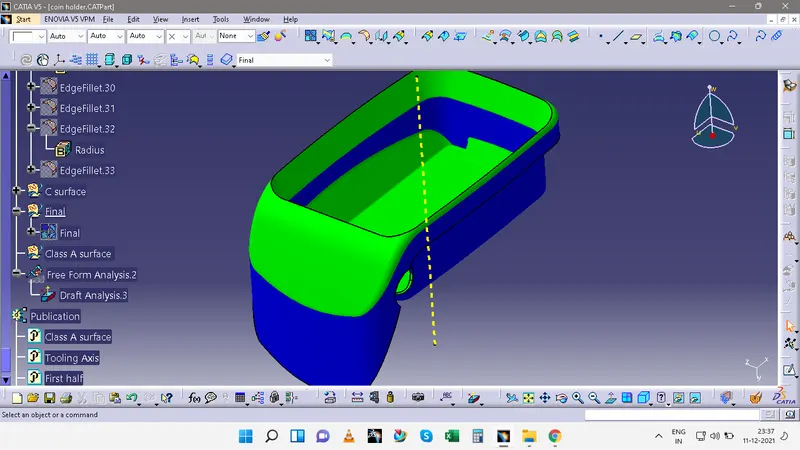

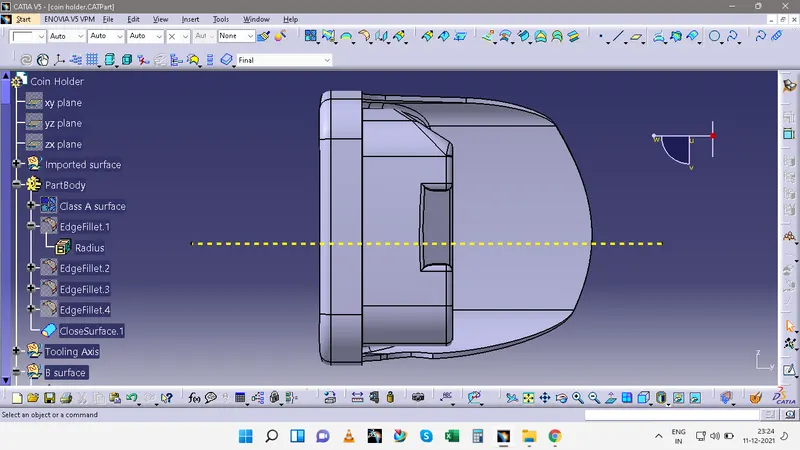

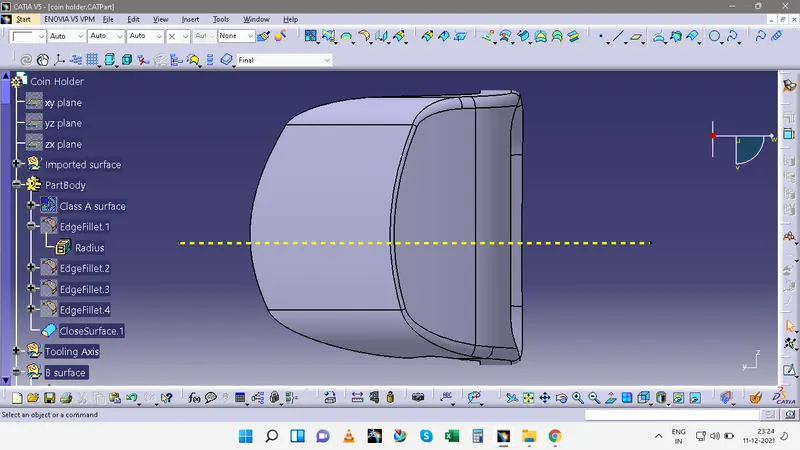

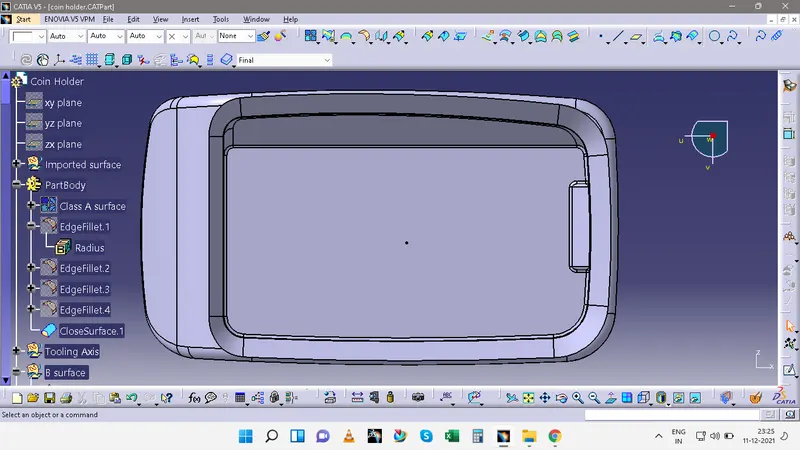

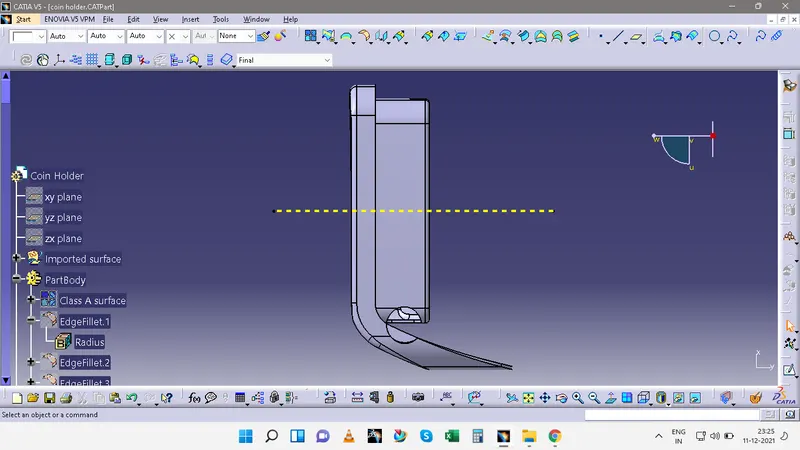

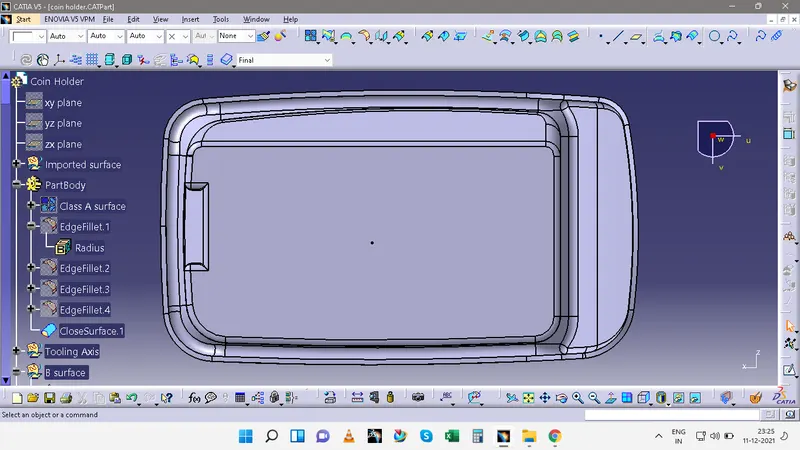

Coin Holder design Coin holder thicken 2.50 mm from given Class A surface and drafting analysis also done for both Class and closed body. Tooling axis created by bisecting and through surface. Both tooling axis are same results on Drafting analysis. In drafting analysis surface showing two colours one is green and blue …

Door arm rest with 2.50 mm thickness.

Draft Analysis On Base Bracket 1. I did Draft Analysis On Base Bracket. 2. Before Draft analysis we need to Create Tooling axis line. 3. Tooling axis creating by using Bisecting line therogh X axis and Y axis. 4. First i created poing on Base surface and inserted axis system. 5. I created one intersection line through…

Draft Analysis

A. What is the Door ?A car door is a type of door, typically hinged, but sometimes attached by other mechanisms such as tracks, in front of an opening which is used for entering and exiting a vehicle. A vehicle door can be opened to provide access to the opening, or closed to secure it. These doors can be opened manually,…

Roof is An automobile roof or car top is the portion of an automobile that sits above the passenger compartment, protecting the vehicle occupants from sun, wind, rain, and other external elements. Because the earliest automobiles were designed in an era of horse-drawn carriages, early automobile roofs used similar materials…

Section modulus is a geometric property for a given cross-section used in the design of beams or flexural members. Other geometric properties used in design include area for tension and shear, radius of gyration for compression, and moment of inertia and polar moment of inertia for stiffness. Any relationship between these…

Please find the attached Screen shots and IGS of Fender design i designed fender Sill mounting , bumper mounting, a piller mounting  as per given dimensions i designed sill mounting

1.Today I submitted hood inner, outer panel assembly with hinge and Latch reinforcement  2. I am not following the above quation fully I am not draw the fornt relief 200 mm 3, Firts I mirror hood inner and outer panel after the thicken, before thicken i cant sew the surface. 4. I am facing problem here to do mirroring…

Please find attached project on benchmarking on compact SUVs

I submitted about underbody coating and types of underbody coating.
