Week 8 - Challenge 4 - Coin Holder Design

COIN HOLDER DESIGN

• Create Tooling Axis to perform draft analysis
• Create Class B & Class C Surface from Class A Surface
• Join Class A & Class C Surface
• Trimm and Create Final Plastic Part
• Create Closed Surface

Draft Analysis-The Draft Analysis command enables you to detect if the part you drafted will be easily removed. This type of analysis is performed based on color ranges identifying zones on the analyzed element where the deviation from the draft direction at any point, corresponds to specified values.

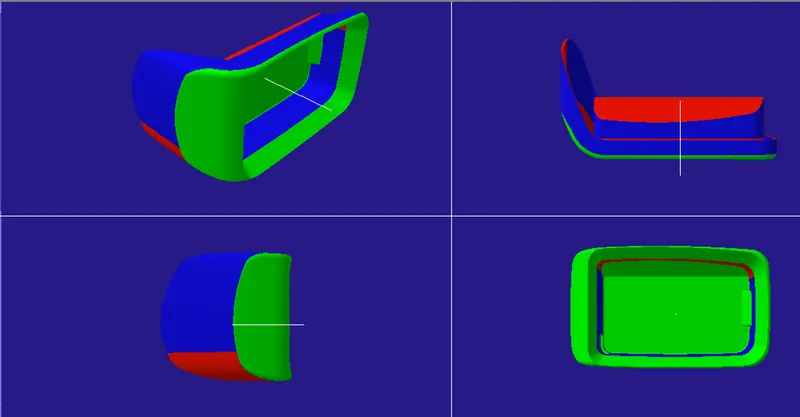

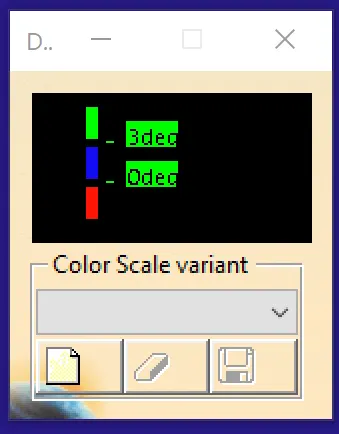

Class A Surface Color code

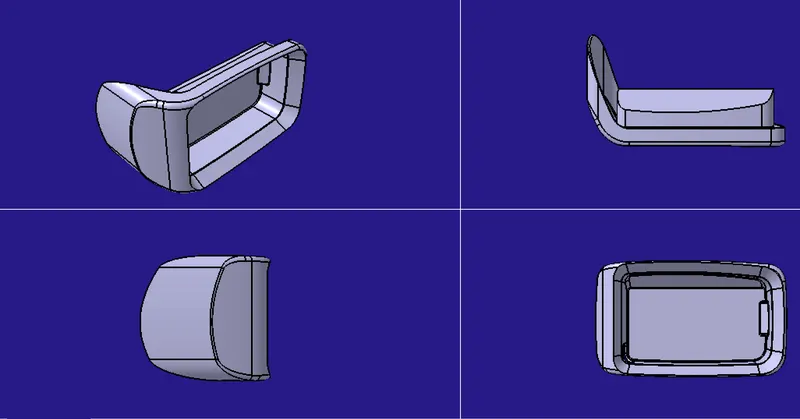

Final part

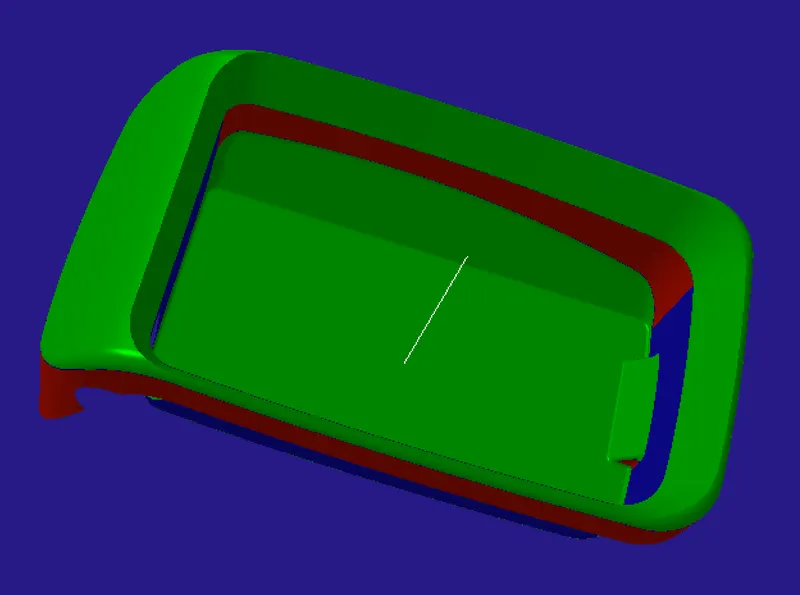

Here the Side wall of parts did not Clear the Draft Analysis, So I request Styling team to made changes in Class A Surface so that All faces must clear draft analysis.

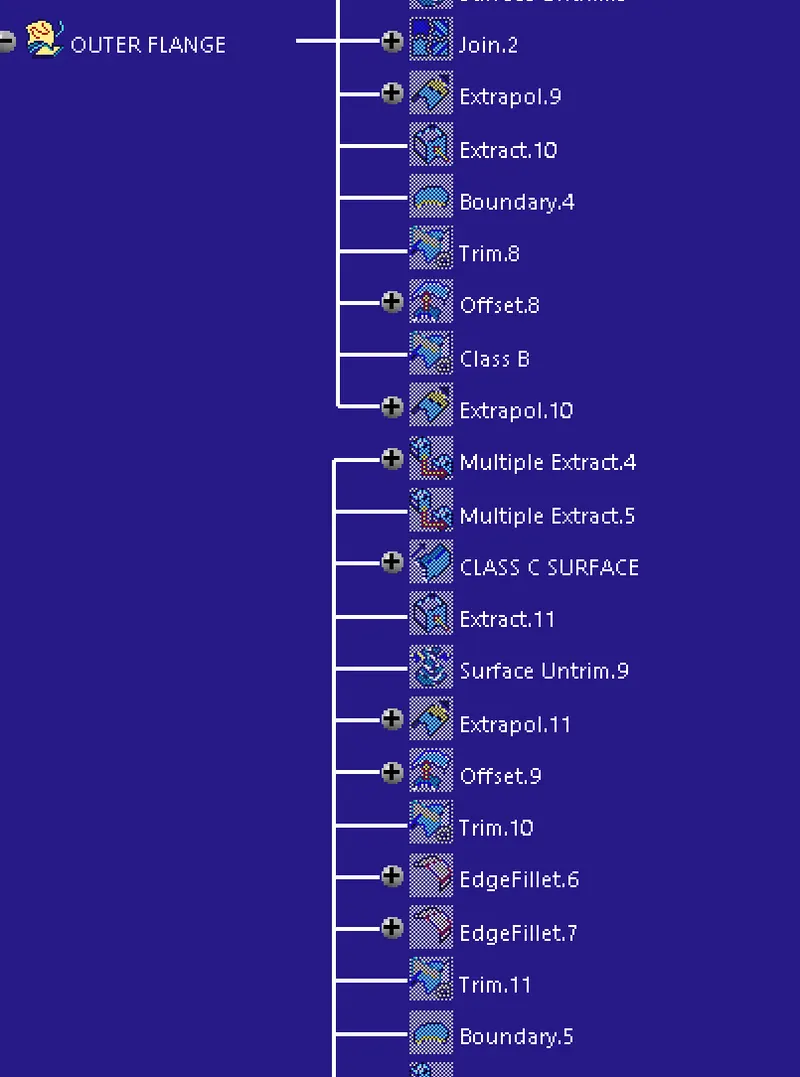

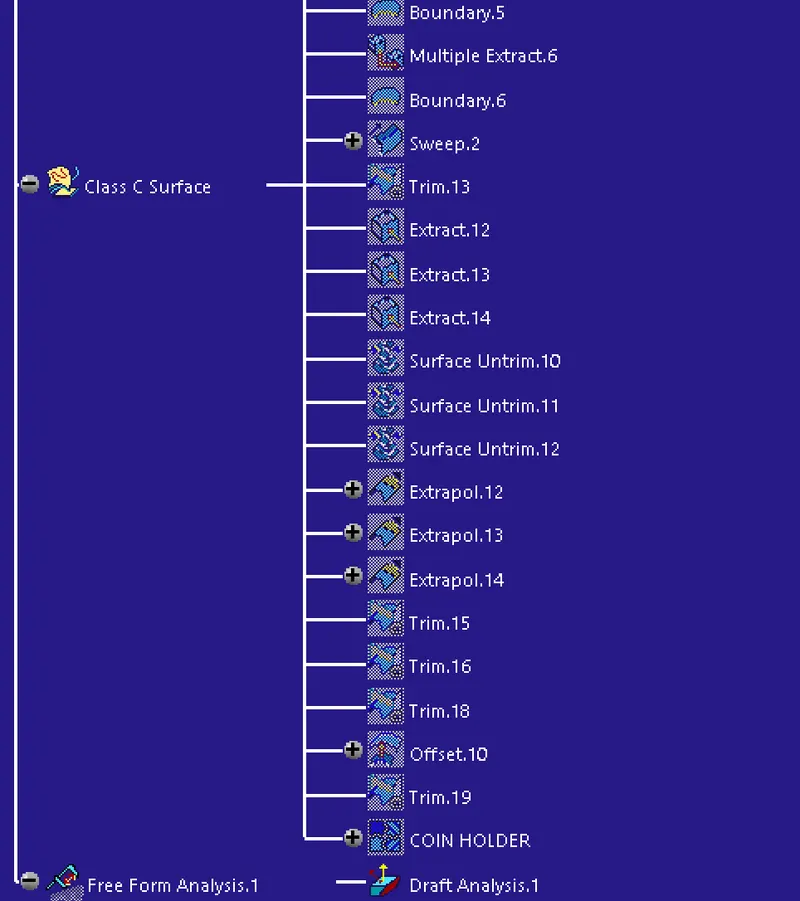

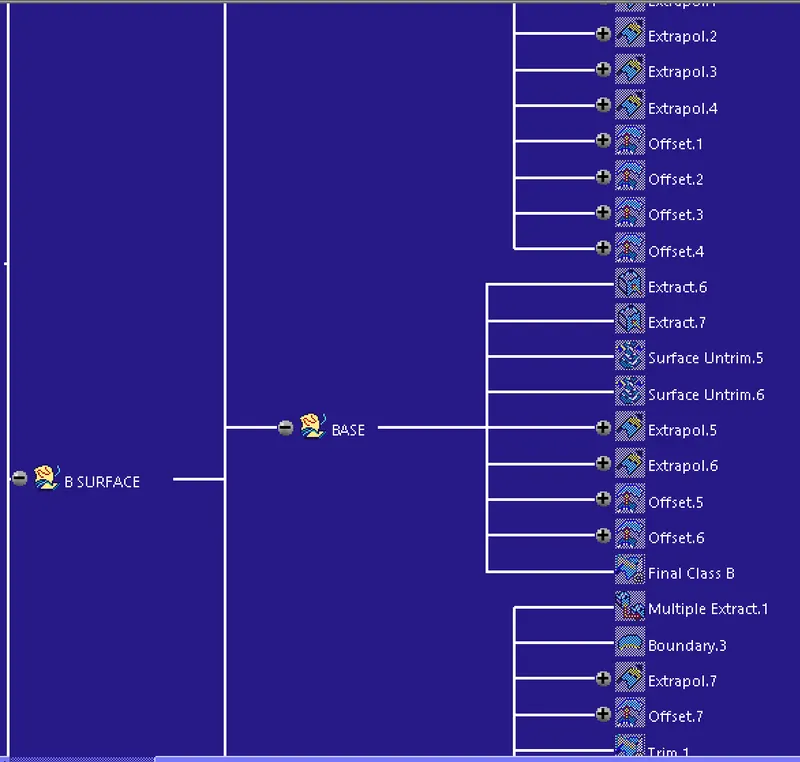

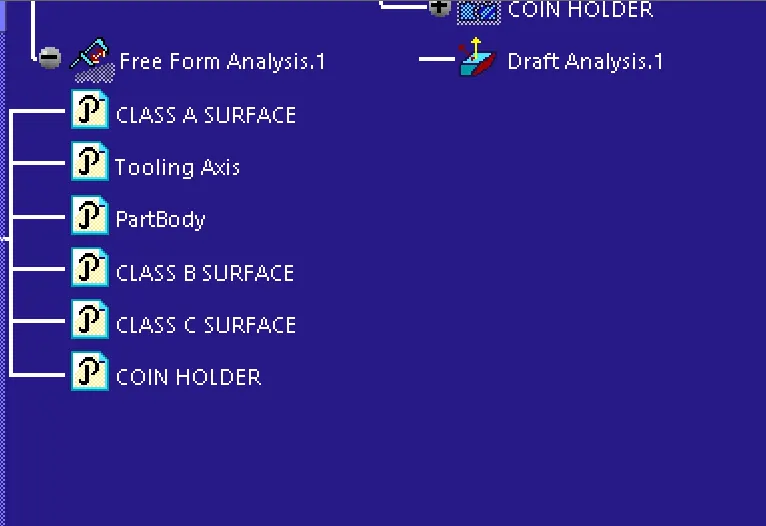

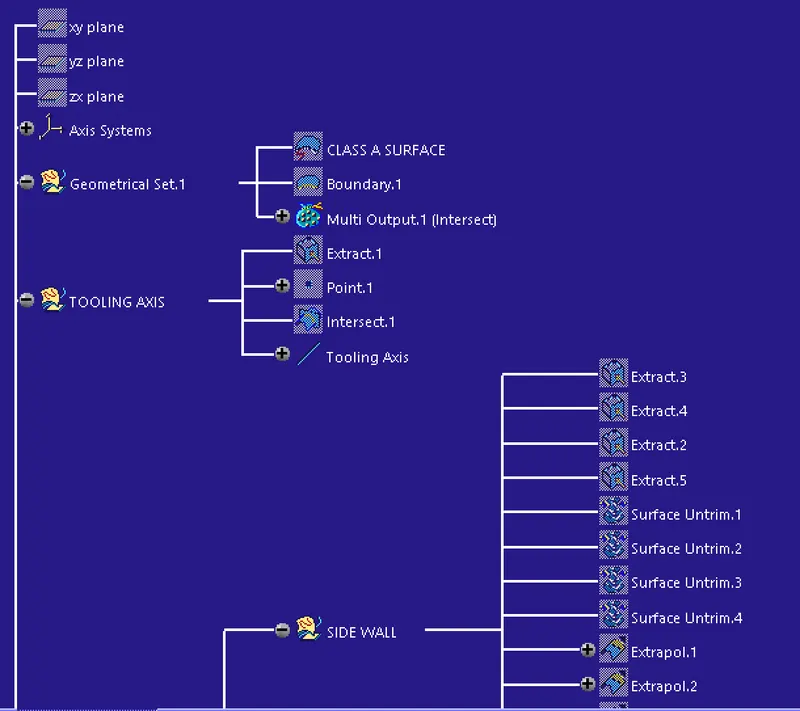

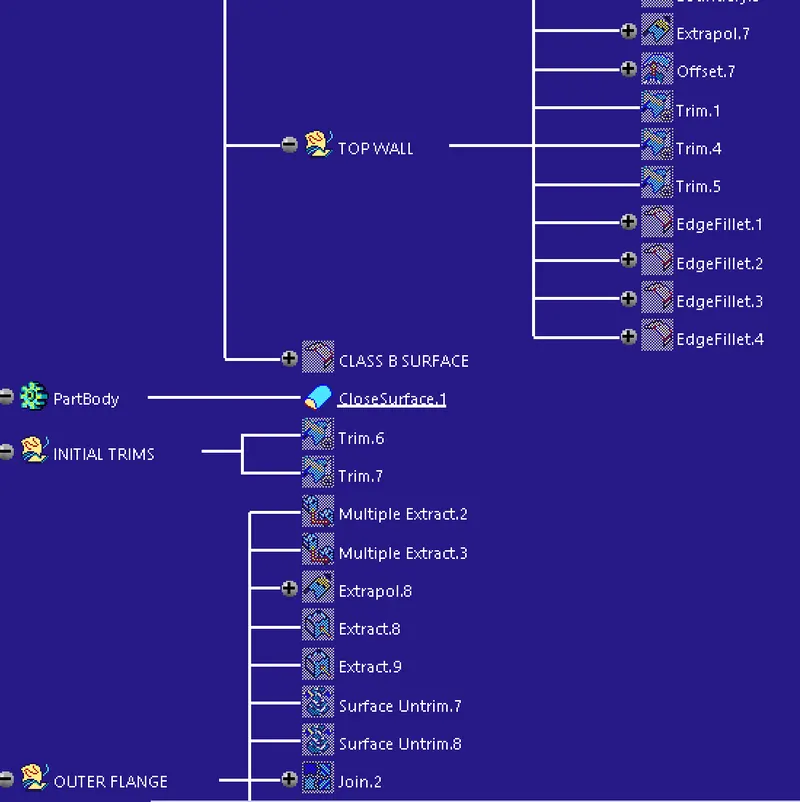

Feature Tree

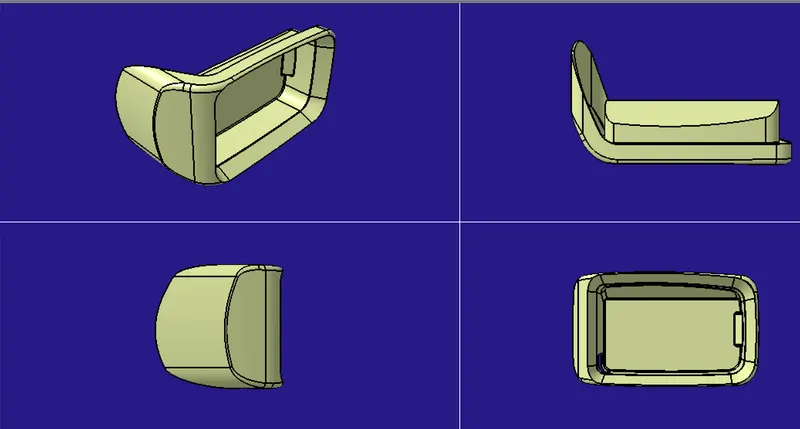

Final Plastic Part

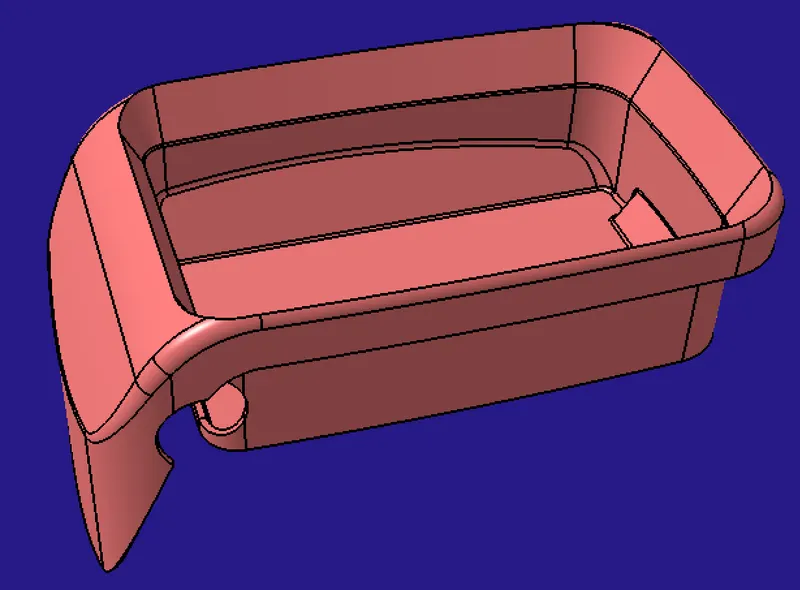

Closed Part

Thickness of 2.5mm is applied
