AMERICAN CHOPPER- Transmission belt, Kickstand, Front Fender, and Rear Fender

https://drive.google.com/open?id=1h4Iy8Q5Rn-aXDbNJ9RPnr8xSaVVGkKd6

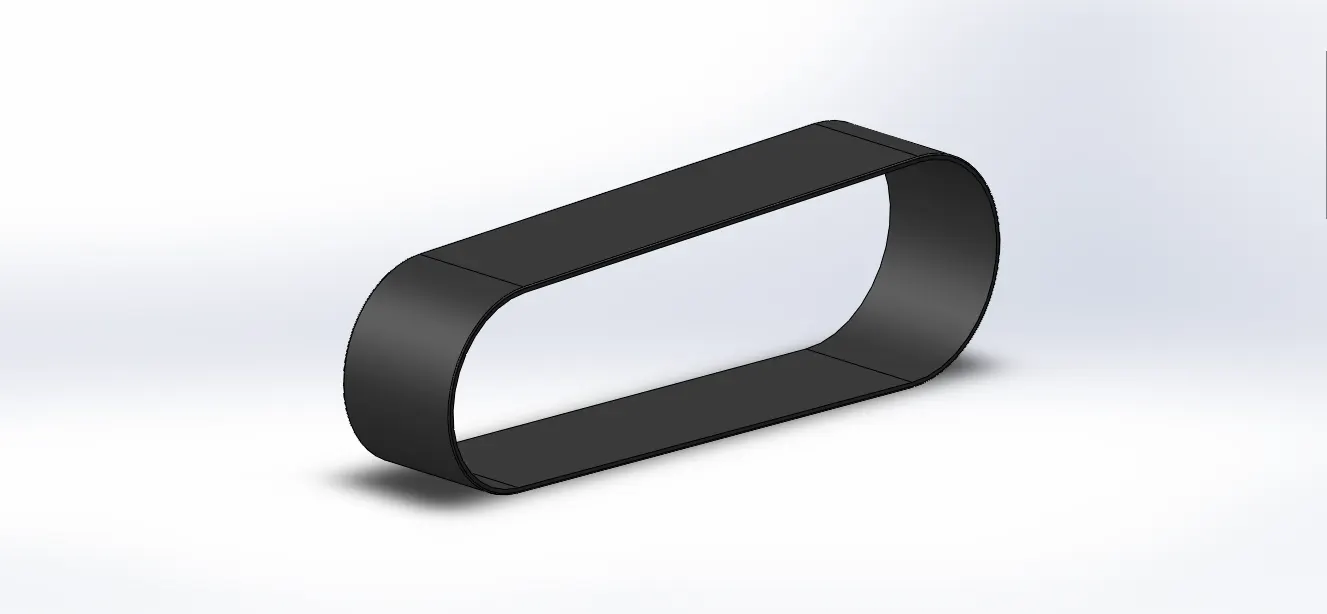

Transmission Belt

A belt is a loop of flexible material used to link two or more rotating shafts mechanically, mostboften parallel. Belt may be used as a source of motion, to transmit power efficiently or to track relative movements.

Design of Transmission Belt-I Design & Model this Belt in Solid works Using Features like Boss extrude, offset, 2d sketch(line & Arc) and fillet.

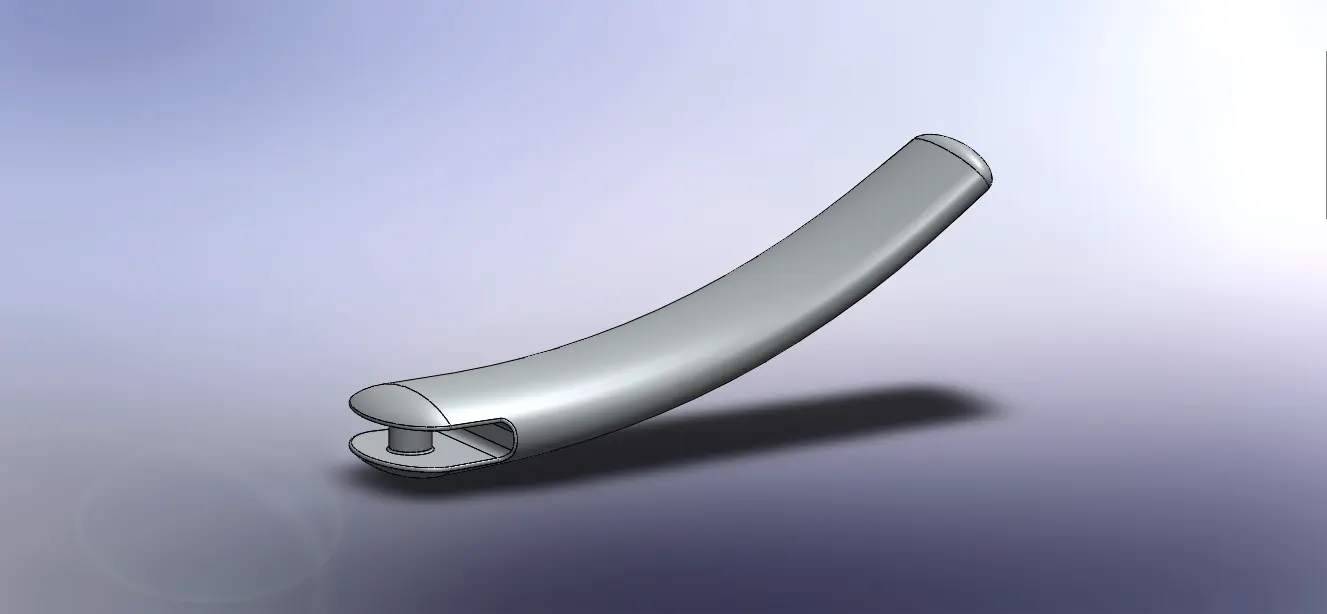

Kickstand

A metal rod attached to a bicycle or motorcycle, lying horizontally when not in use, that may be kicked into a vertical position to support the vehicle when it is stationary.

Kickstand Design-To Design kickstand, I use Surface loft feature to Create surface using 3 curves, Spline & 2 Ellipse.I also use boss extrude, split and extrude cut feature to design kickstand.

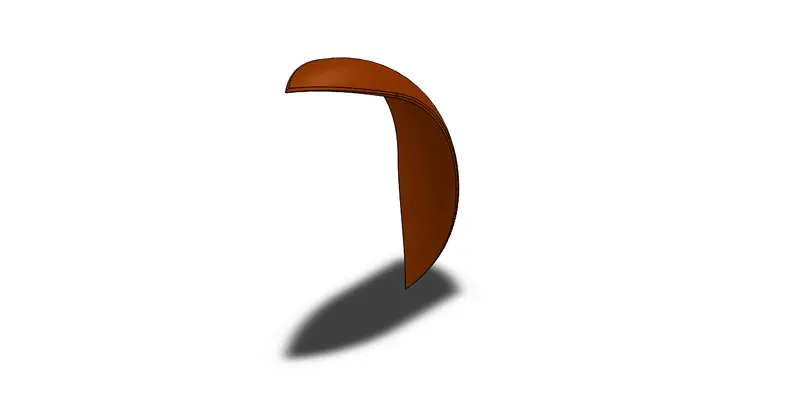

Front fender

These mudgaurds are fixed over the front tire of the bike. it protects bike rider from water and mud caused to thrown up by the bike.To model fender I use 2d sketch, revolve, split and fillet features.

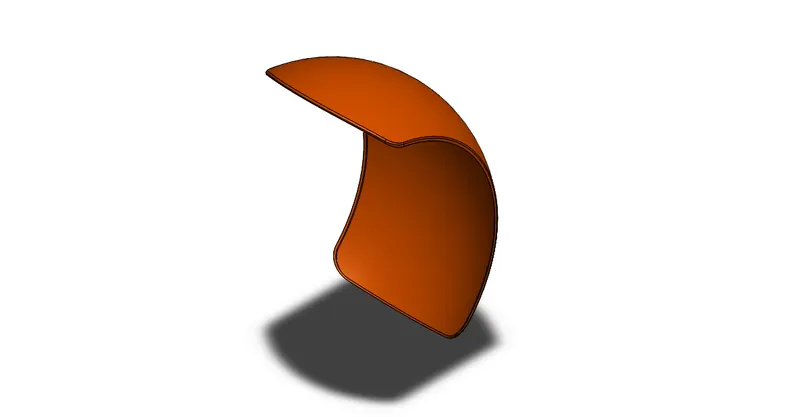

Rear fender

These mudgaurds are fixed over the Rear tire of the bike. It protects bike rider from water and mud caused to thrown up by the bike.To design rear fender I use same feature which are used in front fender the only difference is size of fender, also shell of 4mm is applied.
