Week 8 - Challenge 4 - Coin Holder Design
For successfully creating a component that is moldable or in other words that can be manufactured, Draft Analysis of the component should be carried out.
- What is a Draft?
Essentially, draft angles for injection molding are a design consideration that makes it much easier for a part to release cleanly from a mold. A draft angle is calculated as a degree measurement from the vertical axis of a mold, and it helps account for thermoplastic shrinkage, a practical reality of the injection molding process for most materials.
By accounting for thermoplastic shrinkage during the cooling process, draft angles greatly reduce friction between the finished, cooled part and the side of the mold. Not only does this create a much easier release process, it offers several other benefits, depending on the design of the part:
- Reduces the chance of damage to the part due to friction during release
- Reduces wear and tear and chances of damage to the mold
- Ensures a uniform, smooth, unscratched finish when required
- Ensures the integrity and uniformity of other surface finishes and textures
- Reduces overall cooling time by lessening or eliminating the need for unconventional ejection setups
- Most, if not all, of these benefits offer either direct or indirect overall production cost reductions
Steps for creating the Tooling Axis:
- The first and foremost step for conducting the Draft Analysis is to create the Tooling Axis. The Tooling Axis is the direction in which the mold opens and closes.
- The Main Tooling Axis is created along the Z direction by extracting the base surface of the Class A and then inserting a point on the surface.
- Once the main Tooling Axis is created, publish the Class A surface and the Tooling Axis.
Steps for Draft Analysis:
- Go to Views and Customize View Parameters. Change to material.
- Click the Draft Analysis tool and use the compass to define the draft direction as the main tooling Axis.
- Once placed correctly, lock the draft direction.
- Now, since the minimum draft angle for plastic components is 3 deg, define the value as 3 deg and select the Coin Holder.
- The Draft Analysis is completed

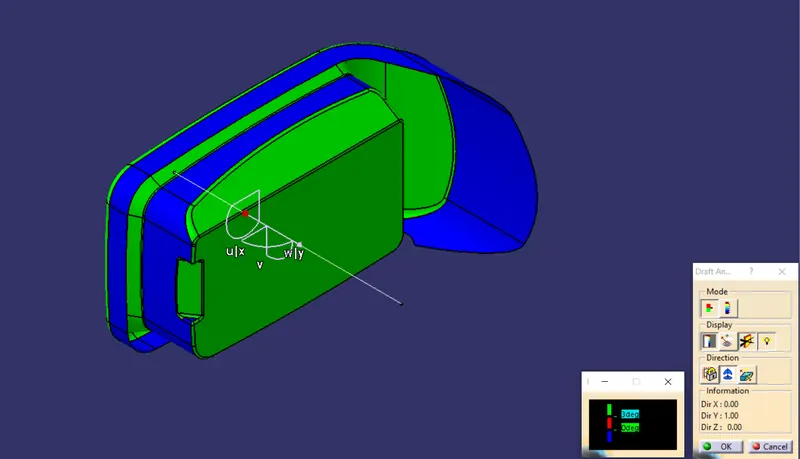

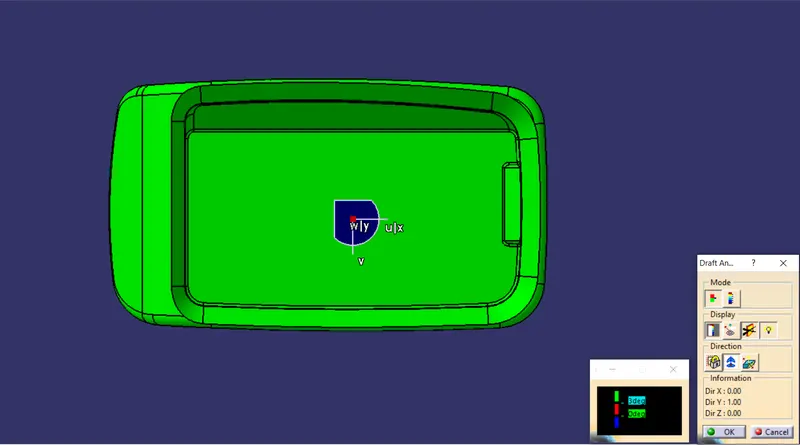

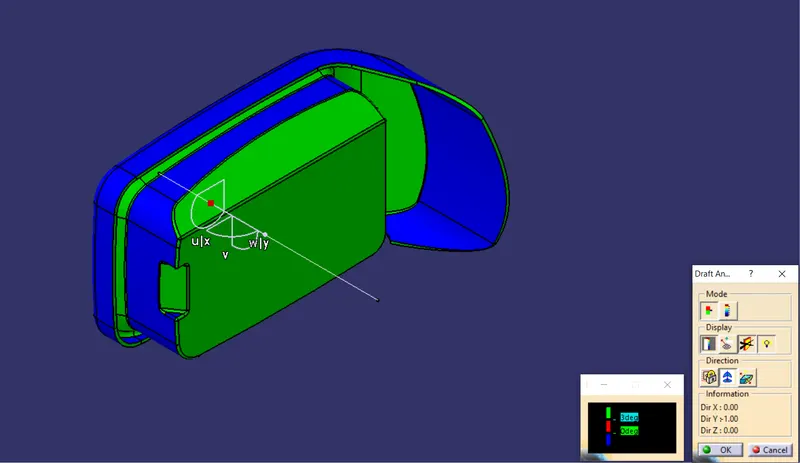

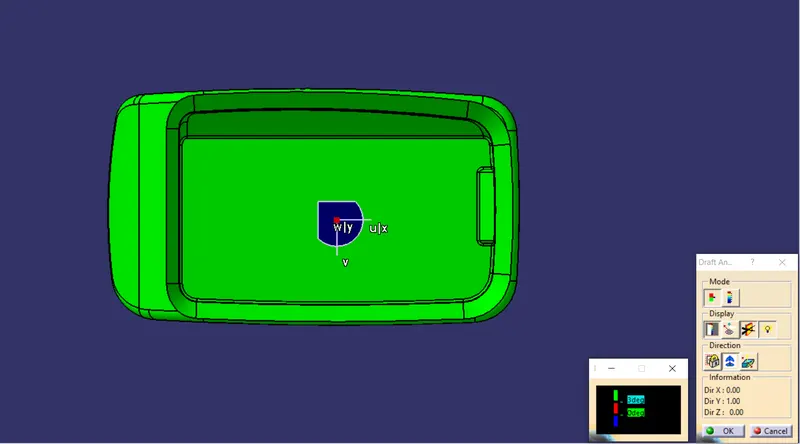

Draft Analysis along the Main Tooling Axis

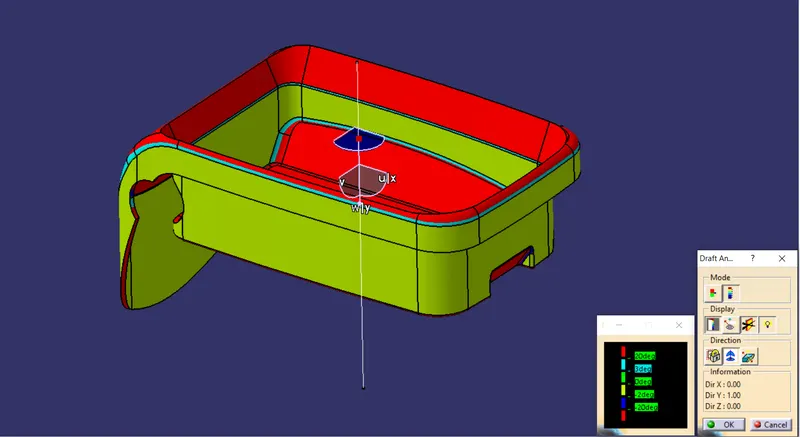

Isometric View

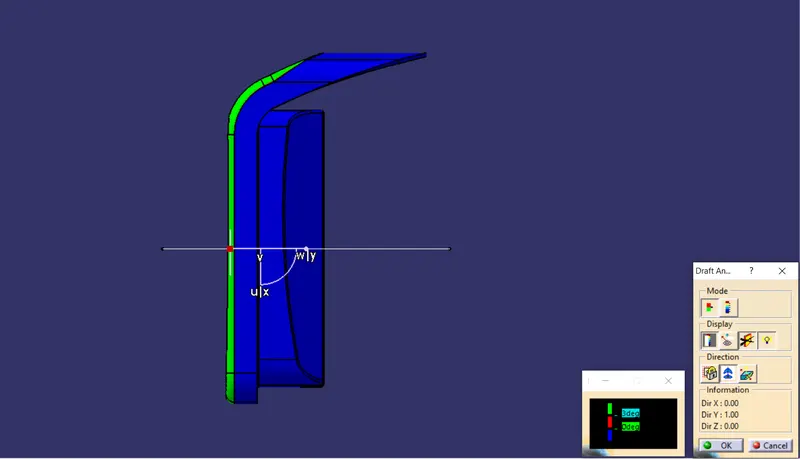

Front View
Side View
Top View
Results/ Conclusion of the Draft Analysis: By referring to the colour scale, the minimum draft angle of 3 deg is achieved and the component can be manufactured. The running point analysis tool can be used to find the value of draft angle at any point. If under any circumstances, the draft angle is found to be less than 3 deg, then appropriate changes should be done in defining the correct Tool Axis so that the draft angle is achieved and the component is manufactured.
- Since the given Class A has faces that are at 0 deg, so that does not satisfy the criteria of having a minimum draft angle of 3 deg. Hence, the faces that have the minimum draft would only clear the Tooling Axis.
- Appropriate changes are suggested in the Class A to provide a minimum draft to the faces that are parallel to the Tooling Axis and make the component moldable.
Steps for giving thickness:
- Creation of Class B Surface
- Creation of Class C Surface
- Creation of Closed Surface
- The following commands/features were used to create the solid part - Extract, Untrim, Extrapolate, Offset, Trim, Sweep, Multiple Extract, Boundary, Join, Edge Fillet, Close Surface.

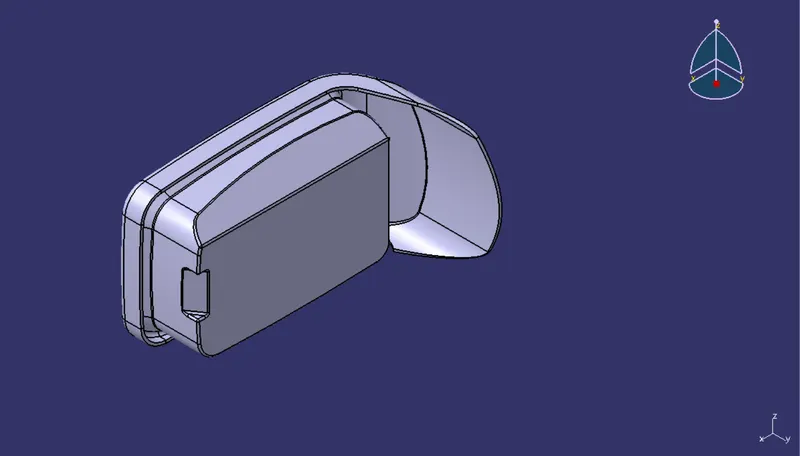

Isometric View

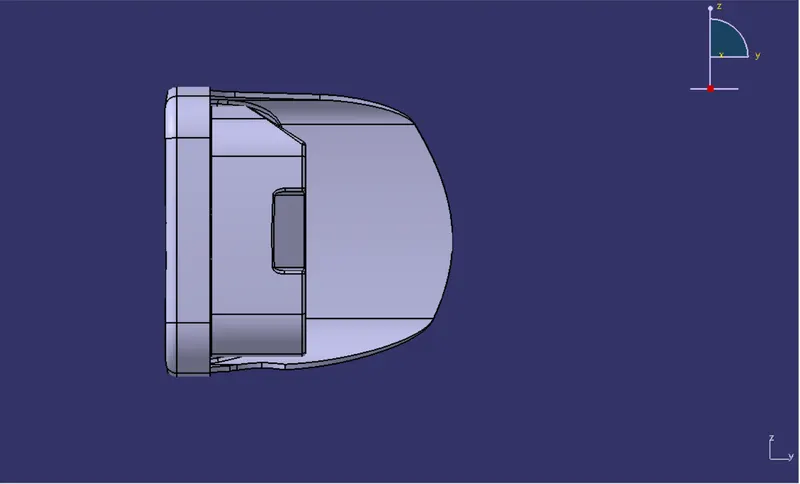

Front View

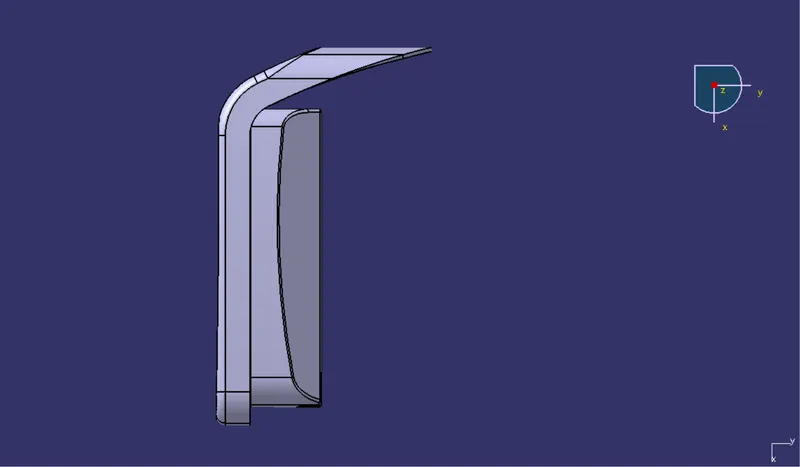

Side View

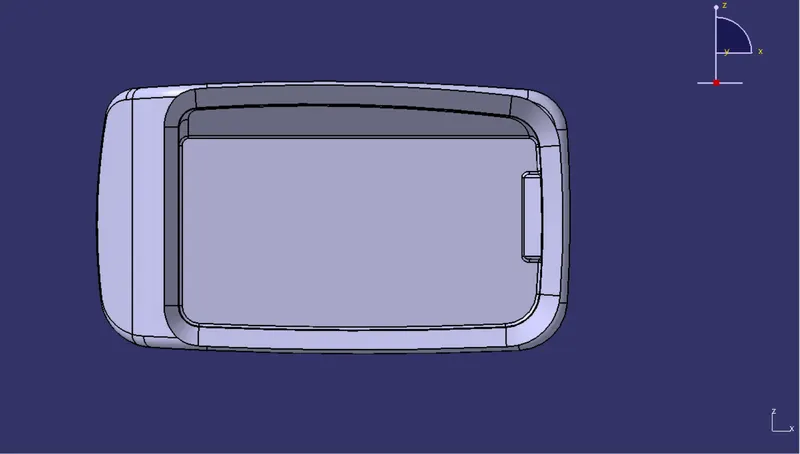

Top View

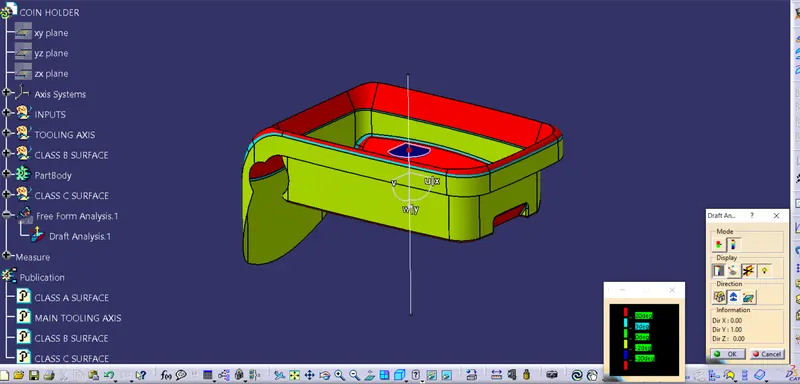

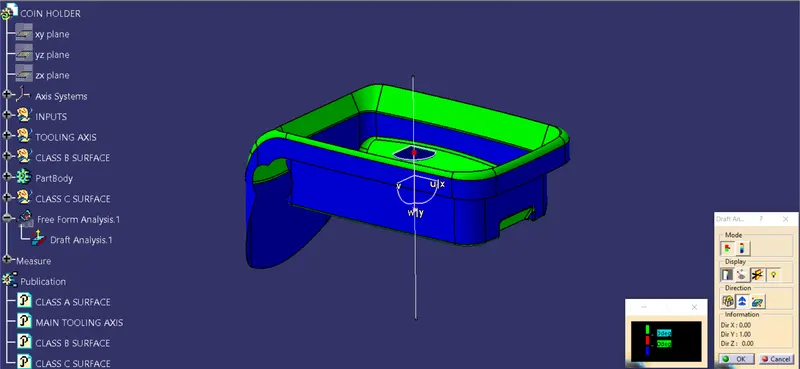

Draft Analysis on Solid part:

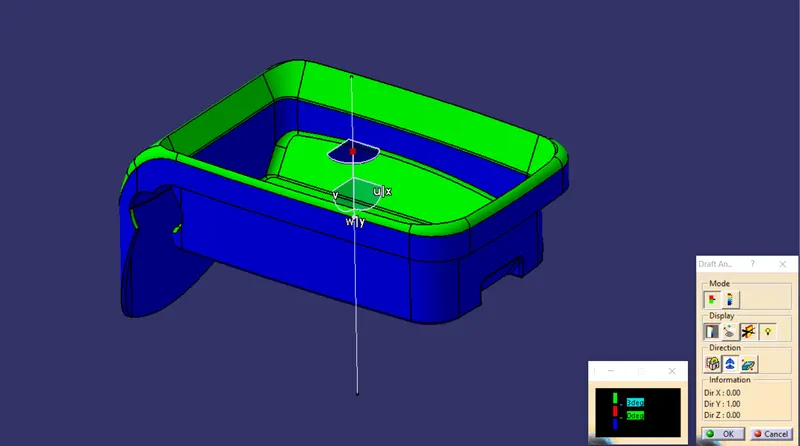

Isometric View

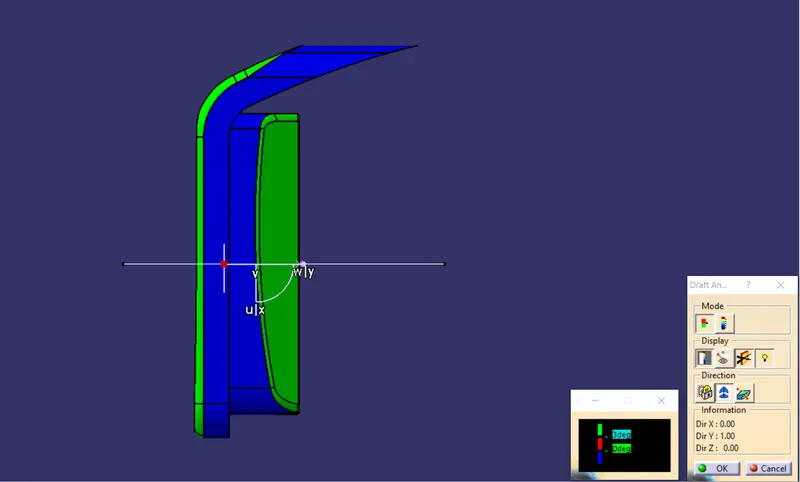

Front View

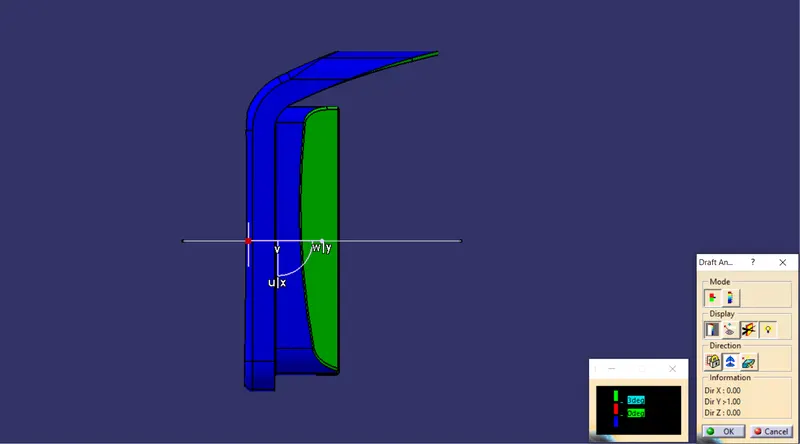

Side View

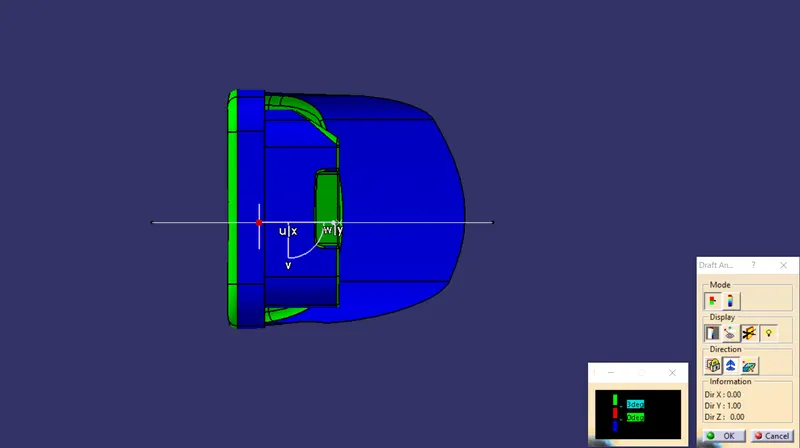

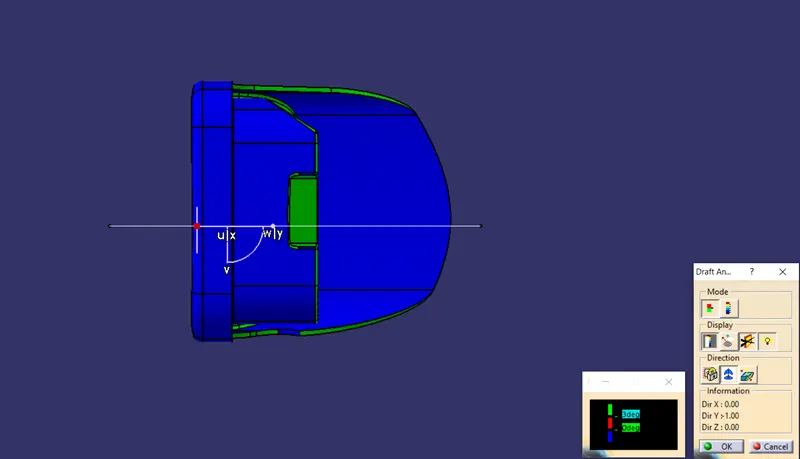

Top View
The other face clears the Tooling Axis on reversing the direction
