Week 8 - Challenge 4 - Bumper

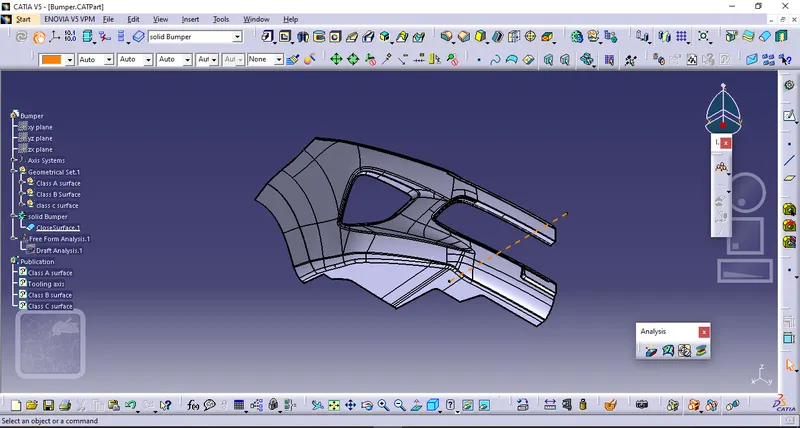

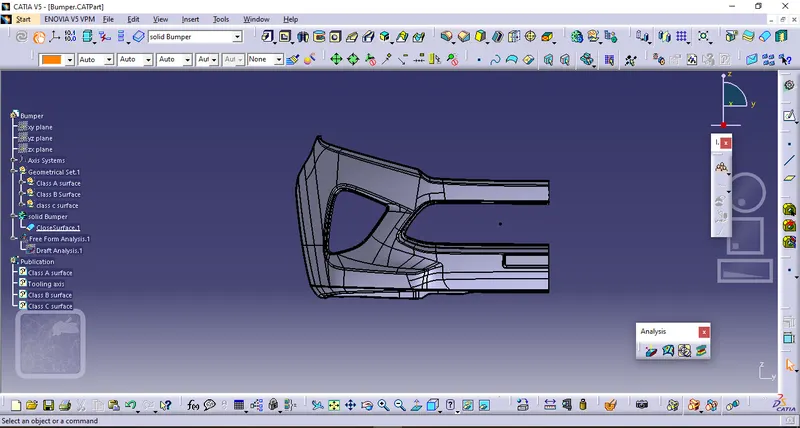

For the Part Bumper

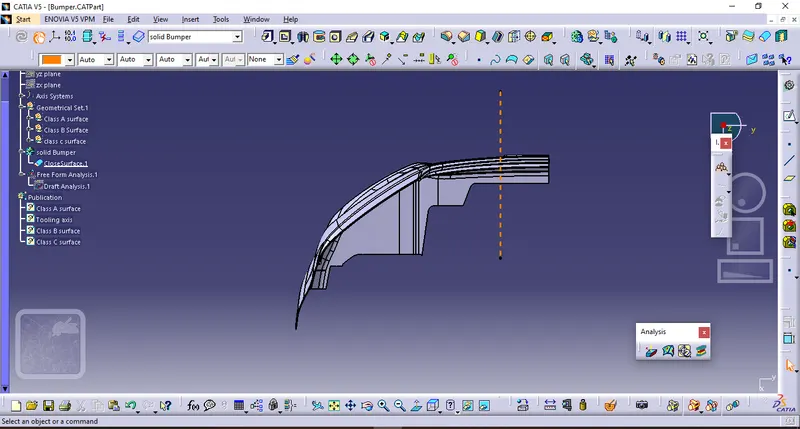

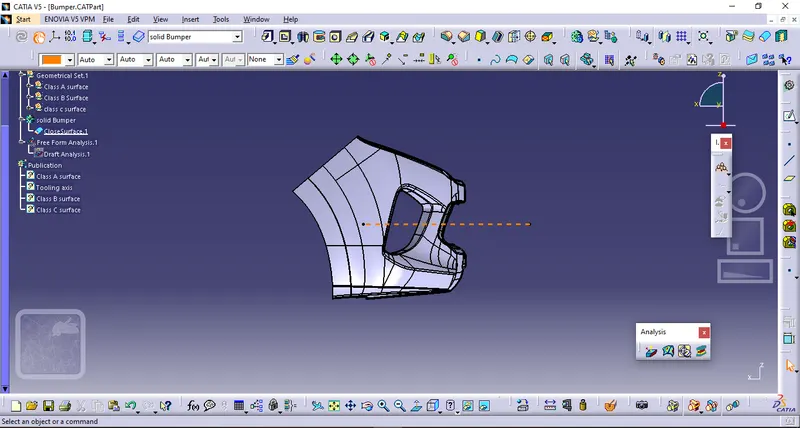

Class A surface was defined from Input data.

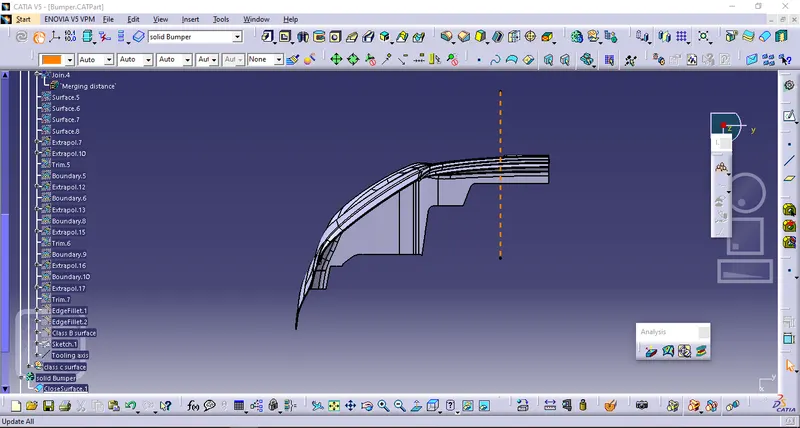

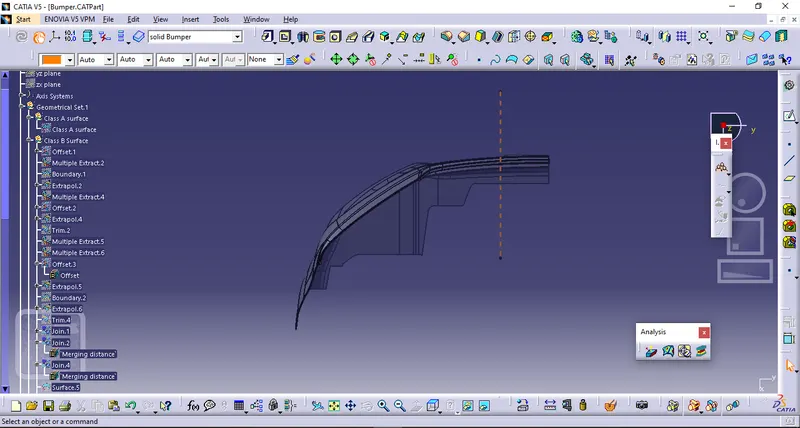

From Class A surface class B Surface was developed using and offset of 3mm

all patched which were left by offset command were developed to form complet Class B Surface

Class B surface is the face were all fixture element and other working elements added. as A surface is for aesthetic purposes.

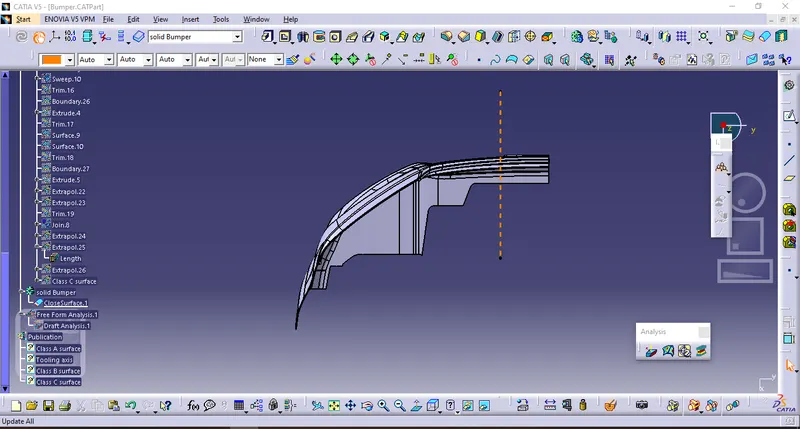

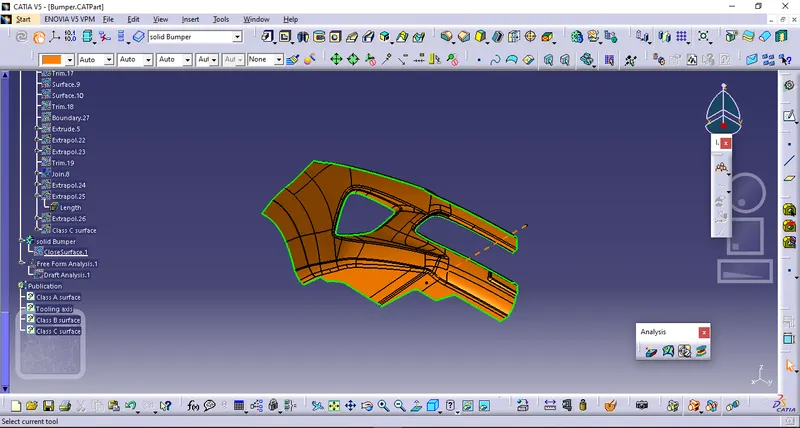

Class C surface is the surface used to join Class A And Class B surface

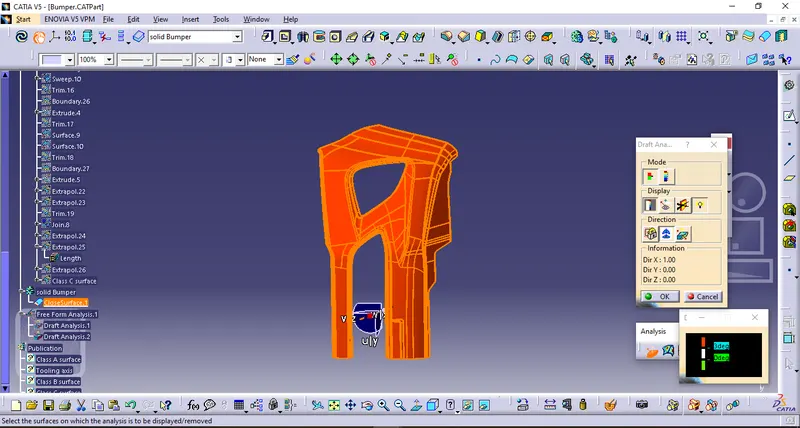

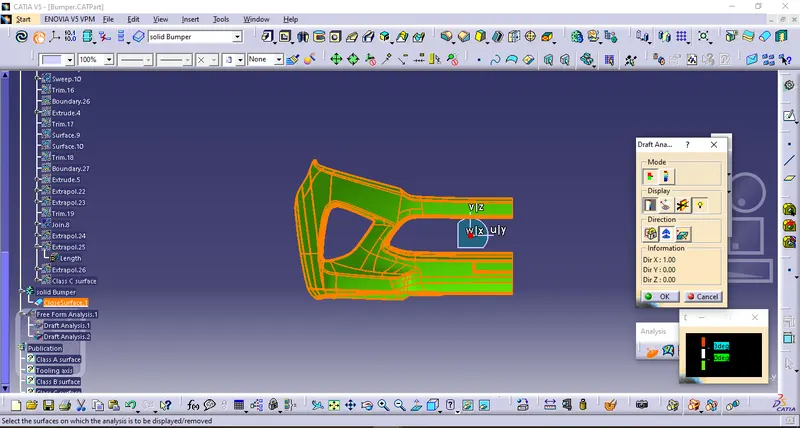

From Draft analysis its clear that this plastic part can be easyly injection molded and it will not get stuck in mold.

For a Plastic component a minum of 3 degree draft is maintained.
