AIM: To make a model from the provided class-A surface.

INTRODUCTION:

CLASS-A SURFACE: A surface made by the designer which is given as an input to the plastic modeler to work on. It is aesthetic surface and the outer most surface.
CLASS-B SURFACE: A surface below a certain thickness from the class-A surface is class-B surface. This is the surface that contains engineering aspects of a model.
CLASS-C SURFACE: A surface that joins class-A and class-B surfaces is class-C surface.

SCREENSHOTS OF WORKING:

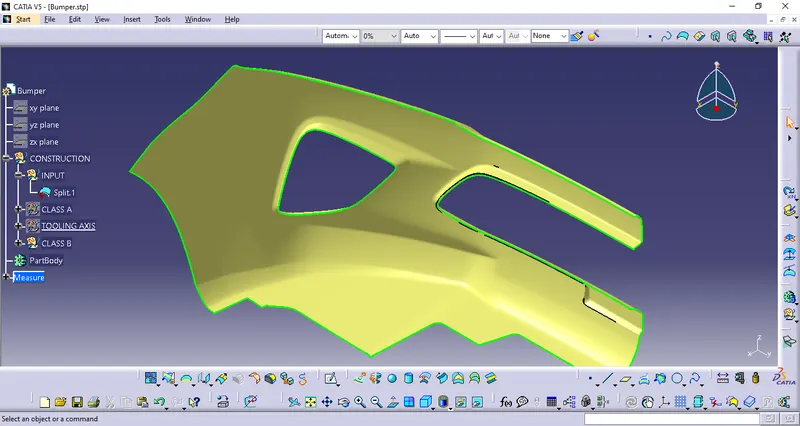

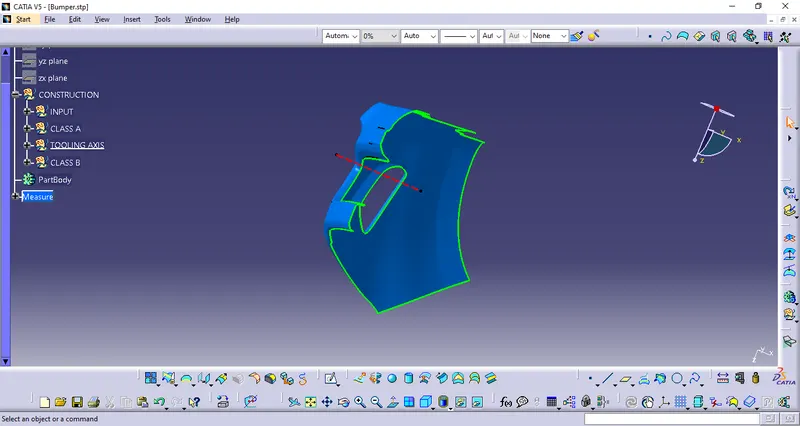

INPUT:

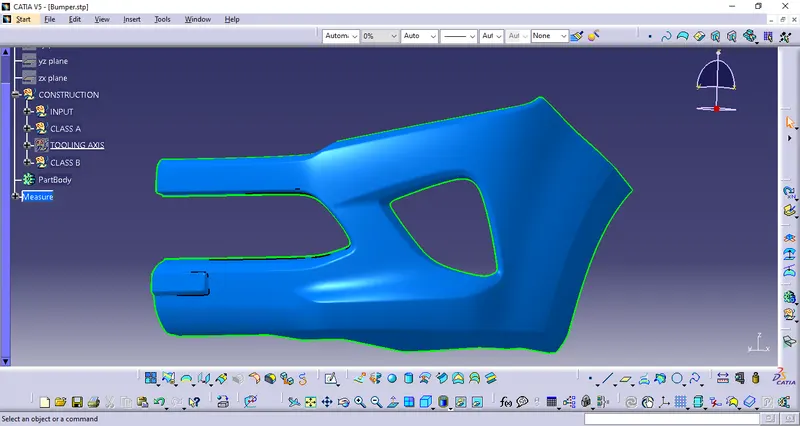

CLASS-A:

TOOLIING AXIS:

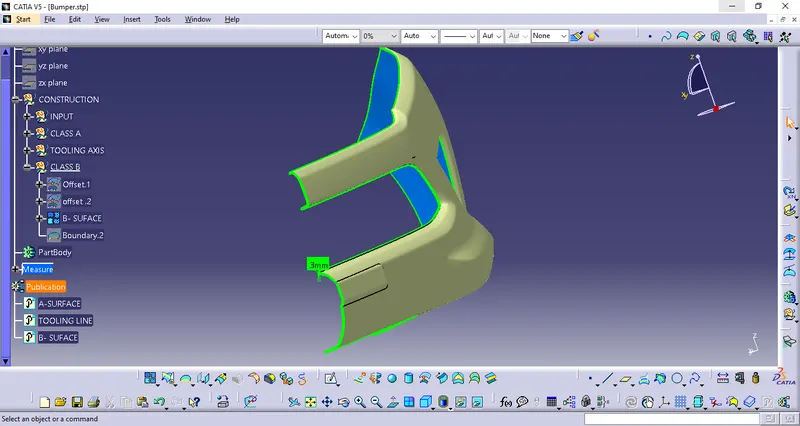

CLASS-B:

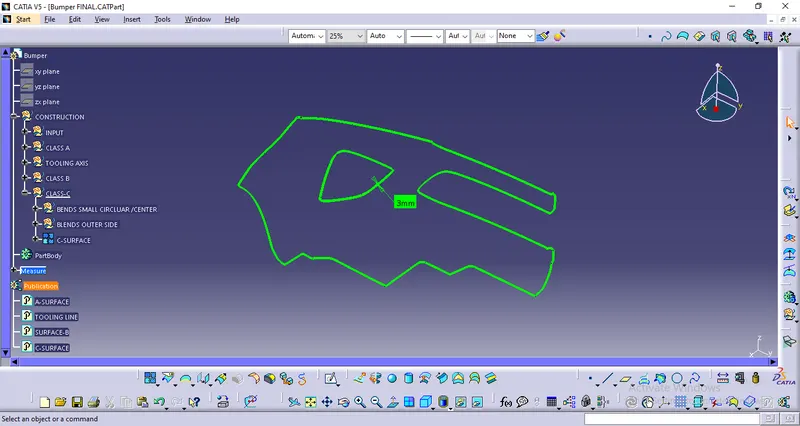

CLASS-C:

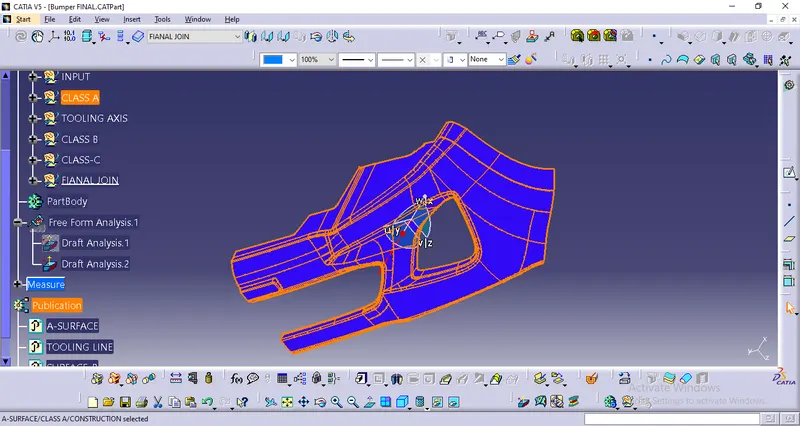

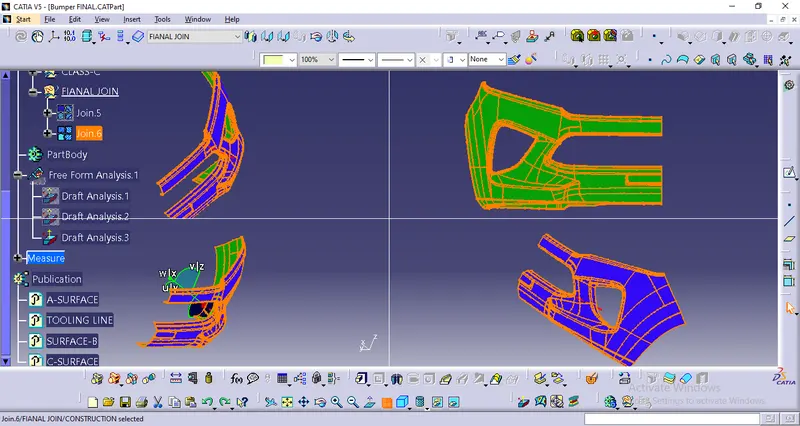

DRAFT ANALYASIS OF A SURFACE:

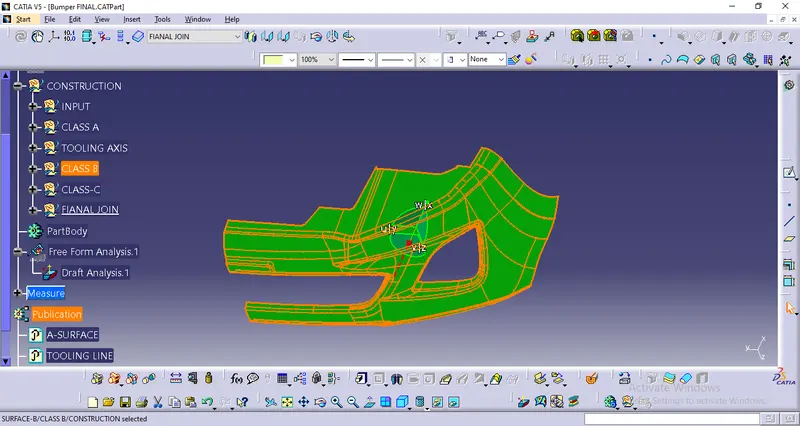

DRAFT ANALYASIS OF B SURFACE

DRAFT ANALAYSIS ON FINAL COMPONENTS

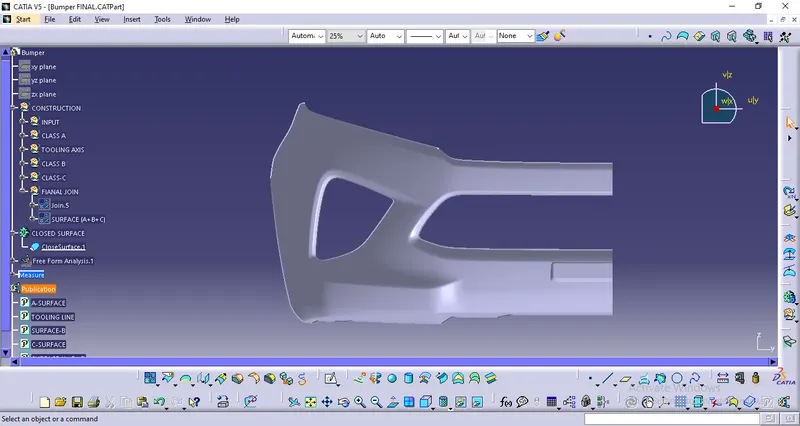

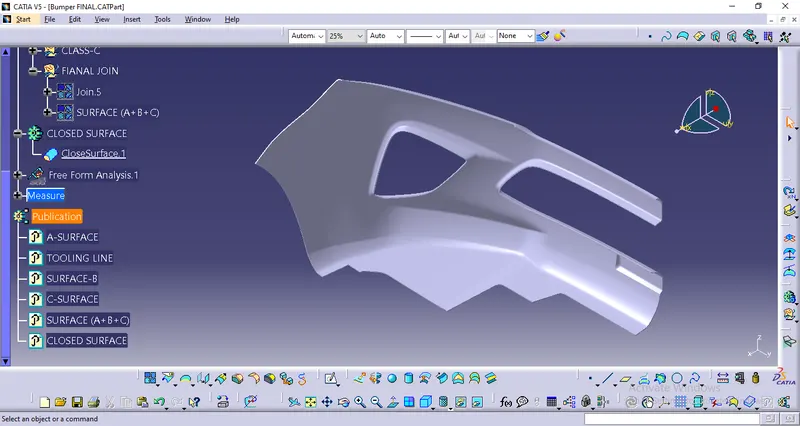

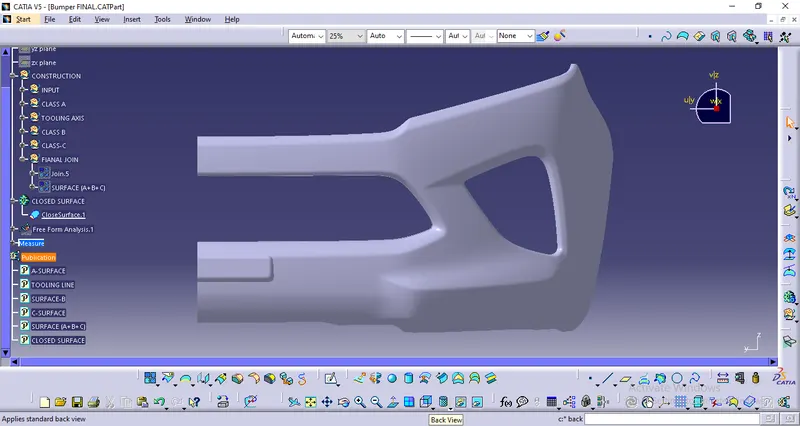

CLOSED SURFACE:
