Week 8 - Challenge 4 - Bumper

QUESTION

Create the Bumper Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

Take the Thickness of the component to be 3 mm

AIM: To make a model from the provided class-A surface.

INTRODUCTION

CLASS-A SURFACE: a surface made by the designer which is given as an input to the plastic modeler to work on. It is aesthetic surface
and the outer most surface.

TOOLING AXIS

It is the dirction in which the mold open or core & cavity open. Part drafts are given along this axis.

CLASS-B SURFACE: A surface below a certain thickness from the class-A surface is class-B surface. This is the surface that contains
engineering aspects of a model.

CLASS-C SURFACE: a surface that joins class-A and class-B surfaces is class-C surface.

METHODOLOGY:
In this model we have focused on the following things:
Tooling axis
Draft analysis
Class-B surface
Class-C surface
Making a solid model from surface.
Following tools were used to reach the final step:
Extract
Un-trim
Trim
Extrapolate
Offset
Edge fillet
Boundary
Sweep
Join
Close (part design)

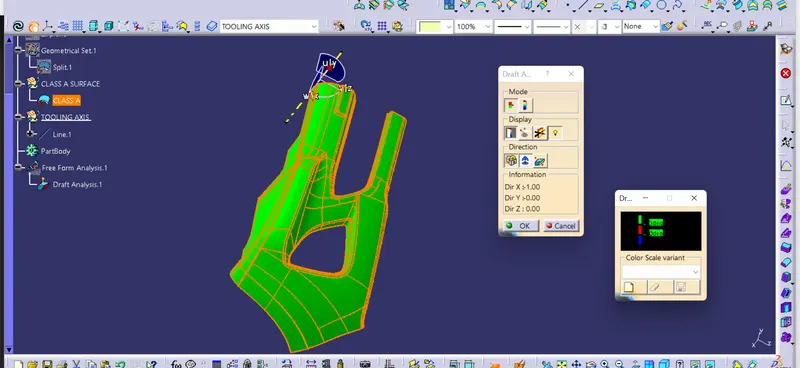

FOR DRAFT ANALYSIS: CLASS A

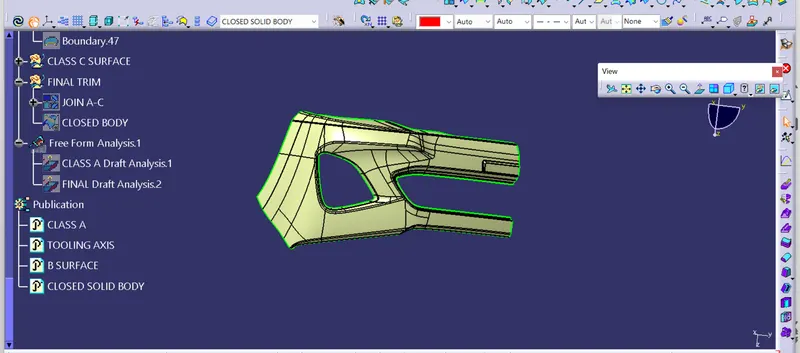

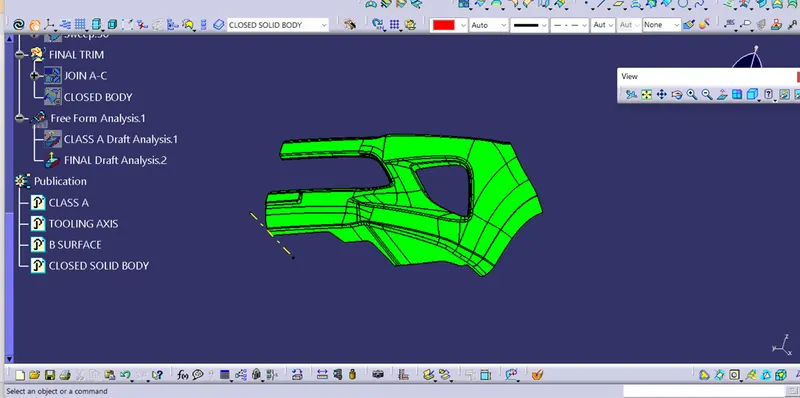

DRAFT ANALYSIS SOLID BODY

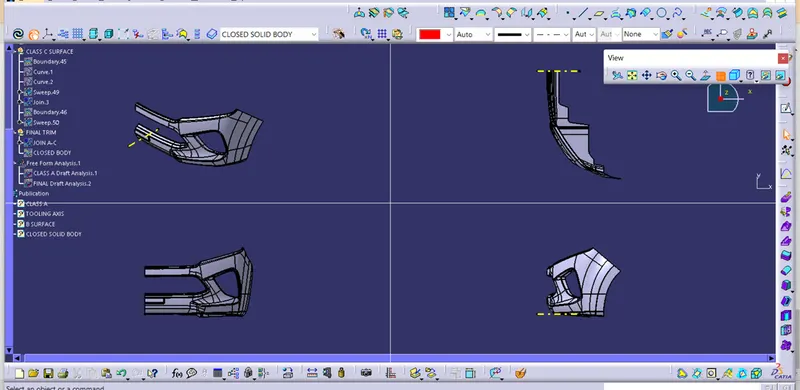

ISOMETRICVIEWS

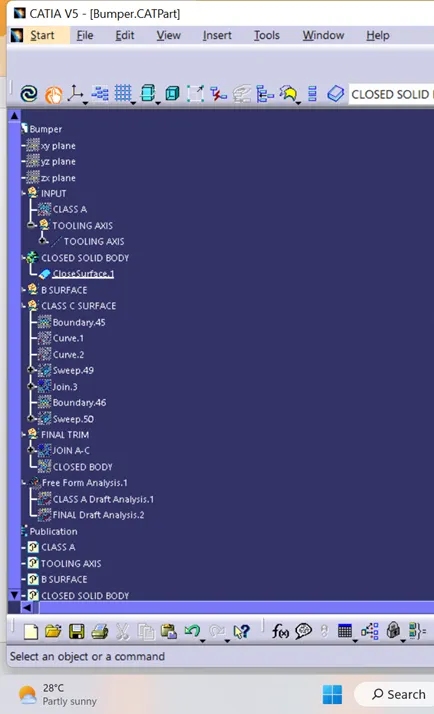

Tree Structure
