Week 8 - Challenge 4 - Bumper

AIM:

Create the Bumper Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

Take the Thickness of the component to be 3 mm.

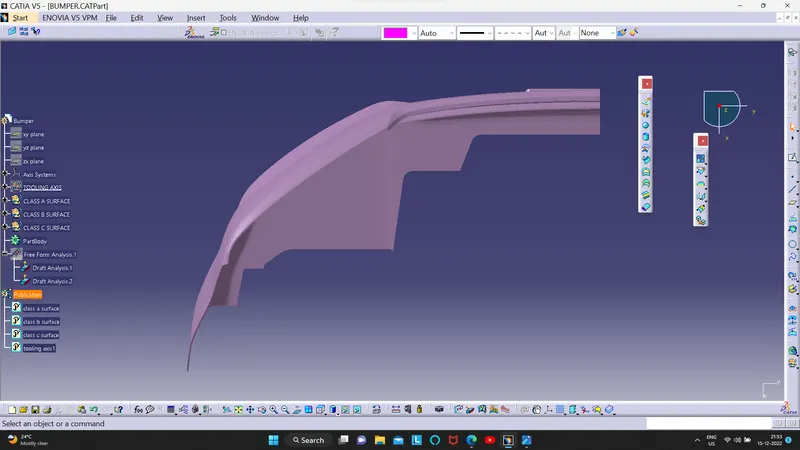

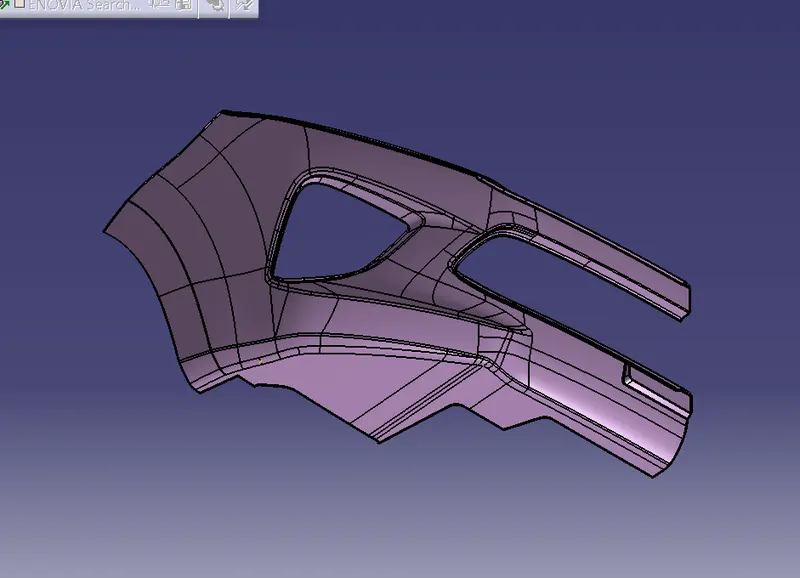

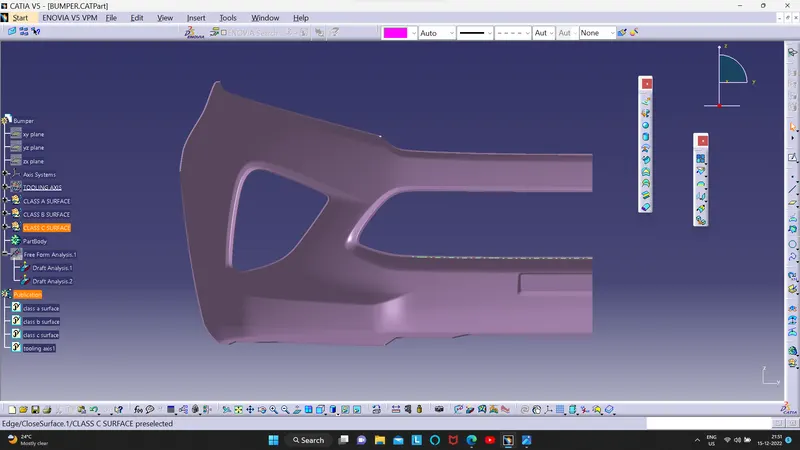

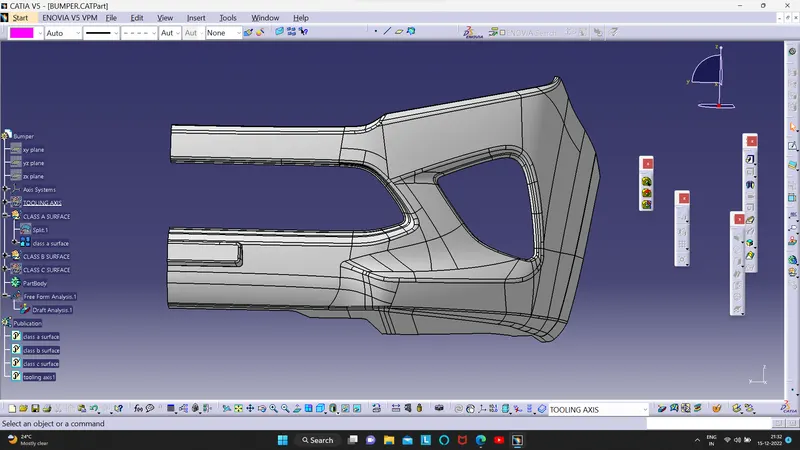

GIVEN CLASS A SURFACE:

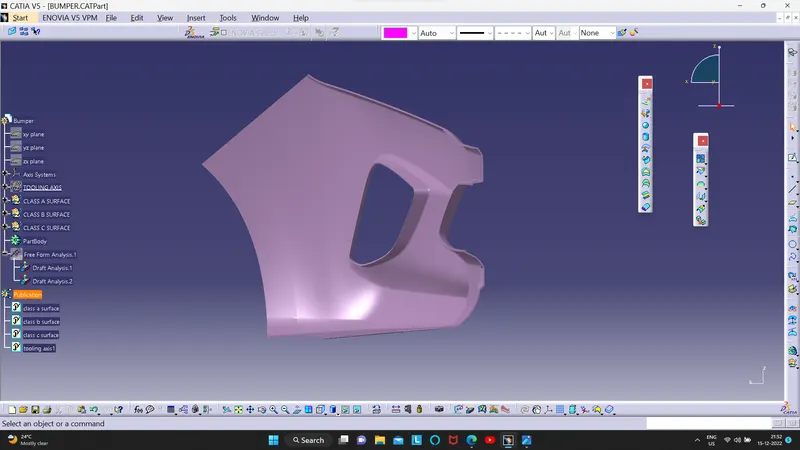

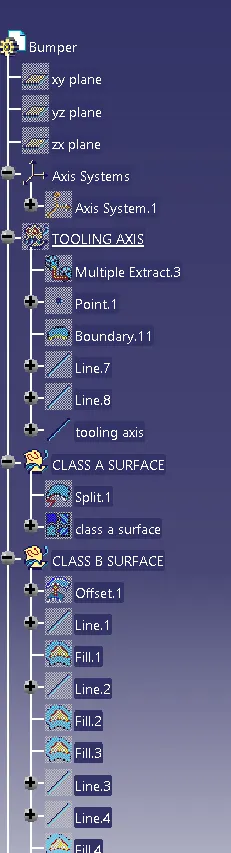

TOOLING AXIS:

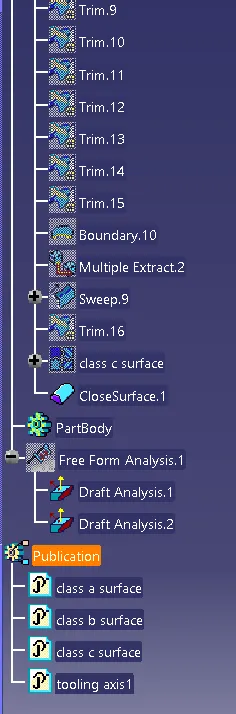

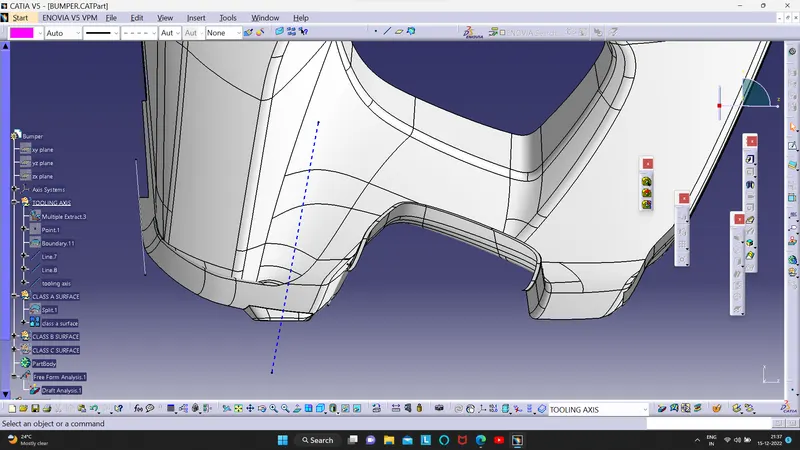

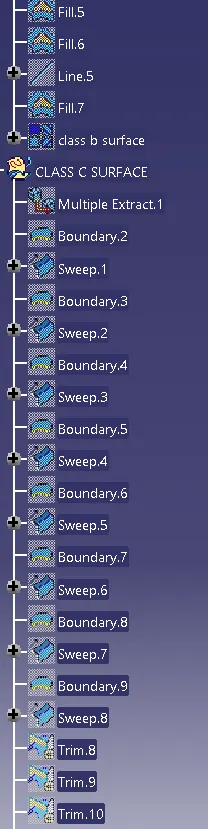

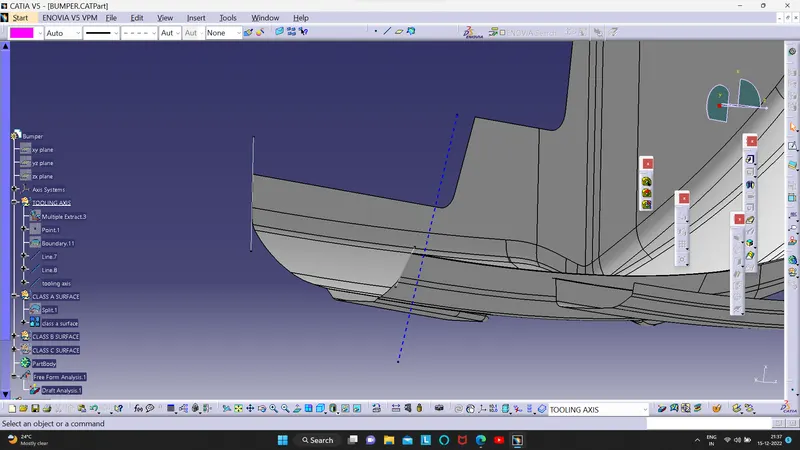

BISECTING METHOD:The surfaces that potentially cause issues are chosen in this manner, and intersections in the x and y directions are taken. Using these curves, we create two lines, from which we create a bisecting line in both the x and y directions.
Tooling axis cleaning x-direction and tooling axis clearing y-direction are the terms used to describe how the clearing is carried out.
We must then draw a final line that splits the two tooling axes in the X and Y directions.

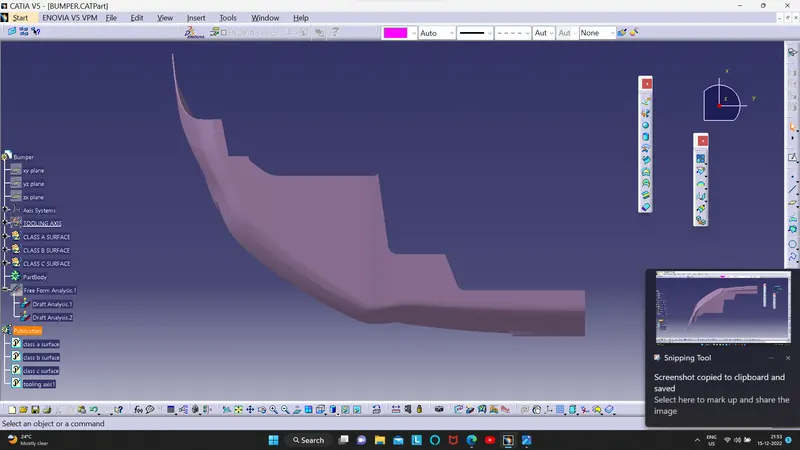

Draft analysis of Class A Surface:

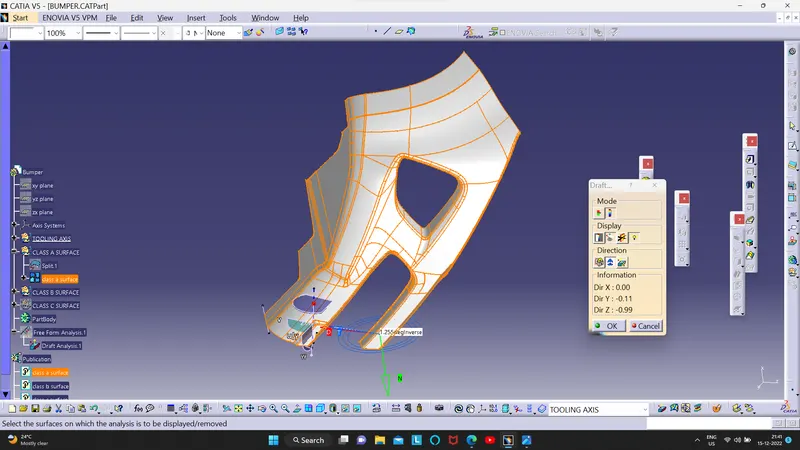

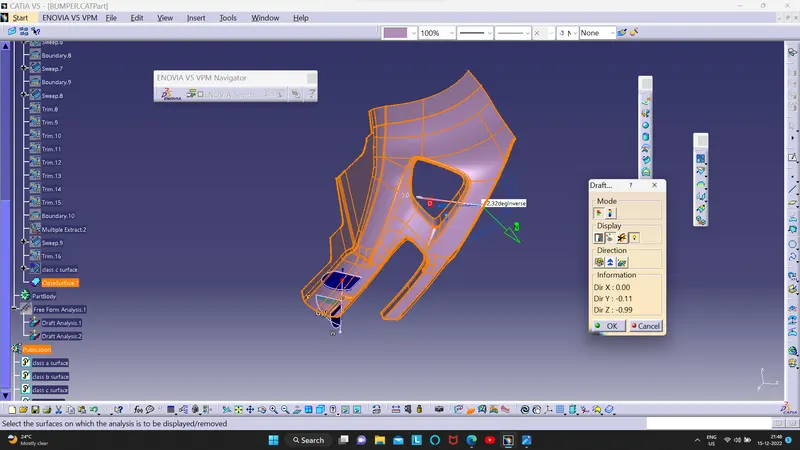

Use the Featured Draft Analysis tool in the tools to now analyze the draft. After locating the compass and aligning it with the tooling axis, click on the lock symbol after aligning, and then click again on the surface after opening the draft analysis toolbox.
