Week 8 - Challenge 4 - Bumper

Tooling Axis

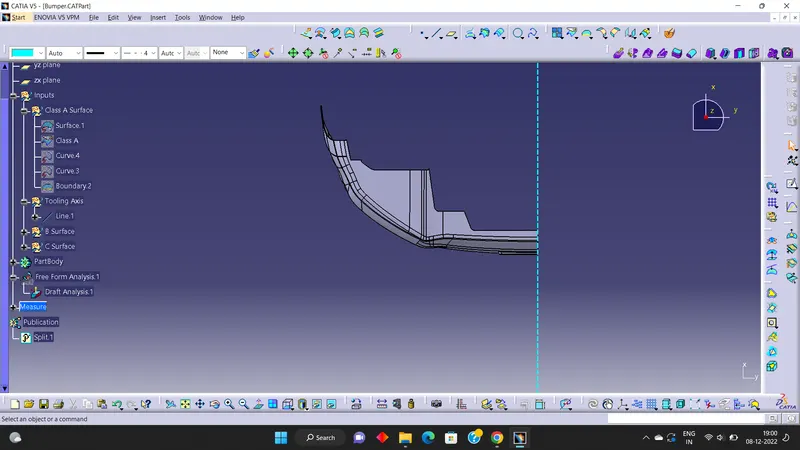

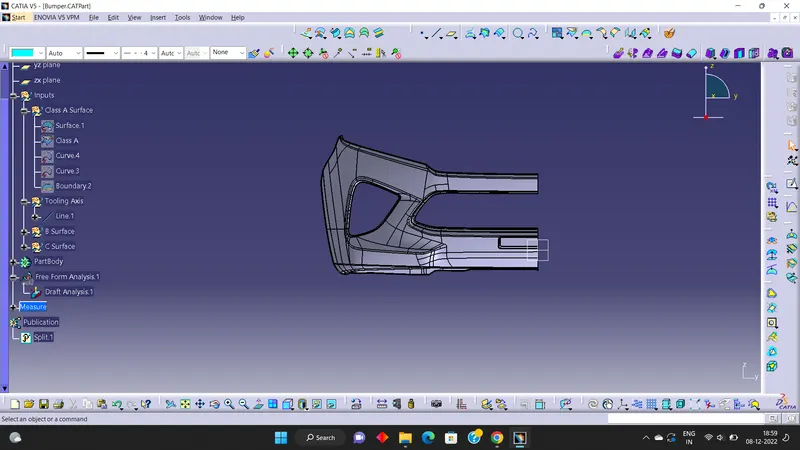

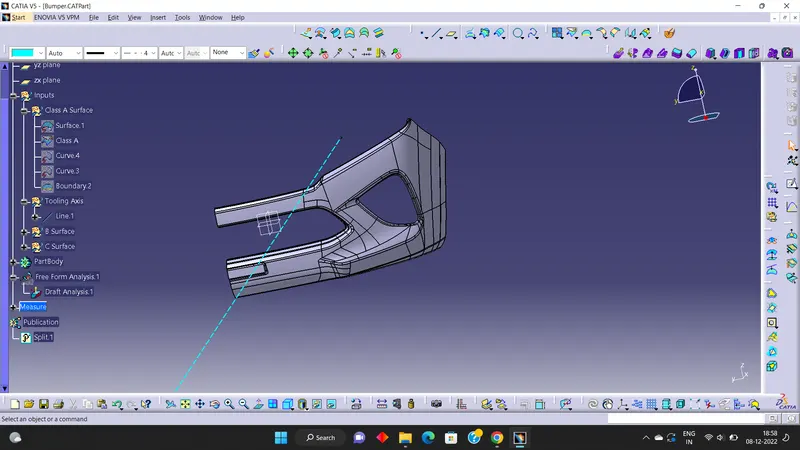

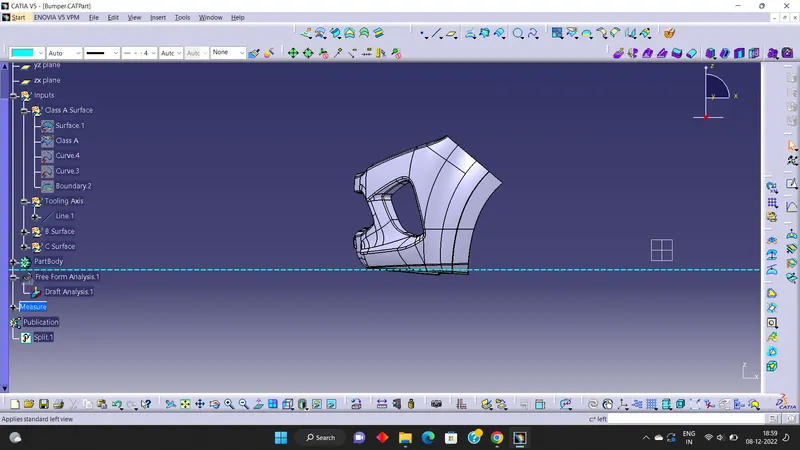

Select a point on the surface of Class A with maximum visibility of all the surface of Class A. Then tooling Axis is drawn in the X direction where maximum view of all surface is obtained.

Draft Analysis

Insert > Analysis > Featured Draft Analysis

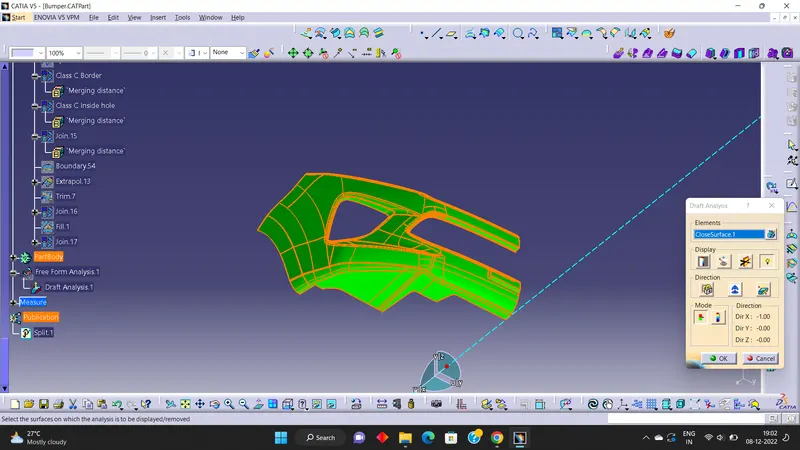

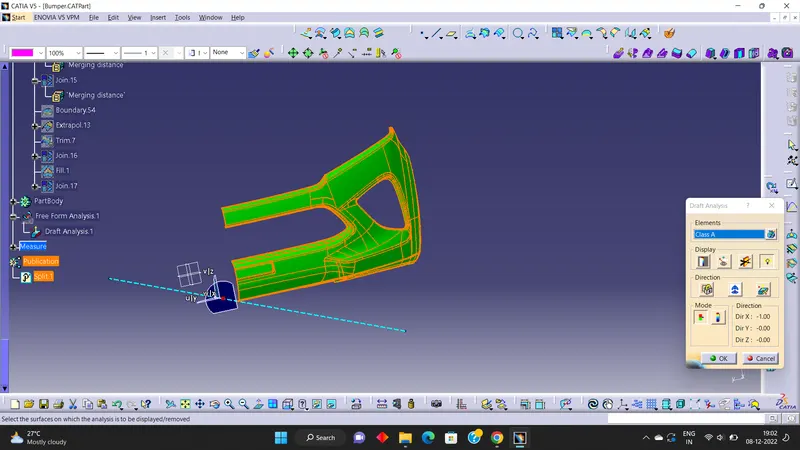

Drag and drop the compass to the tooling axis. Then Click on the surface where draft analysis is happening. Set the Angle and color code for Draft angles. Then we get part with draft analysis with different color based on the draft angle. If the draft angle is more than 3 deg, tooling axis is correct to proceed.
