Week 8 - Challenge 4 - Bumper

BUMPER

Aim :- To design the Bumper plastic component through the given Class-A surface.

Objective :-

1. To create a proper tooling direction.
2. To perform draft analysis of the plastic component.
3. To design the Bumper plastic component by creating the B-Surface and C-Surface using the given Class-A surface.
4. To use close surface for creating a solid part model.

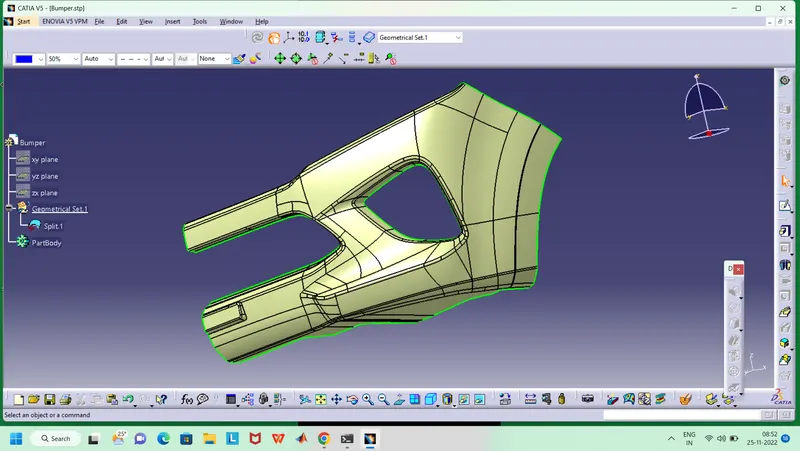

CLASS A SURFACE

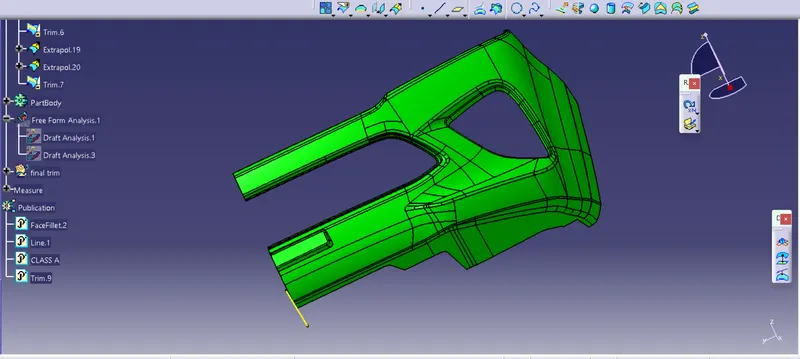

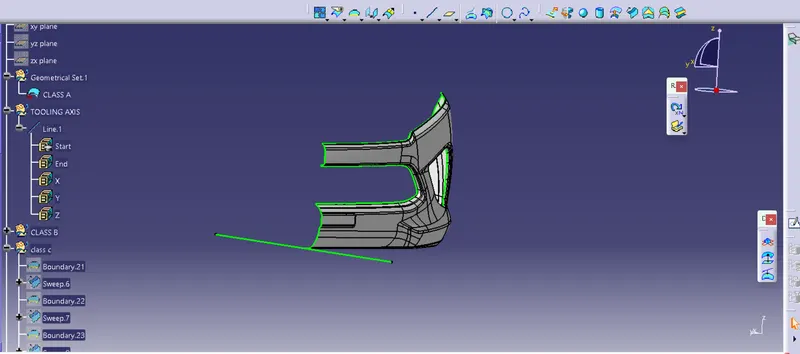

TOOLING AXIS

• For this model, to use a line at mid-point of the base of the coin holder
• Due to perpendicular walls of the class A surface

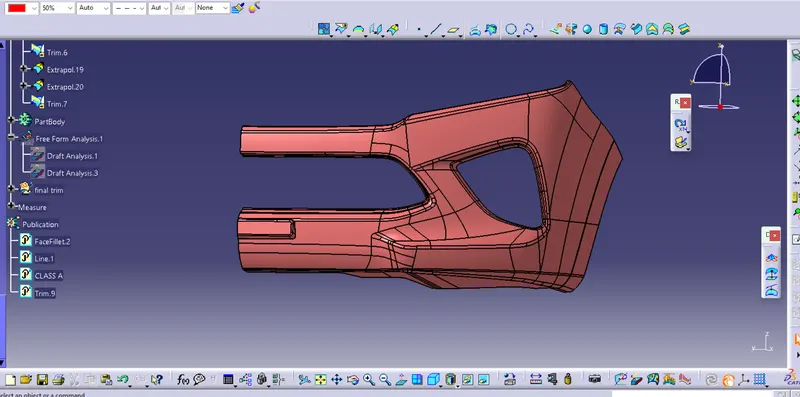

B SURFACE

• To offset the class-A surface along 3mm for to create a B- SURFCAE.
• Surface Gaps can be filled by using a fill tool and multi sectional tool

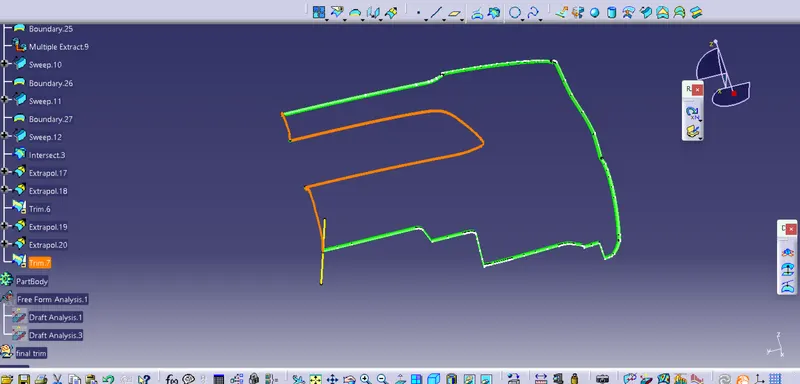

C SURFACE

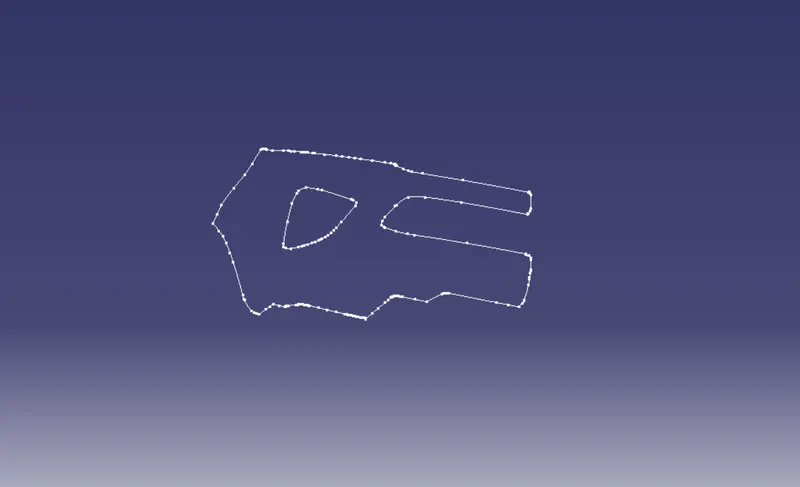

• To use multiple extract tool on the class A surface
• The extract boundaries can be sweep at 90 degrees to the reference boundaries up to required length

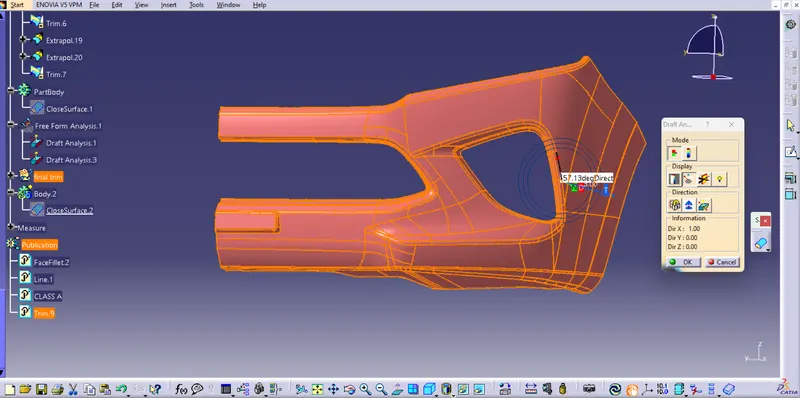

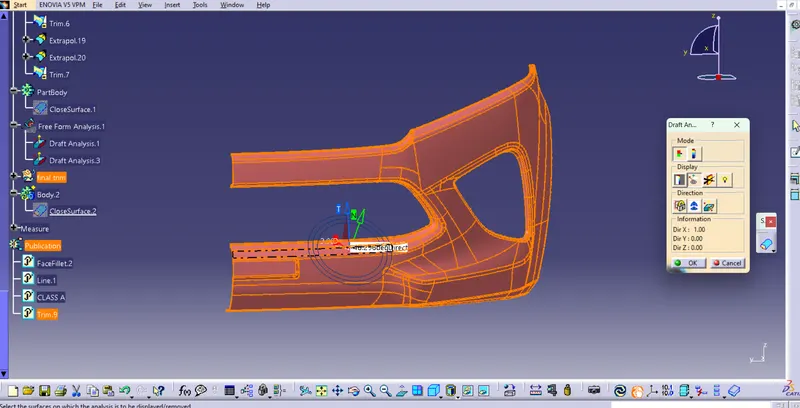

DRAFT ANALISIS

• The Drafting analysis was performed on the class-A surface by using the Feature Draft Analysis command.

• Using this command, the compass was set on the main tooling axis and the Draft angle was changed to 3 degrees.

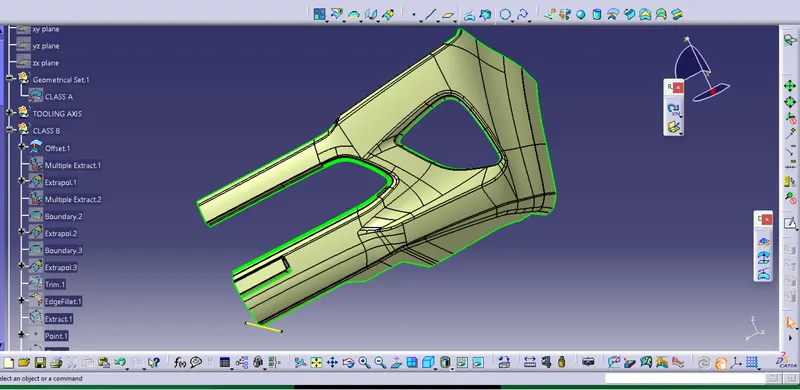

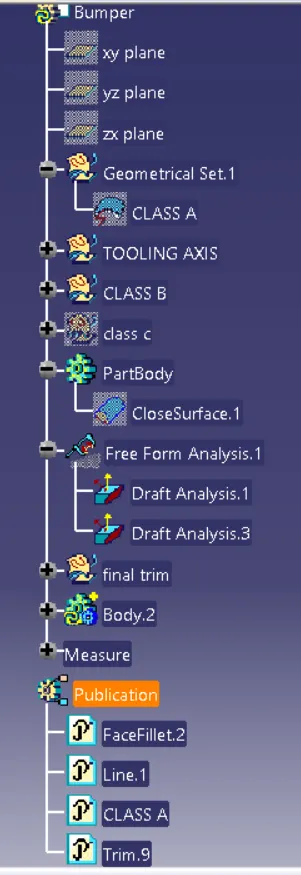

TREE STRUCTURE

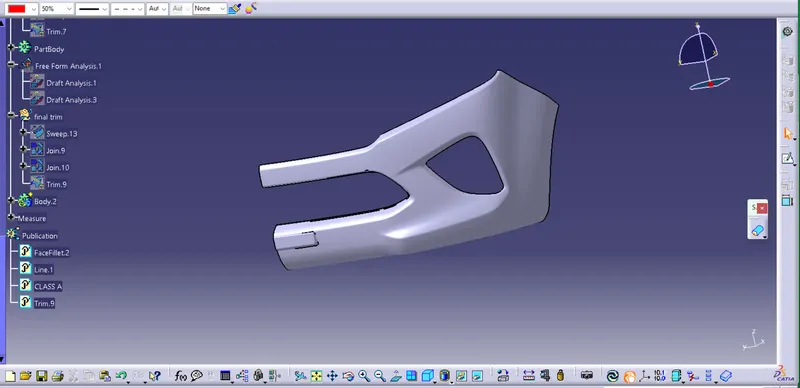

FINAL BUMPER PART

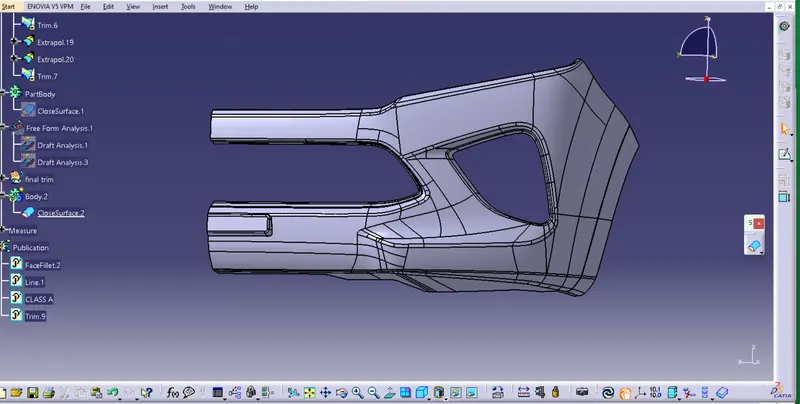

CLOSE SURFACE

VARIOUES VIEWS

CONCLUSION:

• To use class-A surface and create Tooling axis, Draft analysis were performed.

• The solid component was created from the surface model.
