Week 8 - Challenge 4 - Bumper

Aim:

To be able to model a solid from the given class a, and create tooling axis, draft analysis to it.

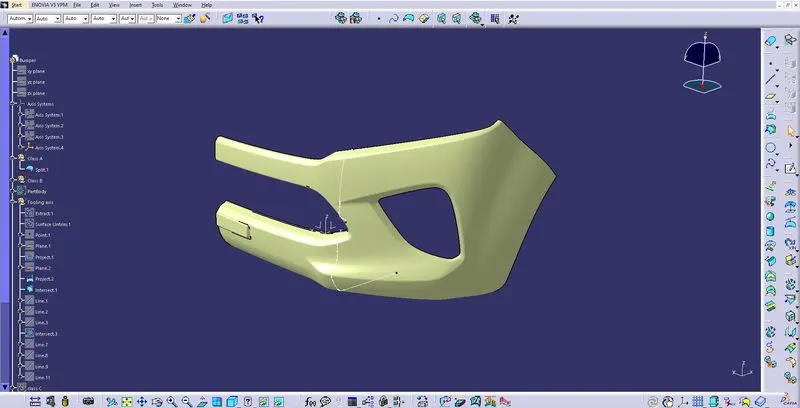

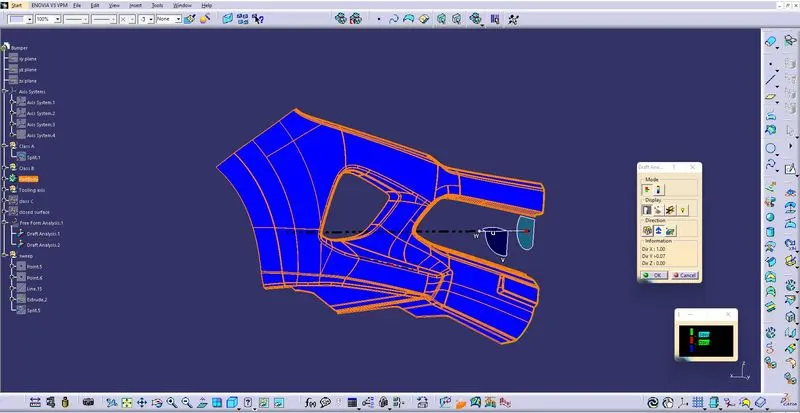

Class A and axis systems are created at the center point of the model.

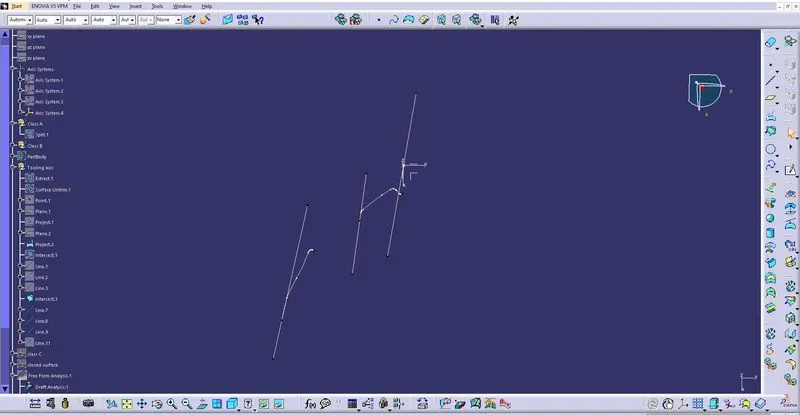

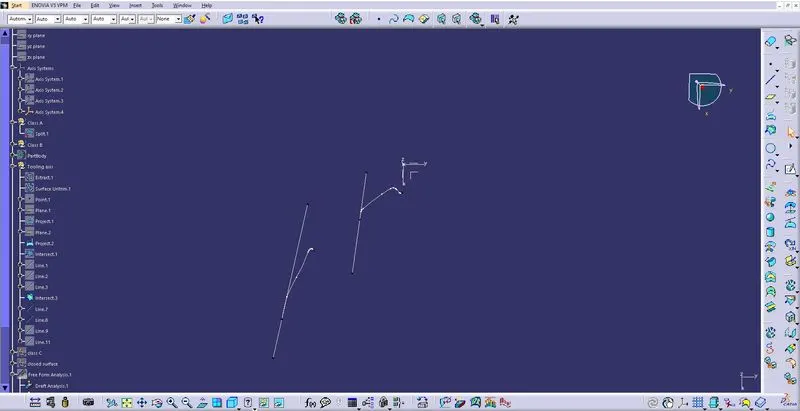

Two lines were created from the lines which are in the direction of tooling.

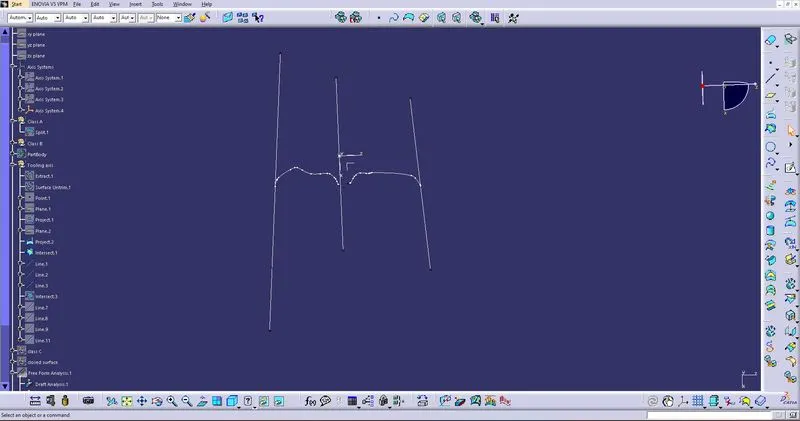

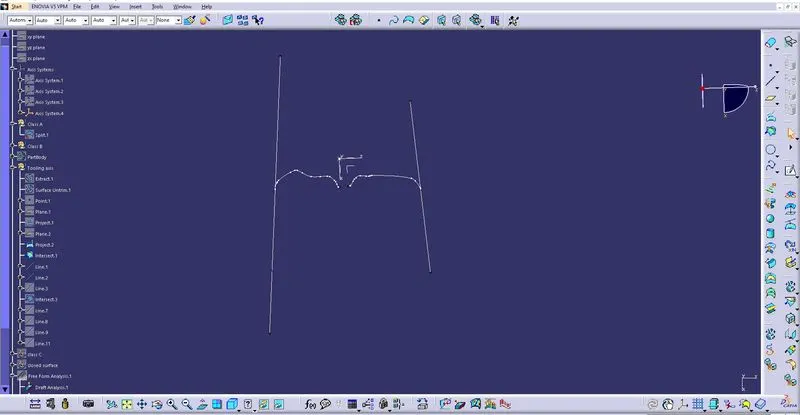

Drawn bisecting lines from the previous lines

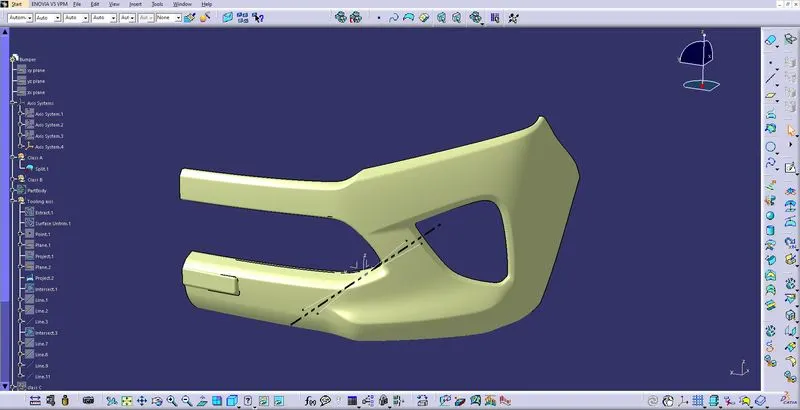

The bisecting line for both bisecting lines is the tooling axis:

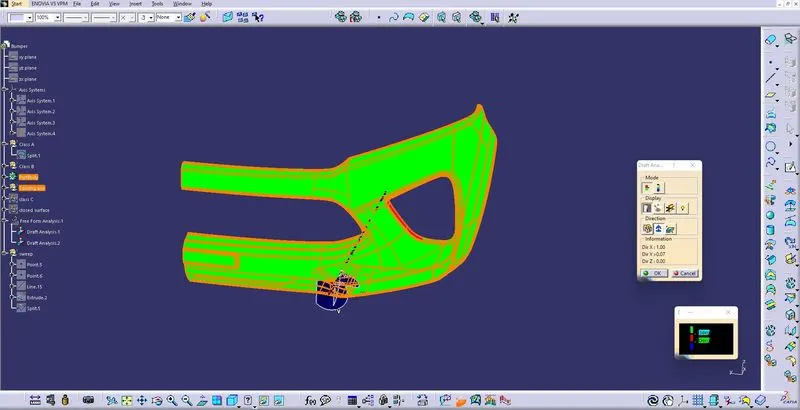

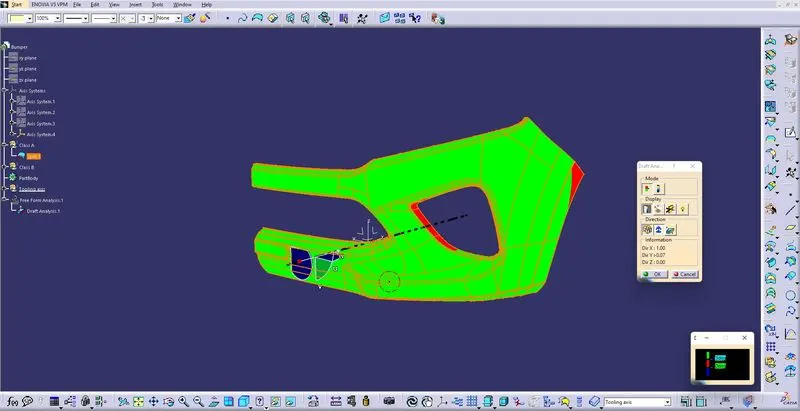

Draft analysis for both Class A and solid:

the Draft angle is considered 3 degrees, except for two surfaces all the area is green which means the surface is ok to mold.

Class B

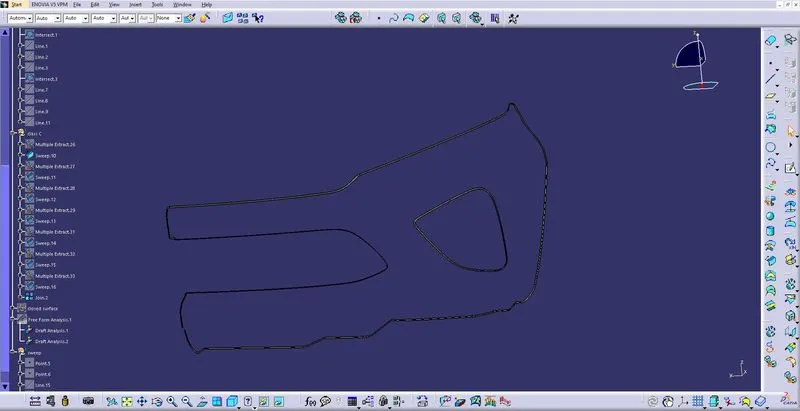

Class C

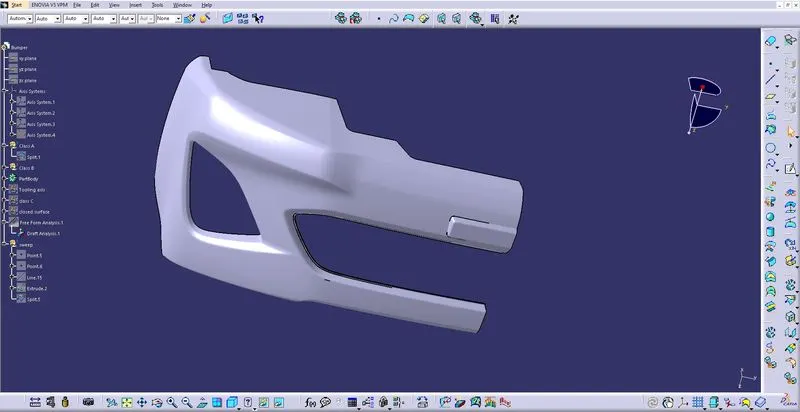

Closed surface:

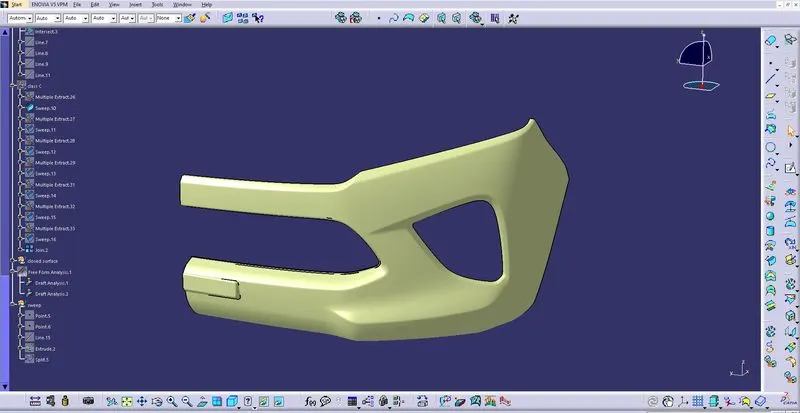

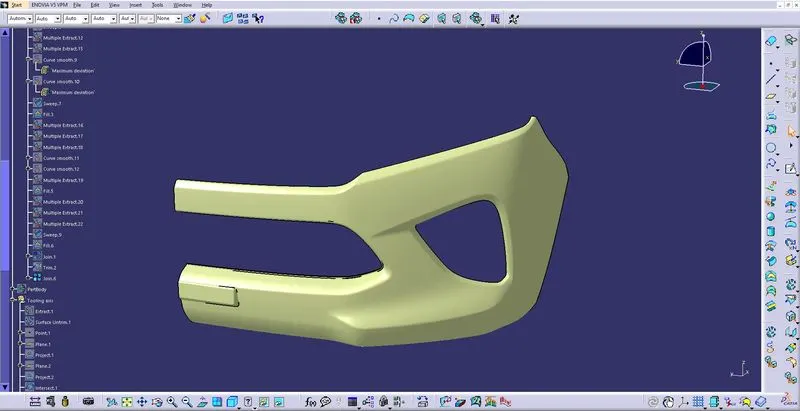

Solid model:
