Week 8 - Challenge 4 - Bumper

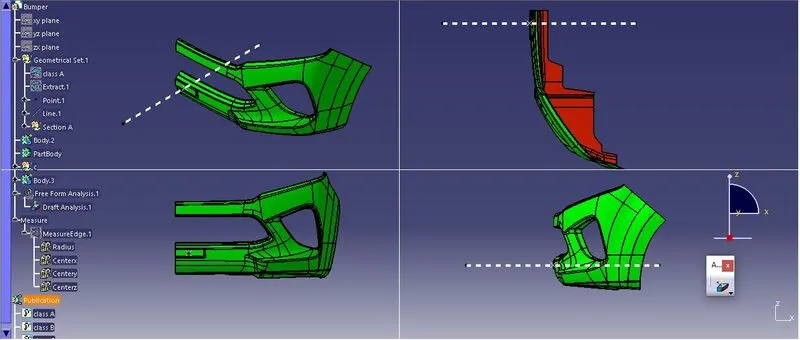

Here for tooling axis creation we only used visual medium first and foremost. We tried multiple views and angles with draft analysis for finding the best c surface with least draft direction.

So, we made the best possible which is the centre of the front template and achieved the tooling axis.

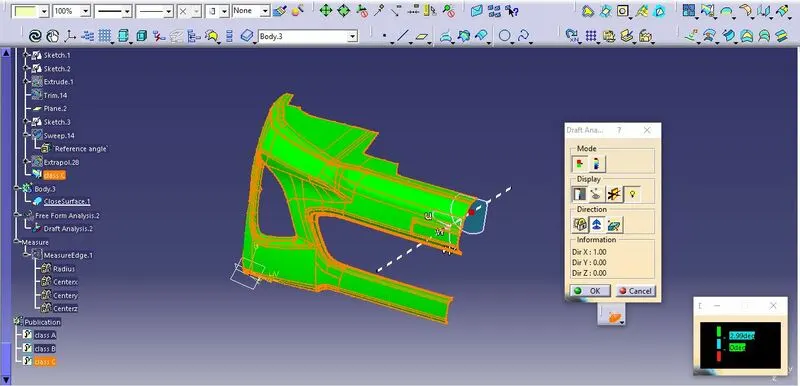

After the tooling axis was achieved the draft direction where the c- surface was within draft angle was designed.

Rest of the design was made according to previous designs.
