Week 8 - Challenge 4 - Bumper
MAIN OBJECTIVE :
Create the Bumper Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.
BUMPER :

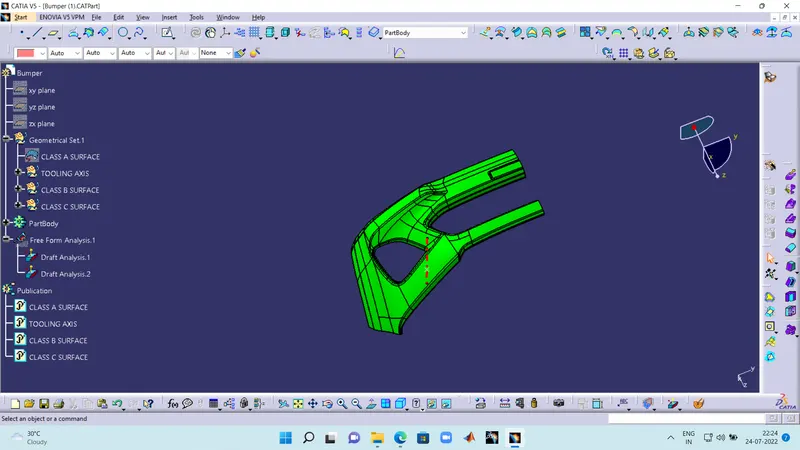

DRAFT ANALYSIS OF BUMPER :
EXPLANATION :
The class A of a cat part was given as the input. The following steps i have followed to find the tooling axis.
- I extracted a surface on class A and created a point using surface to point command.
- I have took a line in x direction with refferance to the point.
- And named it as the tooling axis.
CREATING CLASS B AND CLASS C :
After creating the tooling axis.
- I have offseted the class B and found that there are some surfaces missing on the class B
- So i have used multi section solid and blend commands to fill in the missing surfaces and complete the class B
- After the creation of class B i have took class A refernace and does a sweep on the edges of class and hole in the middle
- During joining the sweeps and multi section solids i have found irregular surfaces and i have used trim command to eliminate the irregularity.
- After that i have joined the remaing SWEEPS and made a class C
- Then i have joined class C and class A and trimmed it off with class B to get the final component.

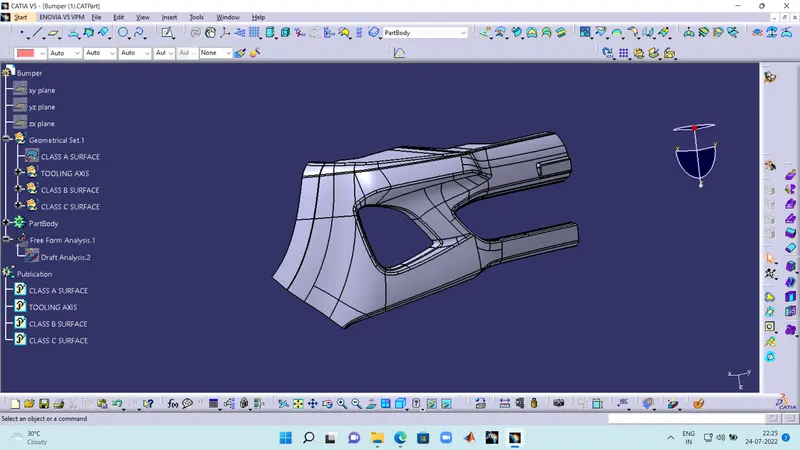

FINAL CAT PART :
Then i have jumped into the part workbench and define in partbody and select closed surface of the Final Component and make it a complete solid to complete the task.
NOTE : The following catpart was given below.
