Week 8 - Challenge 4 - Bumper

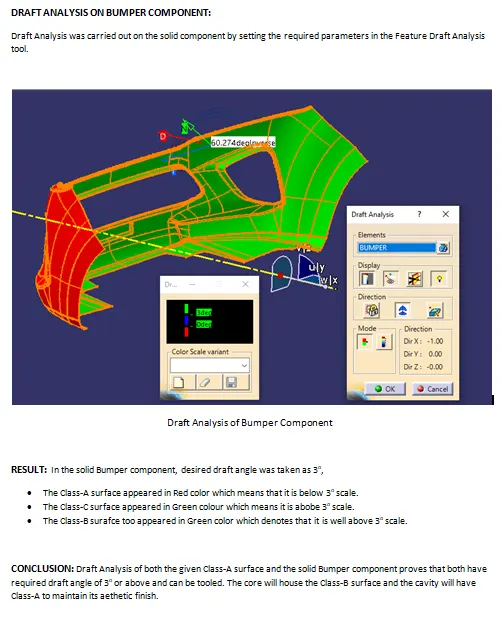

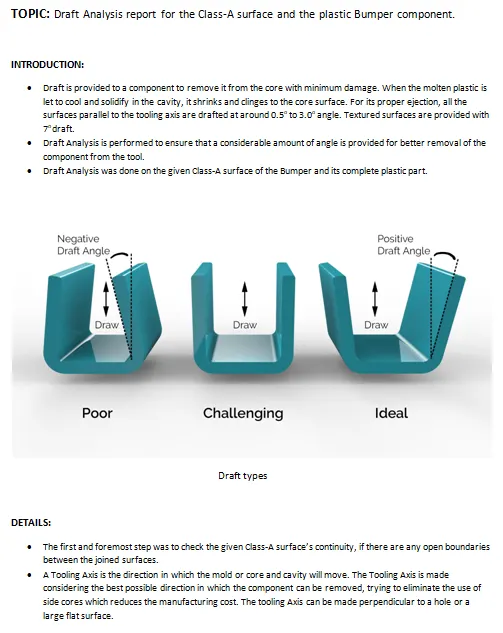

SNAPS OF DRAFT ANALYSIS REPORT OF BUMPER COMPONENT

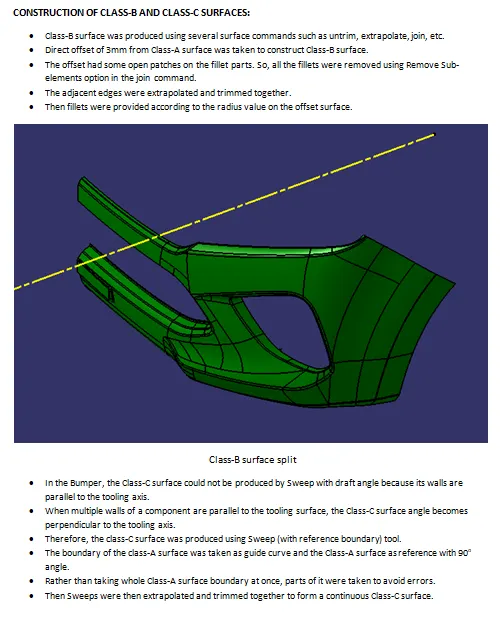

1.

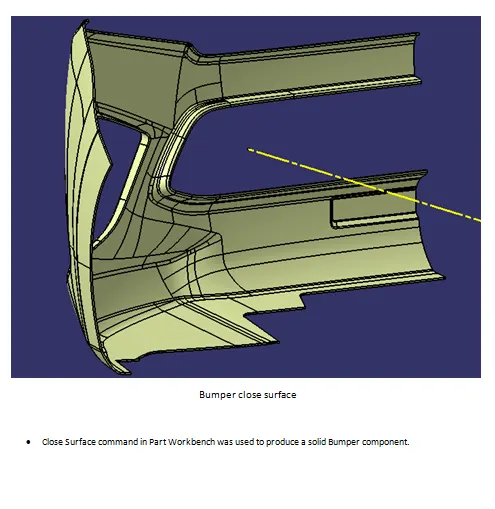

2.

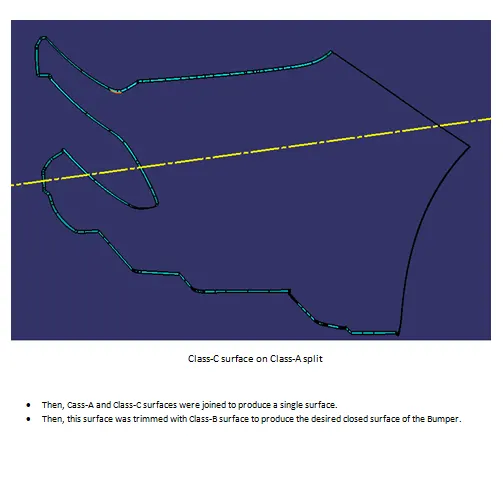

3.

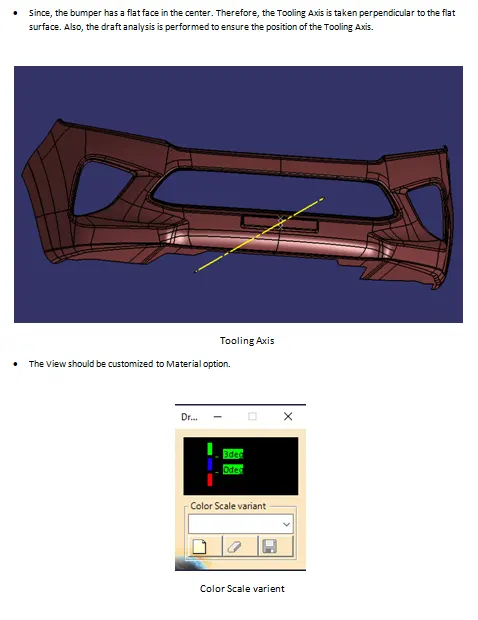

4.

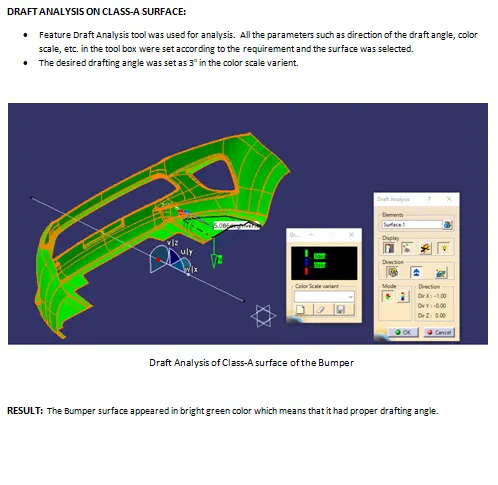

5.

6.

7.

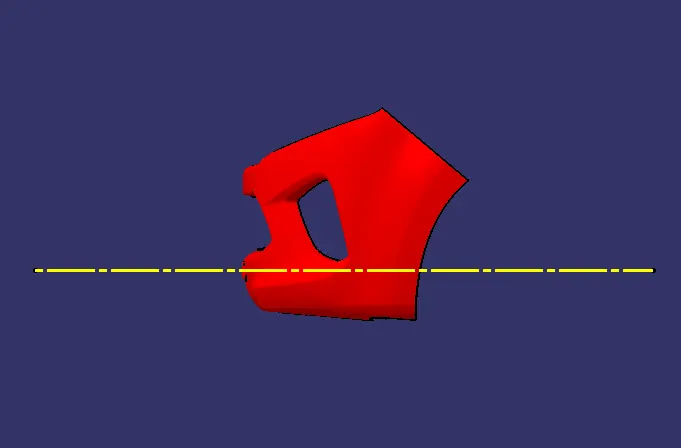

PART VIEWS WITH COLOR CODE:

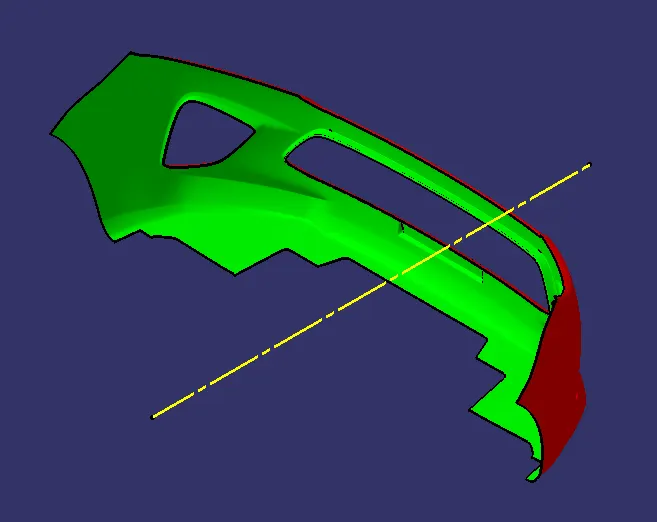

ISOMETRIC VIEW

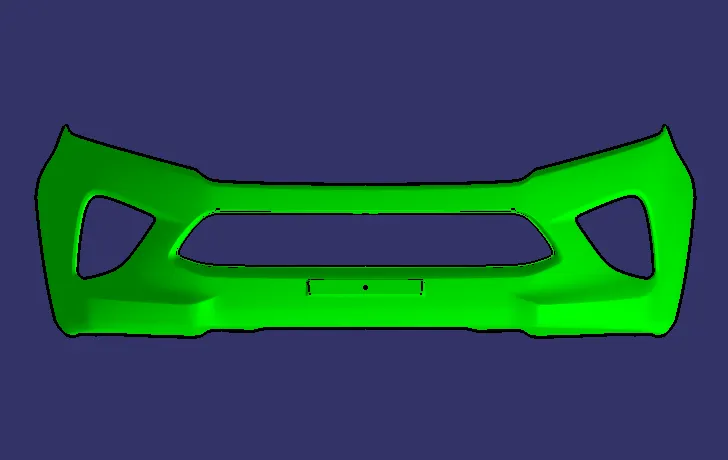

FRONT VIEW FROM CLASS-B PERSPECTIVE

RIGHT SIDE VIEW

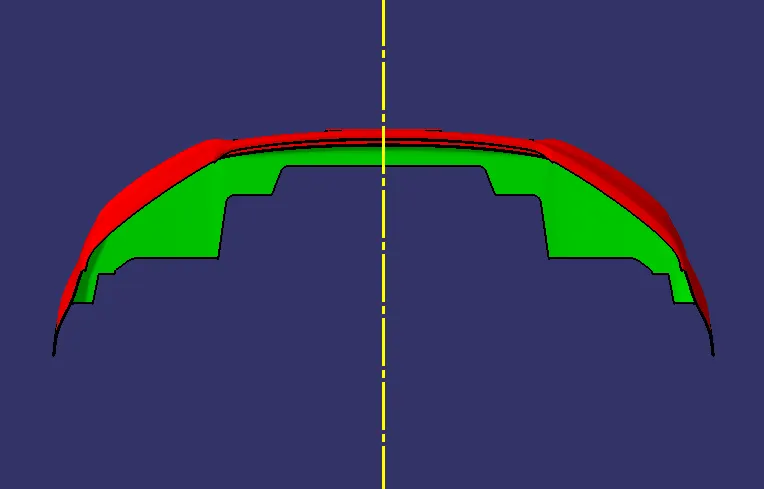

TOP VIEW
