Week 8 - Challenge 1 - Base Bracket Design

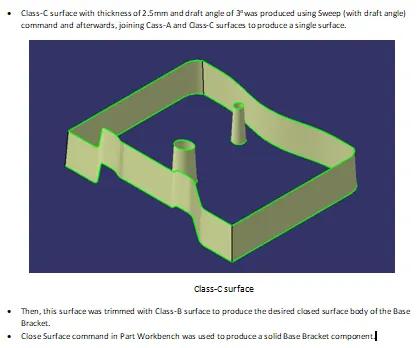

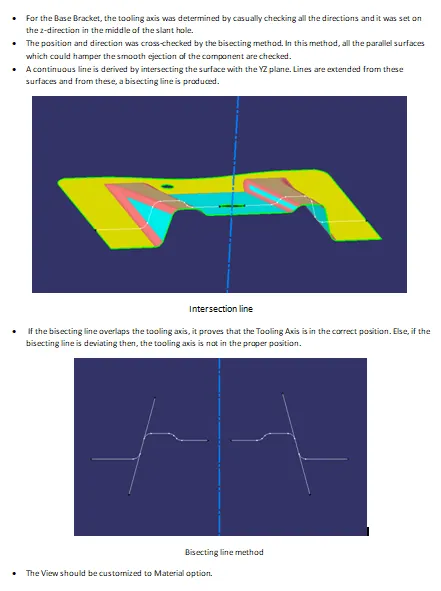

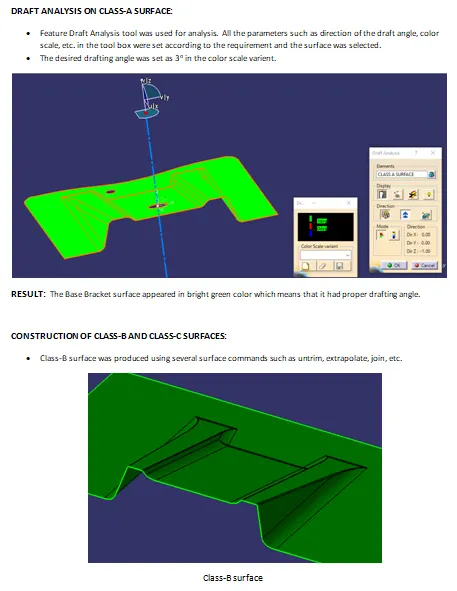

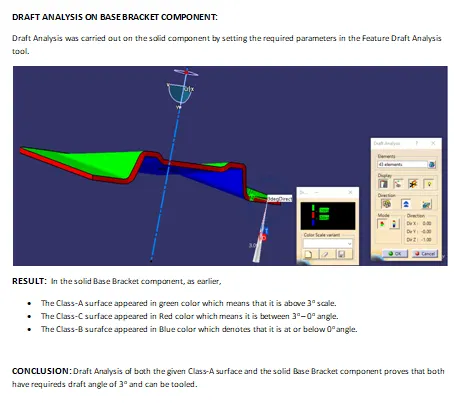

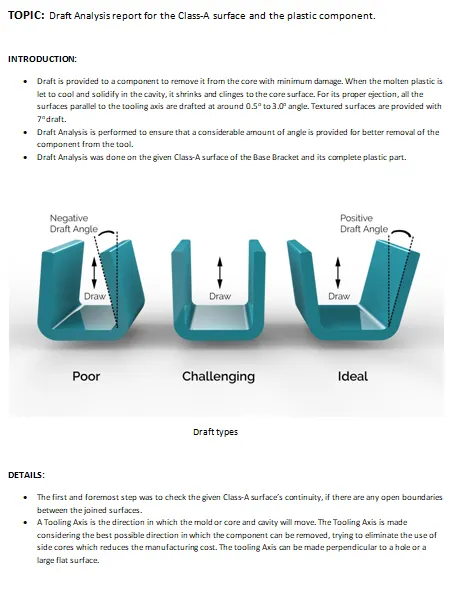

SNAPS OF DRAFT ANALYSIS REPORT
COLOR CODE OF CLASS-A AND SOLID BASE BRACKET DRAFT ANALYSIS

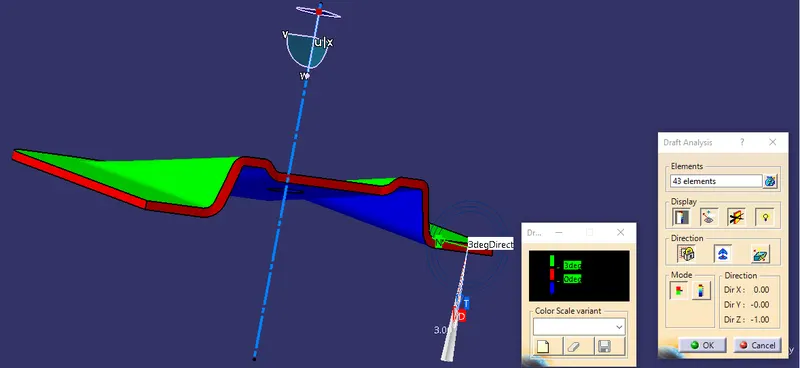

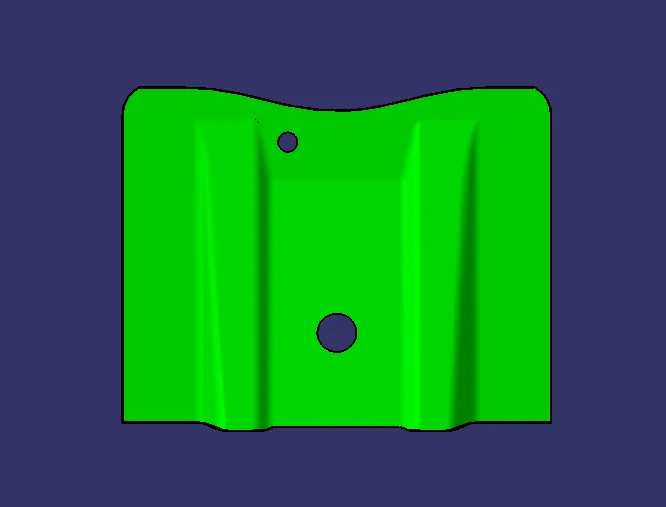

DRAFT ANALYSIS OF BASE BRACKET COMPONENT
SOLID MODEL VIEWS WITH PROPER COLOR CODE:

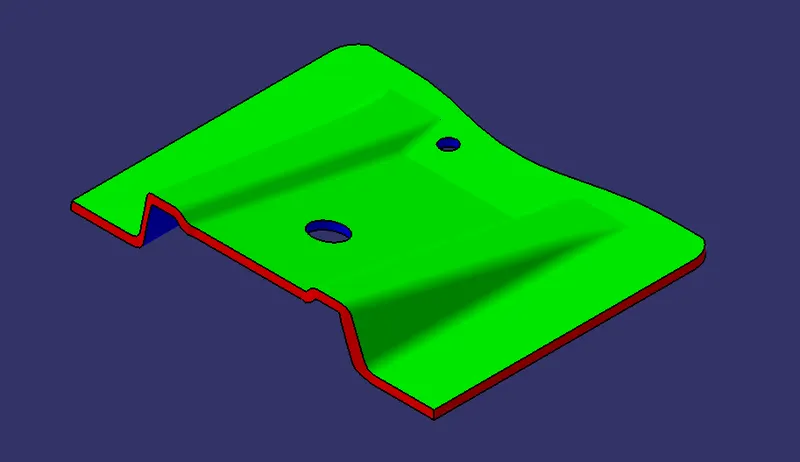

ISOMETRIC VIEW

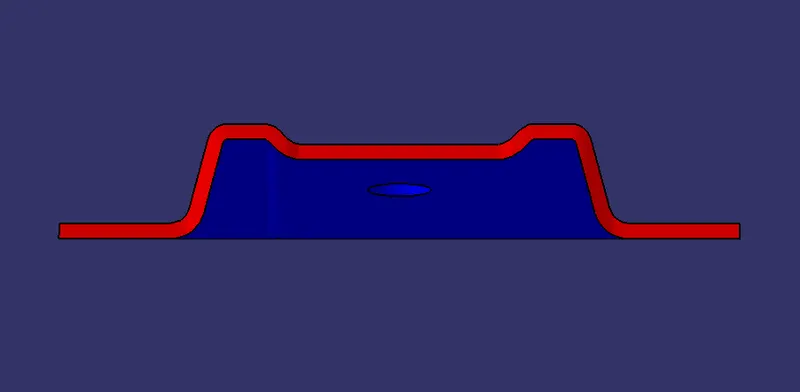

FRONT VIEW

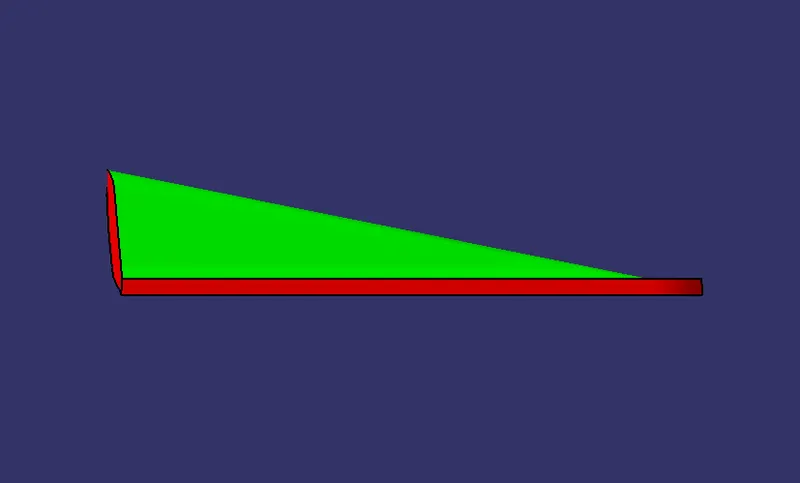

RIGHT SIDE VIEW
TOP VIEW
