Week 8 - Challenge 4 - Bumper

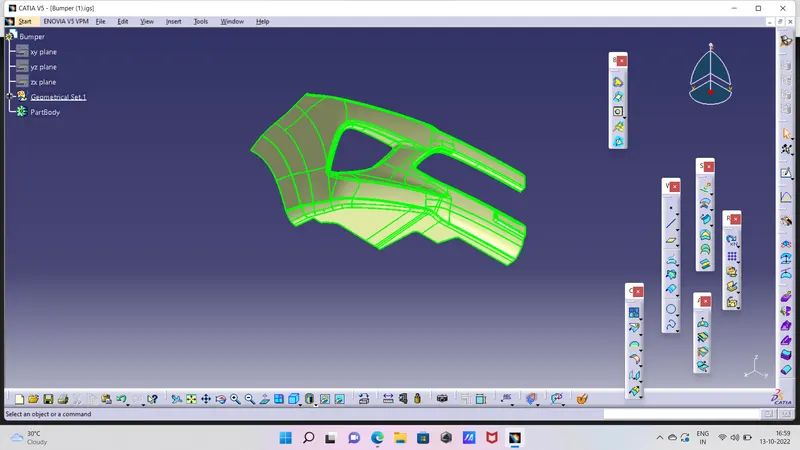

given class A

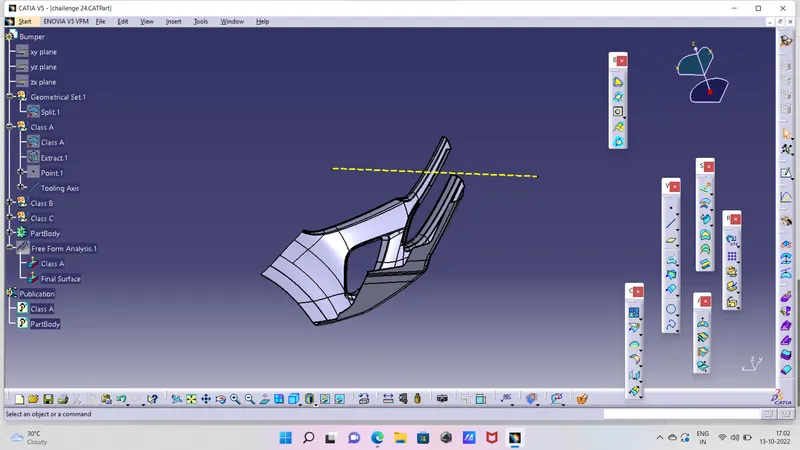

TOOLING AXIS

CLASS B AND C SURFACES

class B

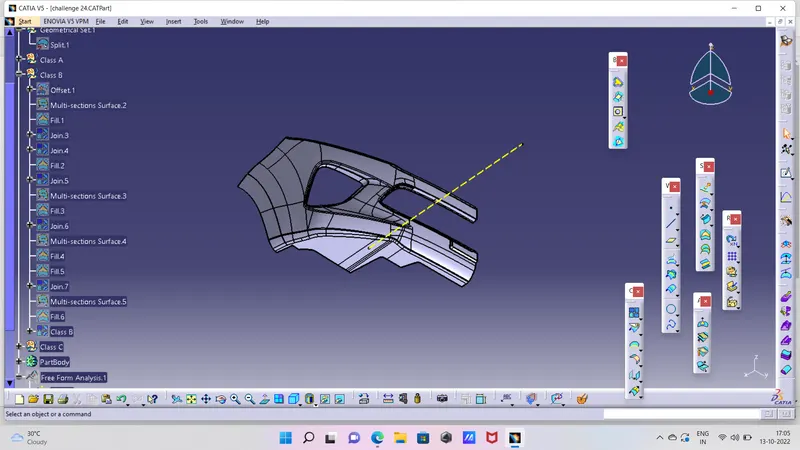

offset the class A surface to 3mm inward to get the class B surface.Repair the class B surface incase if any surface is missing.

class c

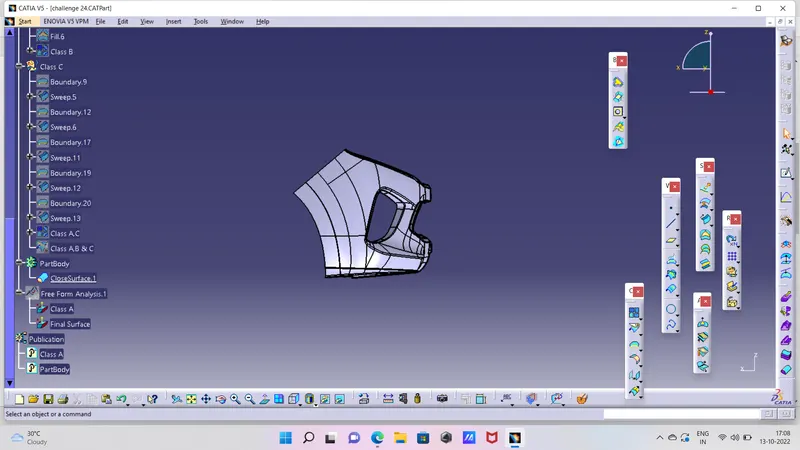

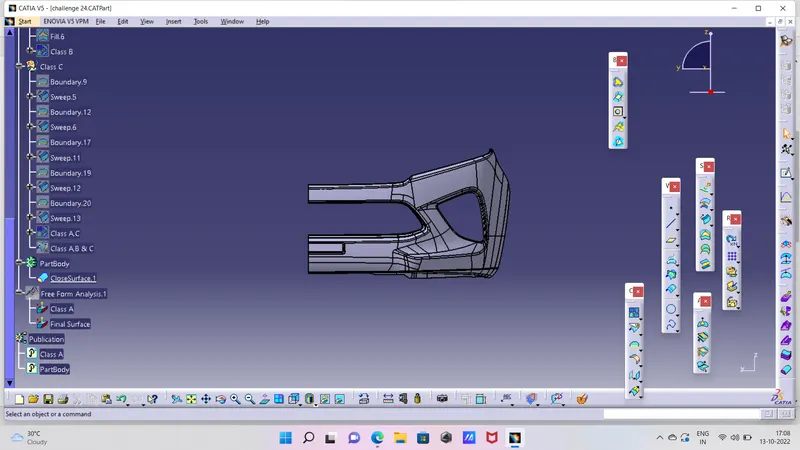

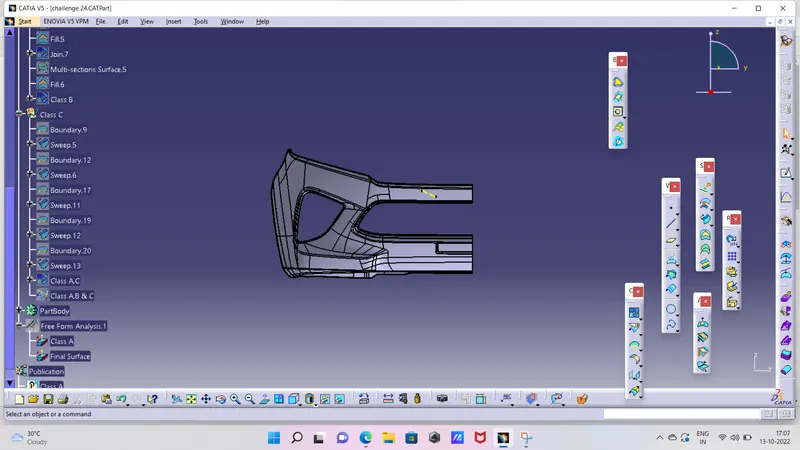

create a boundary using the given surface class A now use sweep command we can create a surface perpendicular to the surface to join the two surfaces now trim classs B with class C and then to get the final surface trim it with class A.

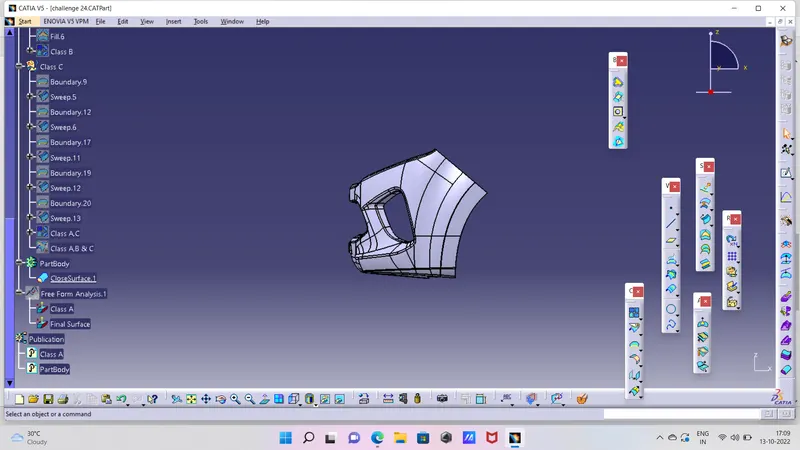

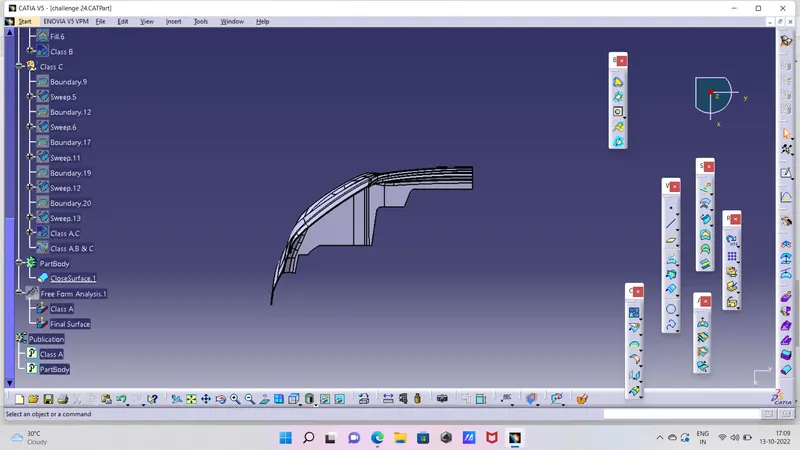

then finally use closed surface command to get the solid part
