Week 8 - Challenge 4 - Bumper

Detail Report:

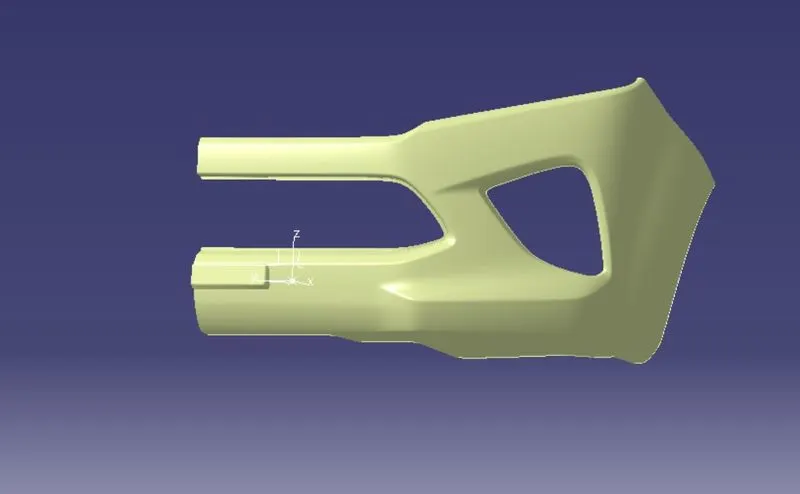

Aim: From The Class A surface We Need to Creat a Class B&C Surface

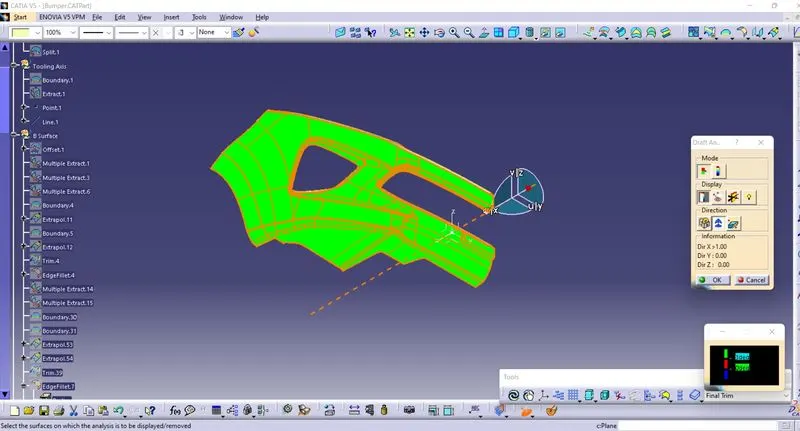

Tooling Axis: By creating Draft Angle Analysis , We Can Identify the safer Ejection Axis for the part

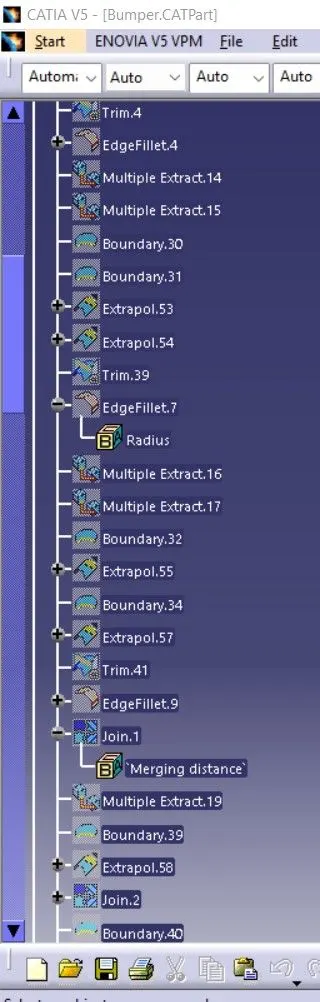

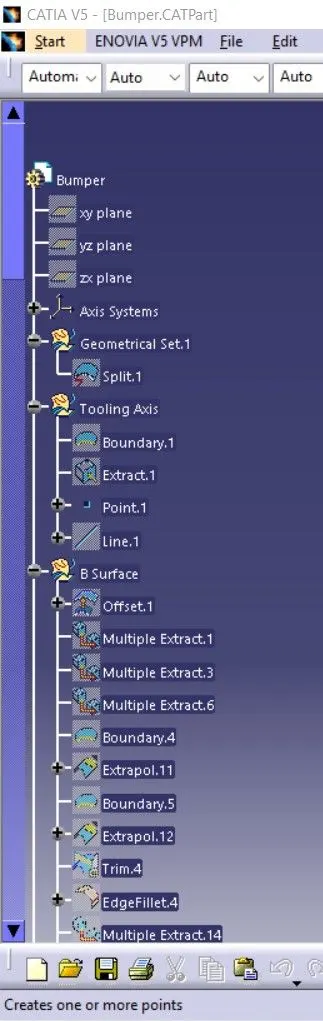

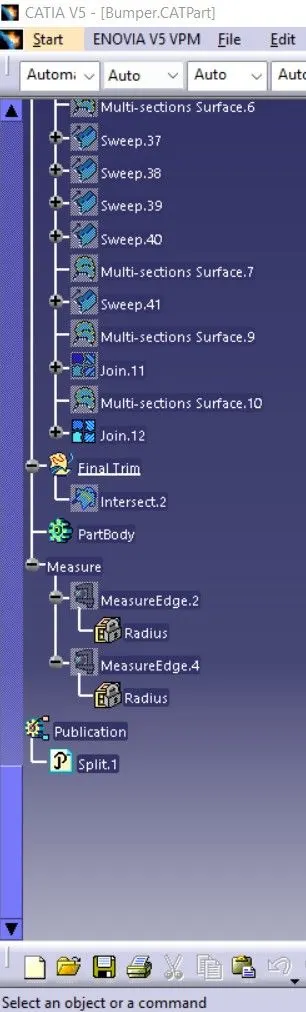

Class B Sirface:In Bumper There is More patch Face is there so we Offset the A surface In Class B surface complication Patches And Gap need to be full fill By using Multi section, Extrapolate, Trim, Split, Sweep , Join, Edge Fillet, Boundry, Multi section Surface, Ect..

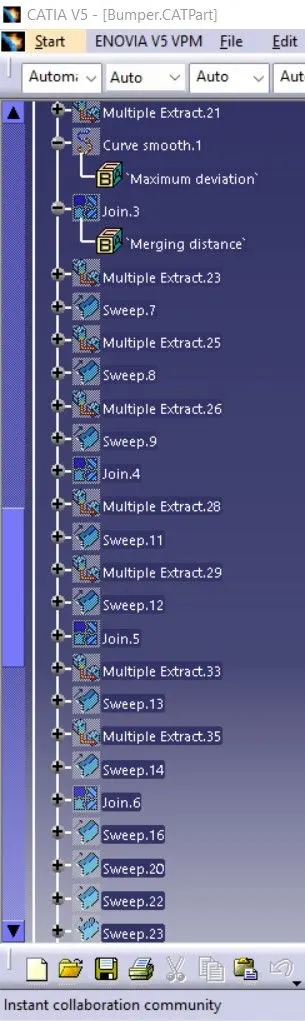

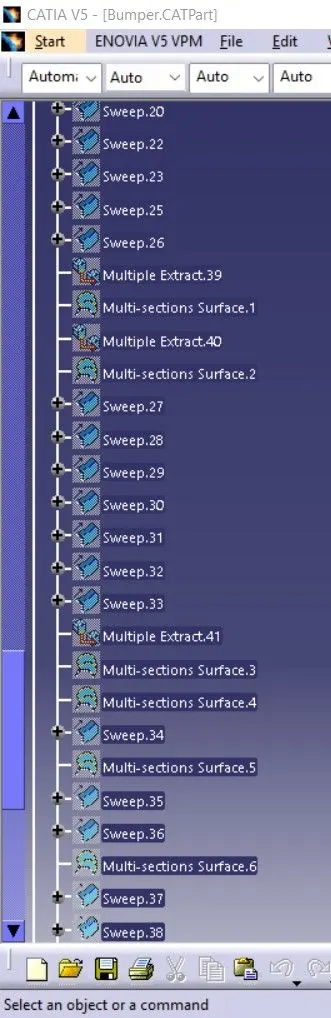

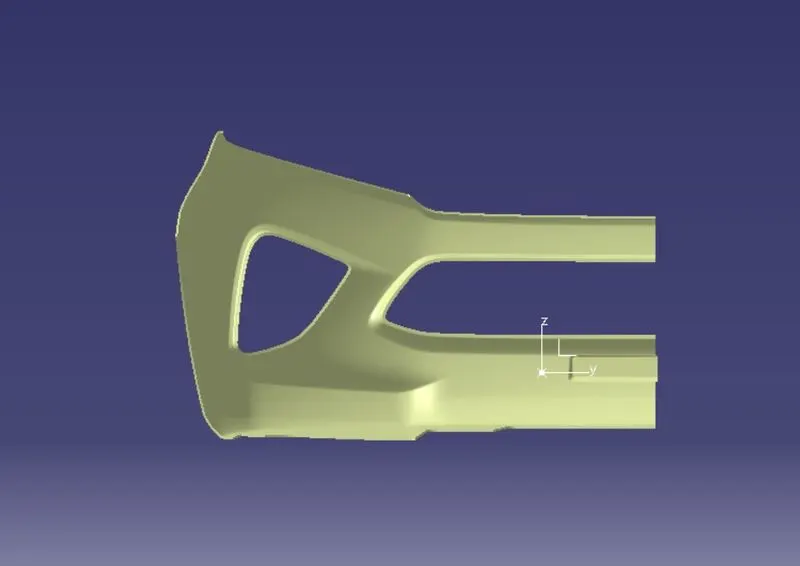

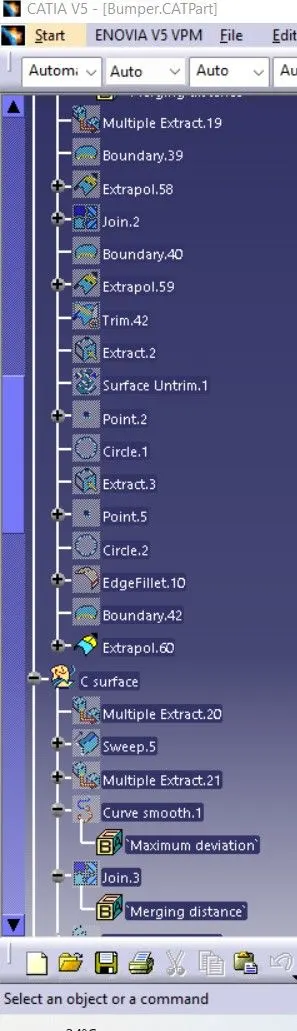

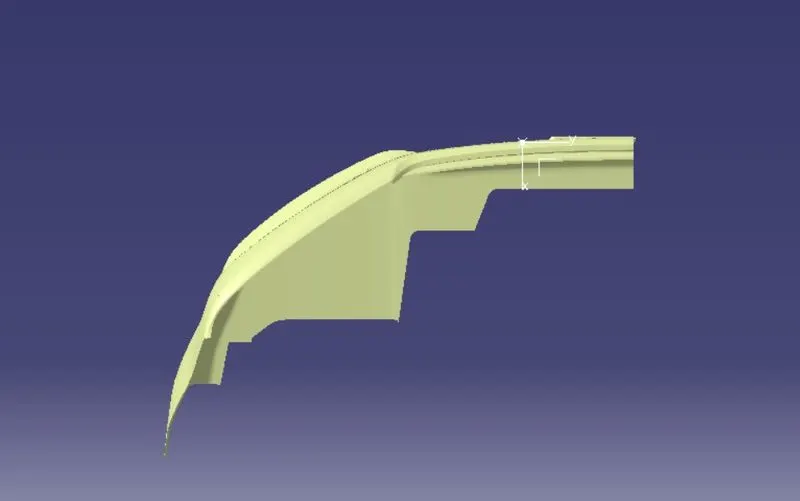

Class C Surface: For Creating the C surface Using Of Sweep Comend With Help of Tooling Axis applying the draft angle of max 3deg or 93deg or 87 deg with respect to the axis And Joining A & C surface And need to trim with B surface To get the 3 mm of component
