Week 8 - Challenge 4 - Bumper

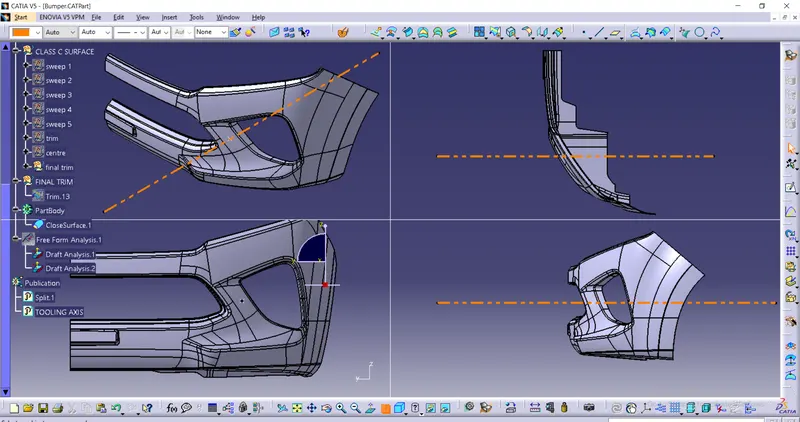

TOOLING AXIS CREATION

The tooling axis is nothing but the mould opens or cavity opens.Check visaully which is the best possible tooling axis.Check all three axis.Along x it possible but expensive and y is not possible z is the best possible tooling axis.Therefore the main tooling axis is along z axis

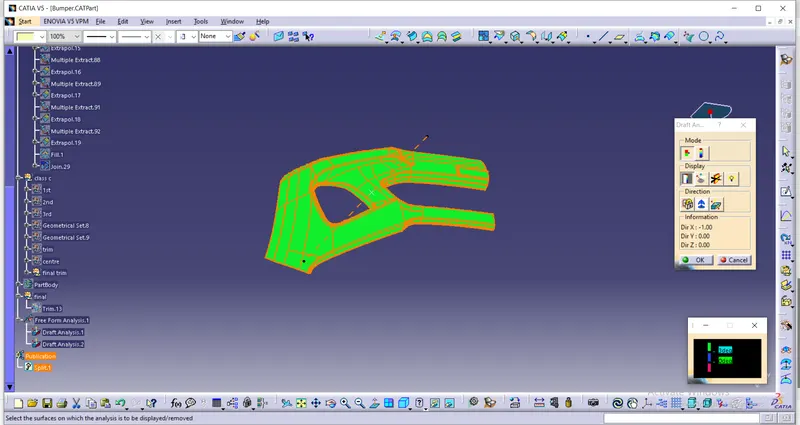

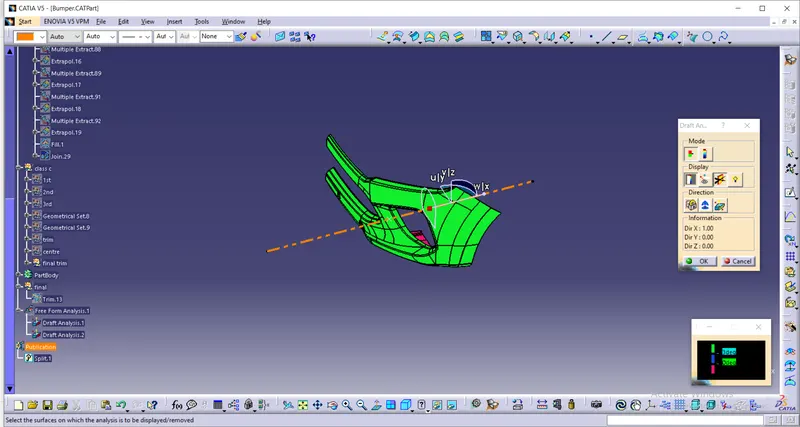

Draft Analysis

The Draft Analysis command enables you to detect if the part you drafted will be easily removed. This type of analysis is performed based on color ranges identifying zones on the analyzed element where the deviation from the draft direction at any point, corresponds to specified values.

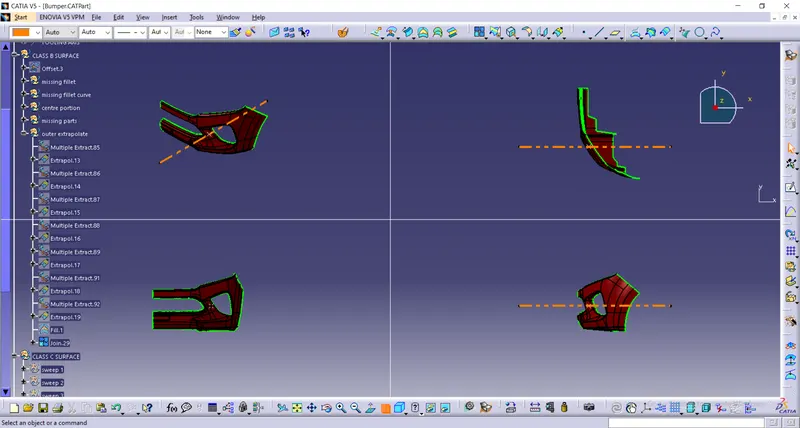

CLASS B SURFACE

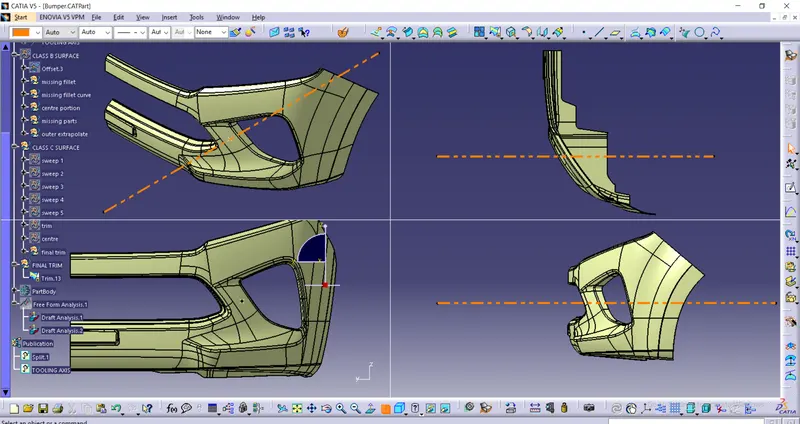

FINAL TRIM (A,B,C SURFACE)

CLOSE SURFACE

FINAL ANALYSIS
