Week 8 - Challenge 4 - Bumper

BUMPER CHALLENGE

CLASS A SURFACE -Class A surface is given by s designer as a input to work on it .

CLASS B SURFACE - Class B surface is the surface, where we can do all engineering, works like attaching ribs and joints etc.

CLASS C SURFACE - A surface that joins class A and Class b is known as class c surface

METHODOLGY - In this model we have focused on the following things;

making surface class B ,class c

draft analysis

tooling axis

The following tools are used to perform this operation.

Extract, Extrapolate, Trim , Split, Offset, Edge fillet,MSS, Sweep, join, spline ..

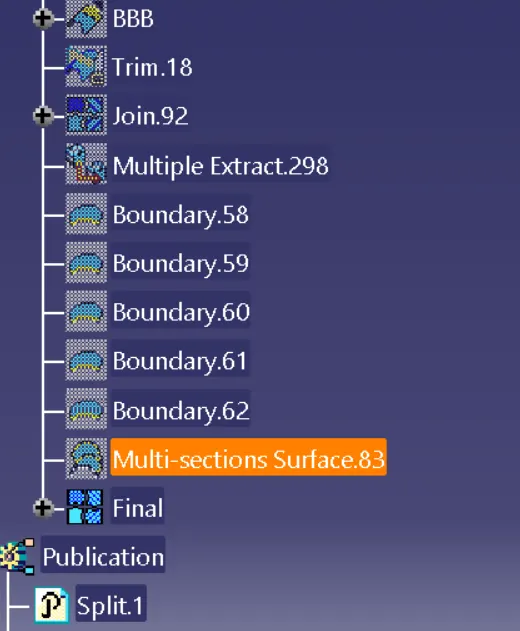

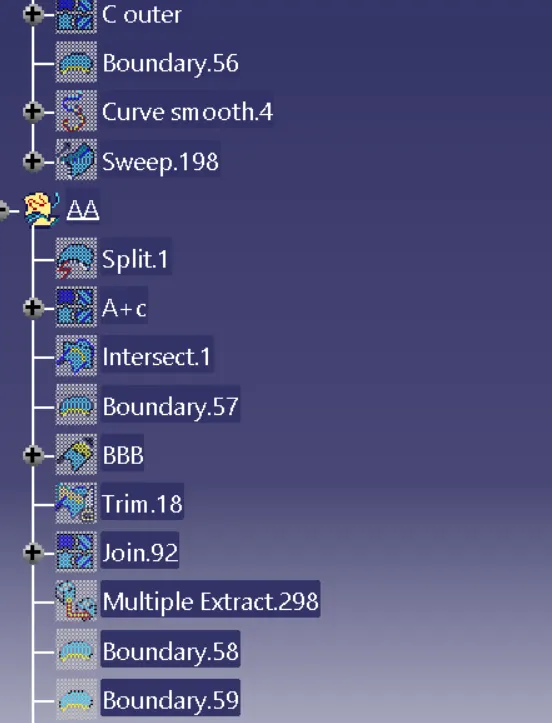

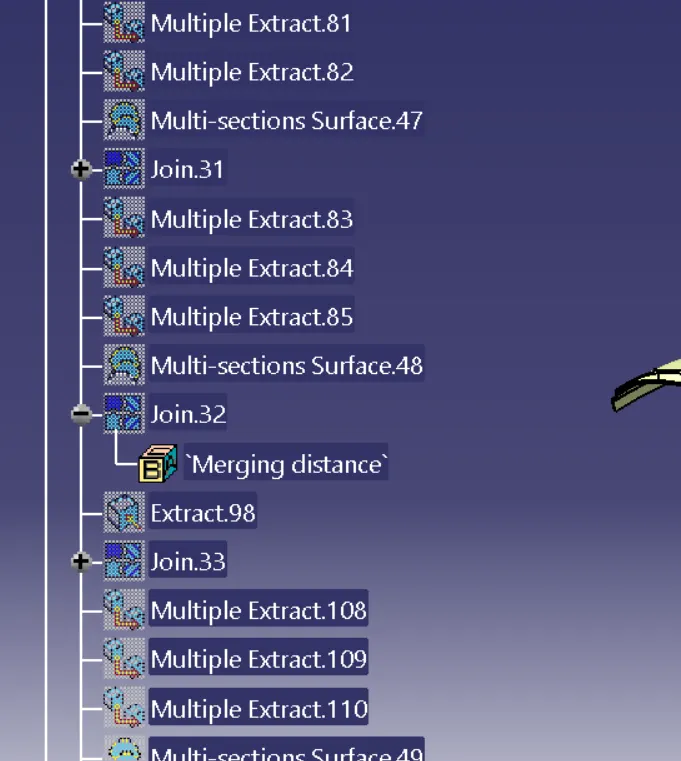

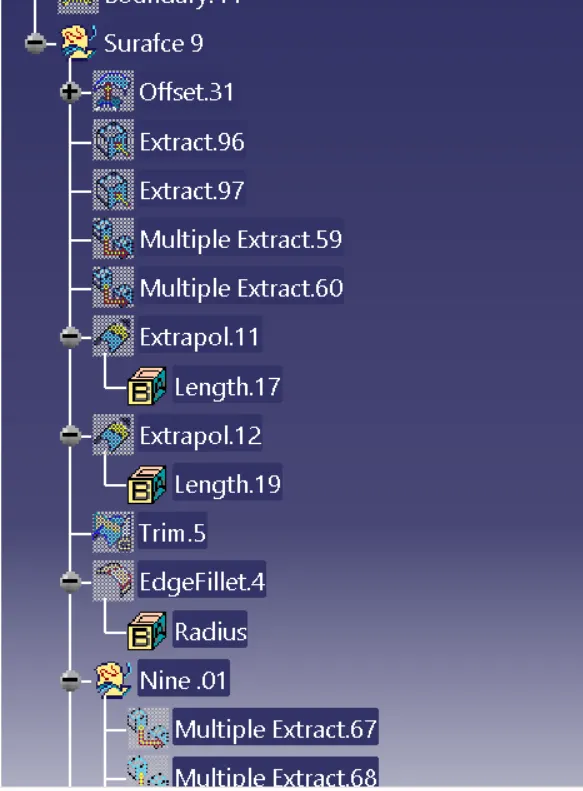

Tree structure for product

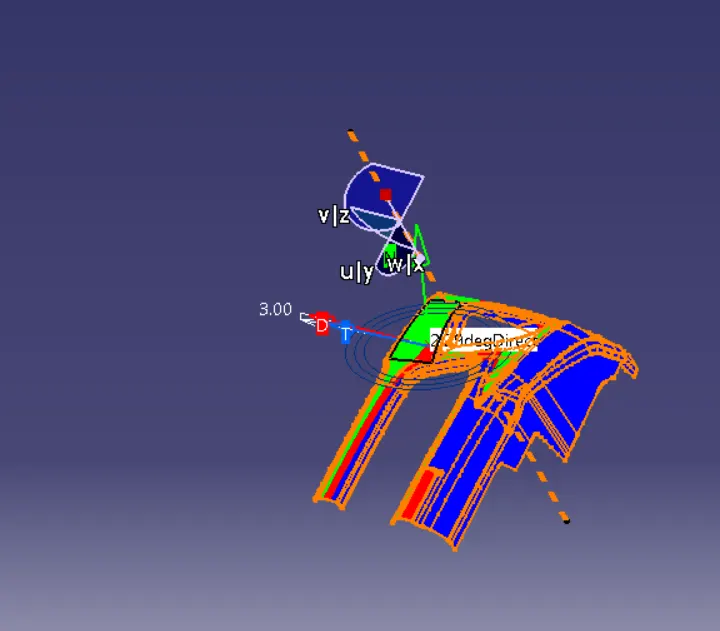

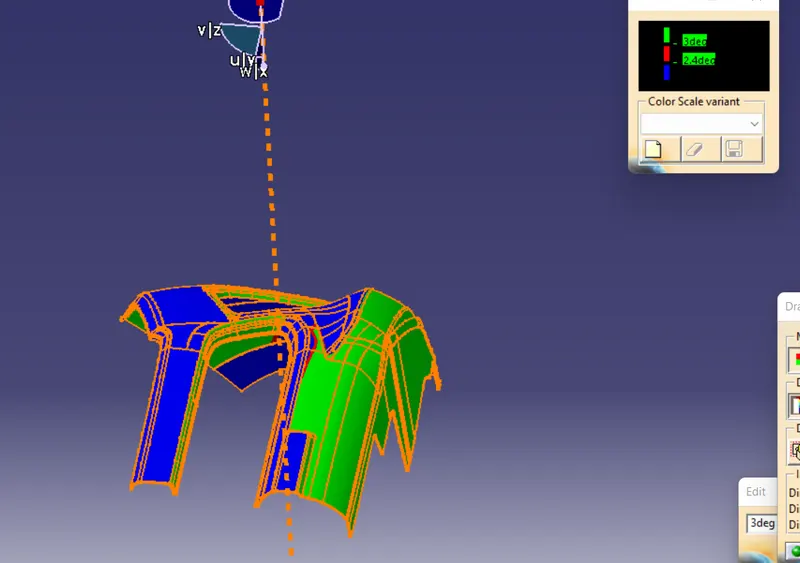

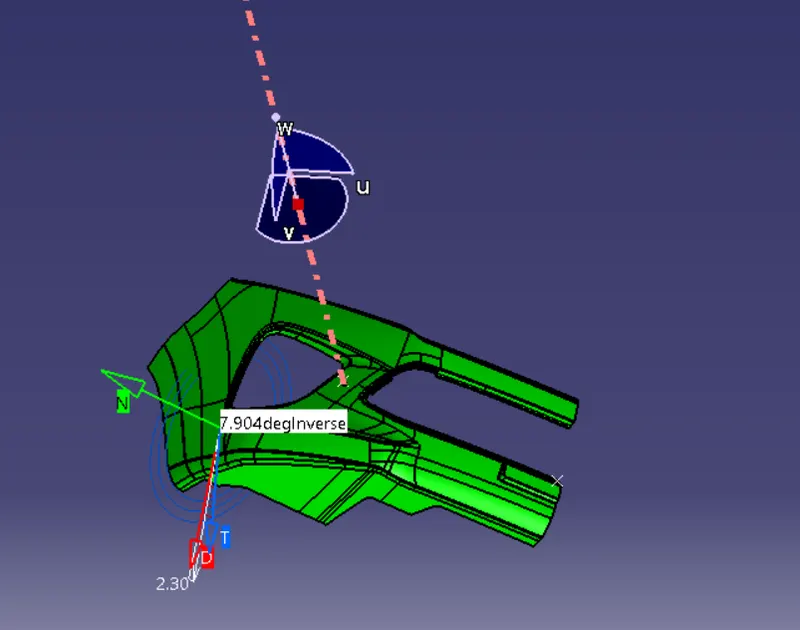

Draft ananlysis for bumper at 3,2.4

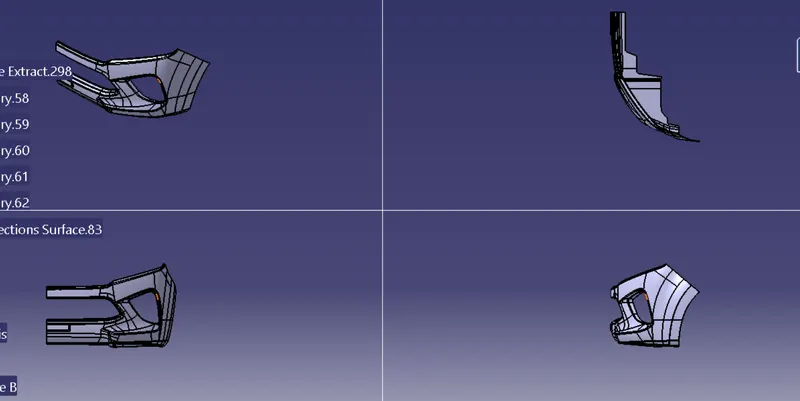

all views for product top front ,iso

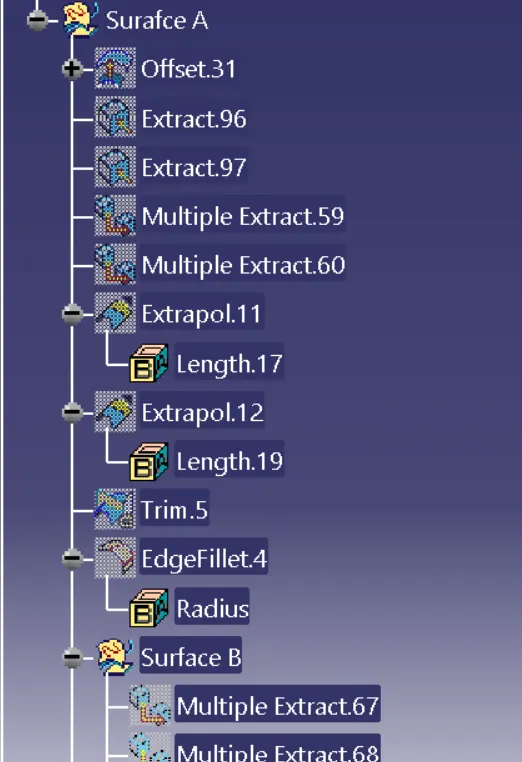

Surface A cons

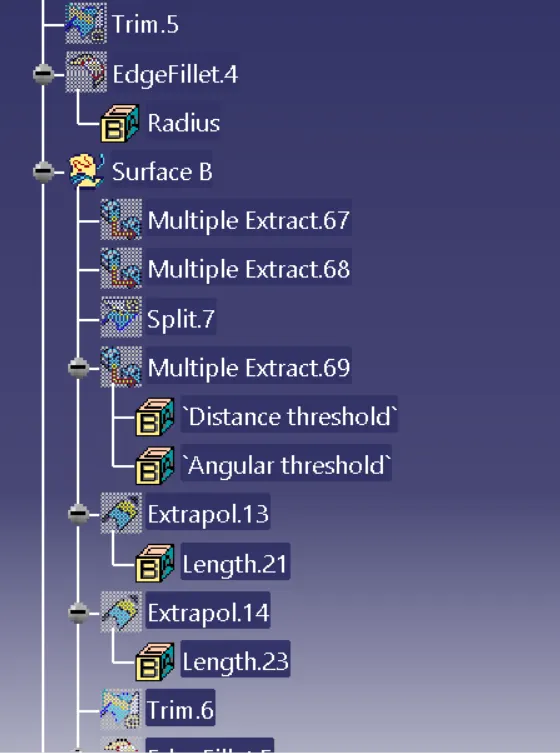

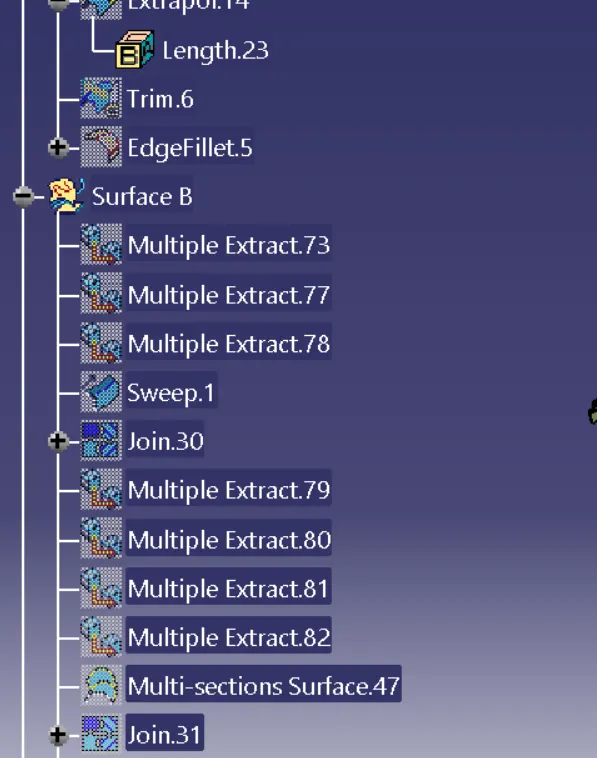

Surface B cons

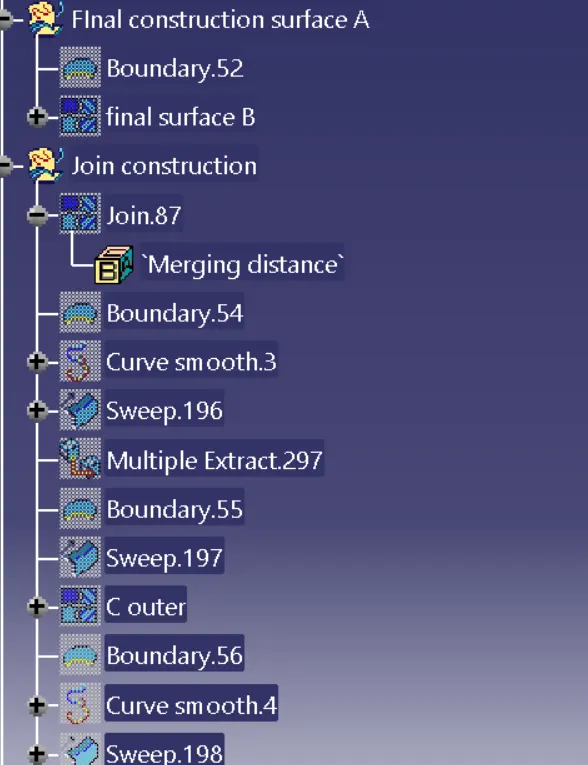

FInal cons for attacchment

close body
