Week 8 - Challenge 3 - Switch Bezel Design

Draft Analysis On Base Bracket

1. I did Draft Analysis On Base Bracket.

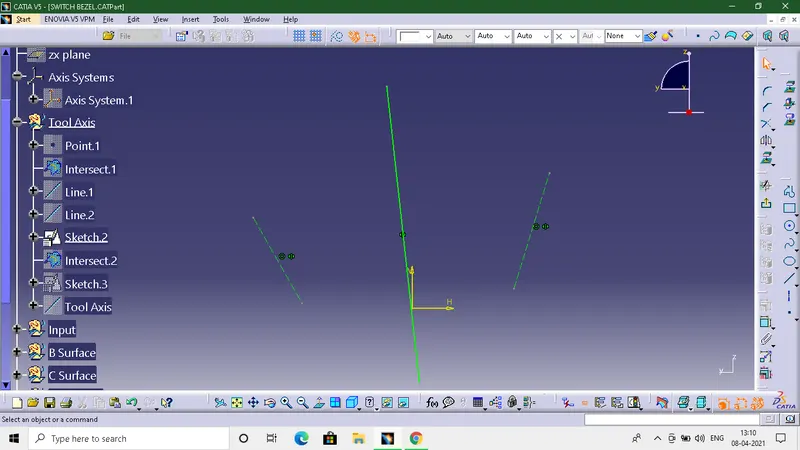

2. Before Draft analysis we need to Create Tooling axis line.

3. Tooling axis creating by using Bisecting line therogh X axis and Y axis.

4. First i created poing on Base surface and inserted axis system.

5. I created one intersection line through X axis and i drawn two line on existing intesect line and again i drawn one bisecting line.

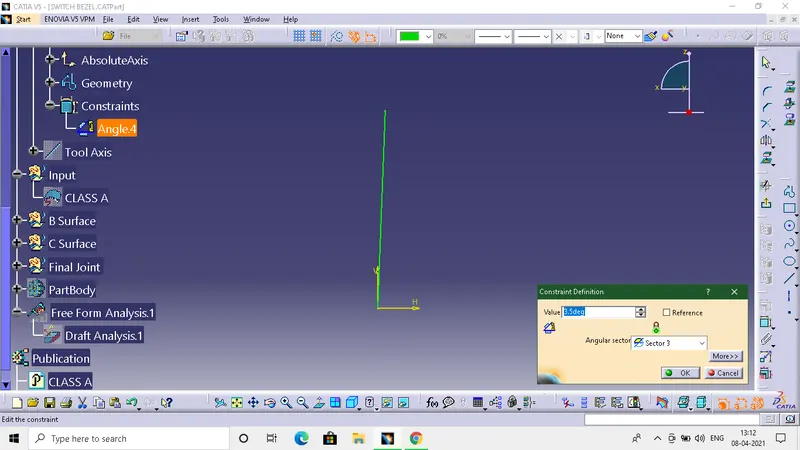

6. same procesure i followed in y axis but here one inresecting line is there i drawn a line by using and of 3.5 degree.

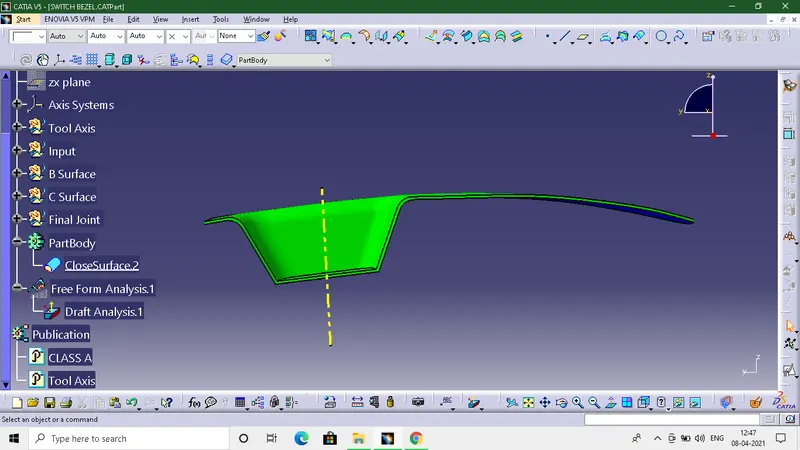

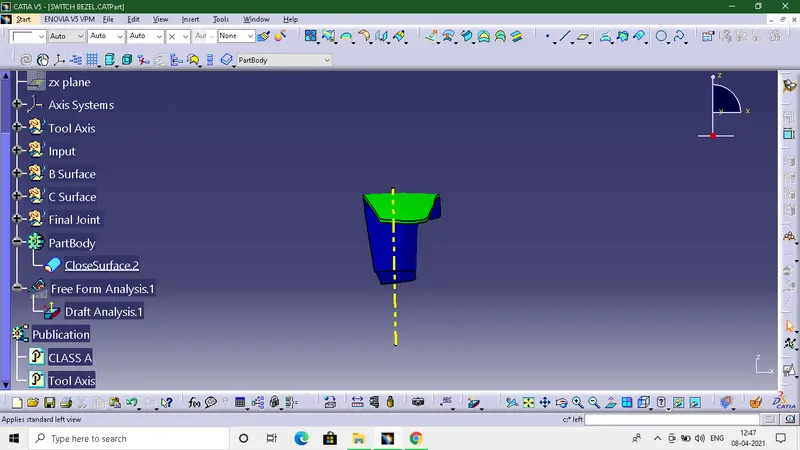

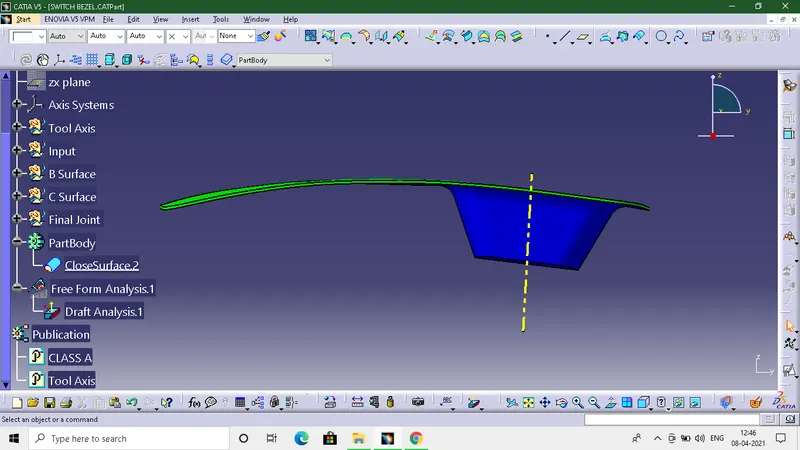

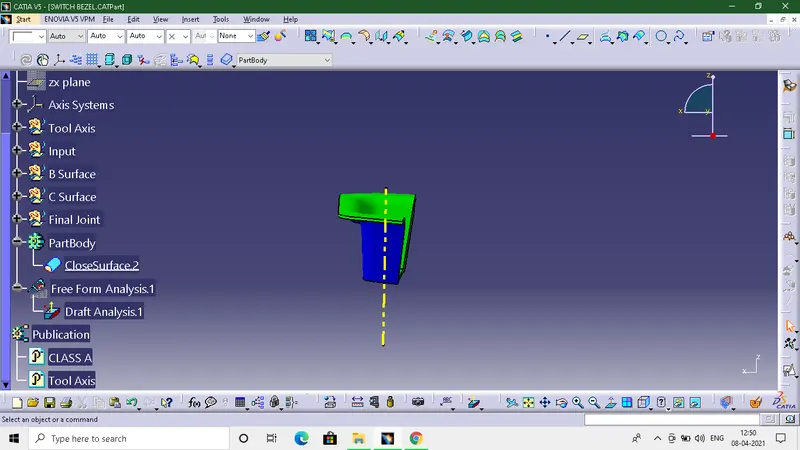

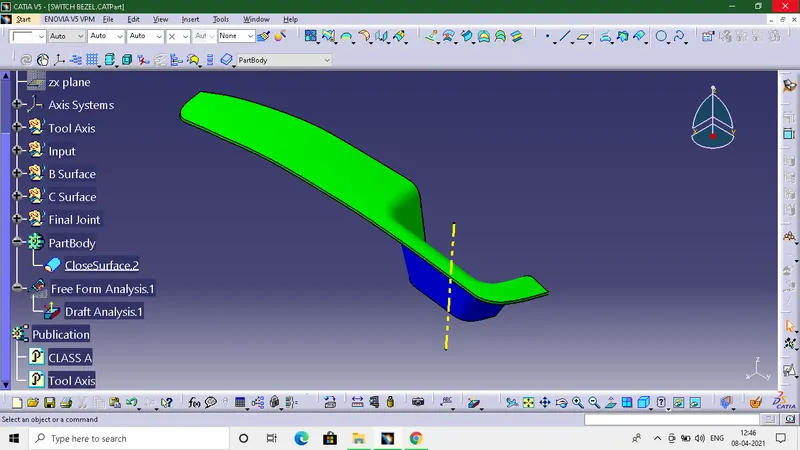

7. through above X axis and Y axis lines i drawn one Bisecting line that is the Tool Axis line for Base Bracket.

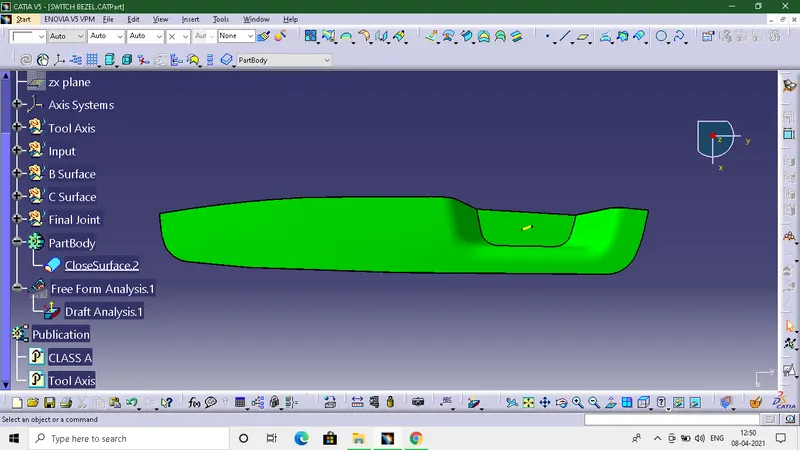

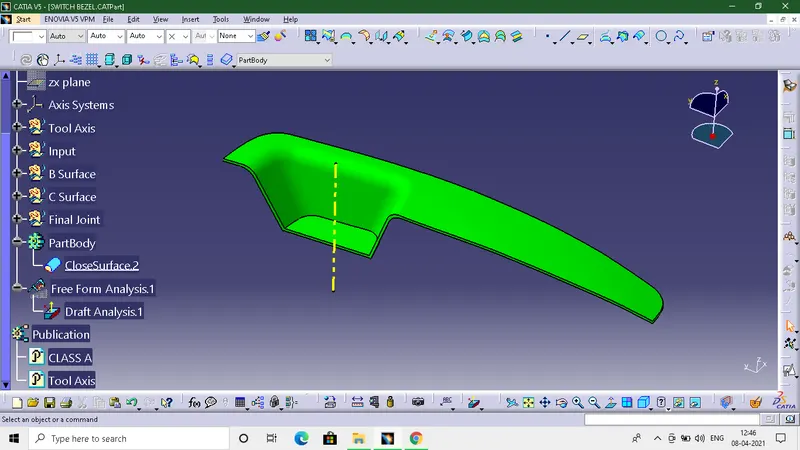

8. Results of Draft analysis also come within 3 degree and with green.
