Week 8 - Challenge 3 - Switch Bezel Design

TOOLING AXIS STEPS

• First, the Class A surface is checked from all possible directions to get the draft angle
• This is checked to get the best possible draft without compromising the acual structure
• The axis to be drafted is slected and a point is placed on the centre of the face
• A line is drawn intersecting the point to get a dummy tooling axis
• Now, the side walls where draft might be an issue is selected
• A positioned sketch is created at the given point and an intersection is created along the y axis
• Two lines are drawn on the side walls which is then made into a single line using Bisecting line option
• The same steps are done along the X Axis to get another bisecting line on the given point
• Now, the 2 lines are bisected to create a 3rd line which is the tooling direction for the given structure
• This tooling axis allows the user to perform draft analysis and to check if the component is ok for further creation

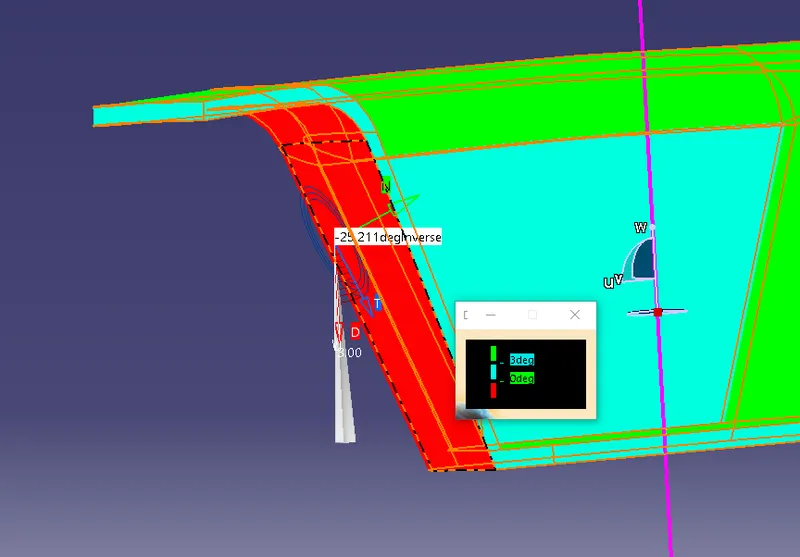

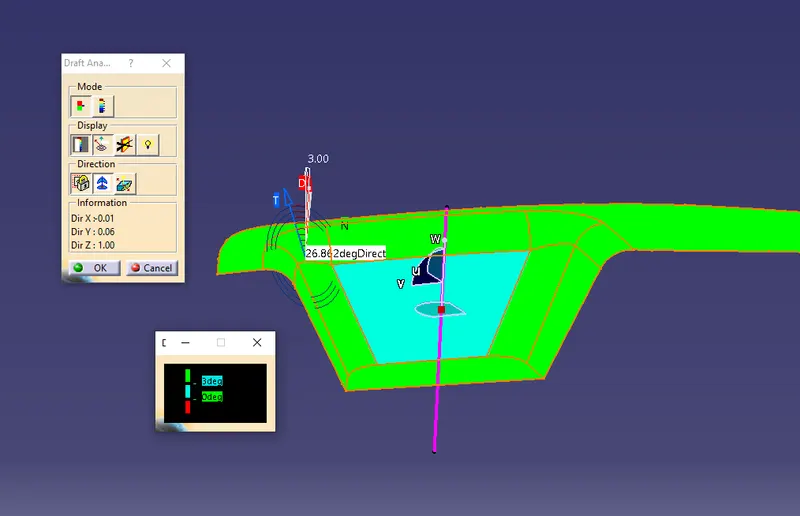

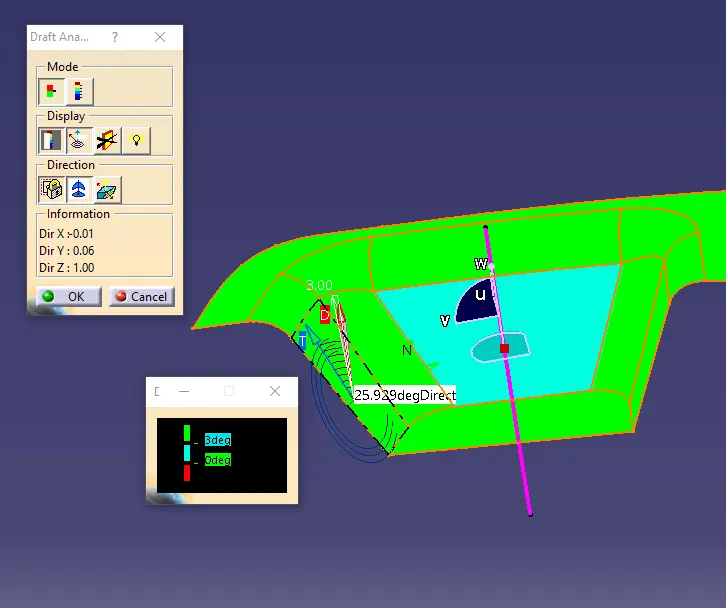

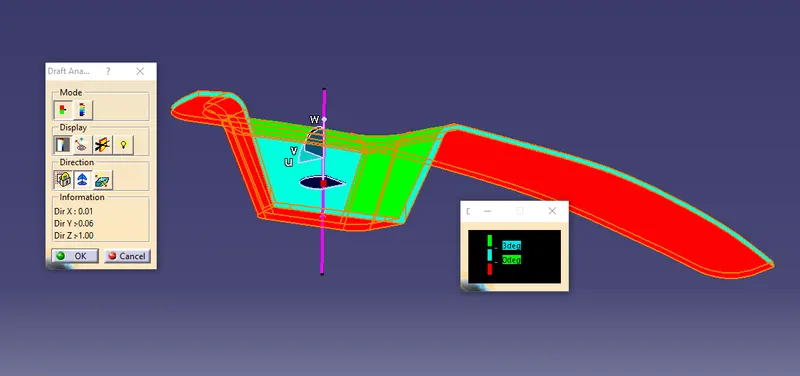

DRAFT ANALYSIS OF TOOLING AXIS

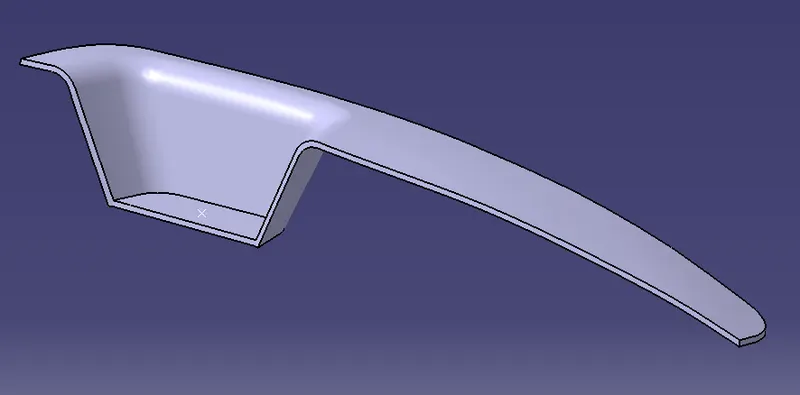

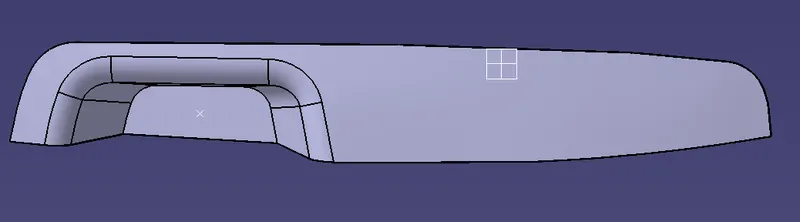

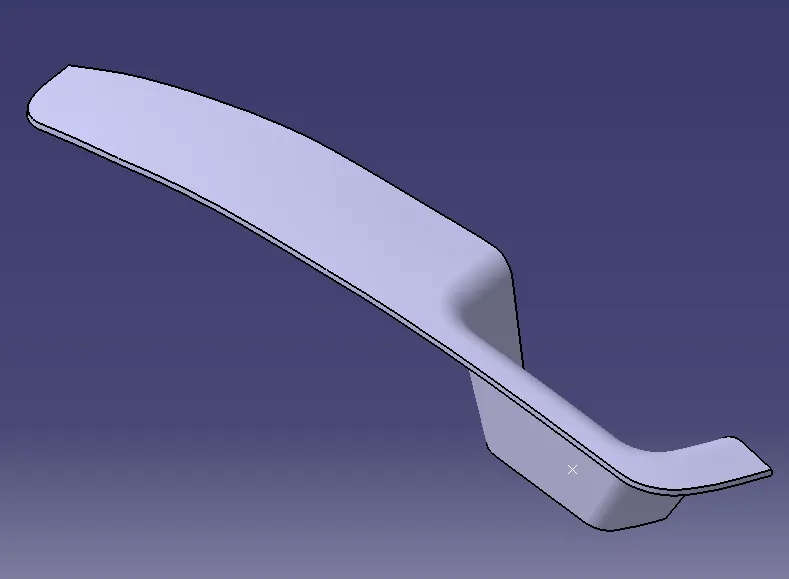

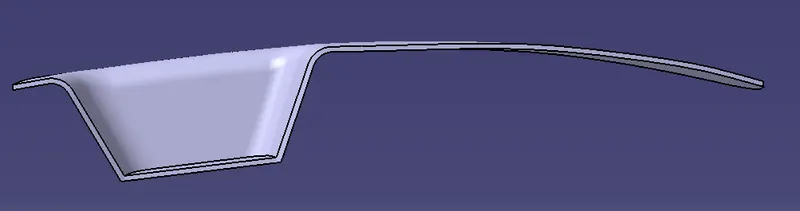

SWITCH BEZEL USING DRAFT ANALYSIS AND CLOSED SURFACE

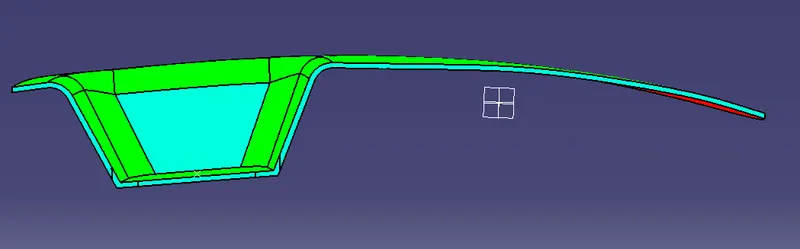

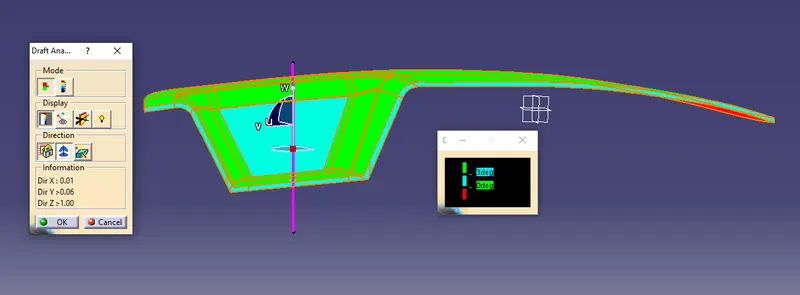

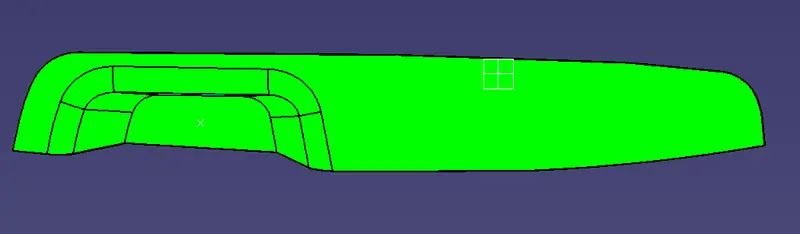

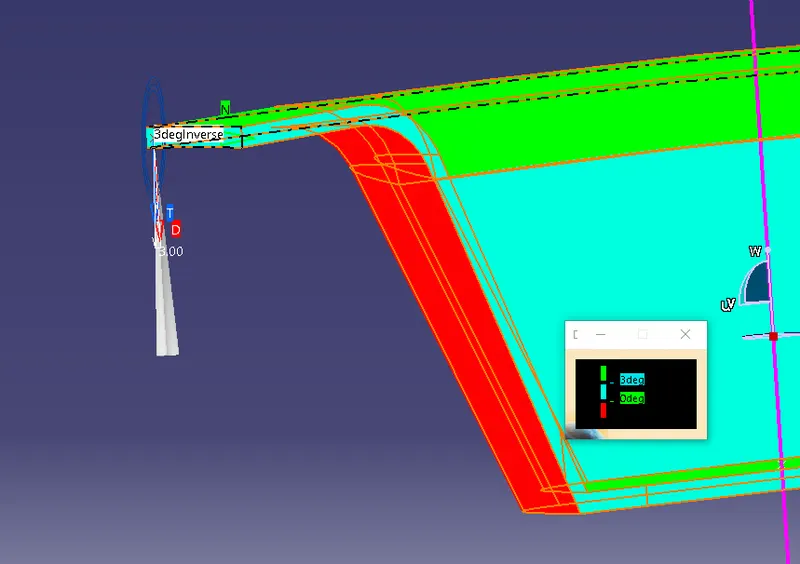

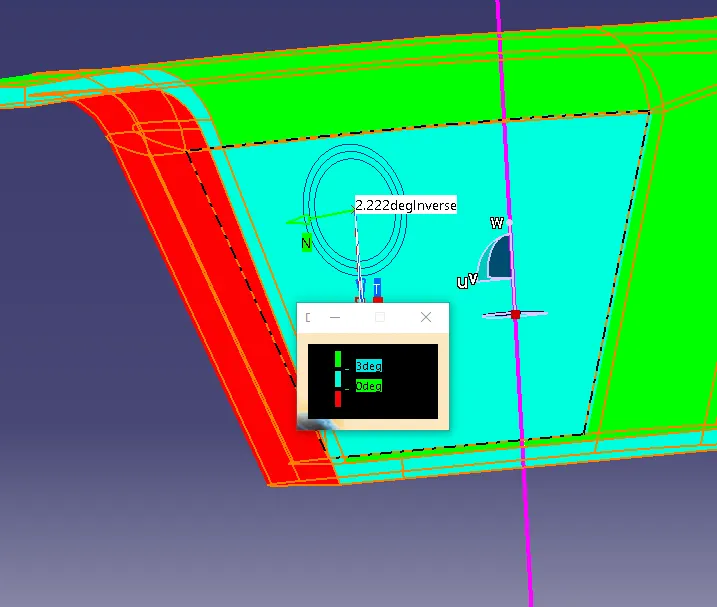

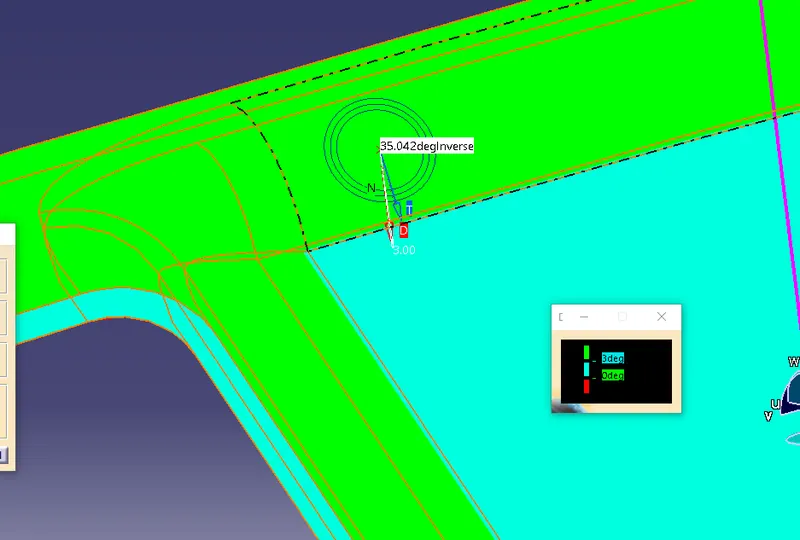

DRAFT ANALYSIS
