Week 8 - Challenge 3 - Coin Holder Design
AIM : To create a Coin Holder plastic component through the given Class A surface and perfoming the draft analysis on the model
objectives :
- To ensure proper tree structure is followed
- To keep the design as per requirement
- All the sketches should be iso constrained
- To publish the Class A,B and C Surface.
PROCEDURE :
- First import the class A surface in catia.

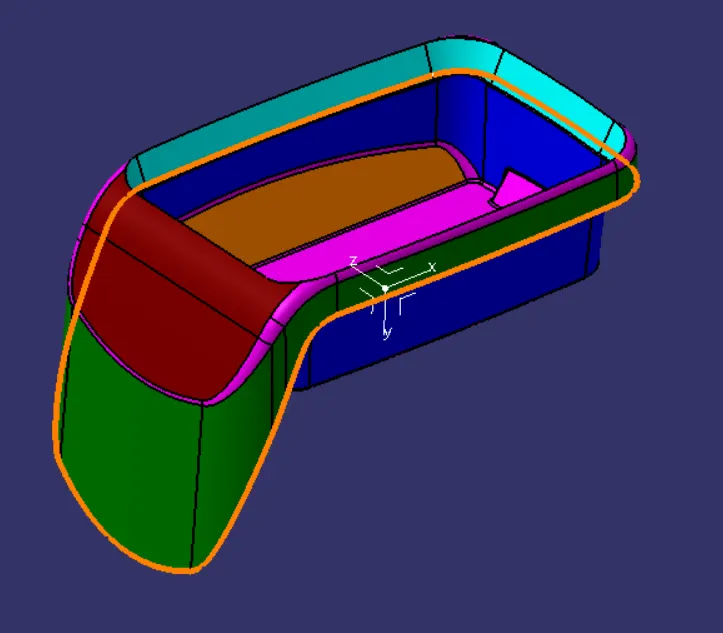

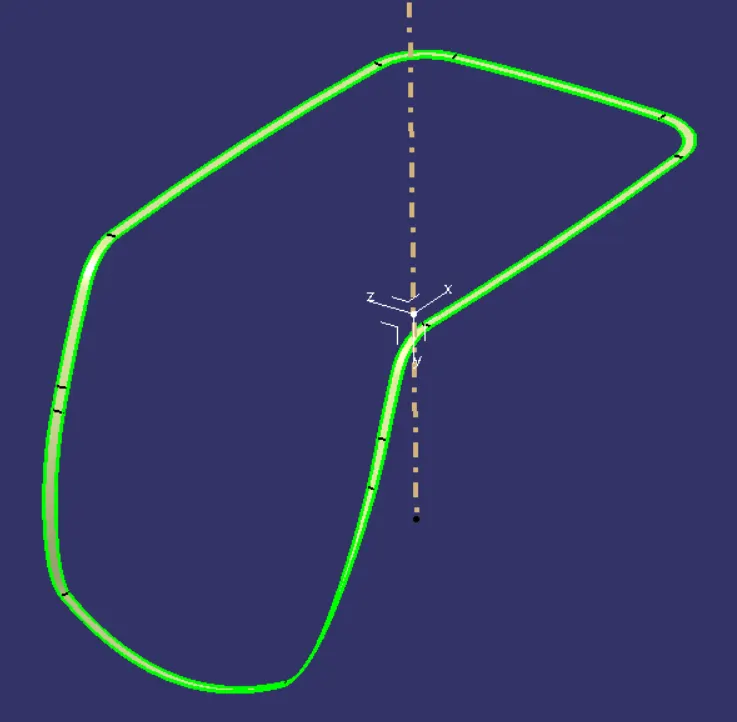

- check the boundary of the Class A surface.
TOOLING AXIS : The tooling axis is defined as the direction in which the mold or core and cavity opens is the tooling axis.

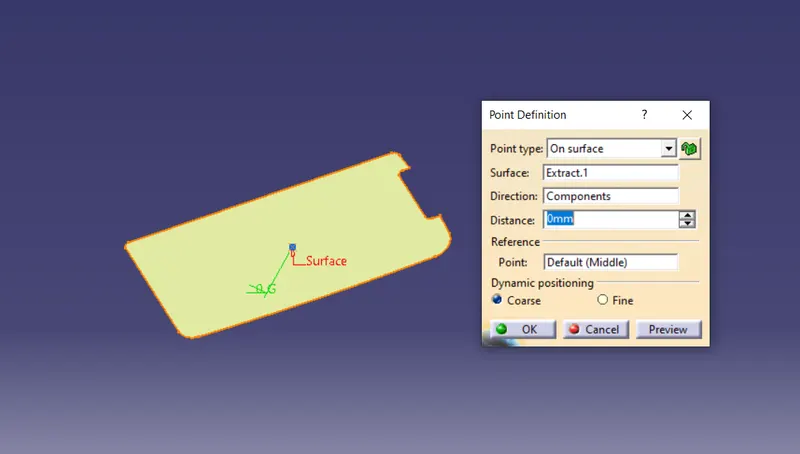

- First create the point for the reference of tooling axis

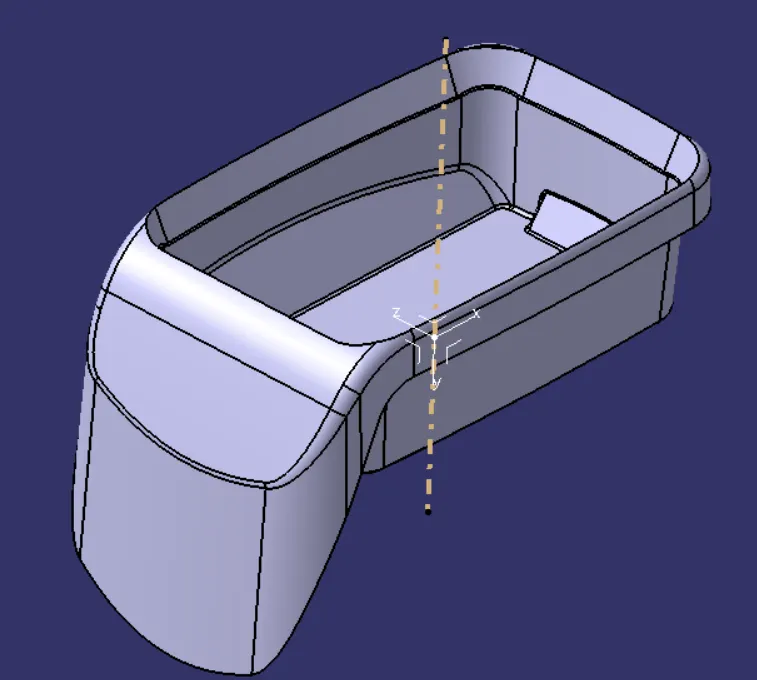

- Now using point as a reference we create a line normal to the surface.
DRAFT ANALYSIS - The Draft Analysis command enables you to detect if the part you drafted will be easily removed.

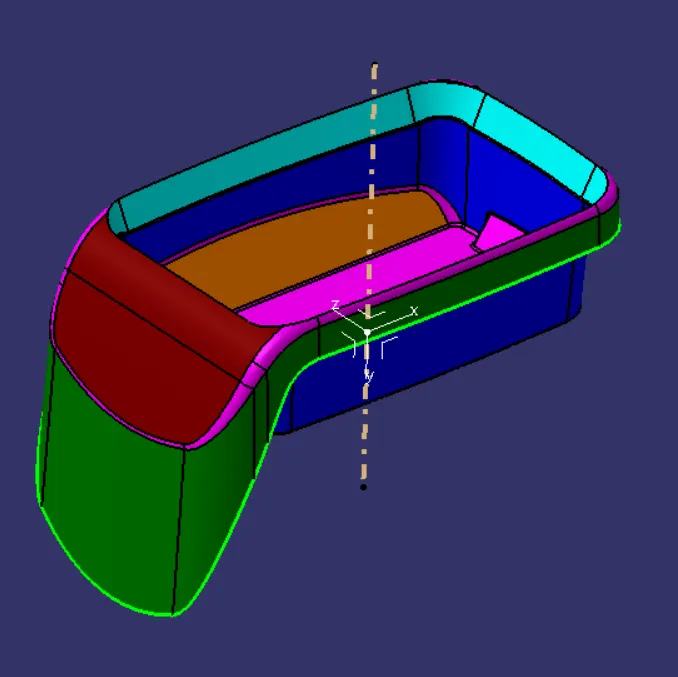

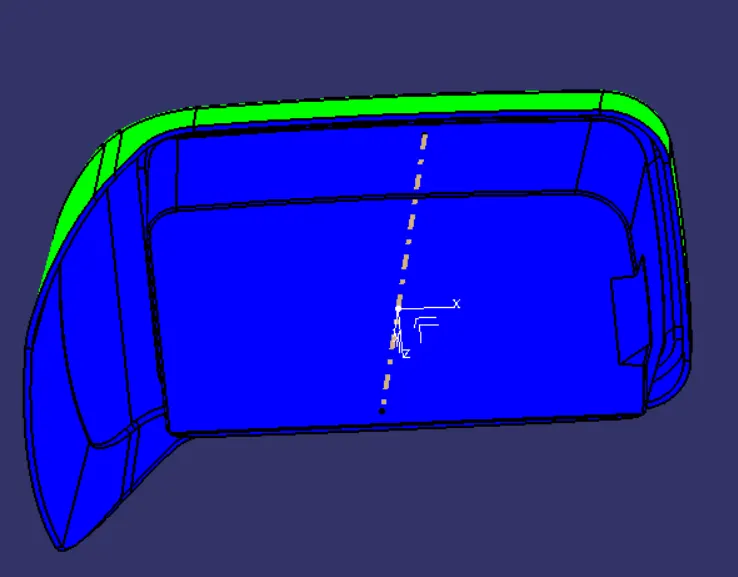

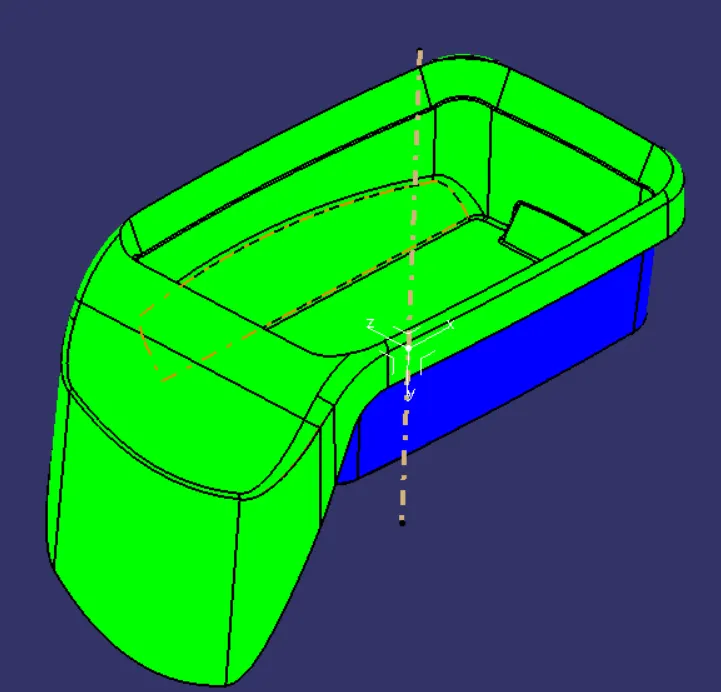

PERFORMING DRAFT ANALYSIS ON CLASS A SURFACE : -
CLASS B SURFACE
Thickness of the component as 2.5mm. and create a B surface by using class A surface of an offset of 2.5mm

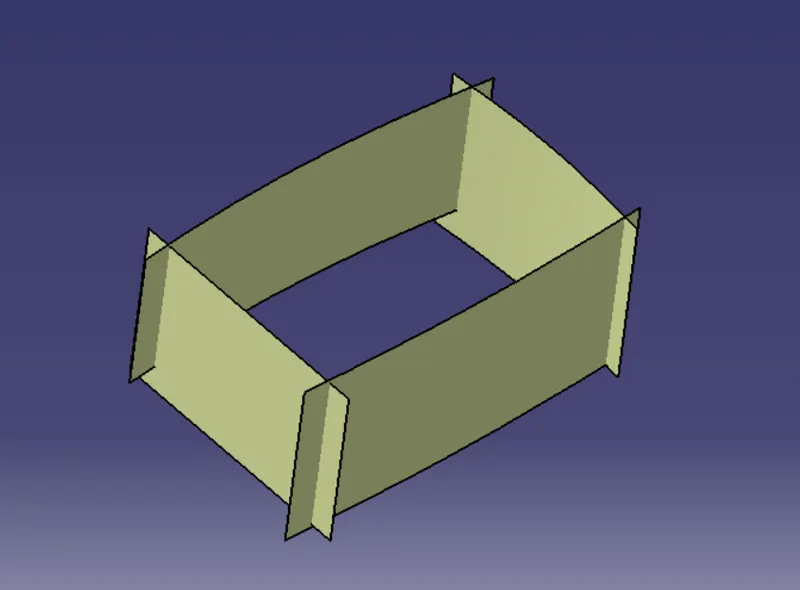

First we create a side wall and extract the class A surface
and then create the base and upper tilt walls and other side supports.

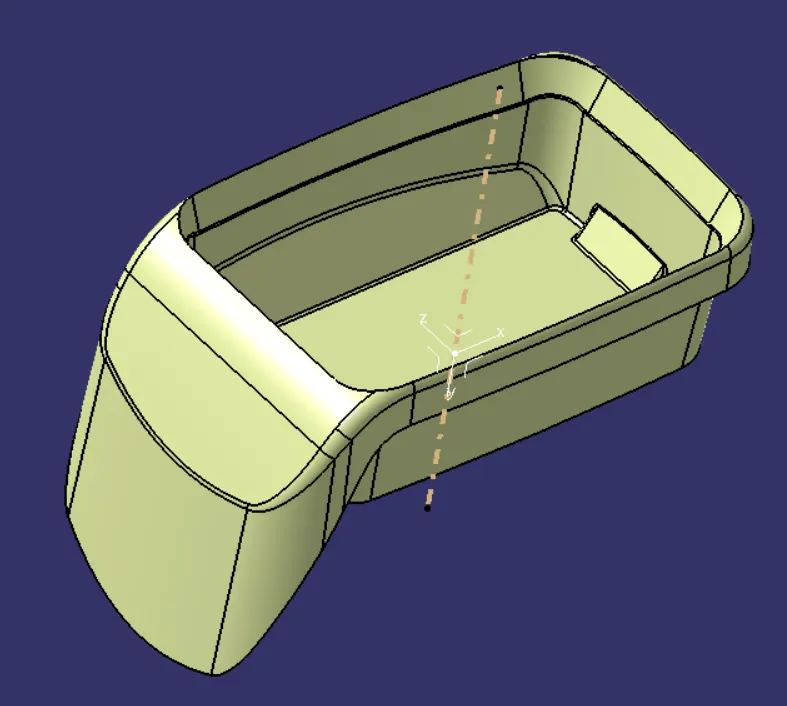

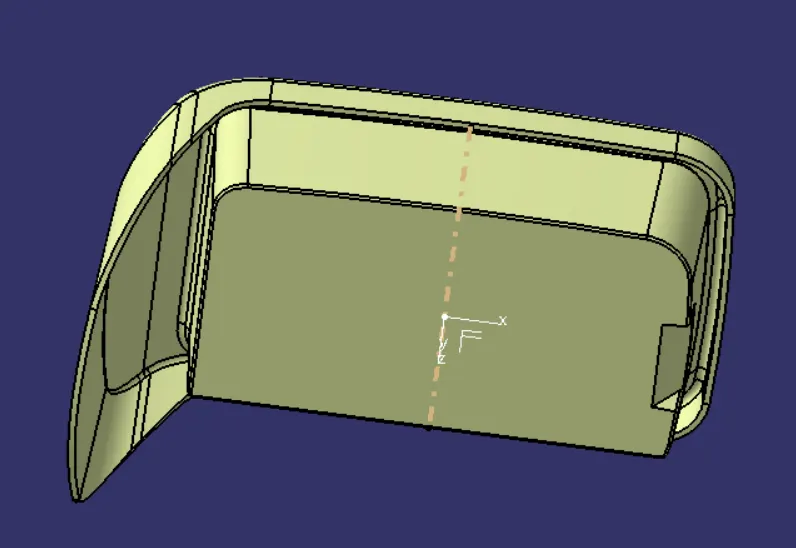

And now CLASS B SURFACE IS CREATED.
CLASS C SURFACE

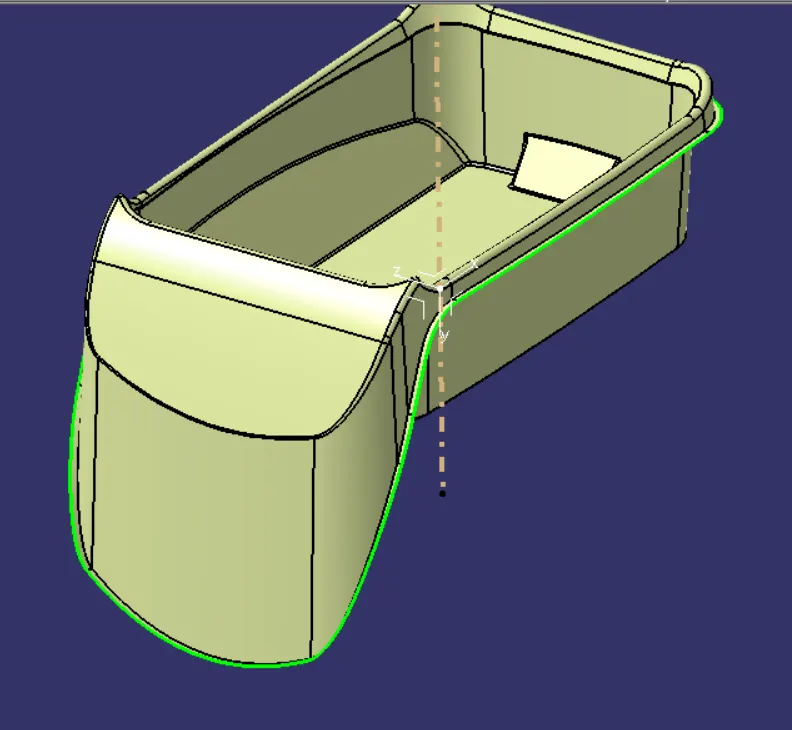

NOW USING THE CLASS A SURFACE BOUNDARY, CREATED THE SIDE OF THE WALL AT 90 DEGREE OF 4MM.

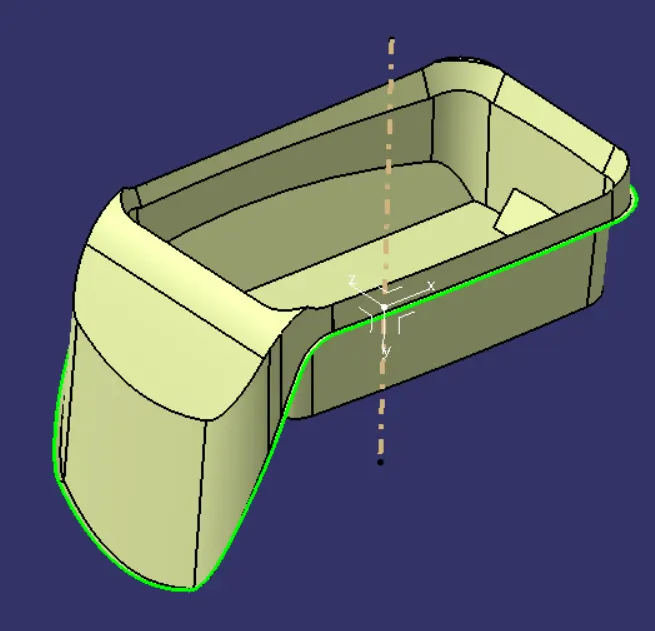

CLASS C SURFACE CREATED :-

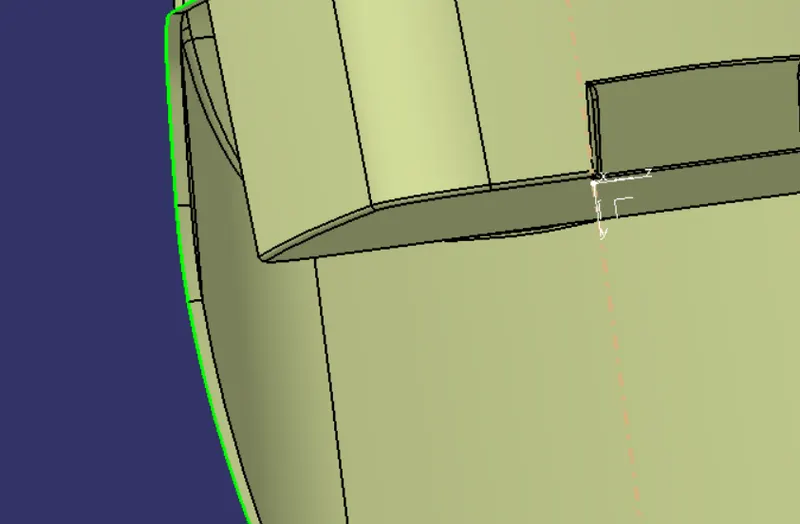

TRIM SURFACE :-

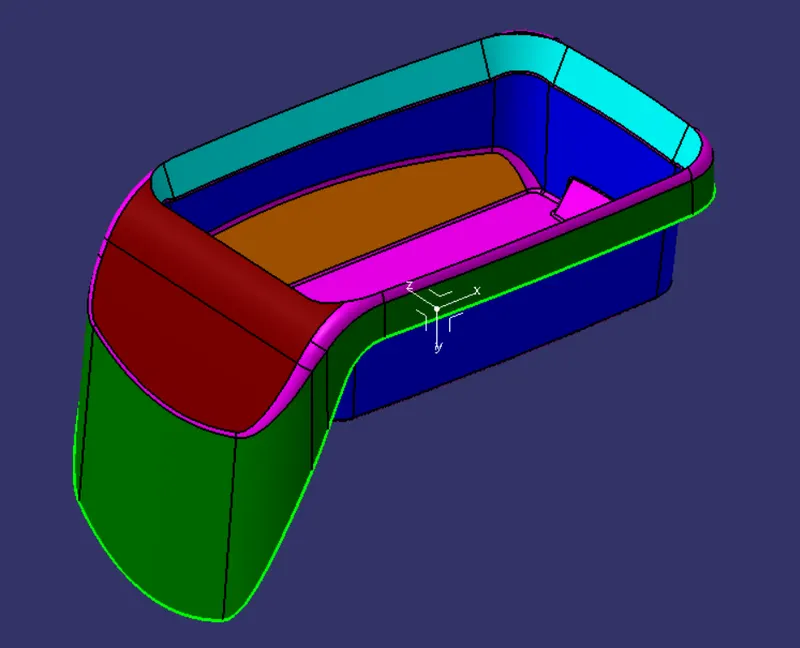

- After creation of class A, class B and class C surfaces, now we trim class b and class c surface to forma a new thick surface part, and then join the trimmed surface with class a surface to form the final required surface.
- Now using close surface option from part workbench form a solidbody from surface body

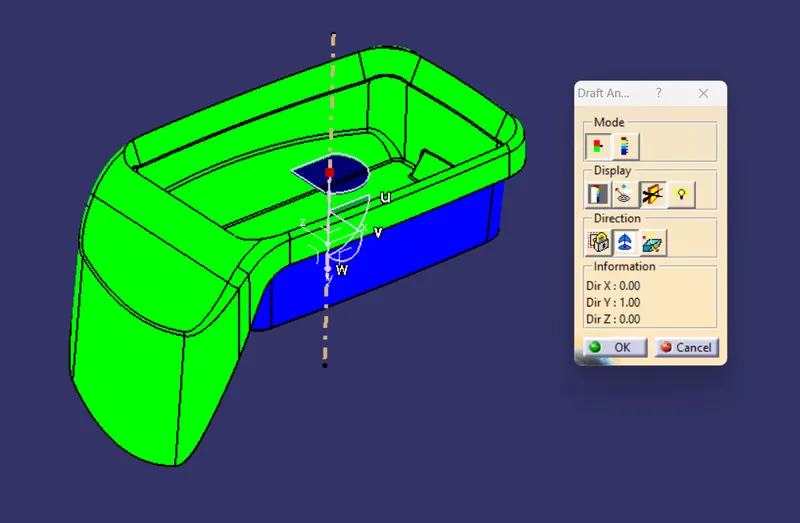

PERFORMING DRAFT ANALYSIS ON SOLIDBODY : -
CONCLUSION :-
Coin holder plastic component using class A surface have been succesfully created and draft analysis performed.
