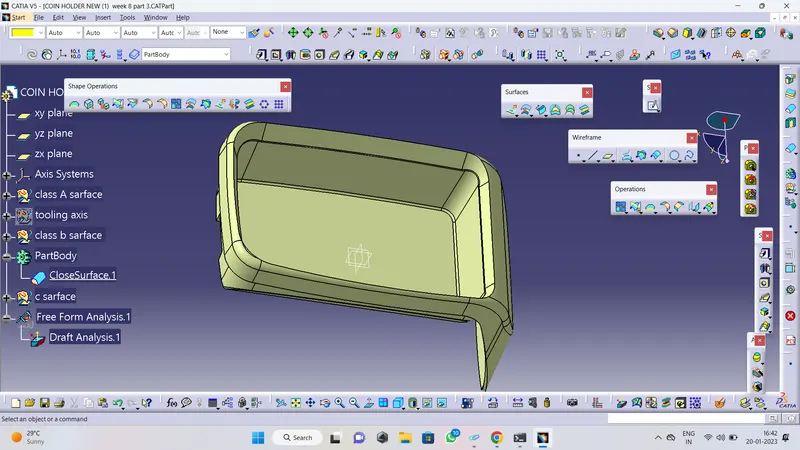

Week 8 - Challenge 3 - Coin Holder Design

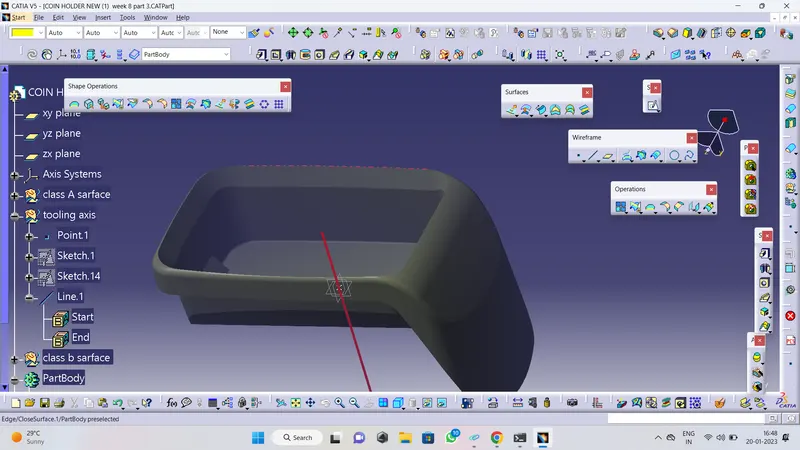

Tooling axis :- for creation of the tooling axis we follew the normal to surface line methed .

1. frist ensure the a surface is properly join and noo discontinuity the class a bouundry should only apper on the outer edge

2. we cerate x axis and x axis creat demo line and we create a line normal to basase surface and create line using the normal to surface and the point as reference this new line is considers as the tooling axis .

draft :- it is the amount of taper or slope given to cores or other part of the die cavity to permit easy ejection of the casting from the die casting die .

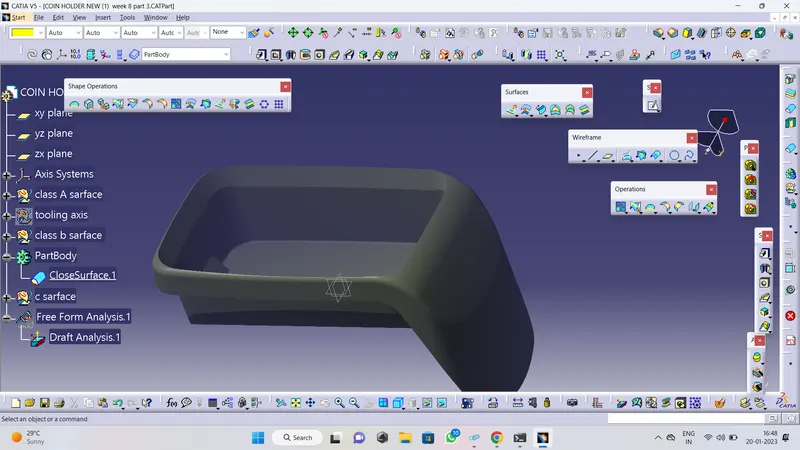

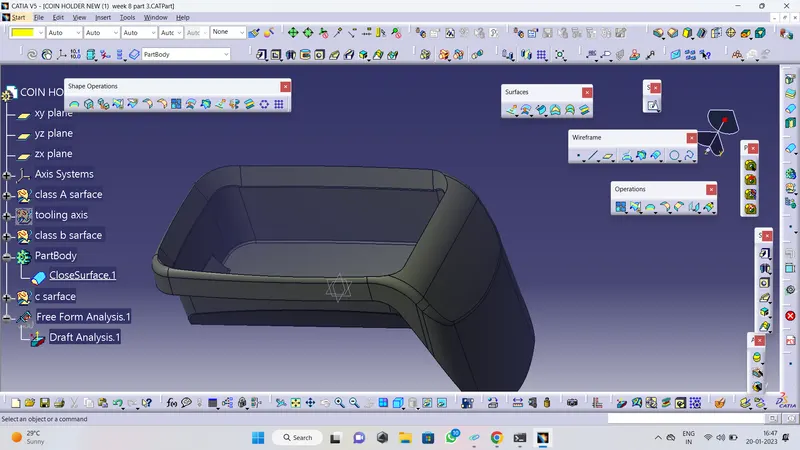

a. go to insert - analyis - feature dreft analsis.

b. align the compass wiyh the tooling axis .

c. then click on the it is within the permissible limit of the drft valve .

d. the classs a surface should turn green and then draft value should be given as 3 degrees .

tooling axis :- for creation of the tooling axis we follew the normal to surface line methed .

1. frist ensure the a surface is properly join and noo discontinuity the class a bouundry should only apper on the outer edge

2. we cerate x axis and x axis creat demo line and we create a line normal to basase surface and create line using the normal to surface and the point as reference this new line is considers as the tooling axis .
