Week 8 - Challenge 3 - Coin Holder Design

Create the Coin Holder Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

Take the Thickness of the component to be 2.5 mm

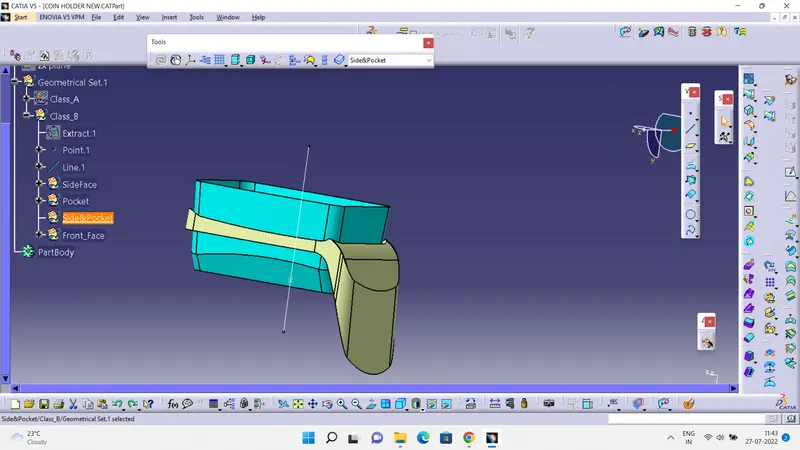

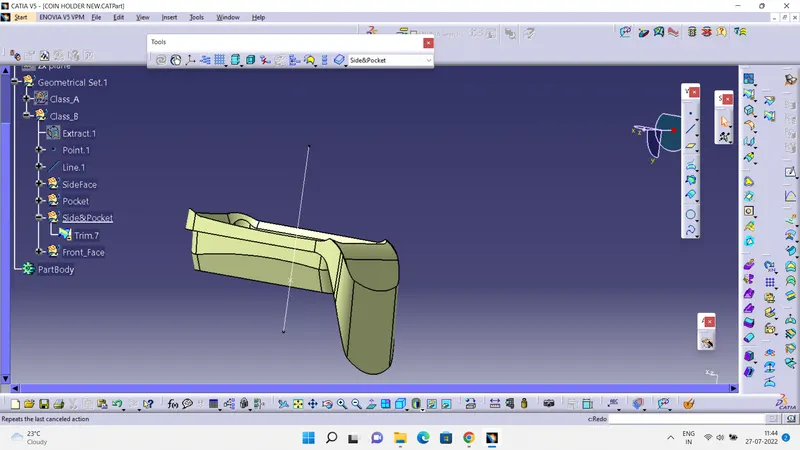

Class B Surface :

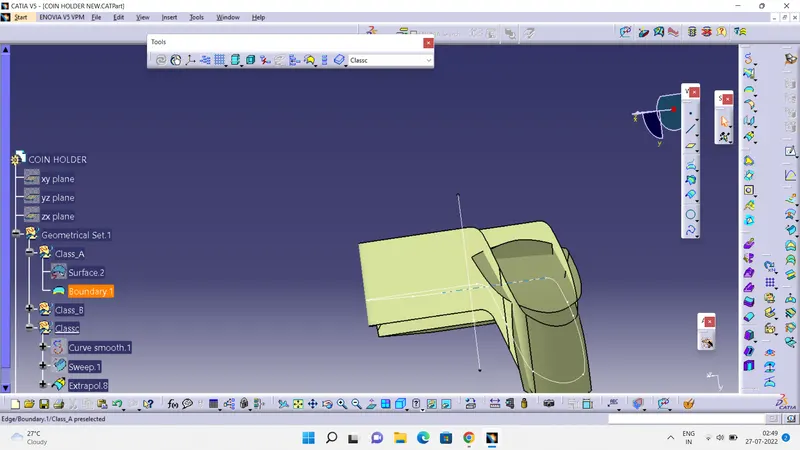

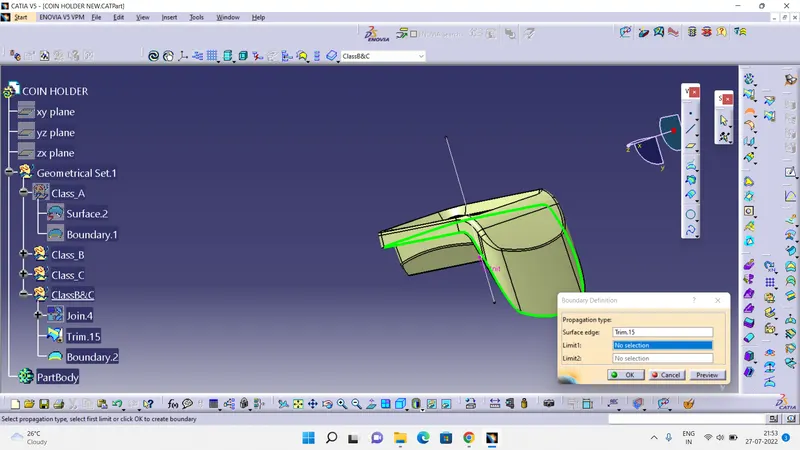

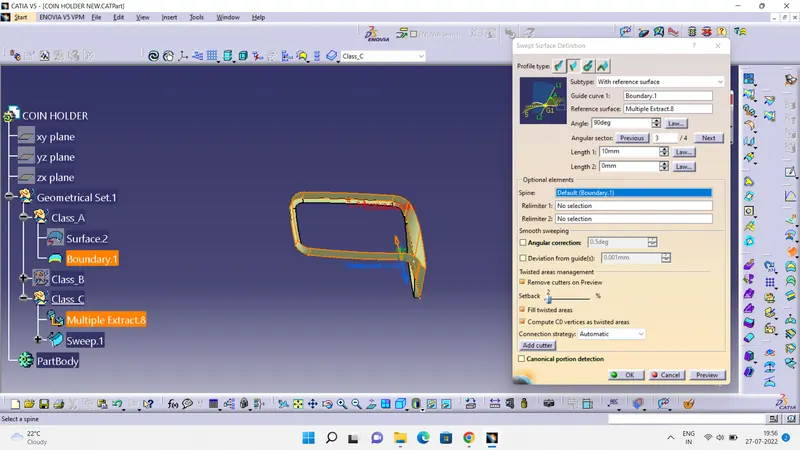

Class C Surface.

Comment: The Body of the the surface wasn't created closed due to Some Software glitch. As dicussed with Shrikant Sir He suggested to Submit the existeing Model

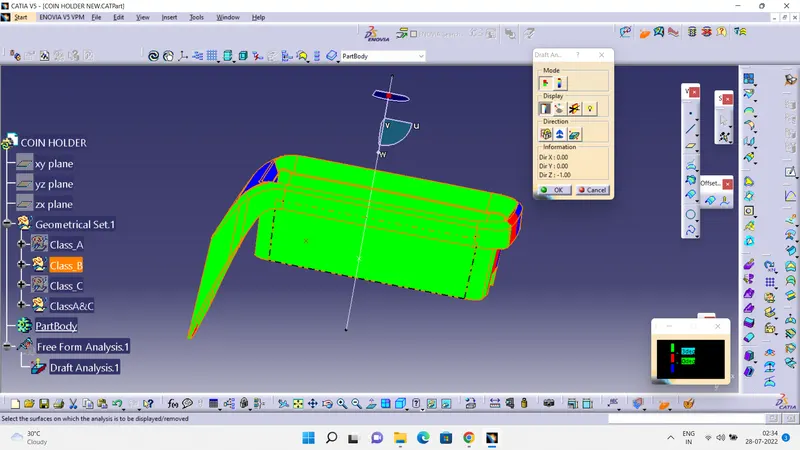

Draft Model:
