Week 8 - Challenge 3 - Coin Holder Design

COIN HOLDER DESIGN :-

Aim-

Create the Coin Holder Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model. Take the thickness of the component to be 2.5MM.

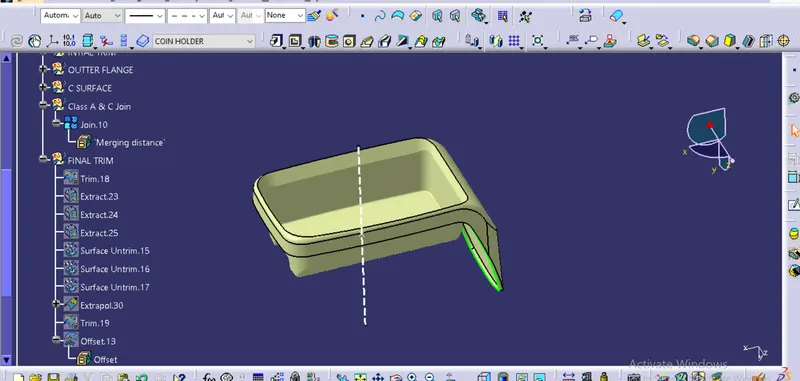

Given Class A Surface-

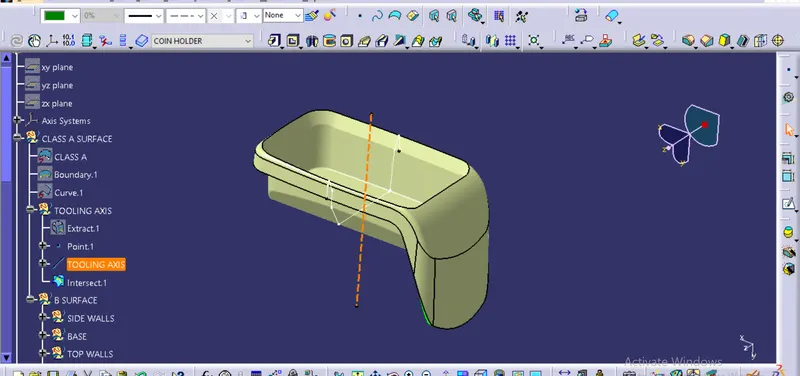

Tooling Axis-

As we acn see there is no hole on part and all 4 sides are in prity angle. So we acn take referance the UP or DOWN both side for tooling axis. Here we are considering base of coin hoilder on the core part. So according to that oriantation we will take two intersection line with perpendicular plane.

On XY Plane-

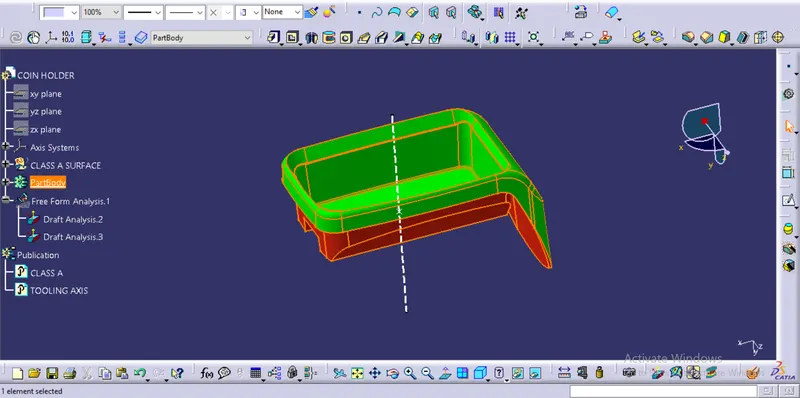

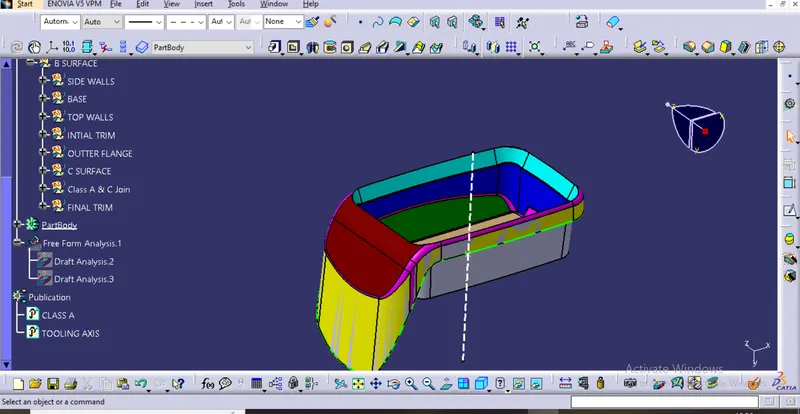

Draft Analysis-

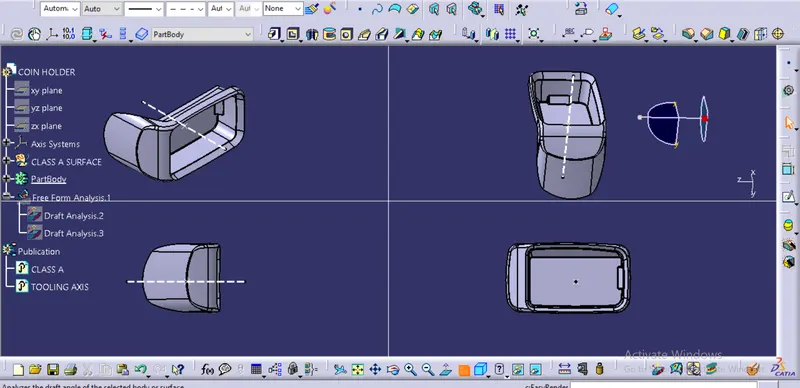

VIEW ALL FOUR SIDES
