Week 8 - Challenge 3 - Coin Holder Design

Aim:

To be able to model solid from the given Class a surface, and perform Draft analysis and create Tooling axis.

Class A surface with tooling axis.

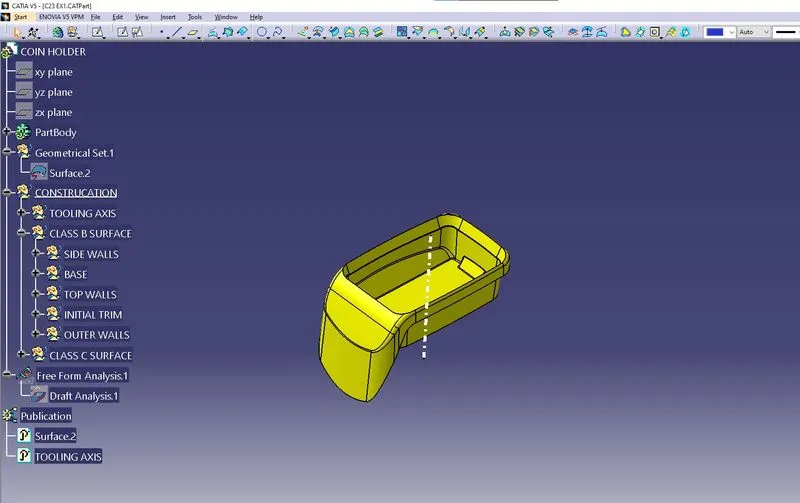

Class B surface :

- In class B want to make by uses of class A surface.

- want to extract the of the class A surface.

- we extract has a base, side walls, top walls, inner walls.

- Untrim the all extract surface and extrapolated into wanted measurement.

- After we want to make a trim each every one into proper meathod.

- finally check the only one boundary has be in the class B surface

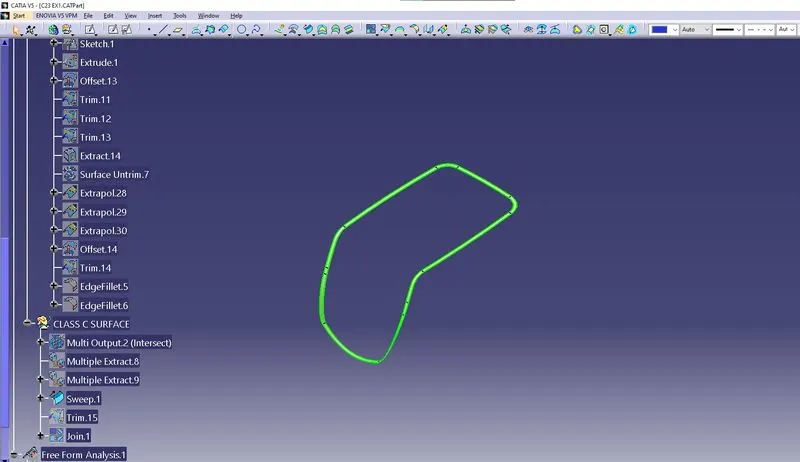

Class C Surface :

- Use the class A surface to make the boundary.

- The make a multi extract to make the boundary.

- Make the sweep, uses of multi extract boundary.

- Make join to the class A surface.

- After make trim to joined surface.

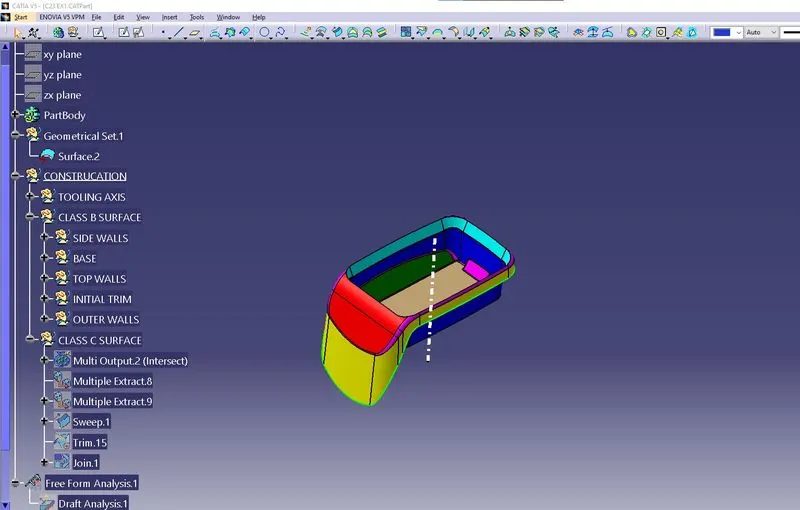

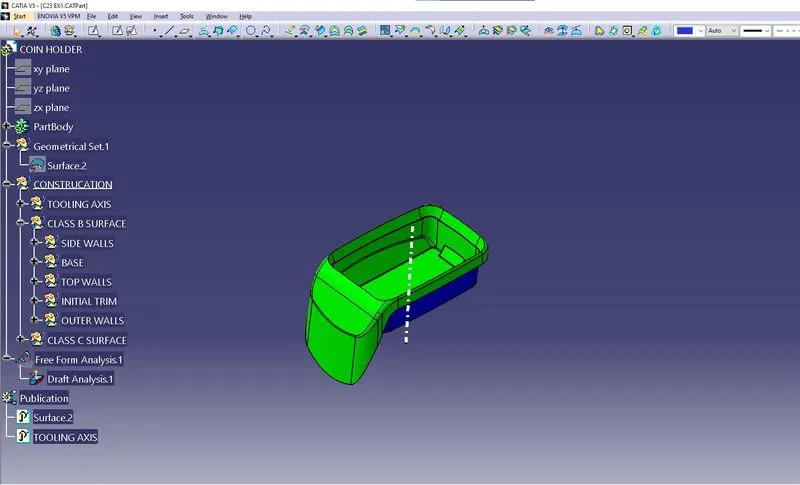

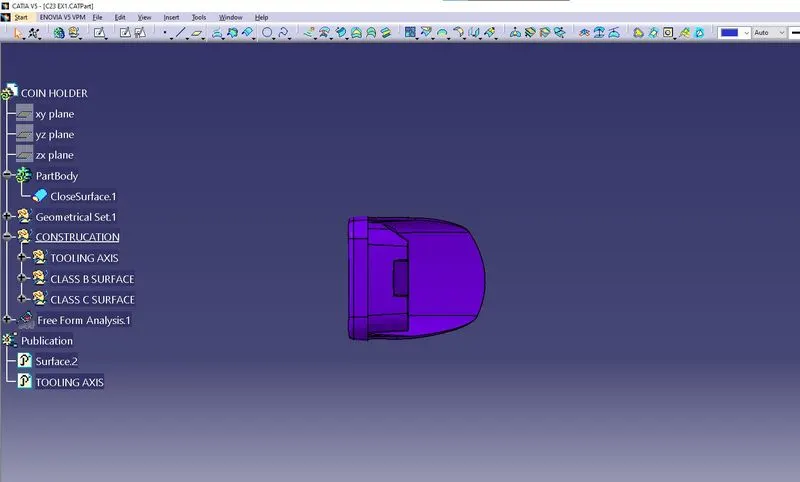

Tooling Axis :

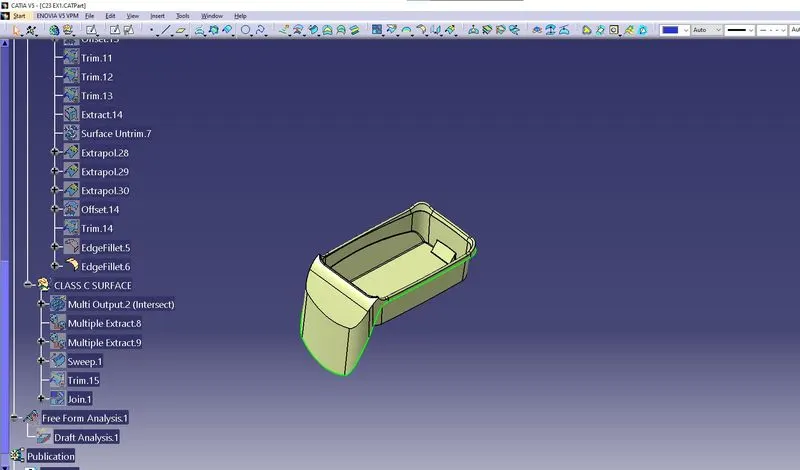

Closed Solid Surface :

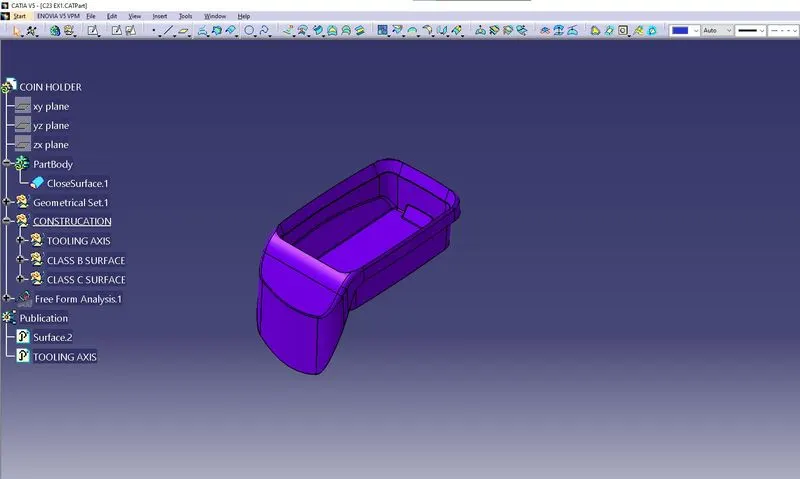

Isomatric view :

Front View :

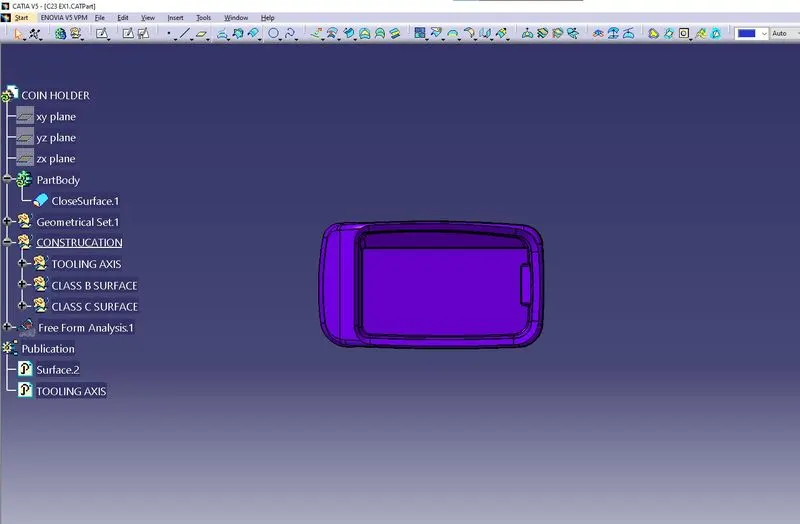

Top View :

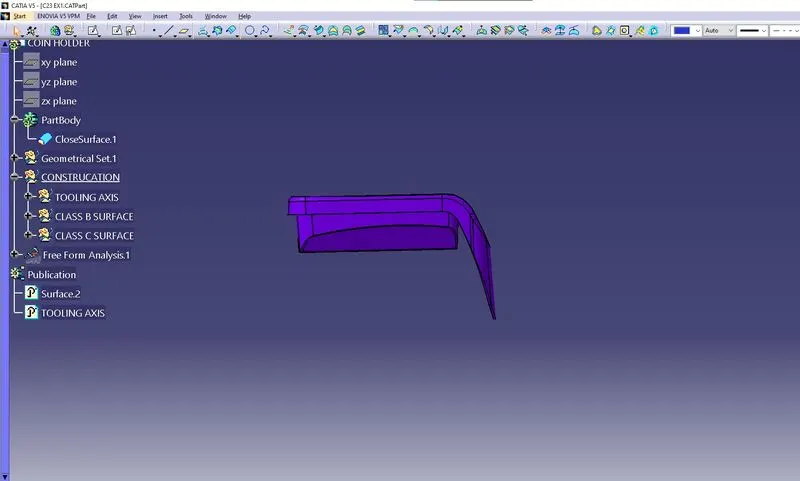

Side View:
