Week 8 - Challenge 1 - Base Bracket Design

Draft analysis report :

Given Class A Surface

STEP 1: Check the connectivity of the Class A Surface
Ensure that there is no gap between the component, using join command.
We can visually check it or by clicking boundary command.
It has 3 boundaries one outer and two inner circle boundaries.
Therefore first check completed.

STEP 2: Find the tooling axis of the component. The tooling axis is nothing but the mould opens or cavity opens.
Check visaully which is the best possible tooling axis.
Check all three axis.
Along x it possible but expensive and y is not possible.
z is the best possible tooling axis.

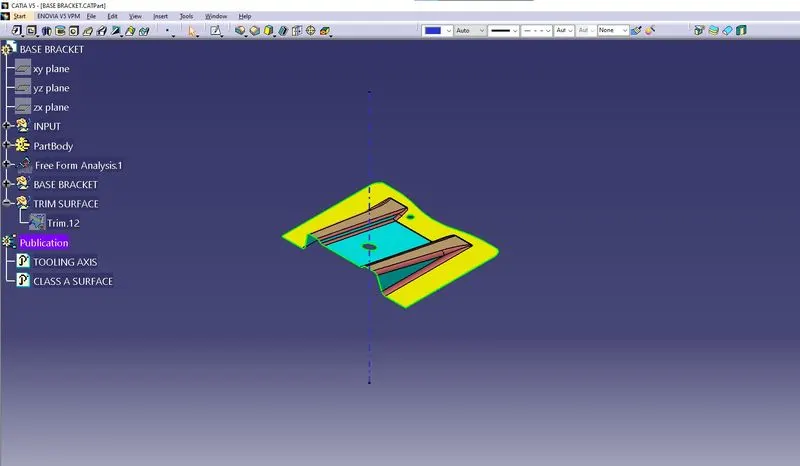

Creating a Tooling axis along z:

Therefore the main tooling axis is along z axis.

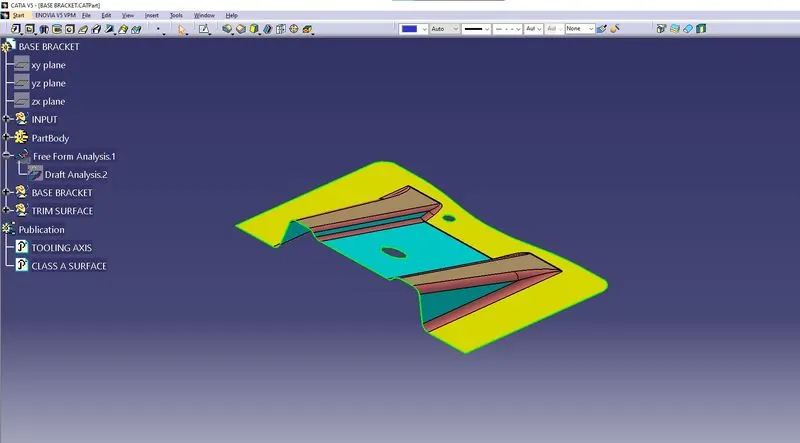

Now perform the Draft analysis using the Featured Draft Analysis tool in the tools.

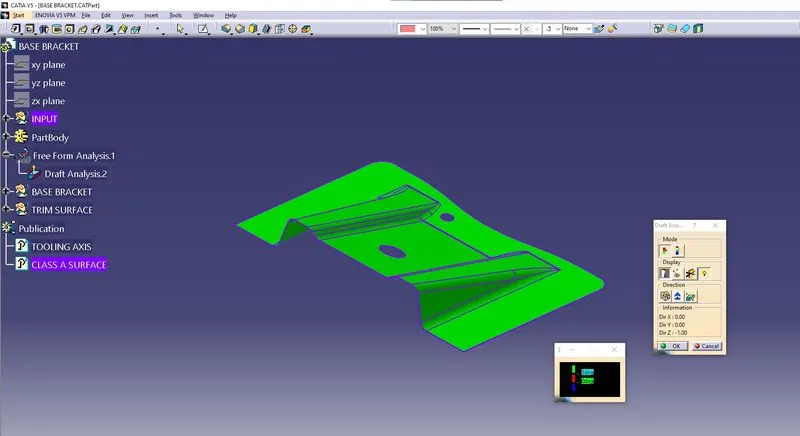

Then after opening the draft analysis tool box go for the compass and place the compass alinged to tooling axis and click on the lock symbol after alinging and further click on the surface.

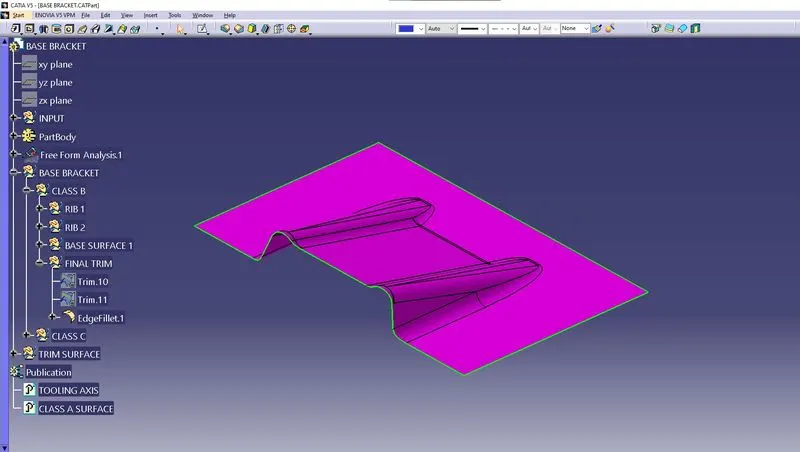

Now creating Class B Surface:

Intially extracting the right side rib using extract option from Class A surface.

Then perform Extrapolate inorder to increase the length

Now trim the surfaces to required surfaces

Then Offset the surface inorder to get the required thickness

Similary create the left side rib

Now Similarly get the slanted as well as the flat surface and offset it to desired value

And now trim inorder to get the required surface

Now fillet the surface to required amount.

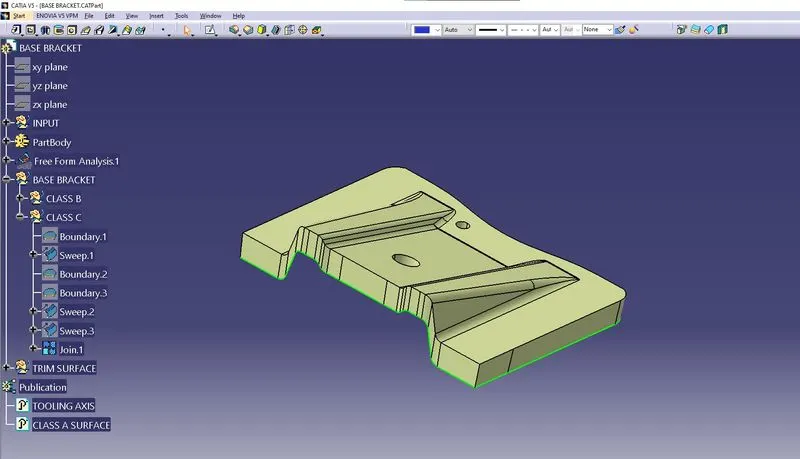

Now Creating Class C Surface:

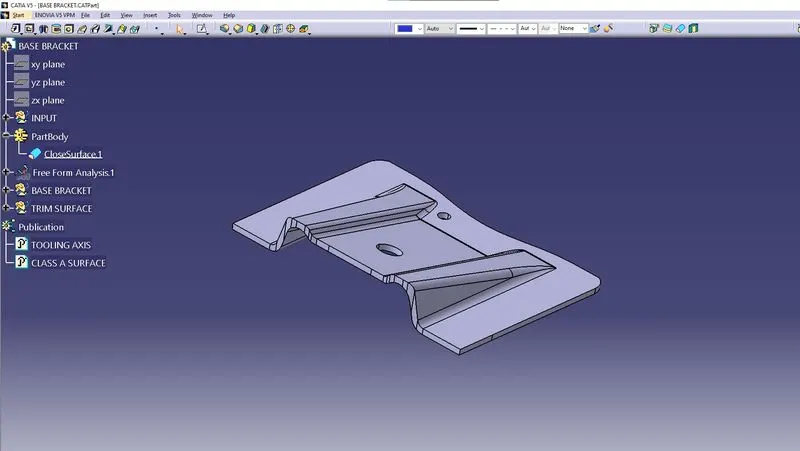

Isometric View:

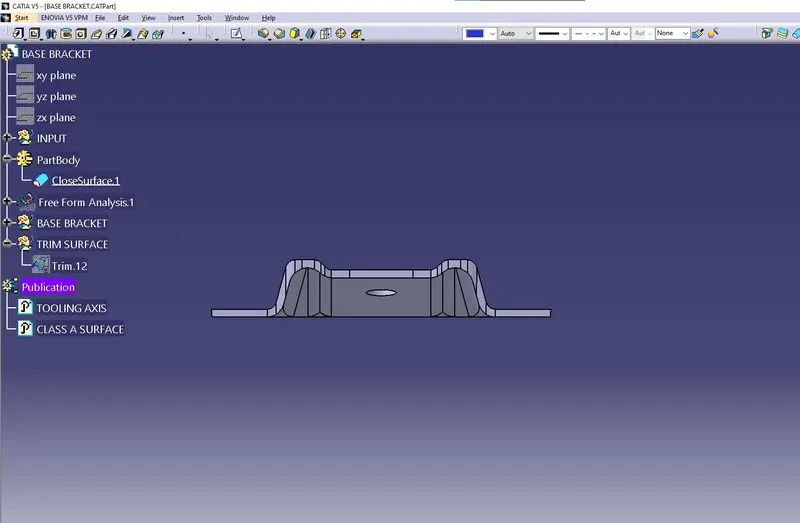

Front View :

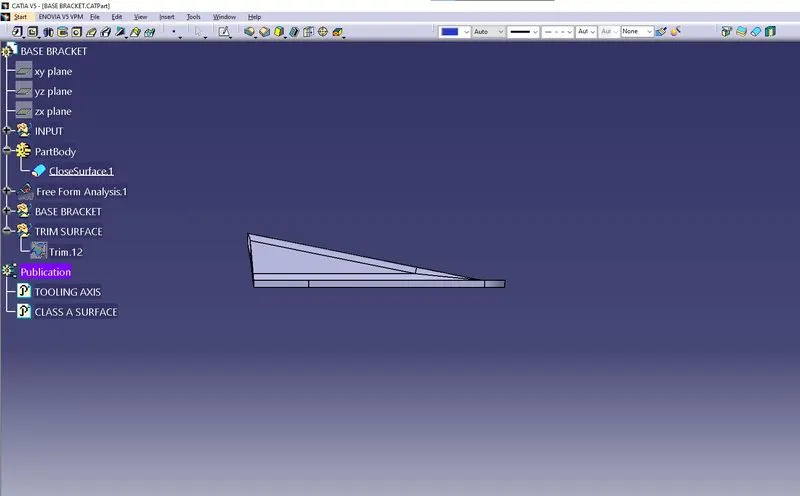

Side View :

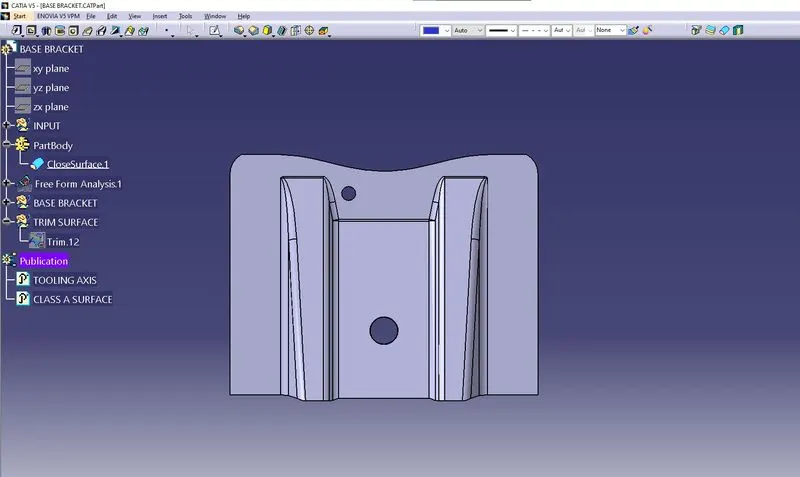

Top View :
