OBJECTIVE

• To Create or Develop Class B and Class C Surfaces of Coin Holder from the given Class A Surface.
• To Determine the Tooling Axis for the component.
• To Analyse Coin Holder by featured Draft analysis in Catia V5

• Shown Screenshot is given Class A surface from the Design consideration team.From the surface create a centre point of the surface and add axis system from the point.
• Consider the possible axis for the component,i determine YZ axis. to create intersection of the surface in YZ axis.

• From the Intersection of the surface,Boundary of the surface create line of two inclined edges of the surface.
• From these two lines and centre point, Bisecting Line is created and define as a Tooling Axis.
• A line segment bisector divides the line segment into 2 equal parts. It passes through the midpoint of the line segment

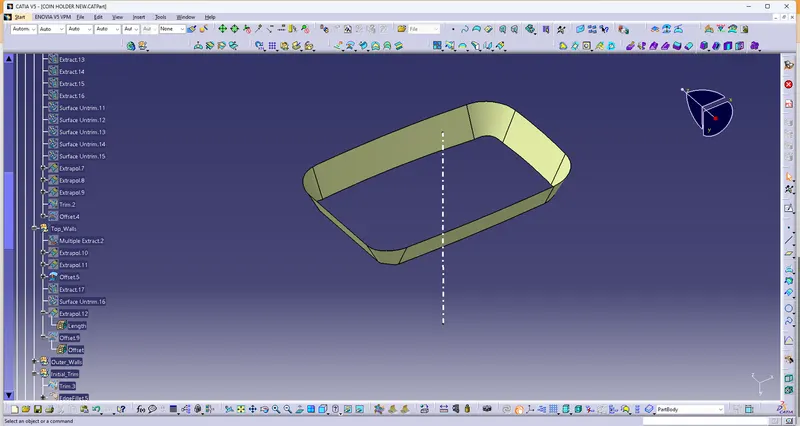

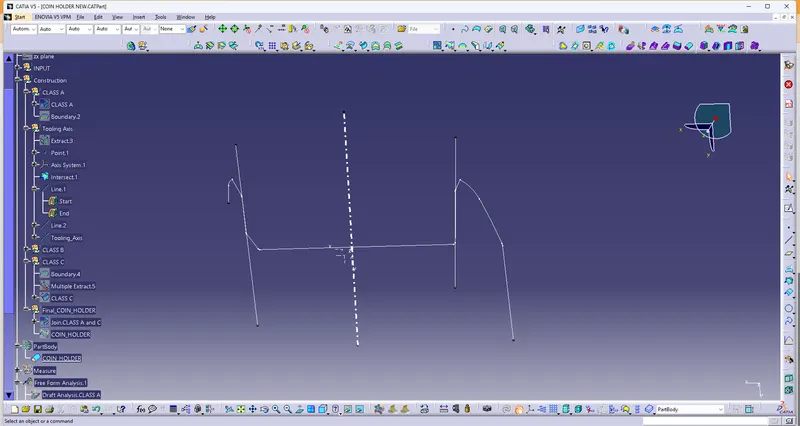

Screenshot is shown Bisecting line or Tooling Axis

• From the created Tooling Axis, Considered Reference axis and Develop Class B and Class C Surfaces.
• Class A surface is customer View or Outer present of the component.
• Class B surface is Design Engineer view of creating Screw or Boss, Mounting Clip and Etc of the component.
• Class C Surface is Possible Draft of the component to Eject from the Core and Cavity (Draft angle is commonly in design consideration is 3 Degree)and Thicken of the component is 2.5mm.

Class_B Creation

• From the class A surface Extract Side Walls
• Extract Side Walls is Untrim and Extrapolate 10mm of each Walls
• Trim each Surfaces, of Side Walls
• Then Offset to 2.5mm, Because of Coin Holder thicken is 2.5mm
• After Offset,Fillet Each Edges of the surface. by Measure of Class A surface

Screenshot of Sidewalls

Base

• Extract Base of the Class A surface and Untrim the base
• ExtraPolate the base distance of 10mm (Point Continuity - Propagation)
• Offset the base through downward of 2.5mm
• Trim all Base surfaces

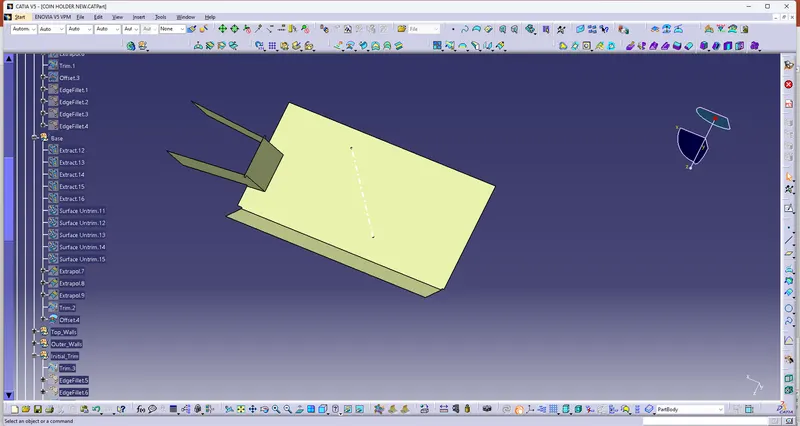

Screenshot of Base Surface

TOP WALLS

• Extract the arm rest from the Class A surface and Untrim
• Offset the arm rest surface inward Direction of 2.5mm.

Screenshot of Top Walls Surface

• Trim all Side walls, Base and TopWalls surface and Edge Fillets are created
• On Filleting the Class B surfaces, to considered the Thickness of the component 2.5mm

Outer Walls

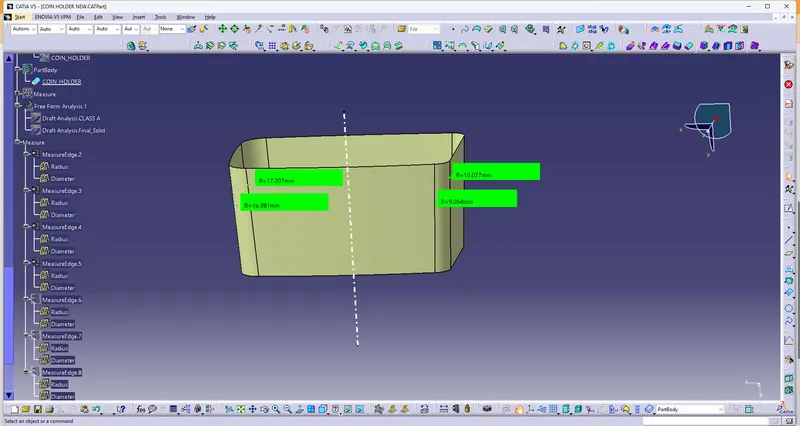

Screenshot Of Outer Walls Surface

Initial Trim

• Trim Outer Walls to (side walls,Base and Top walls of Trim) .
• Class B is created and Edge fillets all sides with consideration of Component Thickness of 2.5mm.

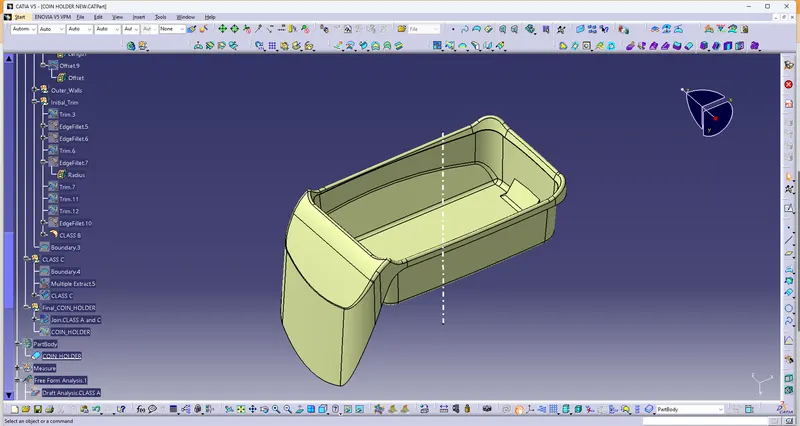

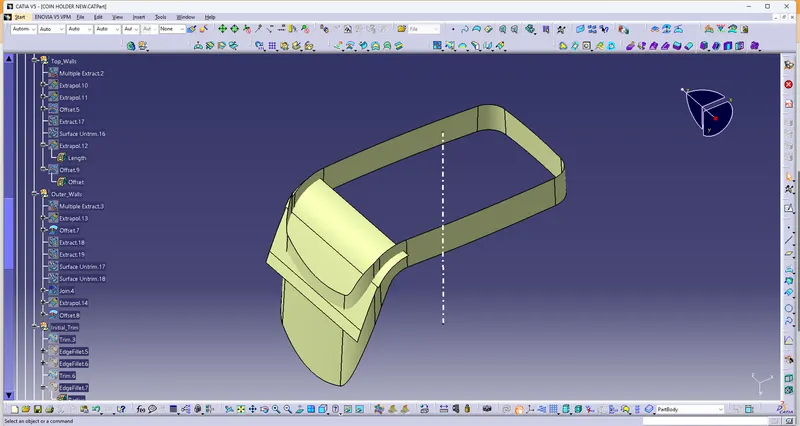

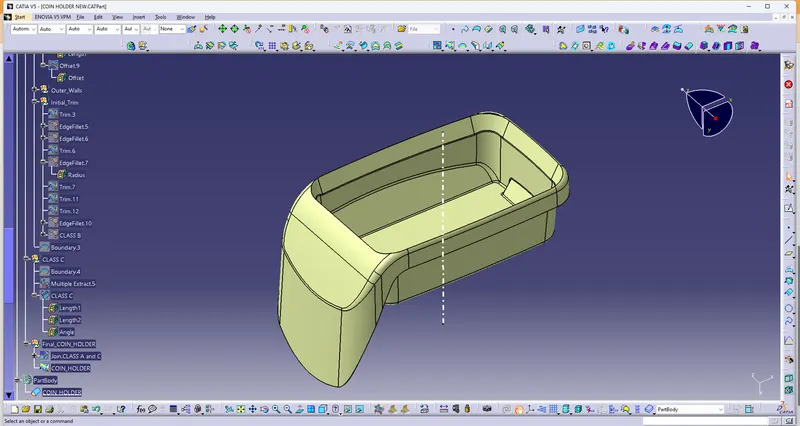

Screenshot of CLASS B Surface

Class C Construction

• From the Class A surface, Create Boundary of the surface
• Then Extract Outer walls
• Then Using Sweep command, Create at Reference surface of (Extracted Outer Walls) and 90 degree to the ref.Surfaces at distance of 5mm

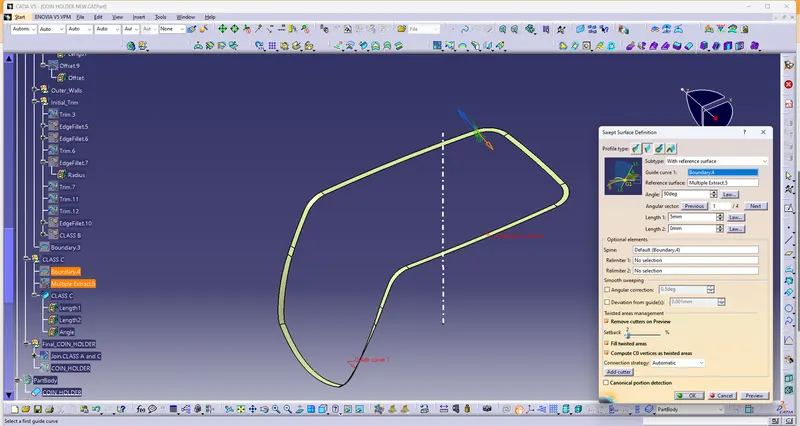

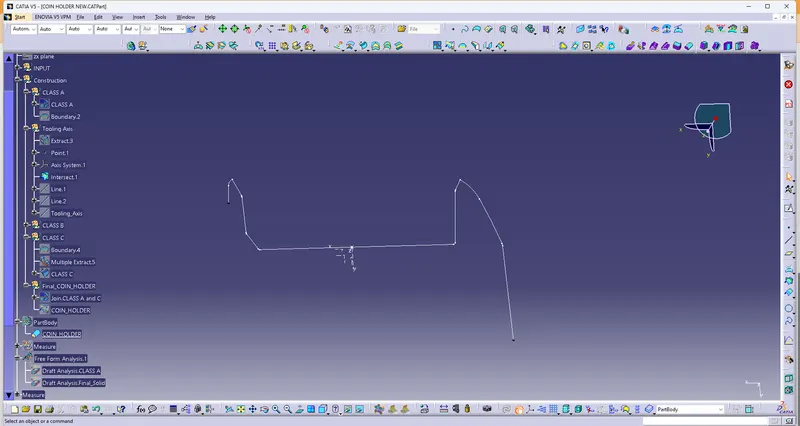

Screenshot Of Class C surface

Final of Coin Holder Construction

• Join both Class A and Class C
• Then Trim both Join (Class A & C Surfaces) and Class B.

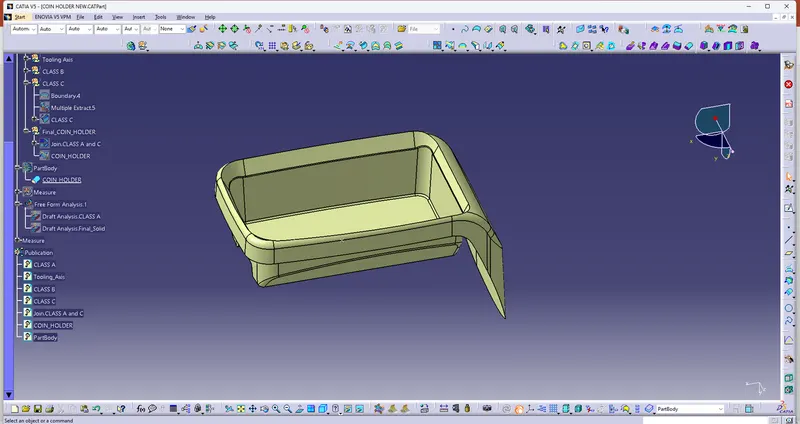

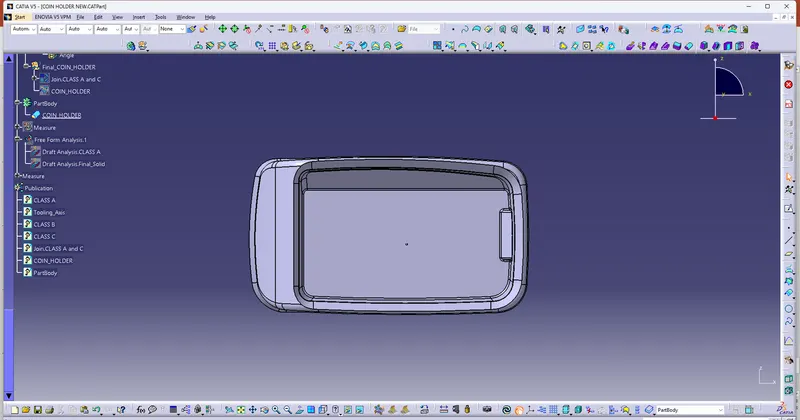

Screenshot Of SwitchBezel Surface (Class A,B and C Combine)

Draft Analysis of Class A Surface

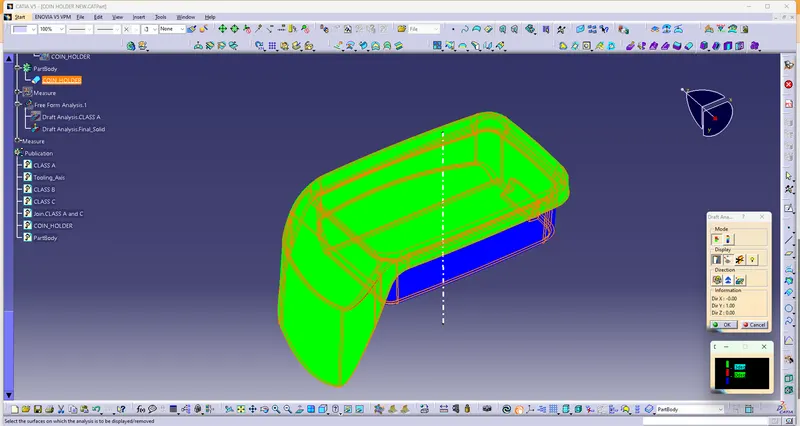

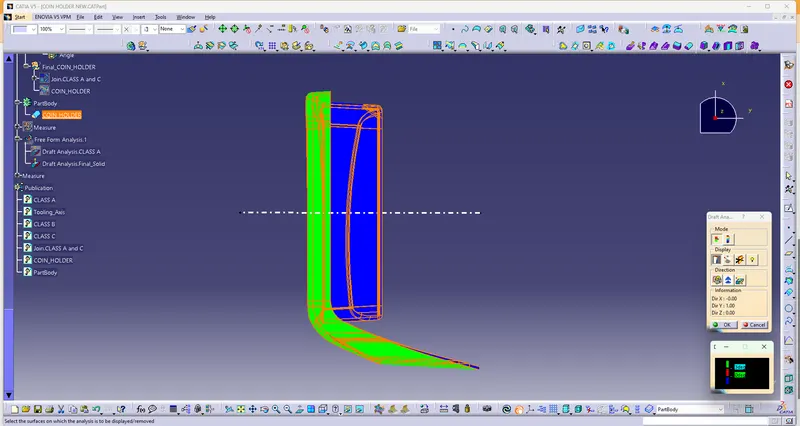

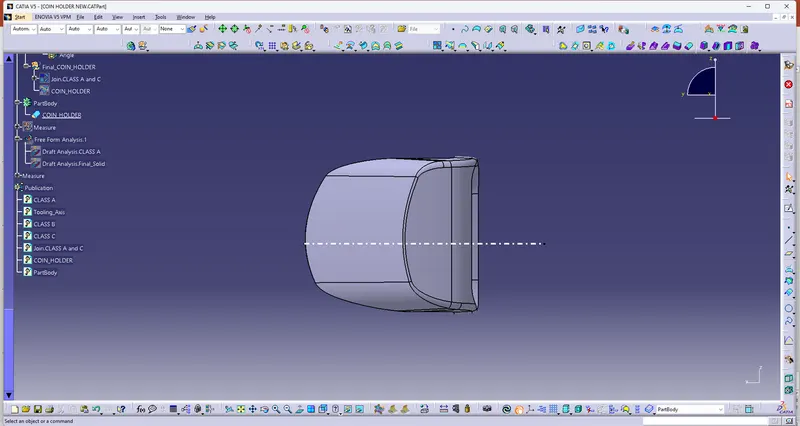

Screenshots of the solid model with the proper color code of the draft angle in various orientations (Isometric, Front, Side, and Top View)

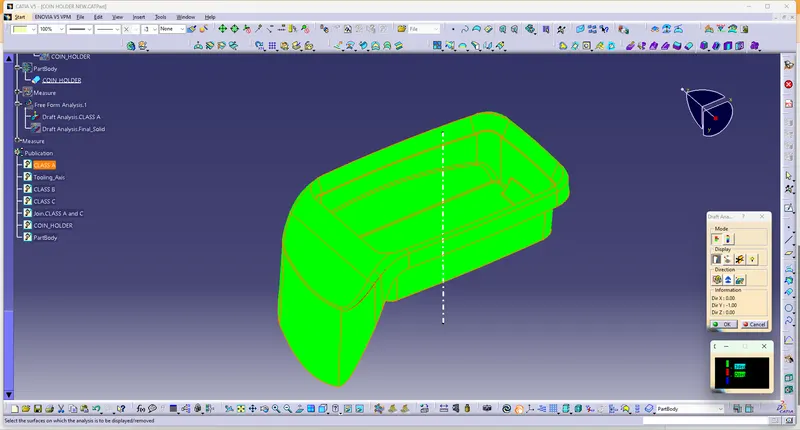

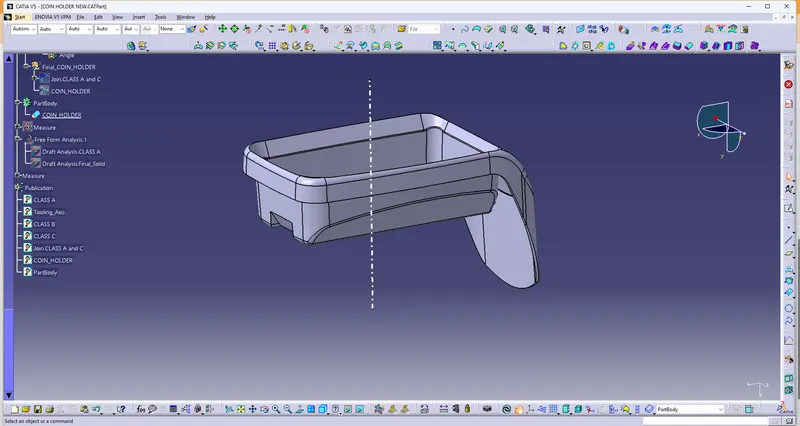

Isometric View

Front View

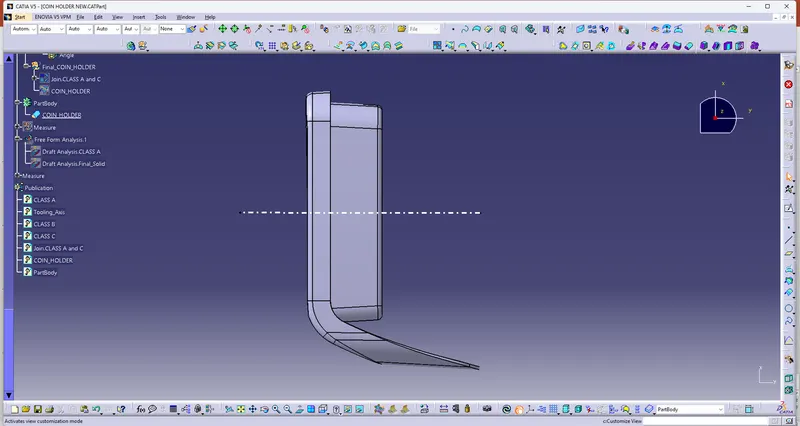

Side View

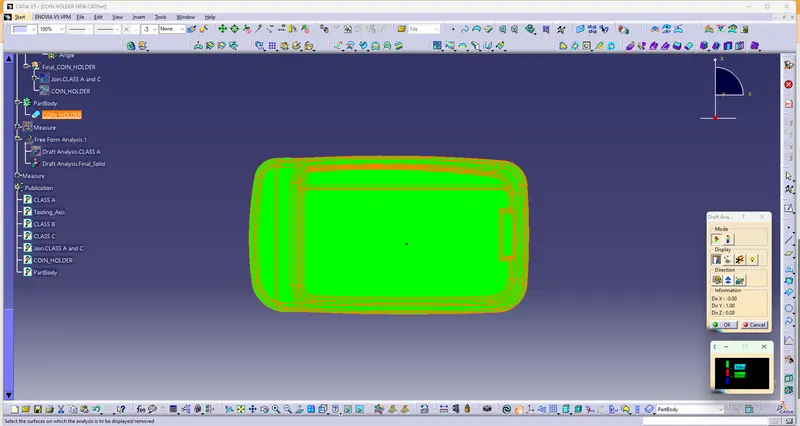

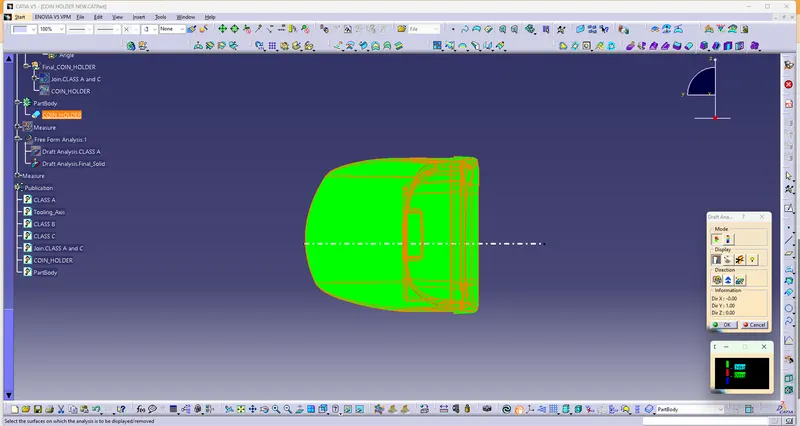

Top View

Solid View of Coin Holder
