Week 8 - Challenge 3 - Coin Holder Design

* CHECK QUALITY OF CLASS A SURFACE OBTAINING SINGLE BOUNDRY

* SELECT TOOLING AXIS ALONG WHICH TOOL WILL MOVE : Y AXIS

*CREATING TOOLING AXIS ALONG Y AXIS

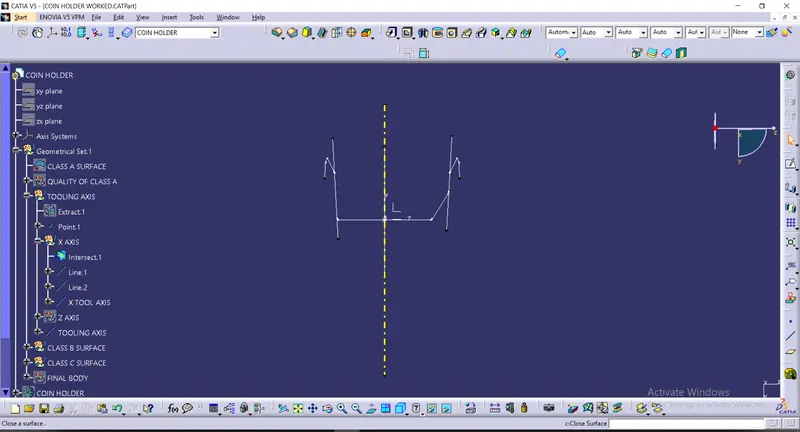

*TOOLING AXIS WITH RESPECT TO X AXIS

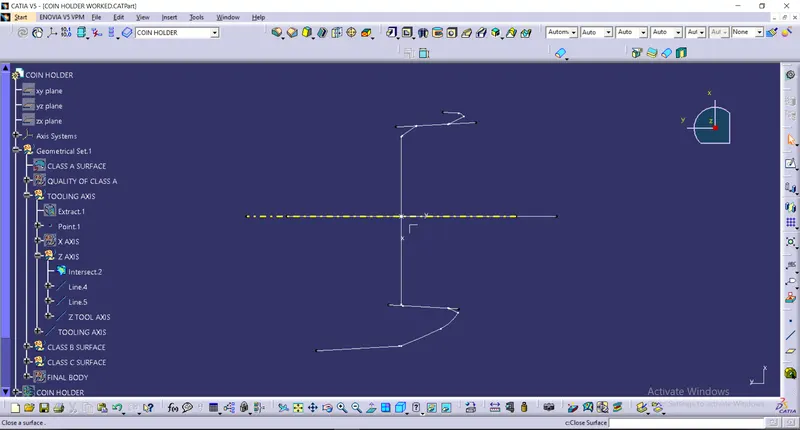

*TOOLING AXIS WITH RESPECT TO Z AXIS

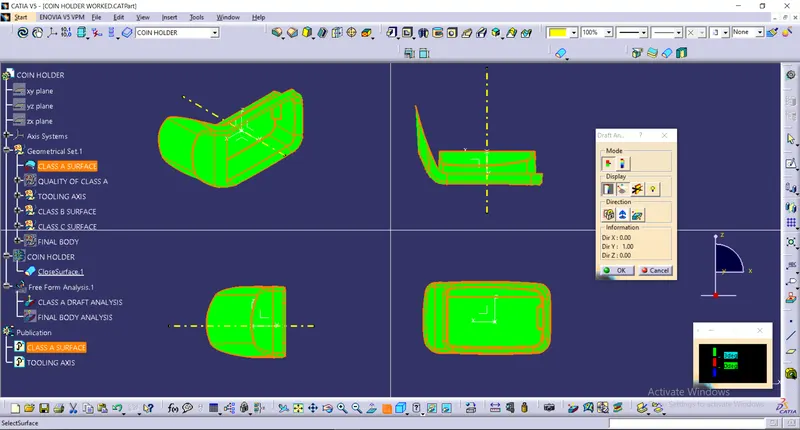

*DRAFT ANALYSIS OF CLASS A SURFACE WHICH HAS TO BE MORE THAN 3 DEGREE

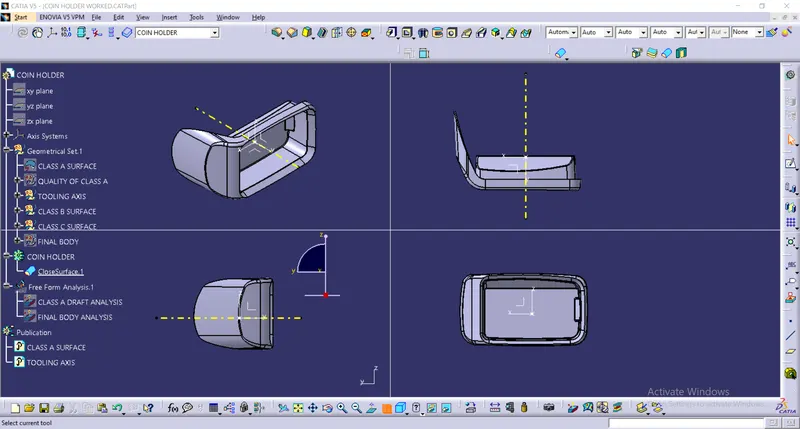

* CREATING CLOSED PART WITH THE HELP OF CLASS A,B,C SURFACE

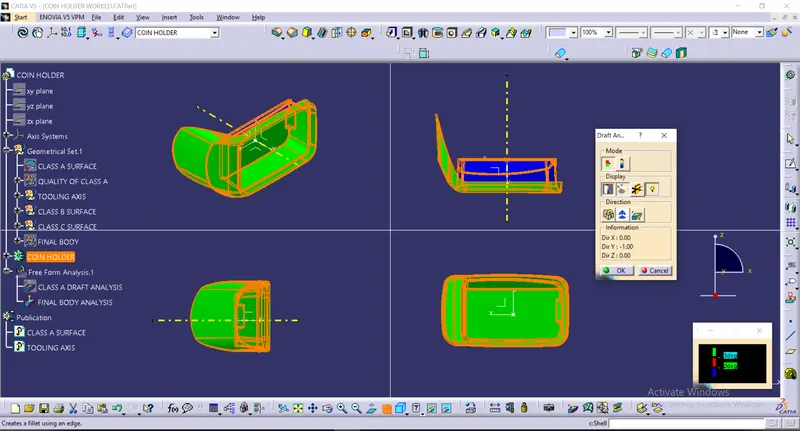

*DRAFT ANALYSIS OF FINAL PART WHICH HAS TO BE MORE THAN 3 DEGREE
