Week 8 - Challenge 1 - Base Bracket Design

DETERMINING AND ANALYSING TOOL AXIS FOR CLASS A SURFACE

*SELECTING Z AXIS AS TOOLING AXIS

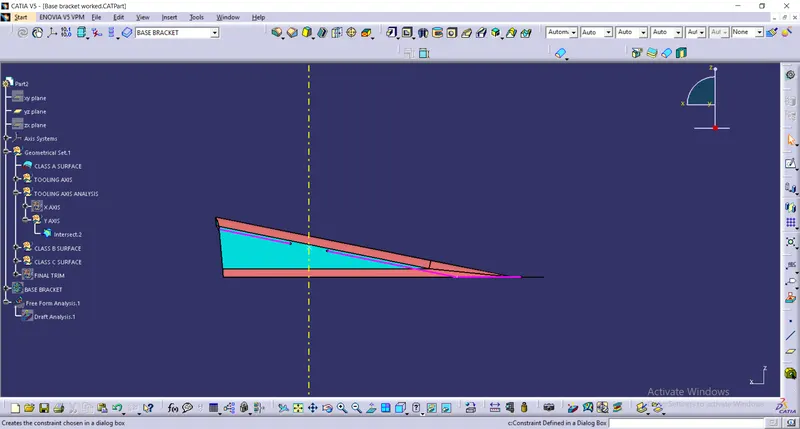

*ALONG X AXIS ANALYSING TOOL AXIS BY CREATING BISECTING LINE USING PARLLEL FACES

*RESULT:

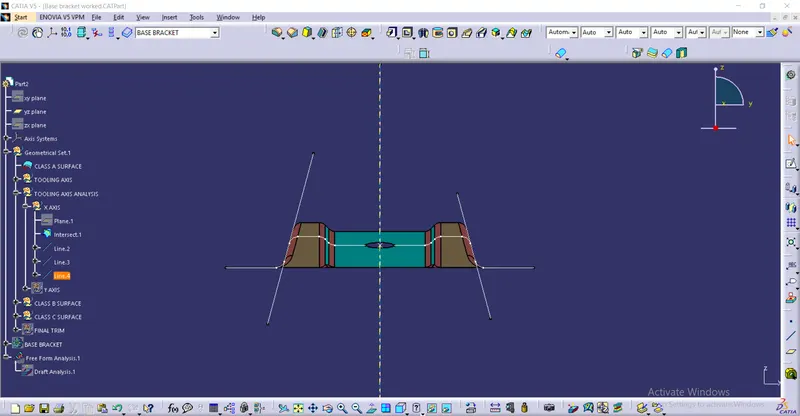

*ALONG Y AXIS ANALYSING TOOL AXIS BY CREATING BISECTING LINE USING PARLLEL FACES

*RESULT:

• AS ONE LINE IS PERPENDICULAR IT CLEARS TOOLING AXIS
• AND OTHER LINE IS MORE THAN 45 DEGREE IT ALSO CLEARS

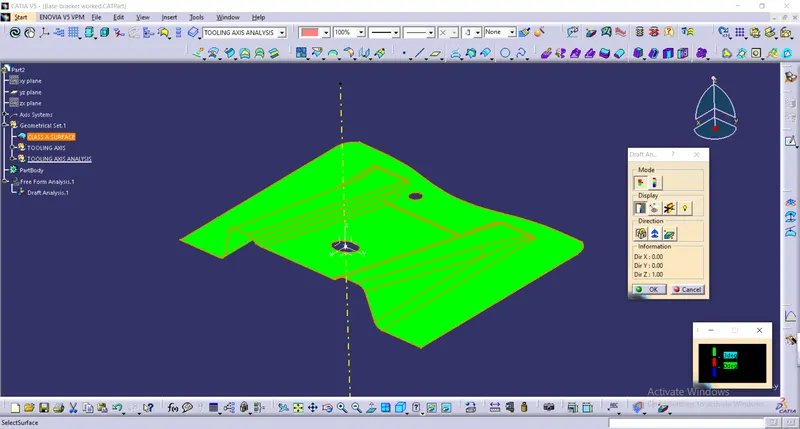

DRAFT ANALYSIS OF CLASS A SURFACE

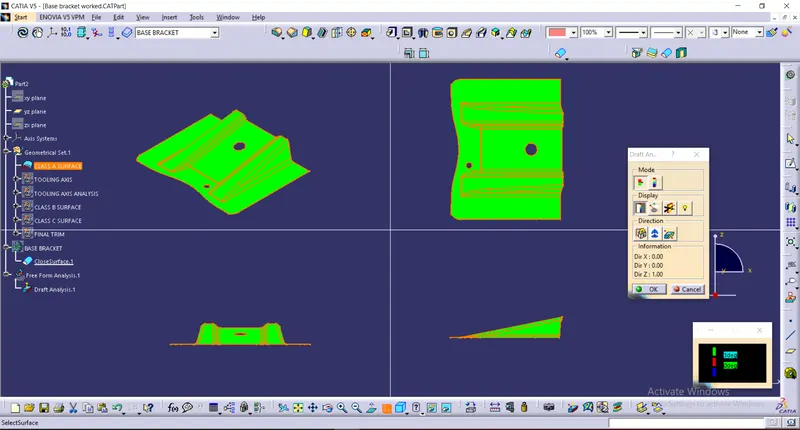

*DRAFT ANGLE CLEARING 3 DEGREE

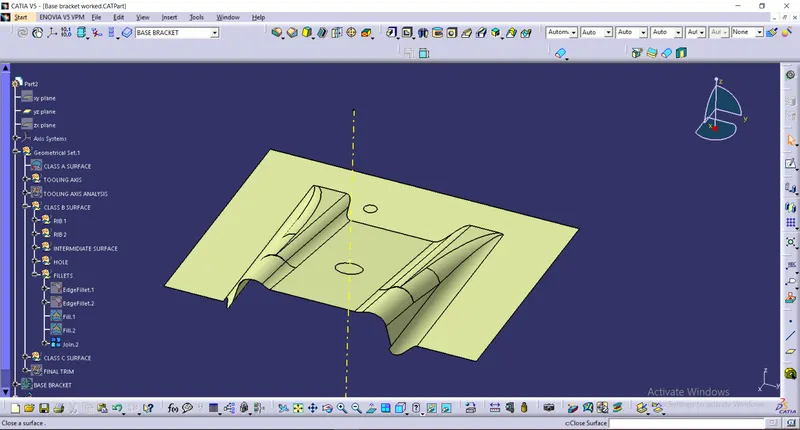

CREATING CLASS B SURFACE

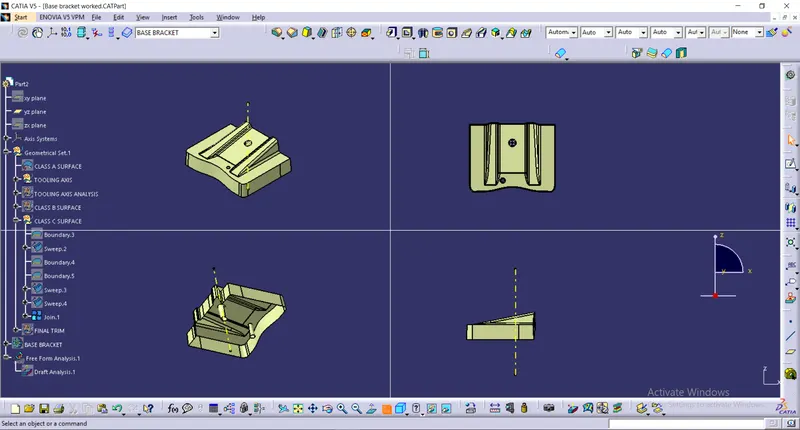

CREATING CLASS C SURFACE

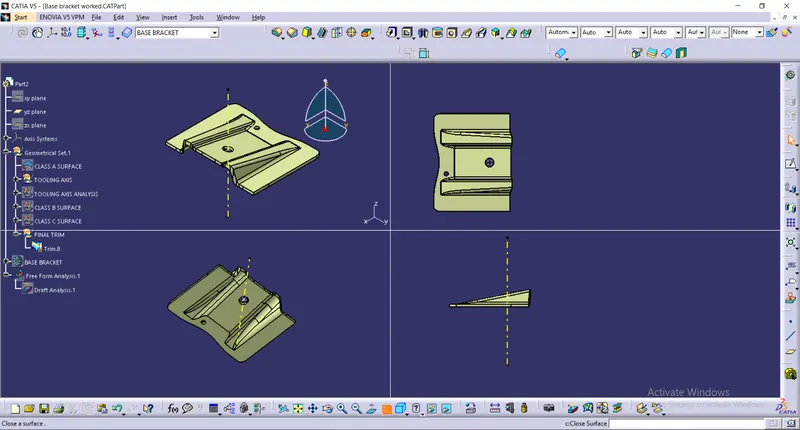

COMBINING CLASS B AND CLASS C TO FINAL SURFACE MODEL

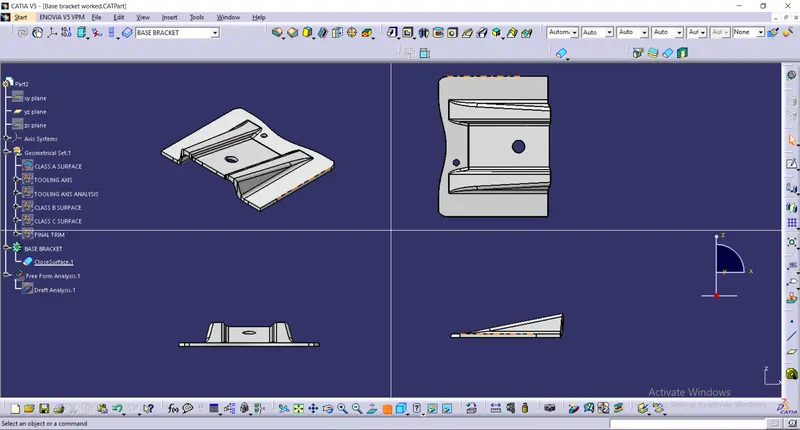

USING CLOSED SURFACE CREATING PART
