Week 8 - Challenge 3 - Coin Holder Design

Aim - Create the Coin Holder Plastic component through the given Class-A surface.

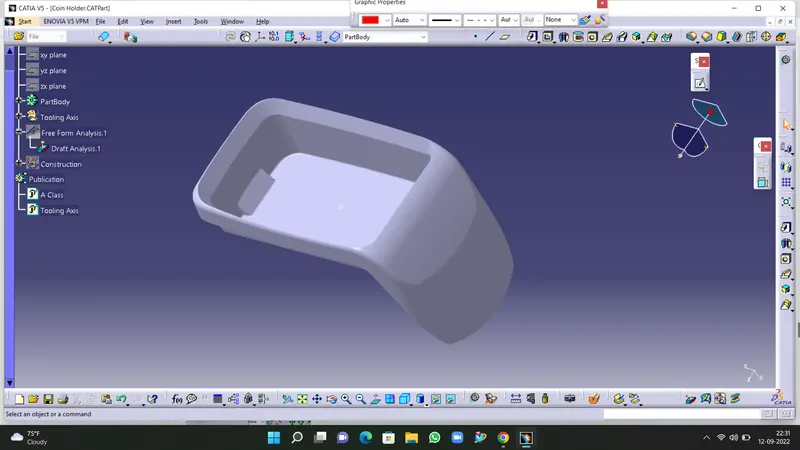

Given Class A Surface-

This is the given class A surface which is used to create the class B and C surfaces.

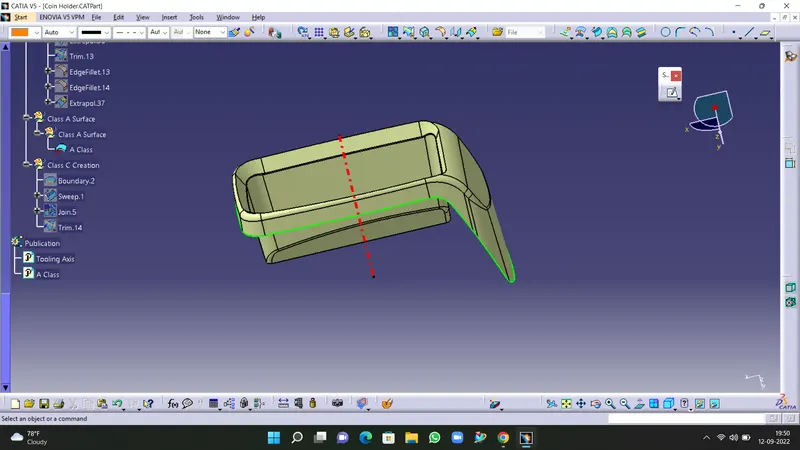

Tooling Axis:

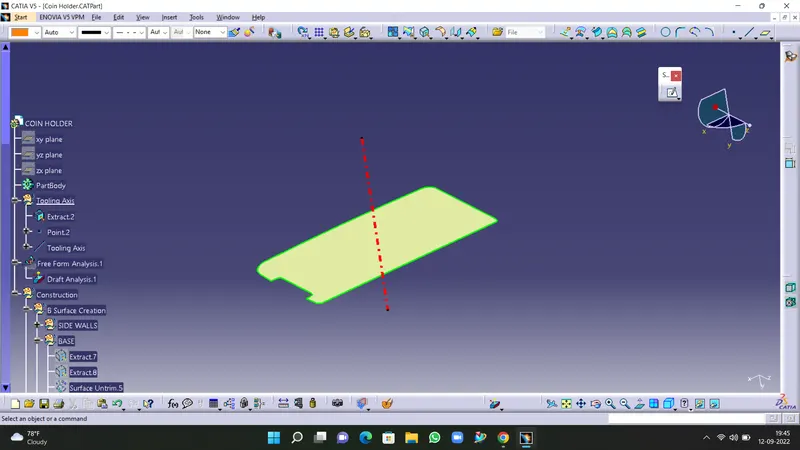

The first step in creating the other surfaces is the construction of the Tooling Axis.

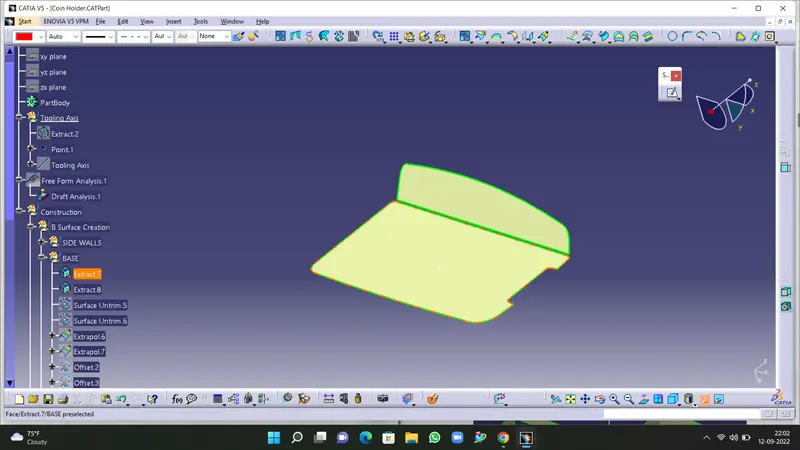

-Extract the base surface from Class A surface.

-Create a point on the extracted surface using the point command.

- create a line normal to the surface. And That line is our tooling axis.

Publishing:

- Now Publish the given class A Surface And the tooling axis. From Tools And the publication.

Class B Surface:

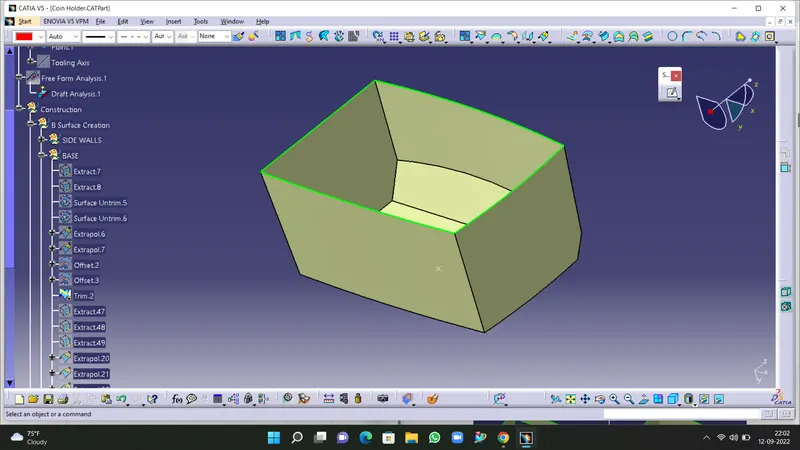

Base And Side Walls:

• Class B Surface is created using the Class A surface.
• Firstly, extract the sides of the base from the Class A Surface.
• Untrim the Surfaces.
• Extra-polate the above surfaces.
• Trim the surfaces together to get a single surface resembling the base in the Class A surface.

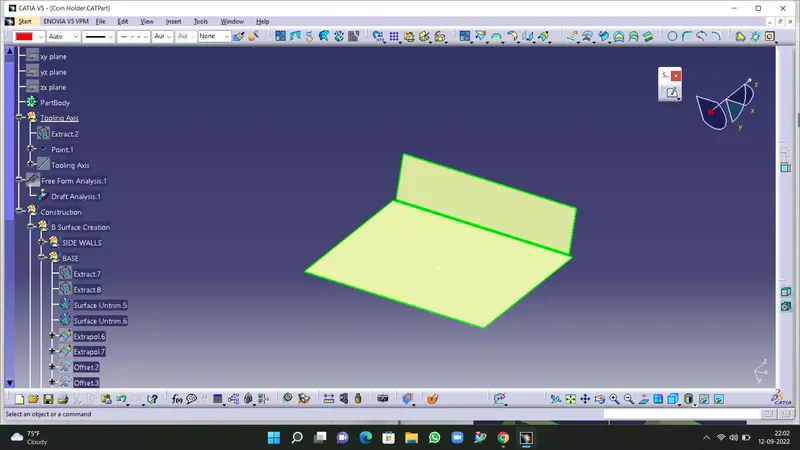

• The thickness of the component is 2.5mm so the above surface needs to be offset to a distance of 2.5 mm.

- And by using Same procedure We make A side walls.

Upper Walls:

• Extract the upper wall surfaces from the Class A Surface using the Multi Extract feature including the fillets.
• Extrapolate the above surface using point and curvature continuity and create an offset of 2.5mm outward]
• And Then Trimmed With The Previous Work.

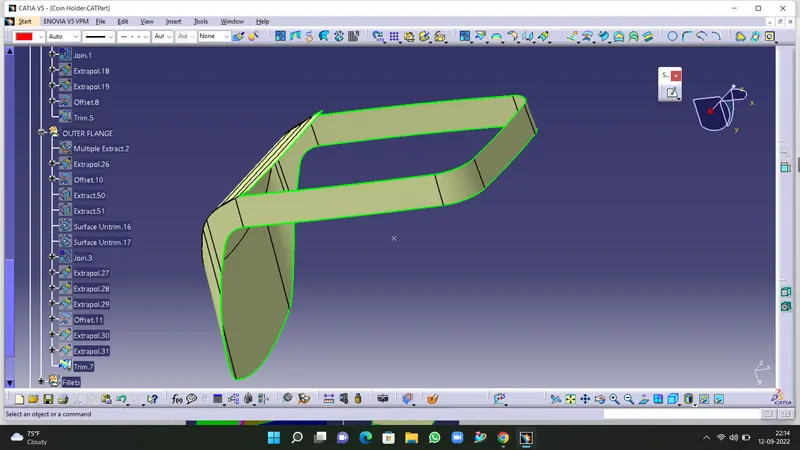

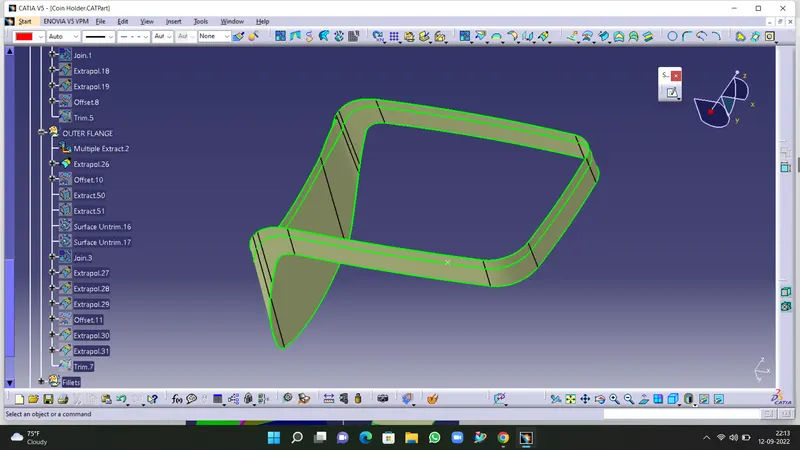

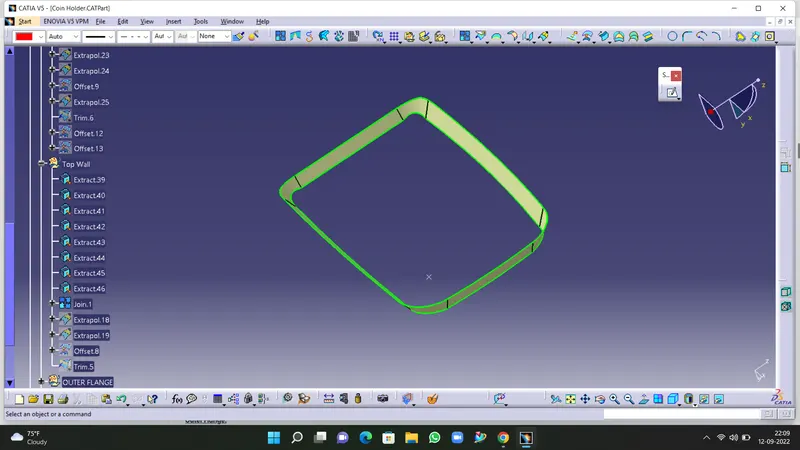

Outer Flange:

• The outer flange surface needs to be created in two steps.
• Firstly, extract the enclosing surface from the Class A Surface.
• Extrapolate the above-extracted surface using the curvature sand point continuity.

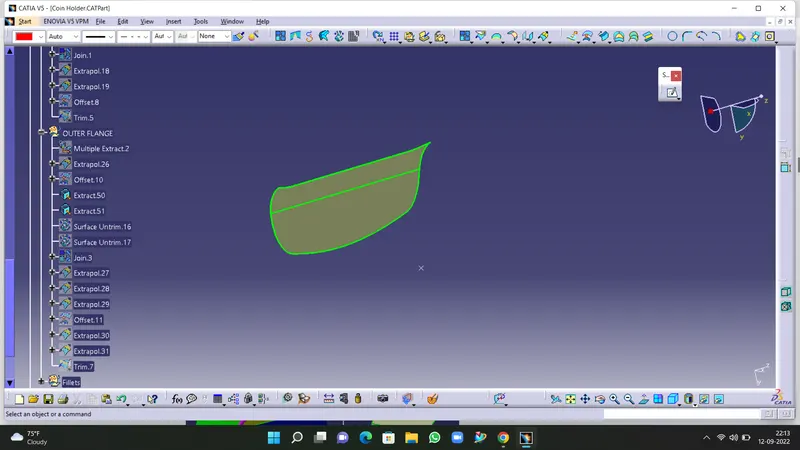

• Now, extract the remaining surfaces of the outer flange from the Class A Surface.

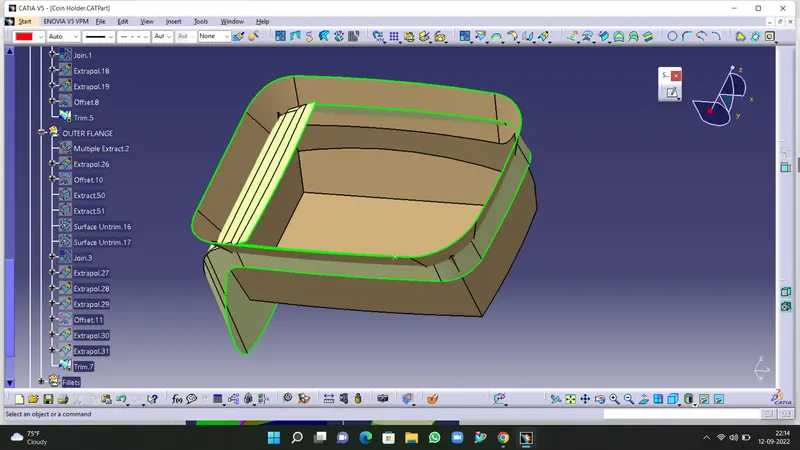

• Untrim the above-extracted surfaces and join them using the 'Join' feature and then extrapolate the resulting surface.
• Create offsets of the above surfaces. The offset needs to be created inwards because the outer flange surface in Class B Surface will be below the outer flange surface in Class A Surface:
• Finally, trim the surfaces together and provide a different colour to the resulting surface.

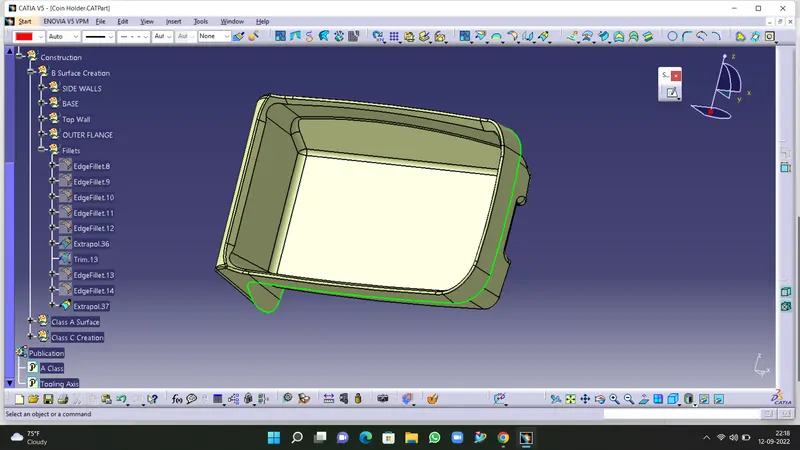

Fillets:

• Now, the fillets are applied to all the edges using the measurement from the Class A Surface and the thickness of 2.5 mm.
• Firstly, provide the fillet at the top edge.
• Provide the fillet at the base edges.
• Similarly, provide the fillets to the sidewall edges. The final surface after filleting is the Class B Surface.

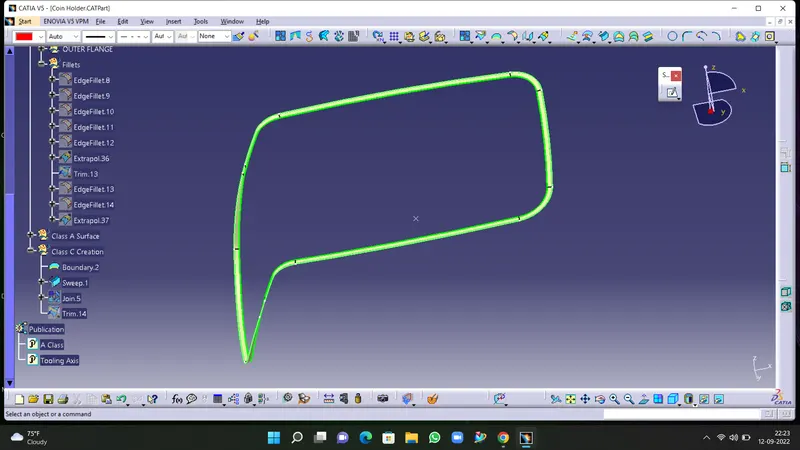

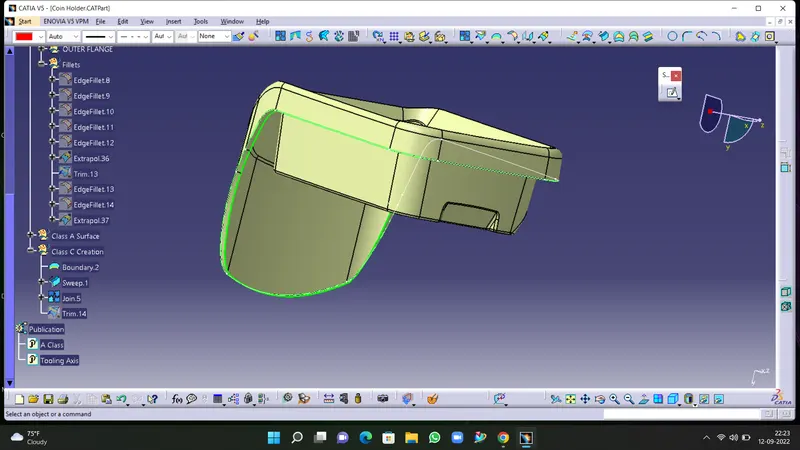

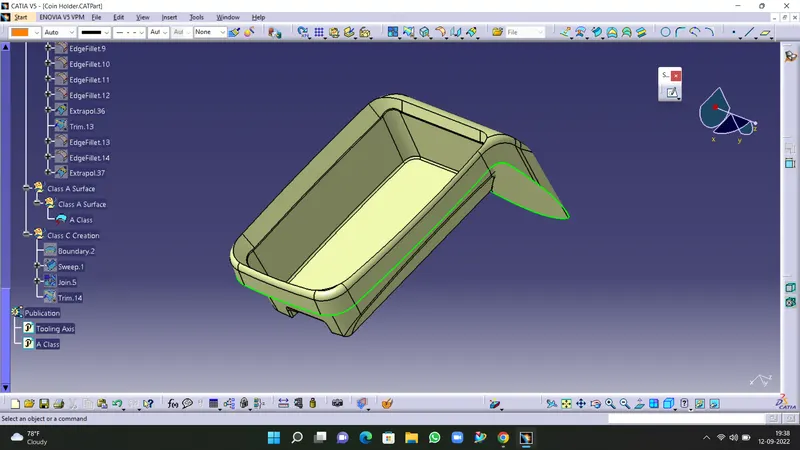

Class C Surface:

• EXtract the enclosing walls of the outer flange using the Multiple extract feature.
• Extract the boundary of the Class A Surface.
• Use the Sweep feature, with Subtype as 'With reference Surface'. Choose the guide curve 1 as the above-extracted boundary and the reference surface as the above-extracted surface from the Class A Surface. choose the angle as 90 degrees.
• Now, the Class C Surface for the section needs to be created.
• Extracted the boundary of the section and the nearby surfaces.

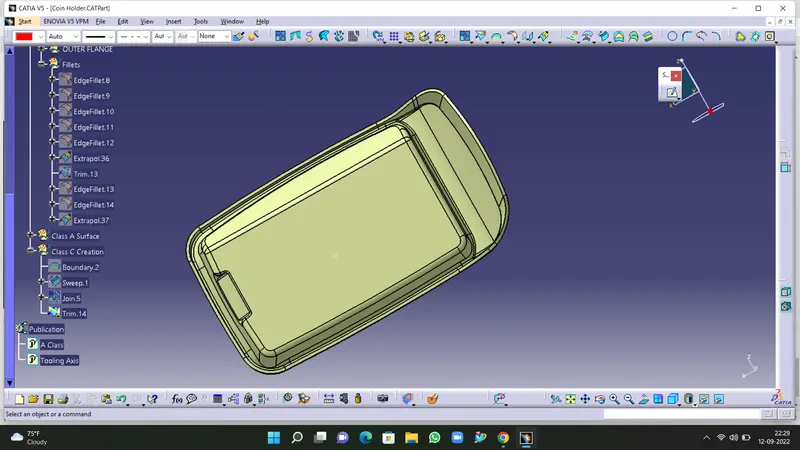

Final Trims:

• Firstly, trim the Class B Surface and the Class C Surface of the section.
• Now Trim the Above surface and the class C surface.
• Finally, trim the above surface and the Class A Surface to get the final enclosed surface.

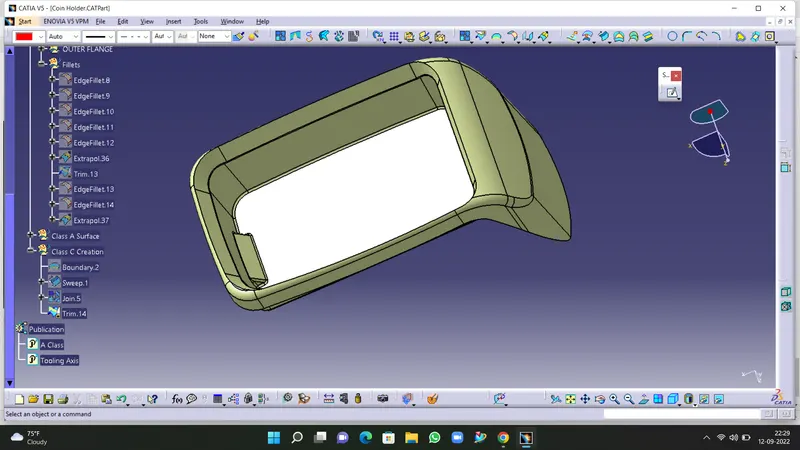

- Now convert the given model in Solid model by using Close Surface From the part workbench.

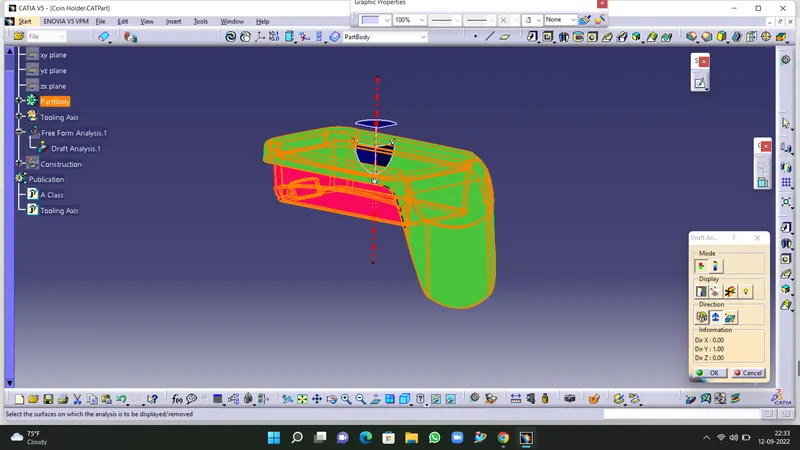

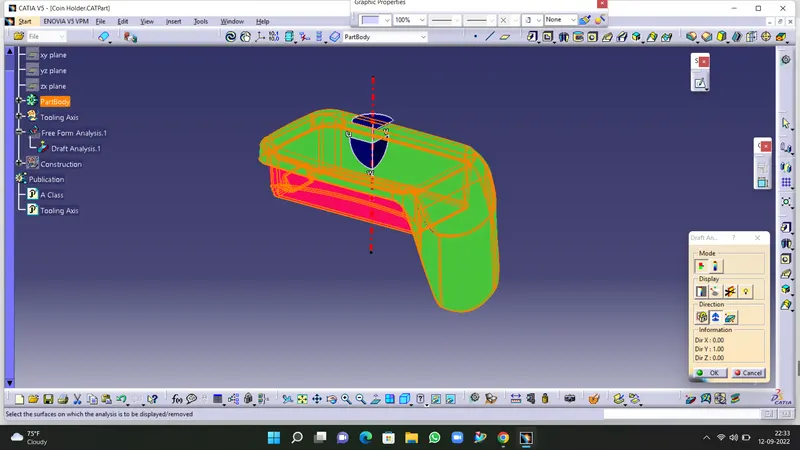

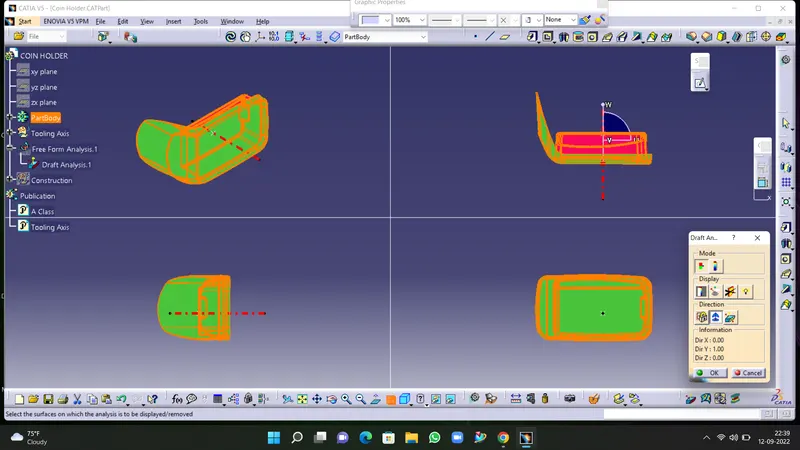

Draft Analysis:

• For the draft analysis, we need the solid body and the tooling axis.
• Firstly customize the view parameter to change the mesh shading to the material.

Remarks:

• There are a lot of surfaces in the cyan colour that indicates zero draft angle. Thus, these surfaces should be provided with some draft angle in order to reduce defects during manufacturing.

Conclusion:

• The Class B and Class C surfaces are successfully created from the given Class-A surface.
• The Class A, Class b and Class c surfaces are trimmed together to create the final close surface of the component.
• The solid body is successfully created using the closed surface.
• the draft analysis is successfully completed.
