Week 8 - Challenge 3 - Coin Holder Design
Objective: Creating the Coin holder Plastic component through the given Class-A surface. The tooling axis for the given Class-A Surface to be created meeting the requirements of the draft angle and at the end performing the Draft analysis on the model.
Class A surface of the Coin holder is given for designing the plastic component

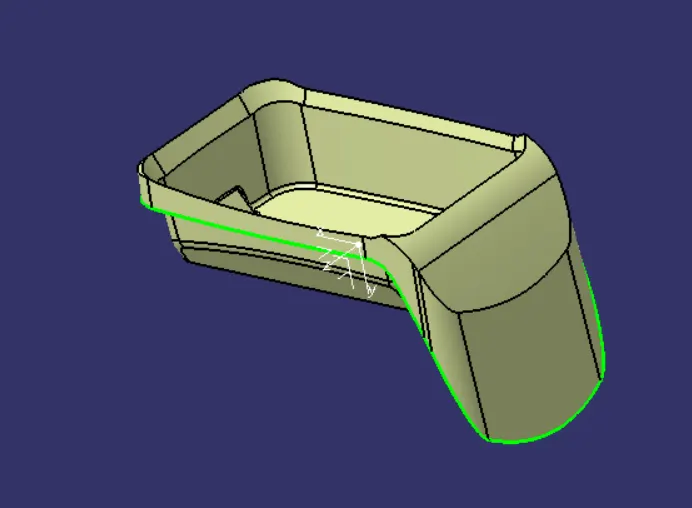

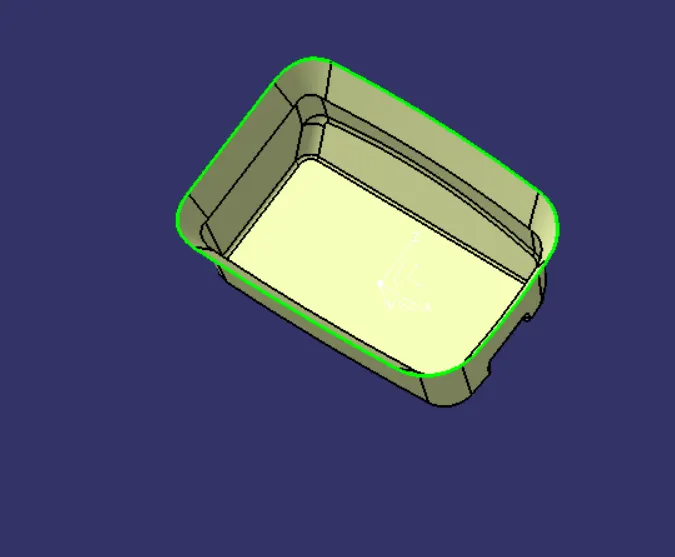

Class A surface
It describes the final production surface data for the aesthetic parts

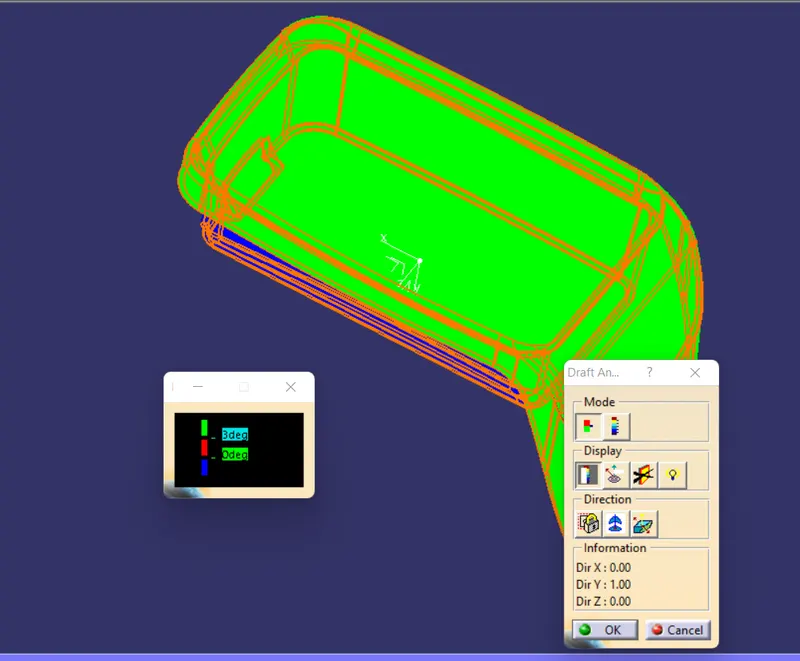

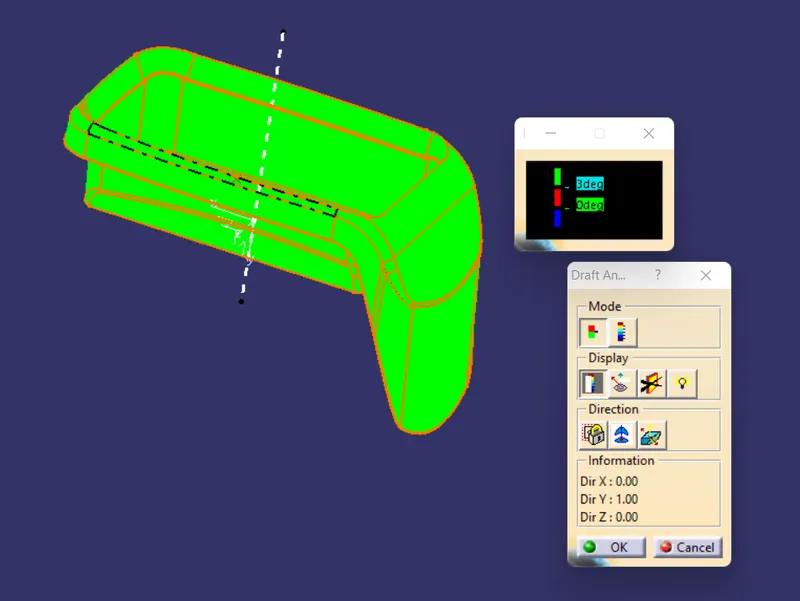

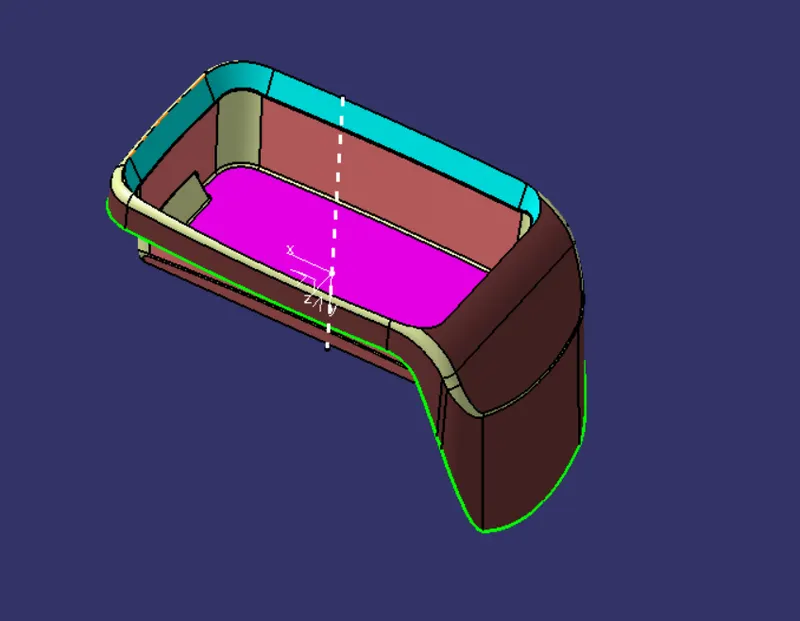

From the given Class A surface a tooling direction is created on the feasible surface. Here i have created the tooling direction normal to the base as all the walls are at perpendicular to the base. After defining the main tooling axis draft analysis for a postive draft of 3 deg

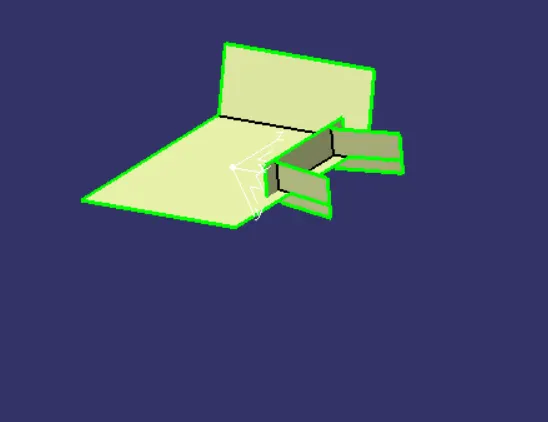

The green colour on the surface represnets that there is no negative draft
Class B surface

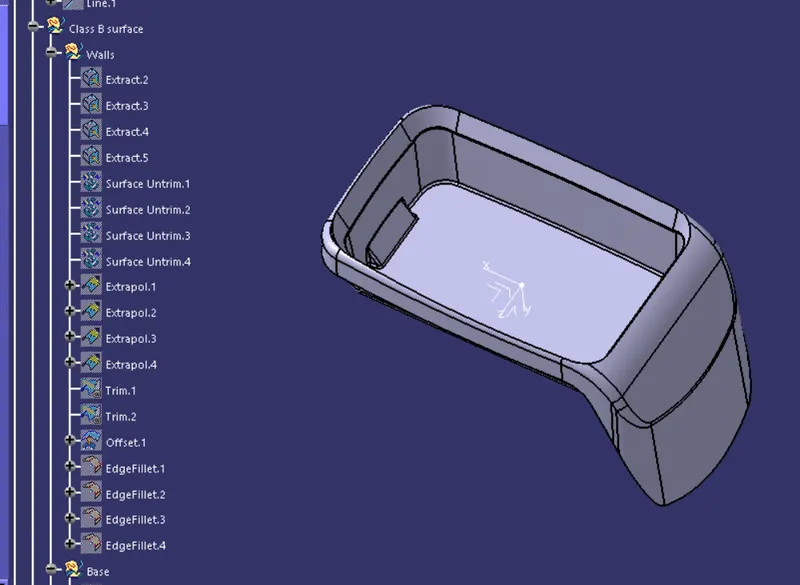

To create the class B surface from Class A we have to extract walls extrapolate the surfaes offset the surface by 2.5 mm which is the thickness of the plastic component and join them by trim feature trimming the unwanted surface. Give the proper fillets

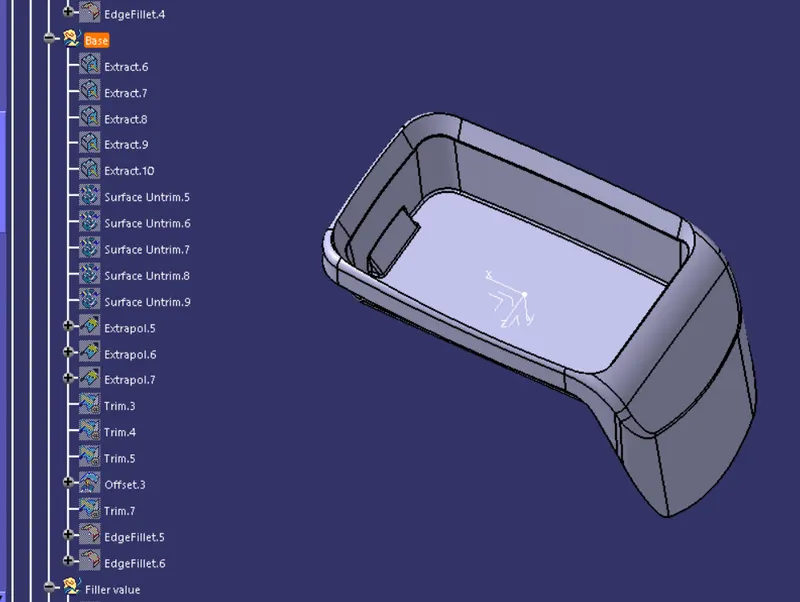

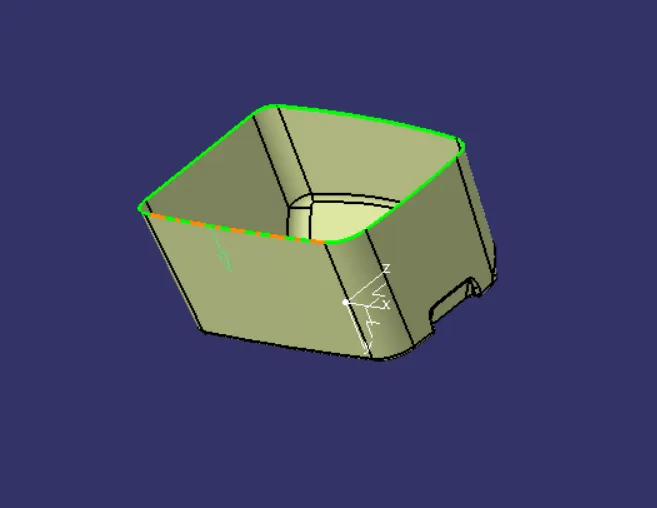

Extract the base from class A Expraoplate offset the surfaces and trim the unwanted surfaces. After creating the base trim the base with the wall surface to get the proper shape

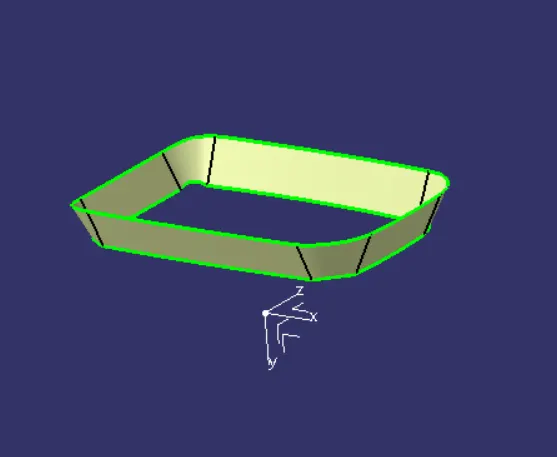

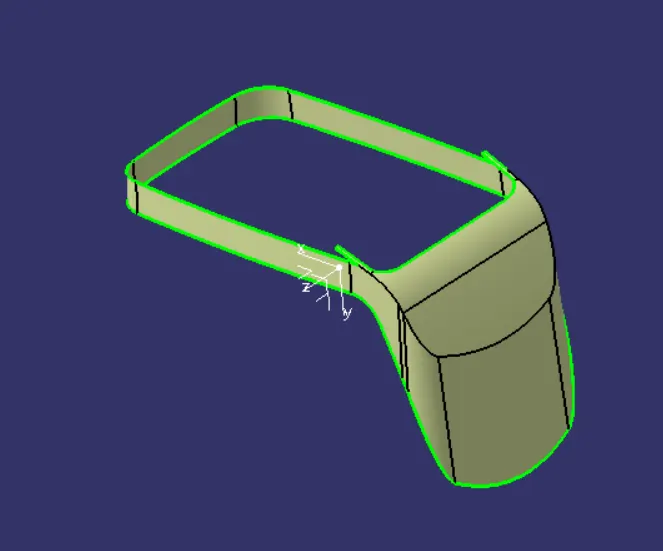

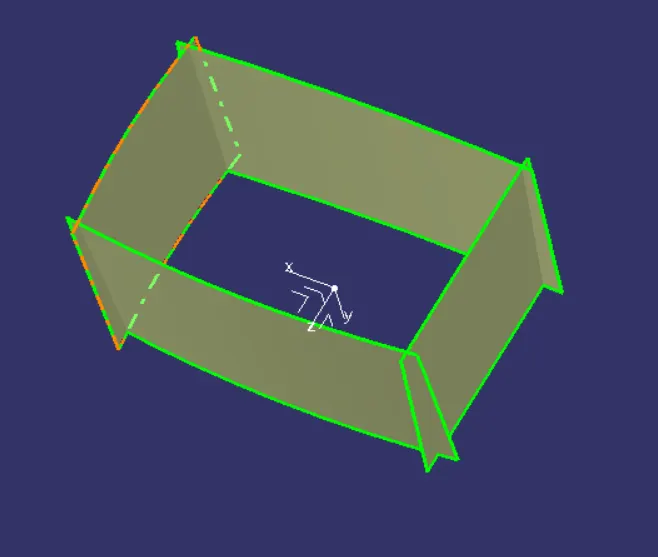

Extract the top wall surface offset and trim the surface with the wall surface

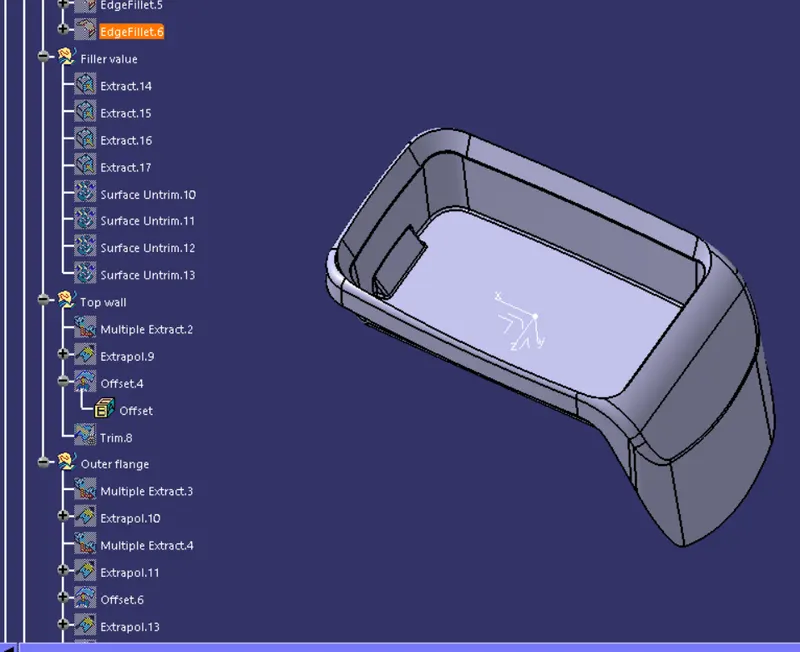

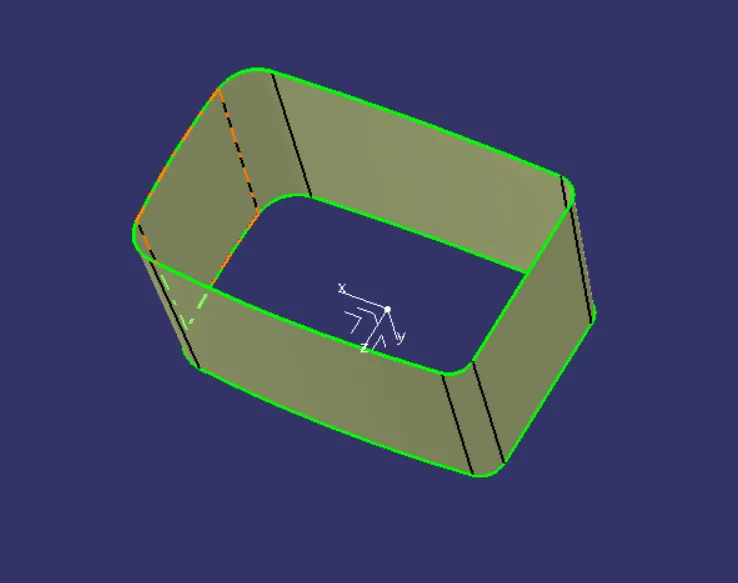

To create the outer flange extract the outer flange surface extrapolate the surfaces and offset to inside of 2.5mm
Trim the surface to get the desired shape

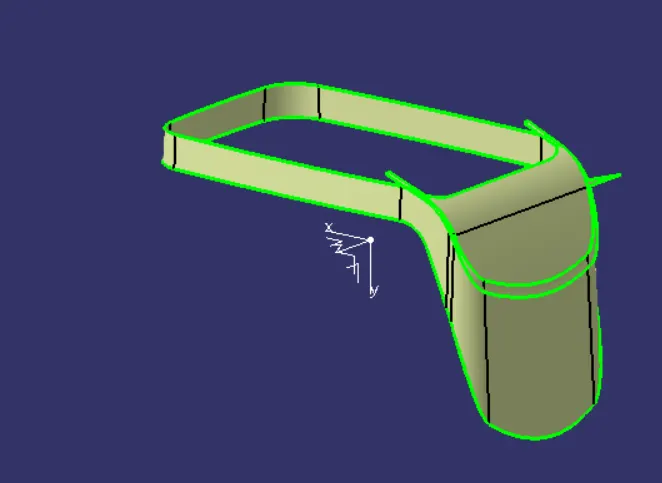

Trim the outer flange with the top wall

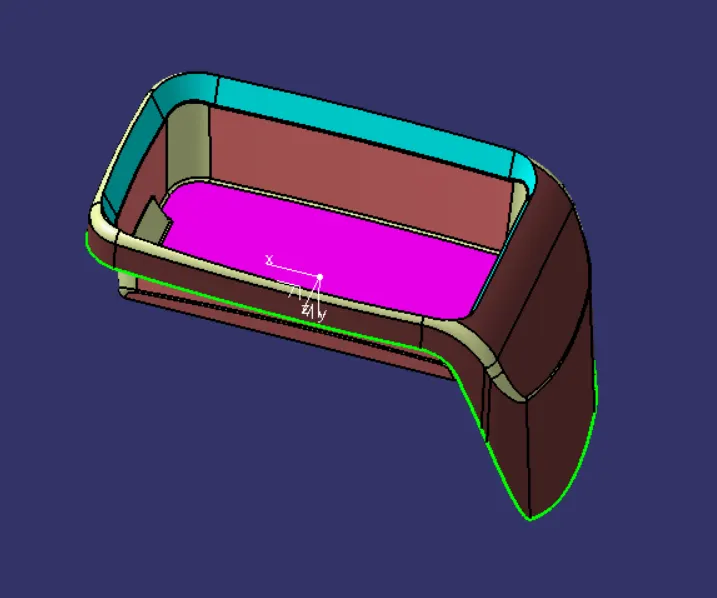

Class B surface is created
Class C surface

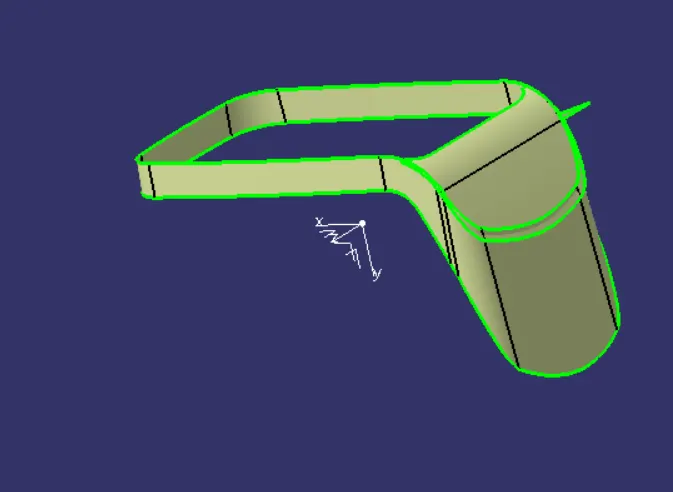

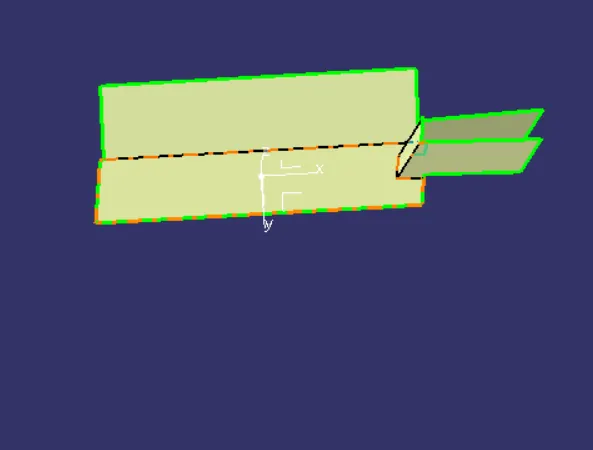

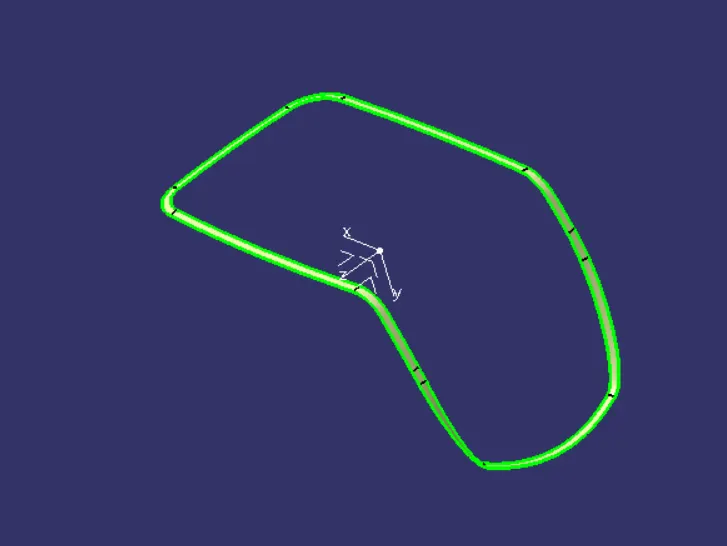

Extract the outer flange surface from class a and extract the border. use the sweep feature to the border at 90 deg to the surface and join with class A surface.

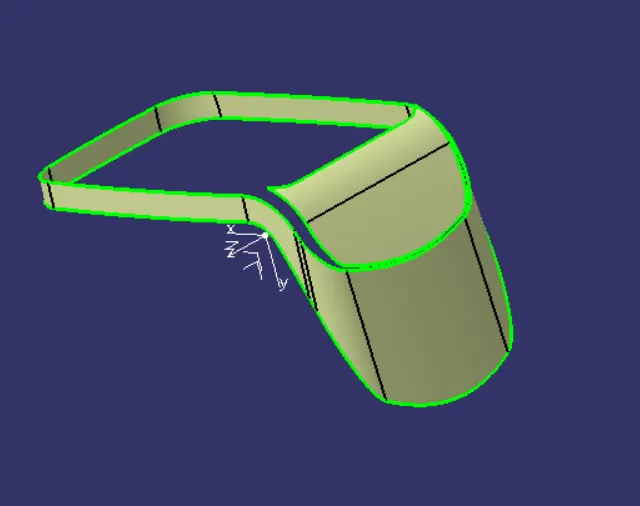

Class C surface is created

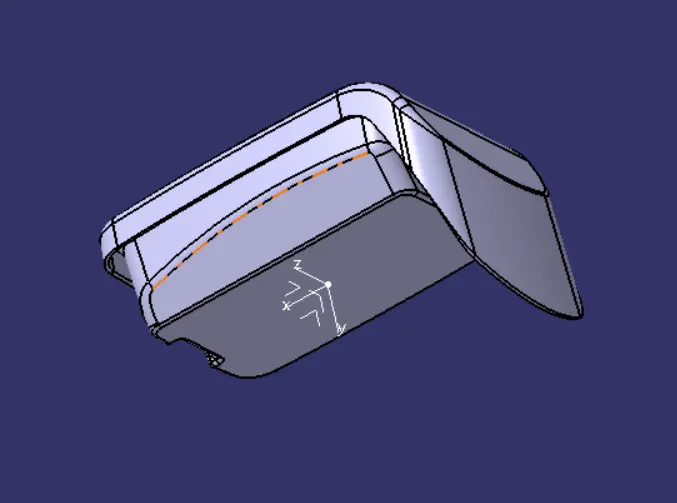

Trim the class B surface with class C surface to get the closed surface, using closed surface feature convert into solid body.

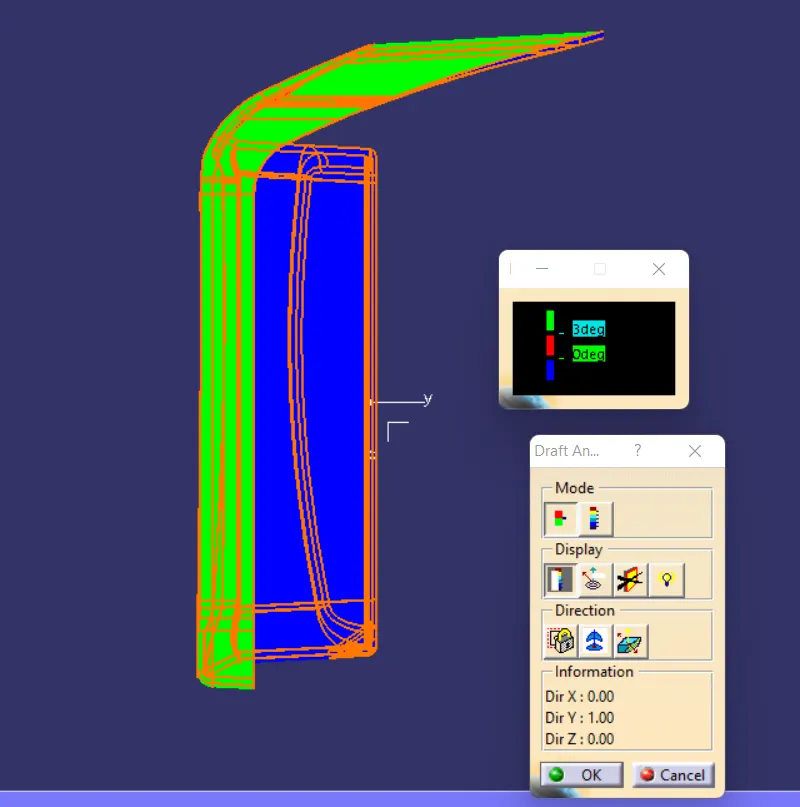

Draft analysis is done for the final closed body

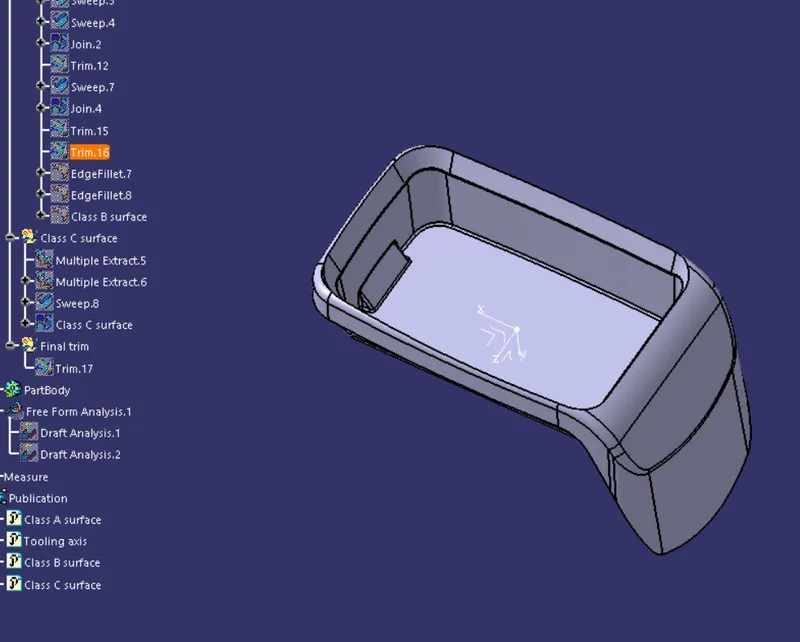

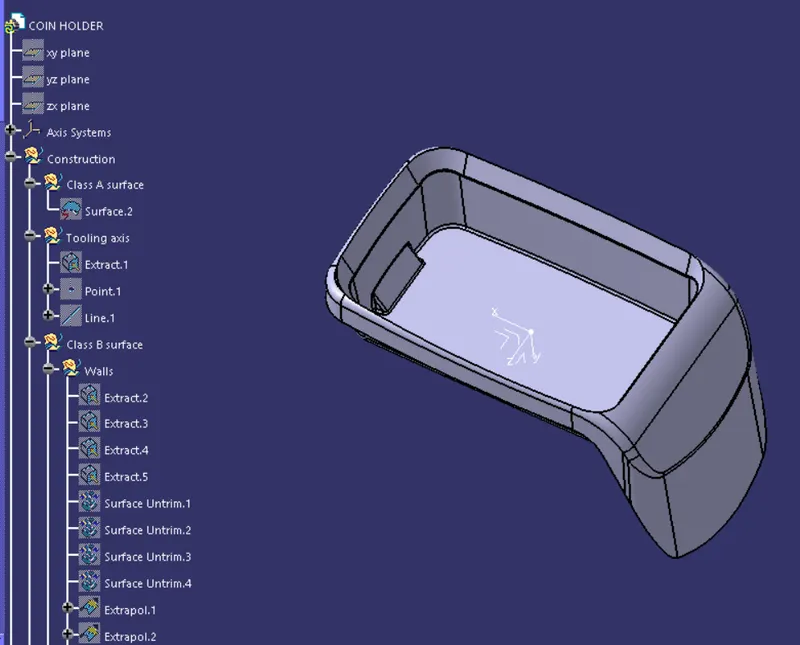

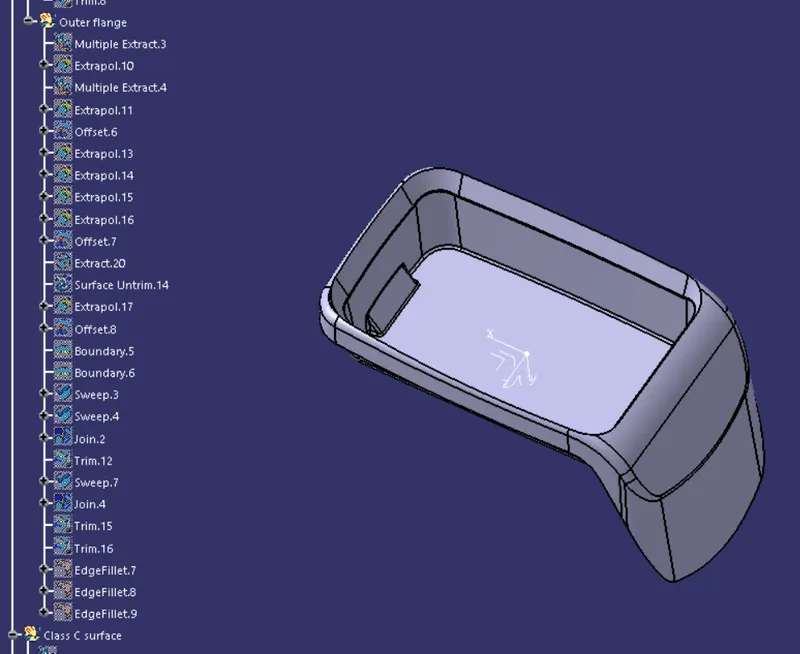

Tree structure of Geometrical set and Part body

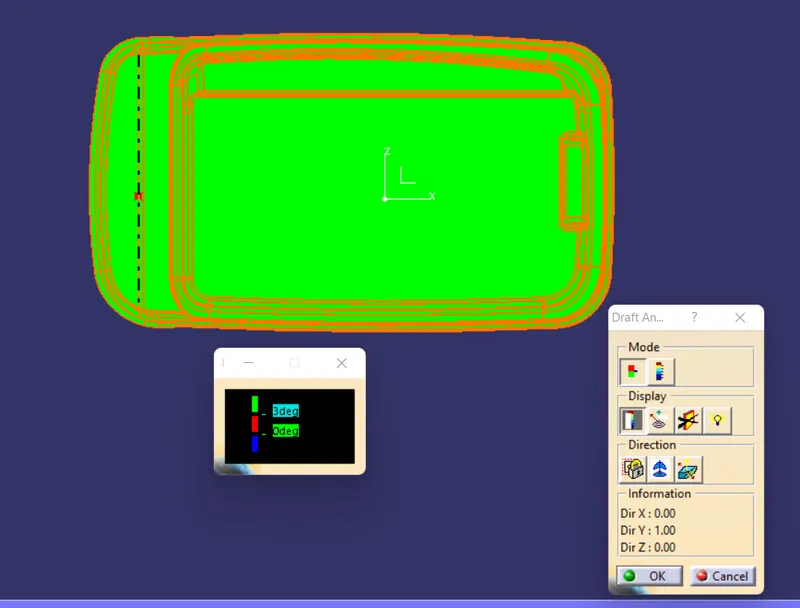

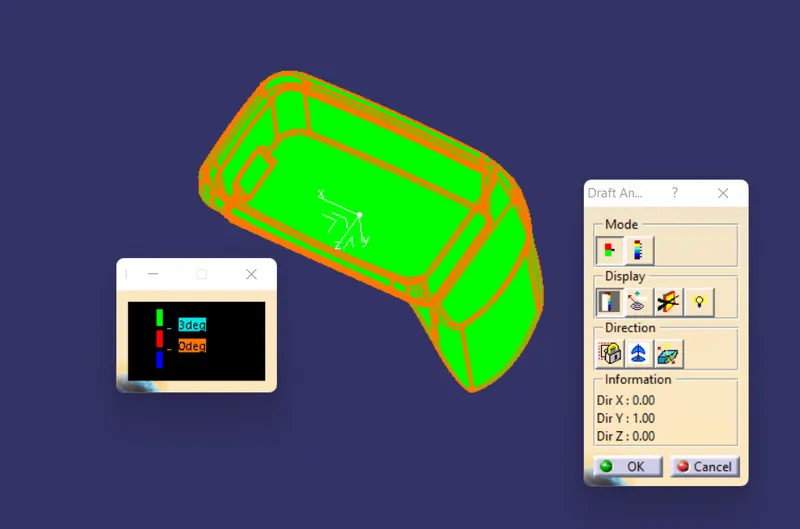

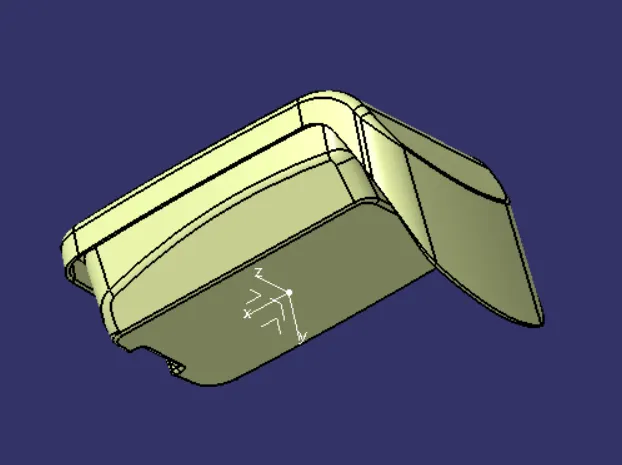

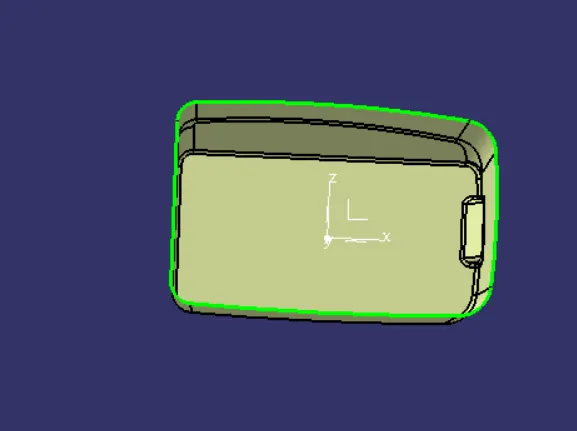

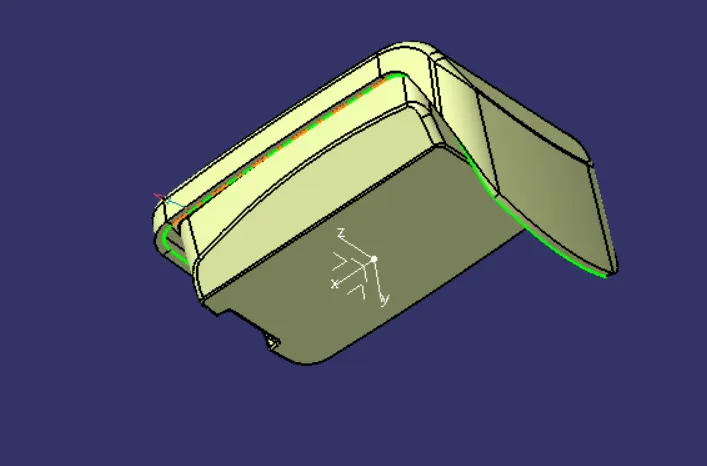

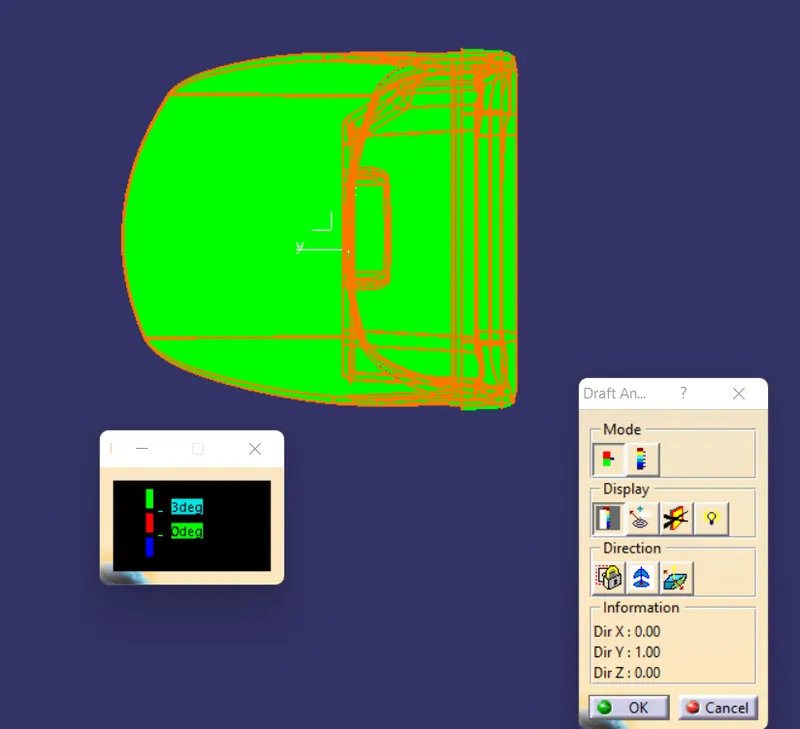

solid model with the proper color code of the draft angle in various orientations (Isometric, Front, Side, and Top View)
Isometric View
Front View
Top view
Side view
Conclusion : Coin holder Plastic component through the given Class-A surface is created . The tooling axis for the given Class-A Surface is created meeting the requirements of the draft angle and at the end performed the Draft analysis on the model. Observed no negative draft and the part meet the manufacturing requirement.
