Week 8 - Challenge 3 - Coin Holder Design

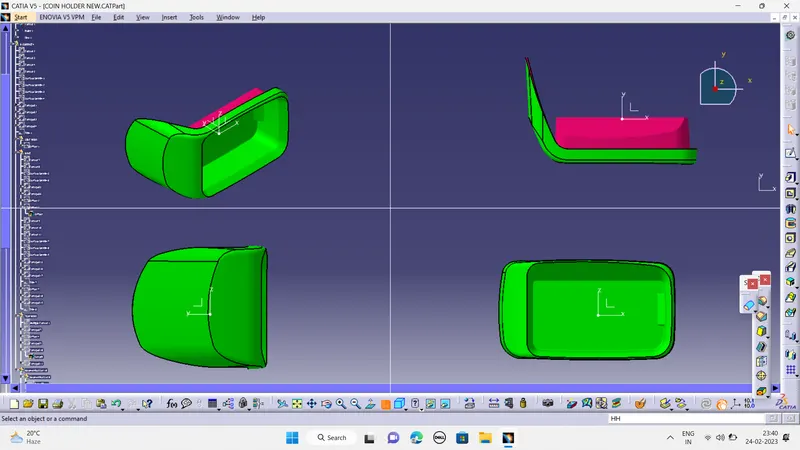

AIM:Creation of parts with proper dimension and required Assumptions with Proper assembly constraints. Creation of drafting for the parts and assembly as given in challenge. DRAWING ONE: :   TREE STRUCTURE FOR THE GEOMETRICAL SETS OF PART BODY 3D PART MODEL IN VARIOUS ORIENTATIONS:  FRONT VIEW:   SIDE…

Objective: The main aim of this challenge is to create a solid body of 'Door Trim Lower' with the help of the closed surface method by using the 'Generative shape design' workbench in CATIA V5. Performing the 'Draft Analysis' on the solid part body of the Door trim. Given sample design Overview:Initially, we need…

Week 10 - Challenge 1- Attachment Feature Creation (Ribs & Screw Boss) AIM: To Create the Door Handle Component from the given Class-A surface. To Create the tooling axis for the given Class-A Surface meeting the requirements of the draft angle. To Attach B side Features in the component. To perform the Draft analysis…

AIM:-  To Create the BUMPER Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model. Take the Thickness of the component to…

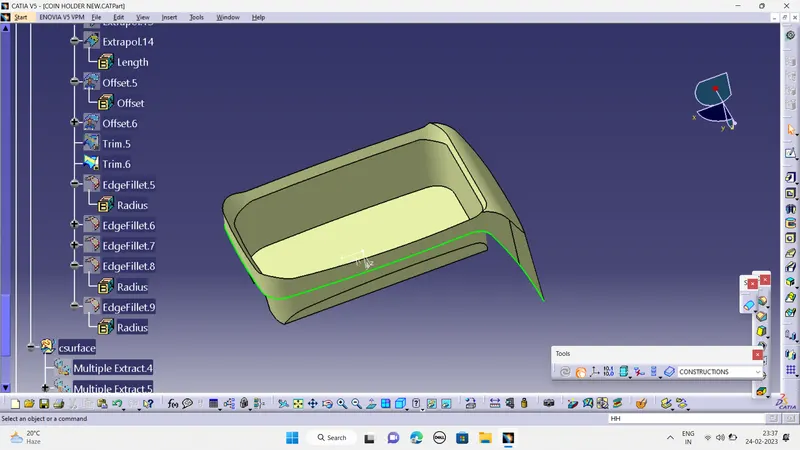

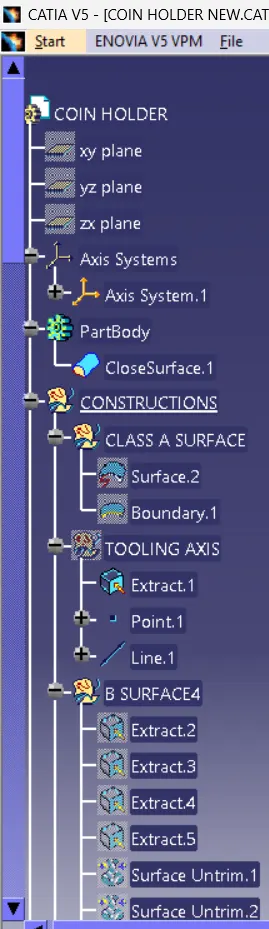

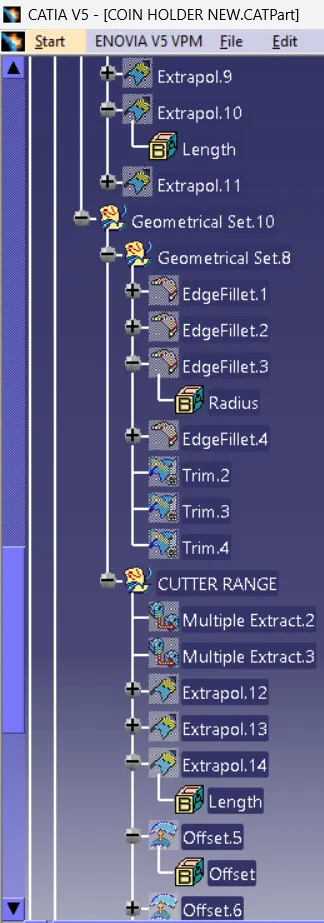

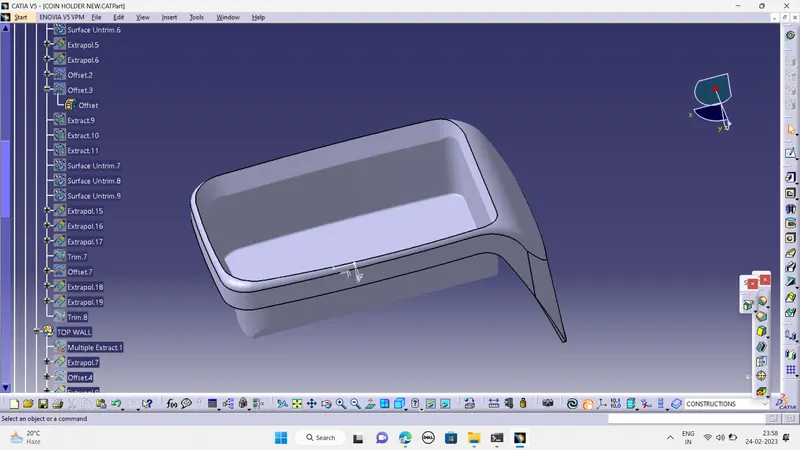

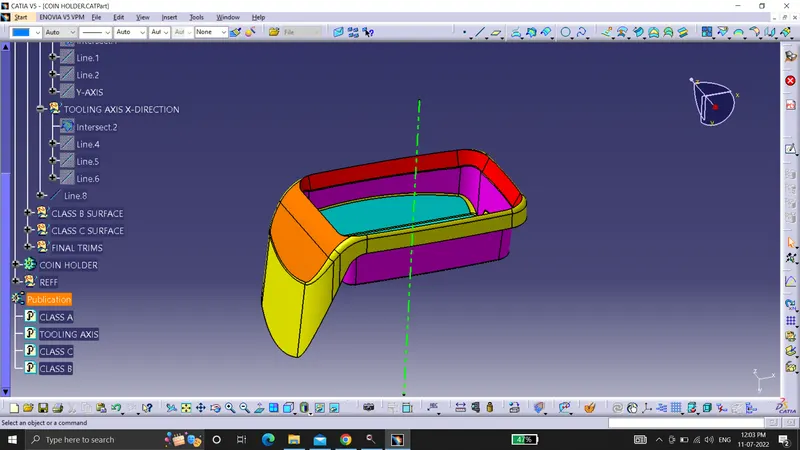

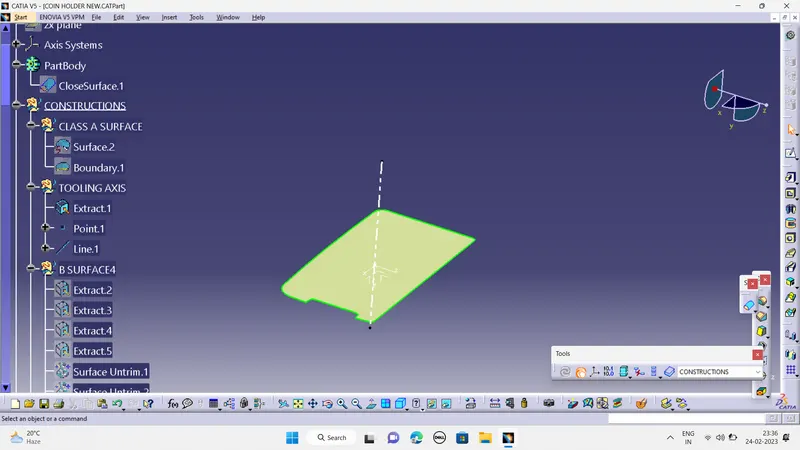

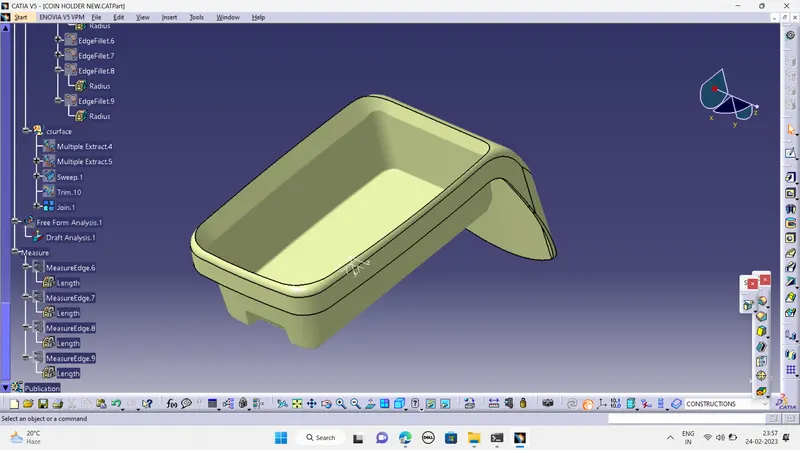

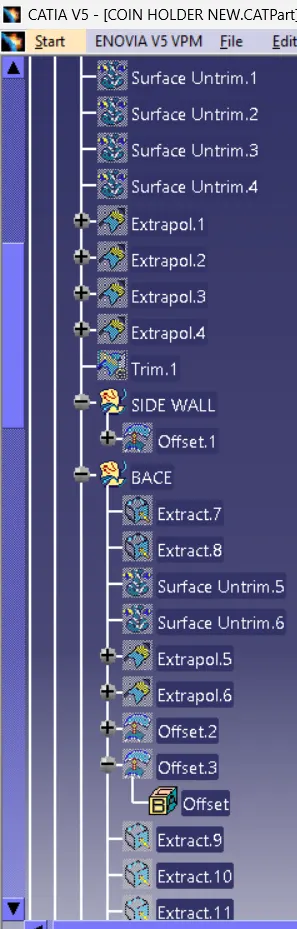

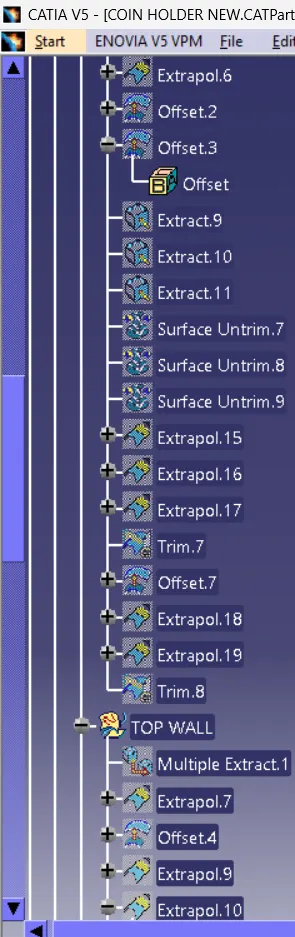

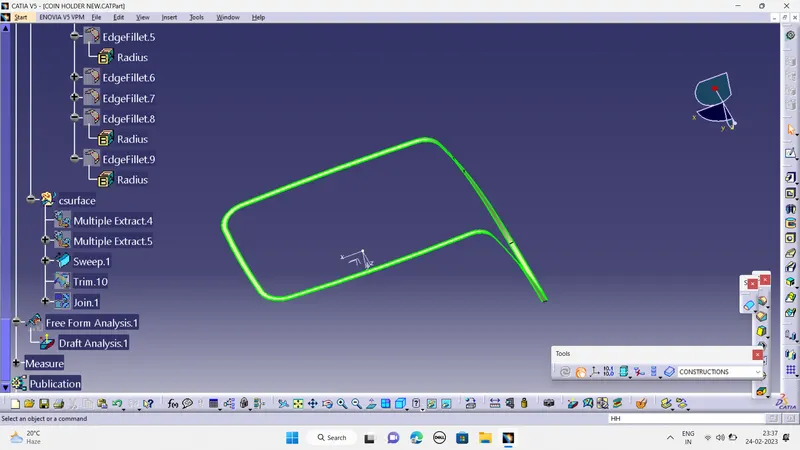

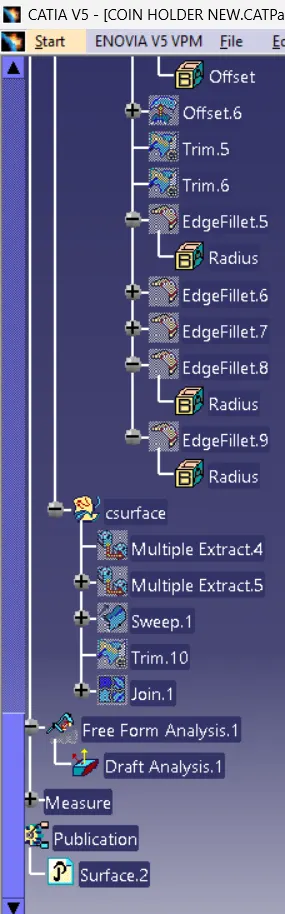

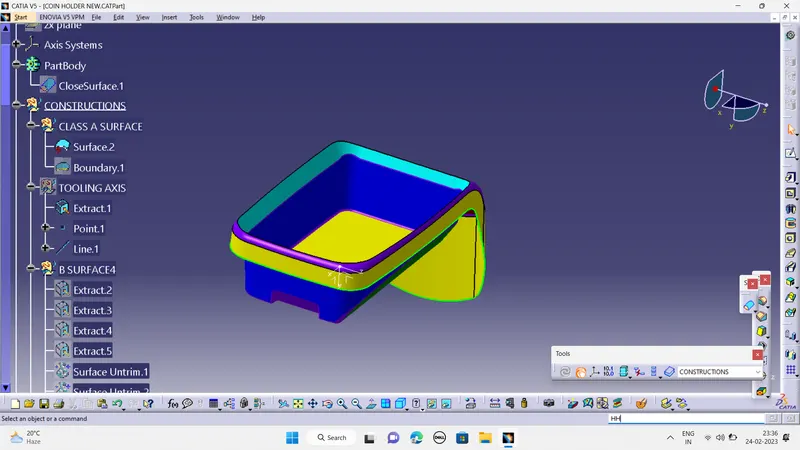

Week 8 - Challenge 3 - Coin Holder Design AIM:- Create the Coin Holder Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model. Take the…

Week 8 - Challenge 6 - Core & Cavity Design AIM:- Create the Core and cavity blocks for the switch bezel designed in the earlier challenge. 1-CORE 2-CAVITY 3-PARTING LINE Specification Tree: FINAL VIEW

Week 8 - Challenge 2 - Switch Bezel Design   AIM:- Create the Switch Bezel Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the mode OBJECTIVE:- …

 Week 8 - Challenge 1 - Base Bracket Design AIM:- Create the Base Bracket Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the mode OBJECTIVE:- …

RENDERING PROJECT Objective: To Render All The Projects Done Previously. TOOLS USED  Hardware Shaders. PROCEDURE: 1.Open Autodesk Alias. 2.Apply Visualisation To The Model. 3.From Control Panel Change The Setting From Modelling To Visualize. 4.There Will Be A Set Of Shaders. 5.There Are Shades Named Lambert Which…

DEVELOPMENT OF KIA SPORTAGE USING ALIAS AUTO STUDIO Objective: To build the car using the Curves traced from the given blueprint of the car model.. Introduction Surface introduction  A surface, as the term is most generally used, is the outermost or uppermost layer of a physical object or space. It is the portion…

Concept modelling of seat     OBJECTIVE: To create the surface model of car seat using auto desk alias design.   INTRODUCTION:   Concept modeling is modeling where 3d data starts to take shape. It is a crucial part of the process as every part involved in the design process depends on this to actually…

CONCEPT MODELING OF SIDE FENDER   Objective:-To create surfaces of the entire car fender using the isometric image of a car.   Tools used:   Freedom blend tool,CV curve, line,skin,align tool,trim, project, intersect,extend,detach, tool and transform tool,fillet, rail,command Ms draft ect   Introduction:…

Concept modelling of steering wheel   OBJECTIVE: To make a model of steering wheel from one image by visualization.   INTRODUCTION: Concept modeling is modeling where 3d data starts to take shape. It is a crucial part of the process as every part involved in the design process depends on this to actually visualize,…

      CONCEPT MODELLING OF CAR BUMPER ALIAS SOFTWARE OBJECTIVE: The main of the project is to create a concept model of the bumper of Abarth 500 car, using the curves and surface generation features with the help of Alias software INTRODUCTION: Auto desk alias (formerly known as alias studio tools) The out side portion…

CONCEPT MODELLING OF ALLOY WHEEL USING ALIAS SOFTWARE: AIM The aim of this project is to make the concept model of a vehicle with the help of image of the wheel provided as input in the concept modelling stage of a car. INTRODUCTION Autodesk Alias (formerly known as Alias StudioTools) is a family of Computer-aided industrial…
