Week 8 - Challenge 2 - Switch Bezel Design
SWITCH BEZEL
AIM:
The aim of the project is to create a switch bezel plastic component using the given class A surface following the OEM standard. and perform the draft analysis.

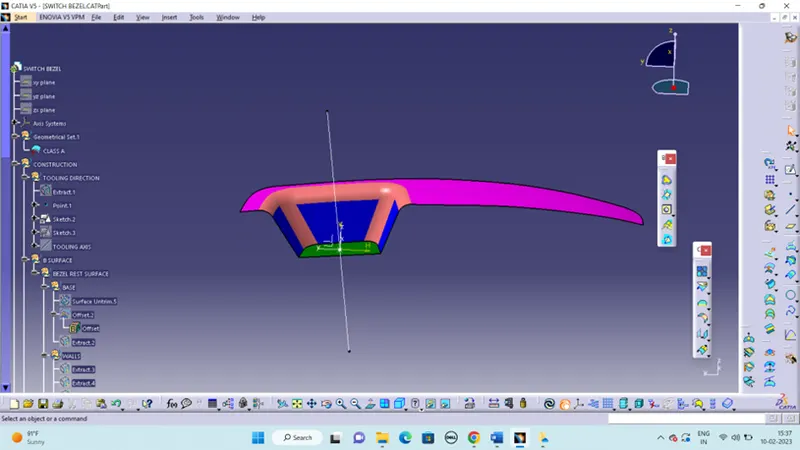

CLASS-A SURFACE:
The class-A surface is used in the automotive design industry. it describes the final production surface data for the aesthetic parts.

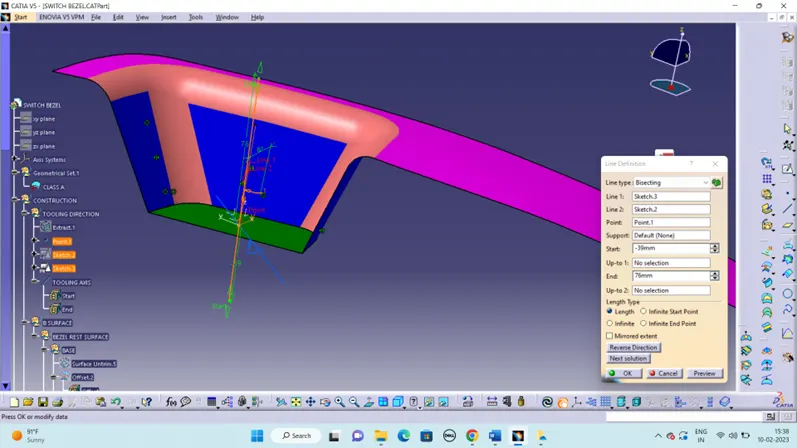

TOOLING DIRECTION:
Considering the Ejection from the cavity of the mould after manufacturing the interior trim (switch bezel) must have the nominal 3-degree draft angle. Hence the tooling direction is created by considering the above factor and bisecting method is used. The base surface of the class – A was extracted and a point at the centre is created and an axis system was inserted to the point with the current feature is disabled. Then, using project intersection along yz plane is created and the two inclined lines were drawn inside the positioned sketch. Then bisecting lines with the two inclined lines were drawn. The same procedure is done along the xz plane but on one side we don’t have inclined lines so the centre point is used to extrude a line along the z-direction and gave a measurement of 6 degrees (Tentatively). With these two lines from sketches 1 and 2, the bisecting line is crated and published as Tooling Axis(MAIN TOOLING DIRECTION).

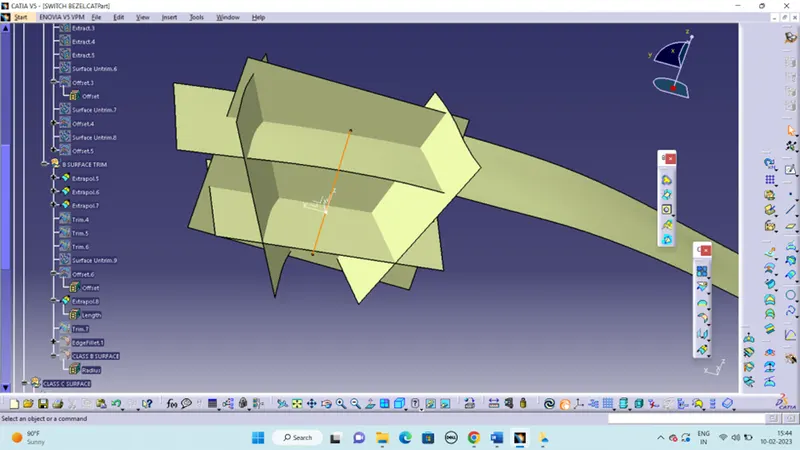

CLASS-B SURFACE:

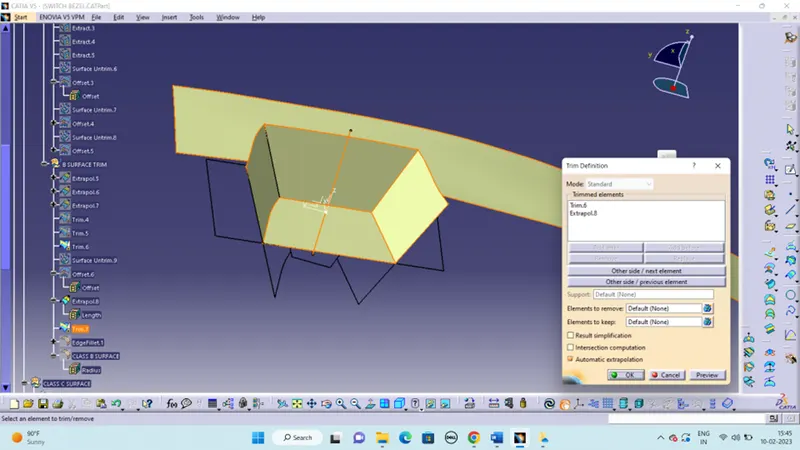

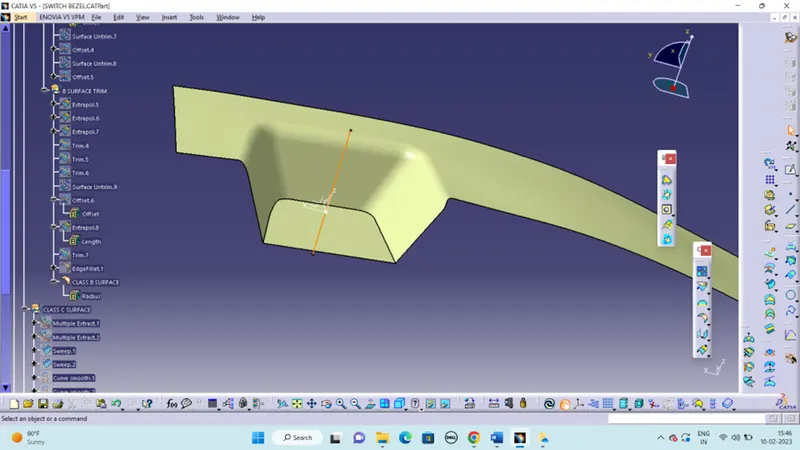

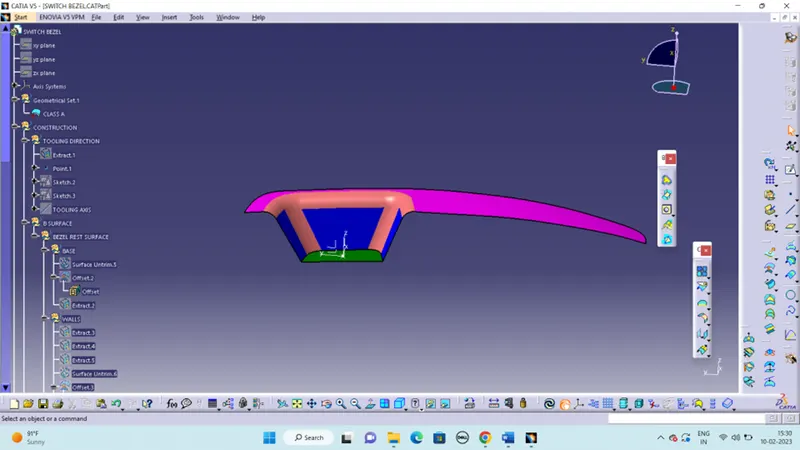

For creating the class-B surface the required surface except the offset surface have been extracted and then untrimmed all the surface. Then all the surfaces have been extrapolated to get intersections between them. The thickness of the Switch bezel is 2.5mm the B-Surface was offset to 2.5 mm and the required trim operations must be carried out. Finally, the required corners have been filleted.
FILLET VALUE = THICKNESS - GIVEN FILLET VALUE
FILLET VALUE 1 = 15 – 2.5 = 12.5
FILLET VALUE 2 = 14 – 2.5 = 11.5

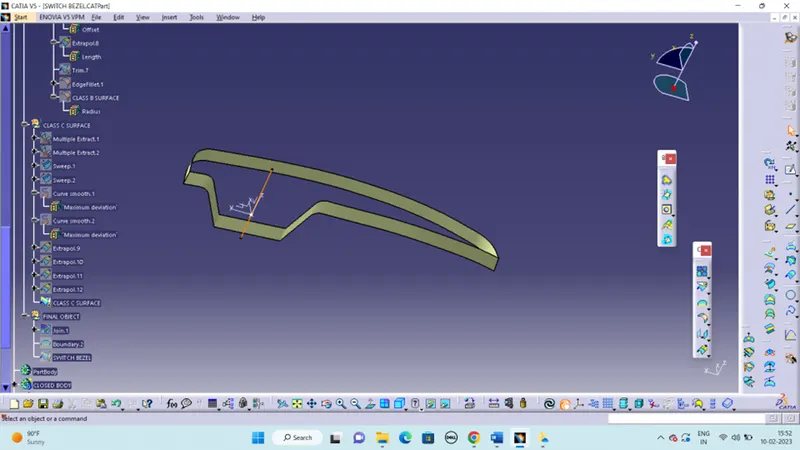

CLASS-C SURFACE

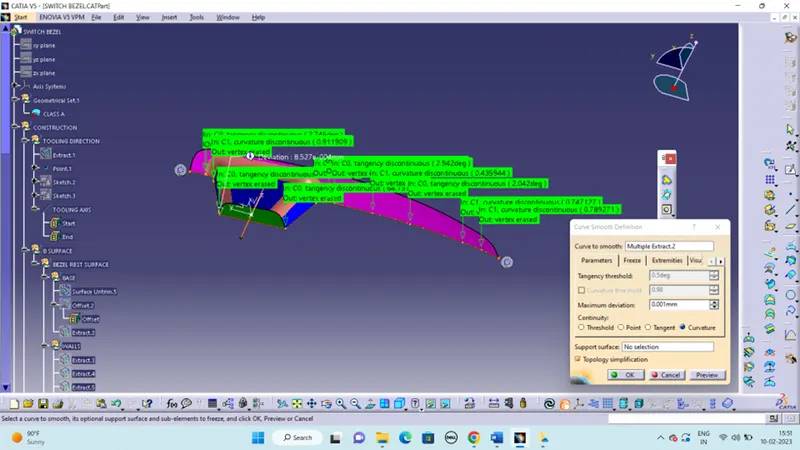

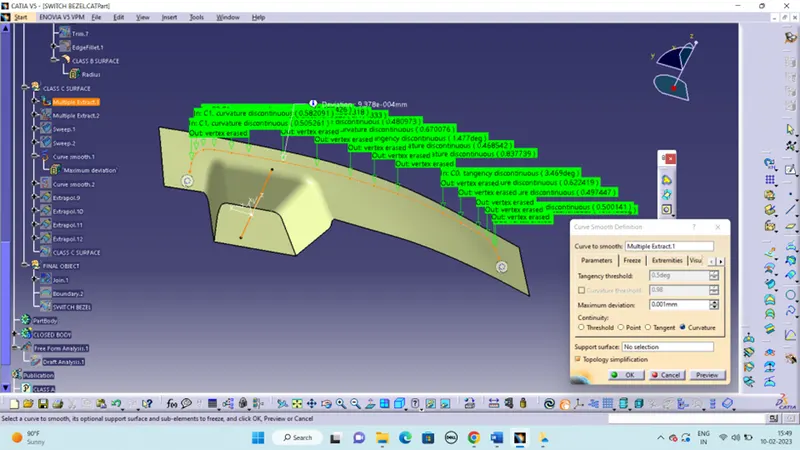

The required outer edges of the A-Surface were extracted using Multiple Extract. Then for avoiding the patches the curve is smoothened using the Curve Smooth option. Then by using the sweep command the surface was created. For creating the smooth surface I execute the smooth curve option and then I replace the extract 1 and 2 to curve smooth definition 1 and 2.

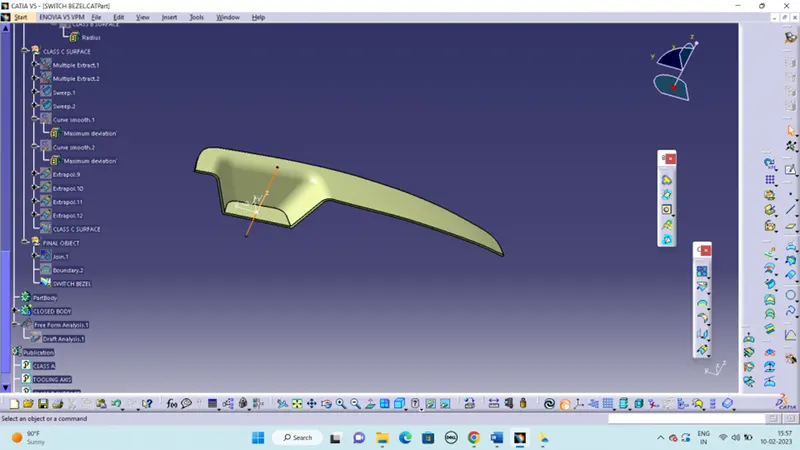

FINAL OBJECT:
Now the class – A and Class- C surfaces were joined together by removing the gaps in-between them with the help of extrapolation (tangent continuity) and Trim surface from joined surfaces and class-B surface. Then the exact surface of the Switch bezel. Finally by defining the part body by using the Closed Surface command in Part Design, the component's solid body is created.

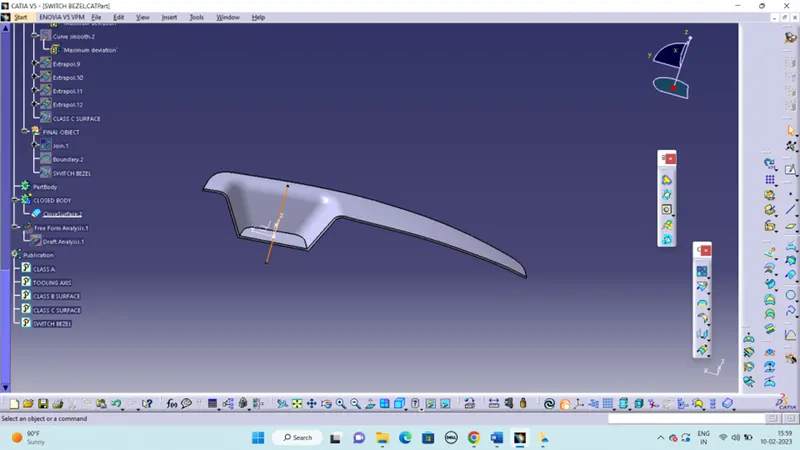

CLOSED BODY:

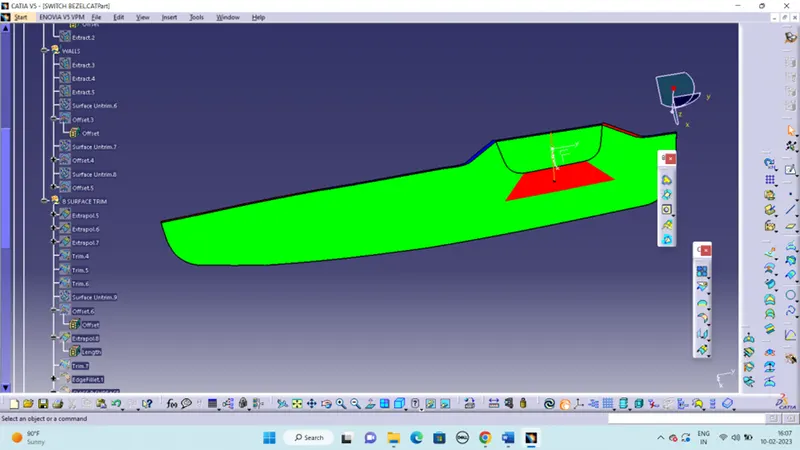

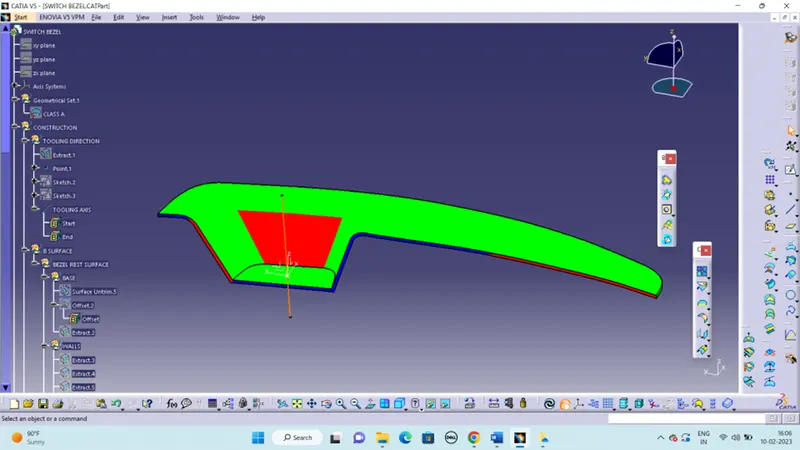

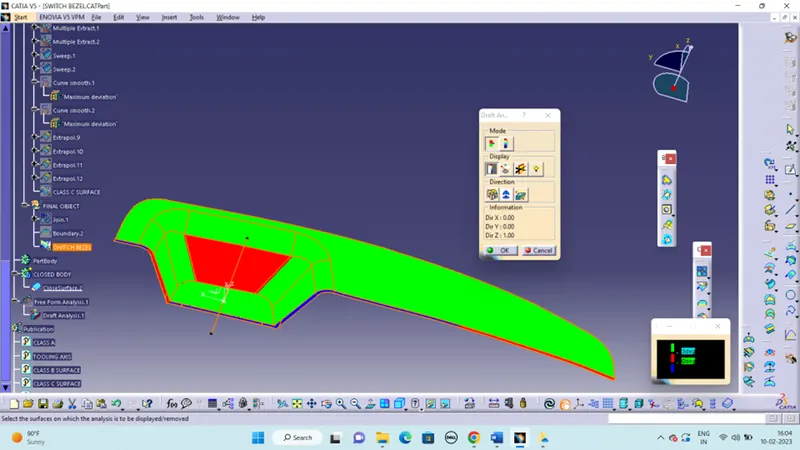

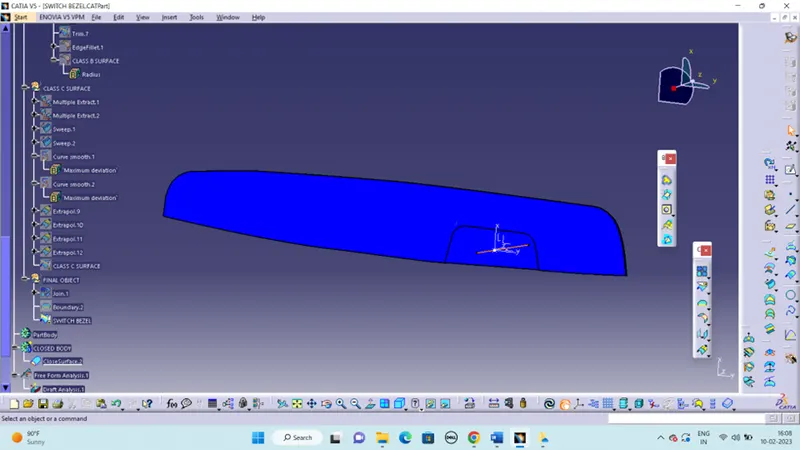

DRAFT ANALYSIS:
The draft analysis command enables you to detect if the part you drafted will be easily removed. This type of analysis is performed based on colour ranges identifying zones on the analysed element where the deviation from the draft direction at any point, corresponds to specified values.

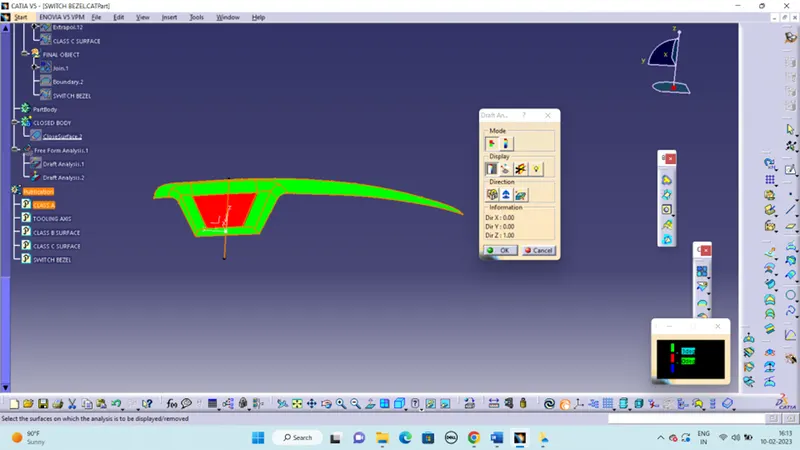

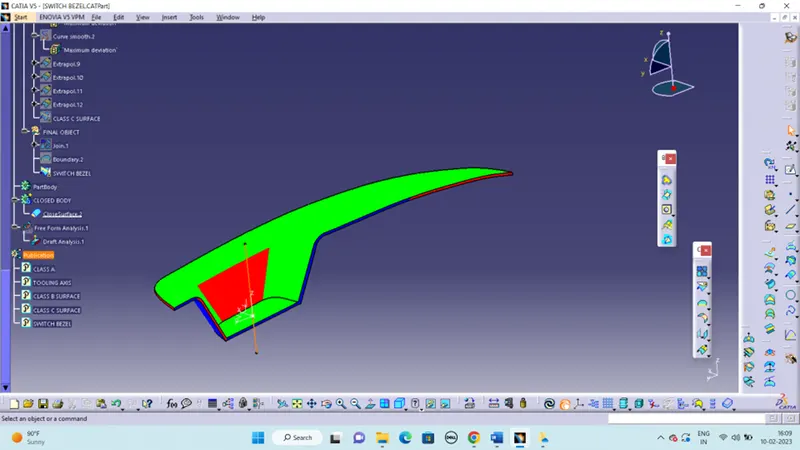

FOR CLASS A SURFACE:
PUBLICATION:
by selecting the tooling axis, class A class B and class C surface and final object publish it by going to menu bar> tools> publication. this will be published under the publication tab in a tree structure.

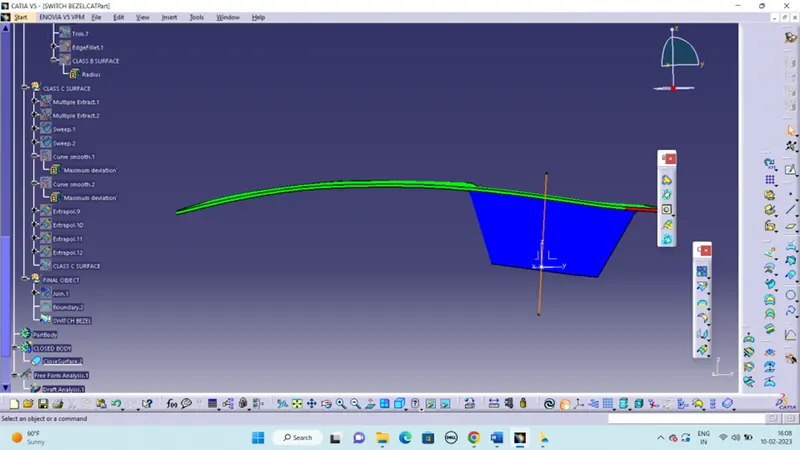

MULTIPLE VIEWS AND TREE STRUCTURE:
ISOMETRIC VIEW:
