Switch Bezel Design

1. AIM

To Create a Part body from the given Class A Surface as an input.

2. Other Objectives

• Creating tooling Axis
• Creating Class B Surface
• Creating Class C Surface

3. Class A Surface

Class A Surface is a surface with aesthetic shape and no thickness. After the completion of concept sketch, the image will be imported to a class A Surface creation software like Alias and the A surfaces will be created.

Later, it will be given to an Plastic designer to give it's thickness, draft and other Engineering features.
Before starting to design, the Plastic designer should verify all the Class A surfaces, whether they are intact or not.

If the input Class A Surface's are not intact then the plastic designer can try to join the surfaces from 0.001mm to a maximum of 0.003mm. If it's not cleared the maximum join length of 0.003mm, then with no further modifications, it will be reported and sent back to the Class A Surface designer.

4. Creation of Tooling Axis

Tooling Axis is simply refers to the direction where the mold opens and Closes. The part draft should be given along the tooling axis. Selecting the tooling axis will be a crucial one because it should be created in a way of clearing the draft analysis of the Class A Surface and the final part.

Usually there are three methods of choosing the tooling axis direction and they are

• X, Y, Z direction
• Normal to Surface and
• Bisecting Method.

5. Draft

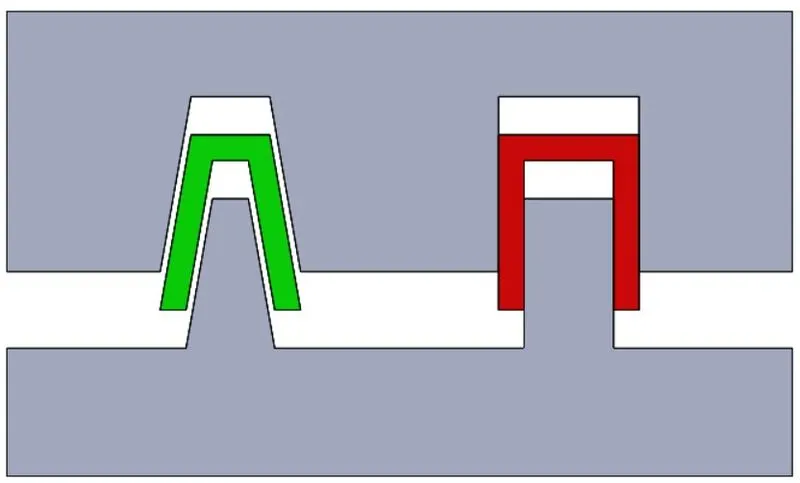

In Plastic Molding, the property of every molten material is that when it solidifies, it will tries to clinge on to the core or the surface.

Usually when an plastic component molded without any draft angle then, it will undergoes much friction with the Core and Cavity section.

This will leads to lots of wear and tear, then gradually leads to the damage of the Core and Cavity.
Also the part which is created without draft, will have some unpleasant surface finish and it also can be deformed. So, to avoid these issues draft angle will be given to the part. That is why , every plastic component which undergoes injection molding process will have a minimum of 0.5 degree draft angle. But still manufacturing such a precise component will be very costly and have to spend lots of money.
So, the Plastic Manufacturing industries usually prefer to use 3 degree of draft angle for normal surfaces and 7 degree of draft angle for textered surfaces.

6. Procedure

The steps followed in the process of making the Final Part body.

6.1. Class A Surface Check

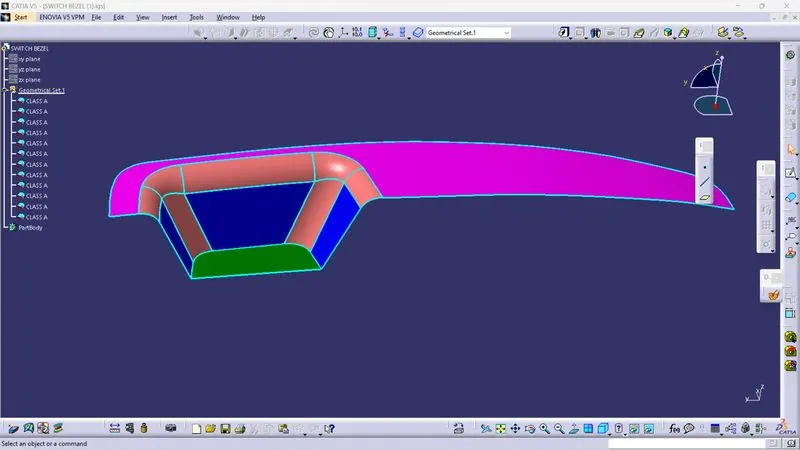

Input of the class A was in the IGES Part file type and the Class A Surfaces are not intact and has some open boundary's within the surfaces.

So, firstly it was tried to join all the surfaces with 0.001mm, but still there was a open boundary on the surface.

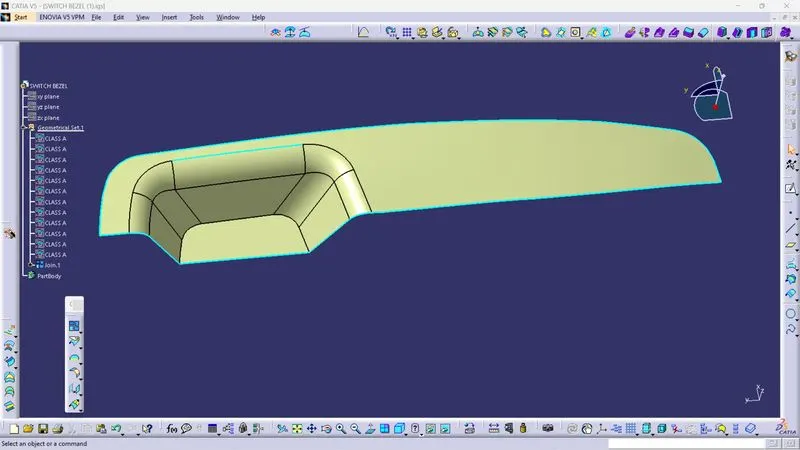

Again, it was tried to join the surfaces with 0.002mm and this time it was gotten right. A perfect Class A Surface with no open boundary within the surface was created.

6.2. Tooling Axis Creation

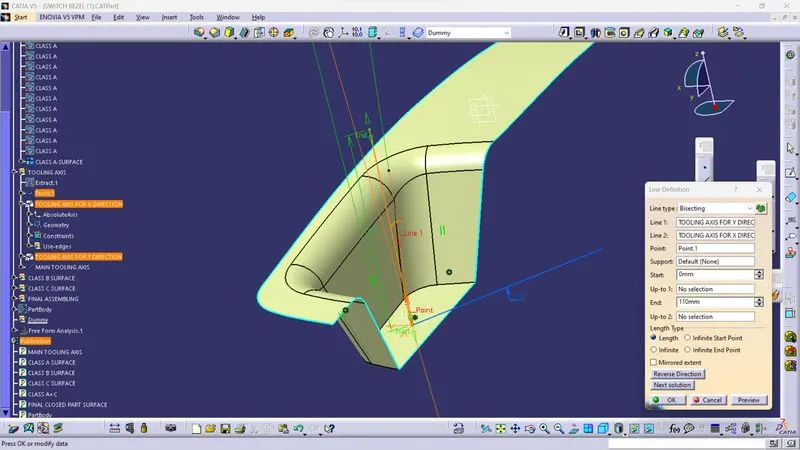

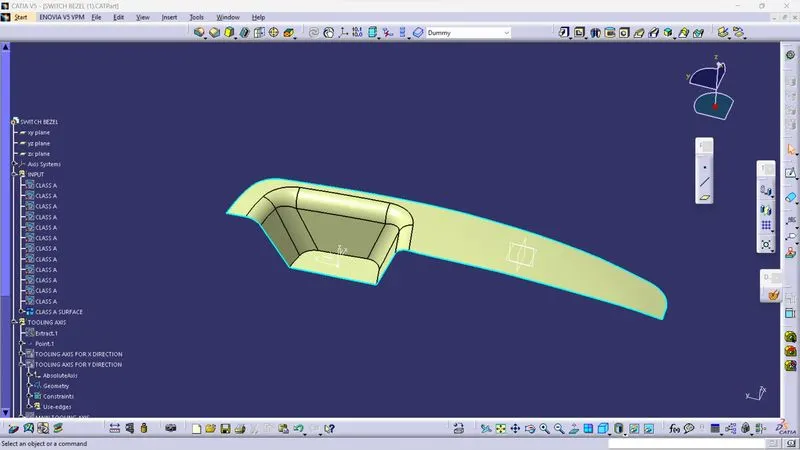

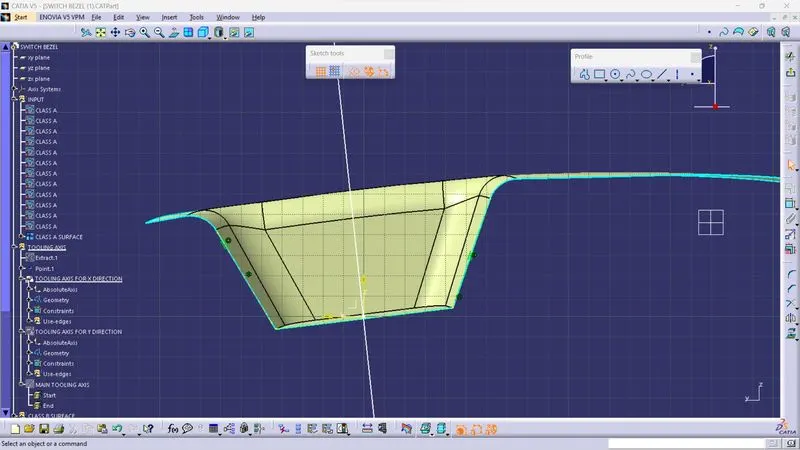

The tooling axis was created by using bisecting method in the z direction because, from the z view most of the Class A surface was covered. Here, two Sub-Tooling axes was created for X and Y direction.

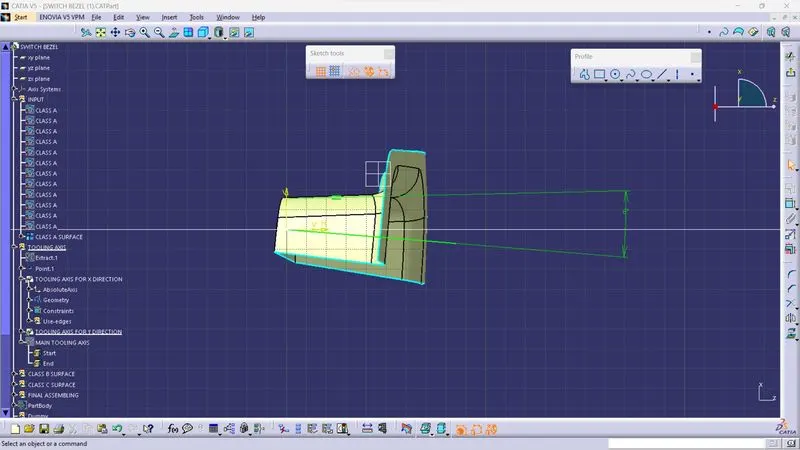

For creating the Tooling axis for Y direction there were two surfaces, where the lines created tangent to them and with bisecting those lines Tooling Axis for Y direction was constructed.

But, for X direction there was only one surface, so one line was created tangent to the surface and the Sub-Tooling axis for X direction was created from the projection point with a angle of 6 degree from the line created with tangent to the surface.

With two Sub-Tooling axes, the Main tooling axis was created by bisecting them.

6.3. Draft Analysis of Class A surface

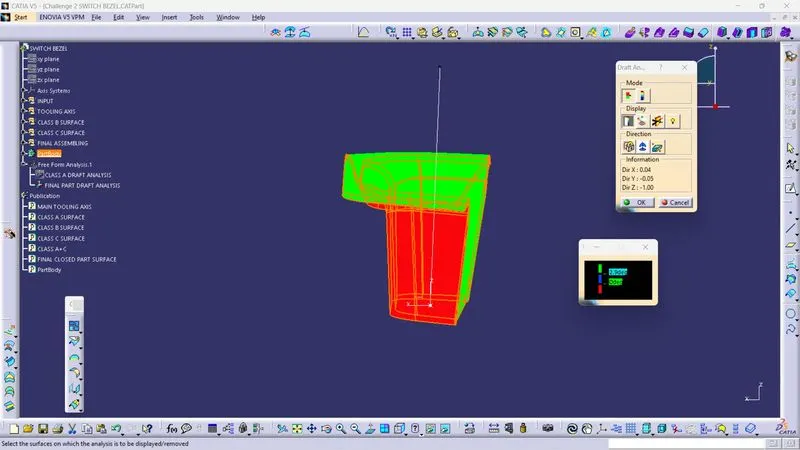

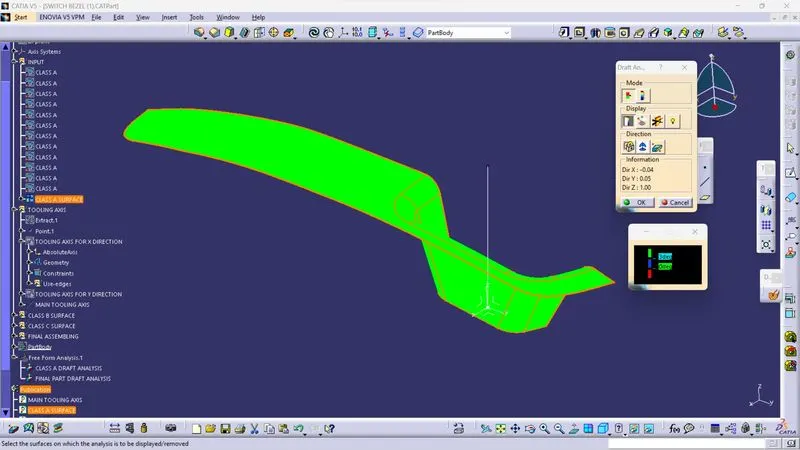

With the Main Tooling Axis created, draft analysis was performed on the Class A surface with the nominal draft angle of 3 degree. In the Analysis, Green colour refers that the 3 degree of draft angle can be performed in this direction and red refers the opposite.

6.4. Class B Surface Creation

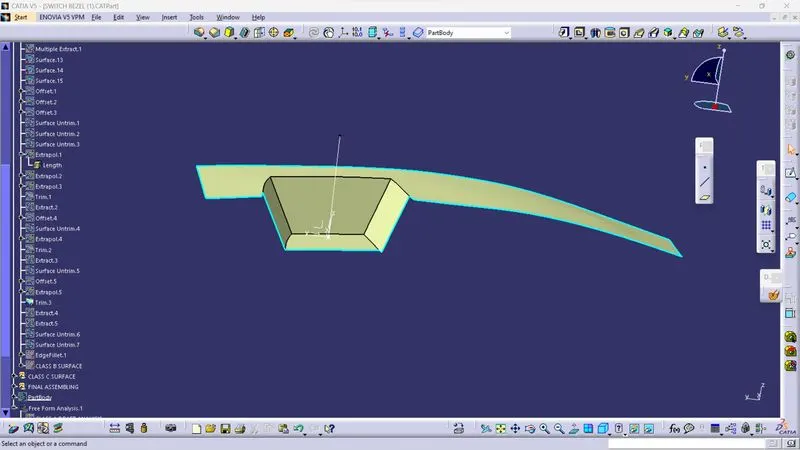

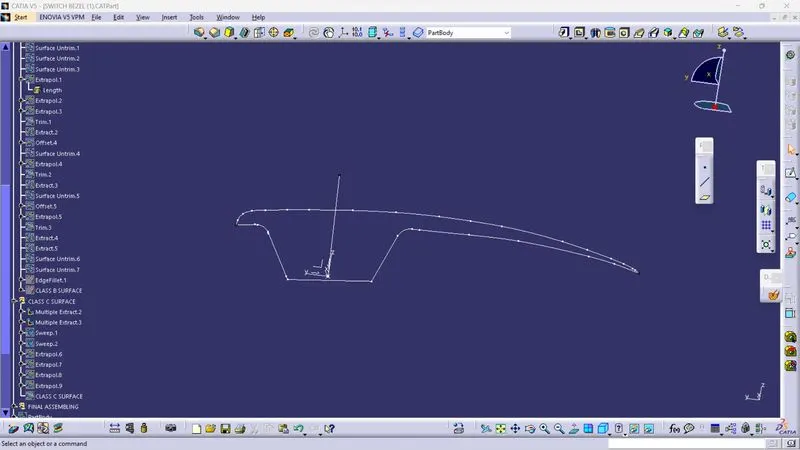

After clearing the draft analysis the each surface's of the Class A was extracted except the filleted surface and then it was offseted to a distance of 2.5mm which is the final component's thickness.

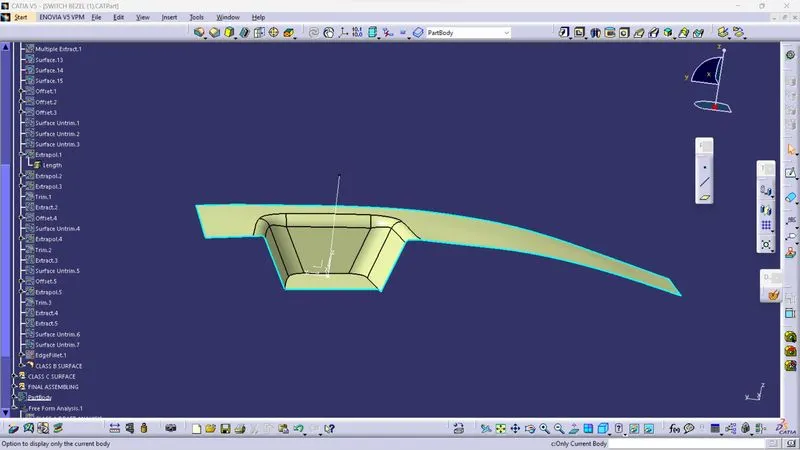

Then each extracted surface was untrimmed and extrapolated with point continuity for 20mm. Then the extrapolated surfaces was trimmed with reference to the Class A.

For the fillet radius, the fillets which are in outward direction, the thickness was added with the actual fillet radius and for the fillets which are in inward direction , the thickness was subtracted with the actual fillet radius which is taken from the Class A Surface as reference. To get the exact fillet radius of the Class A, the fillet regions of the class A was extracted and then it was untrimmed and measured to get the acurate fillet radius.

6.5. Class C Surface Creation

Class C surface can be created with two methods.

• If the Class C Surface was perpendicular to the Tooling axis then it will be created by using Reference to Surface method at 90 degree of angle along tooling axis direction.
• If the Class C Surface was Parallel to the Tooling axis then it will be created by using Draft Direction at 3 degree of angle along tooling axis direction.

In this Challenge the Draft Direction method was used.
Using Extract tool, the edges of the Class A surface got extracted.

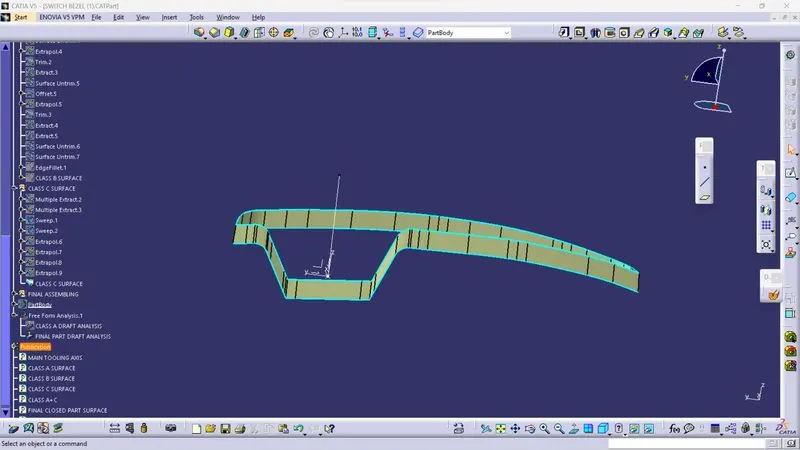

Using Sweep tool , the extracted edges as guide curve along draft direction at 3 degree of draft angle , Class C Surface was created.

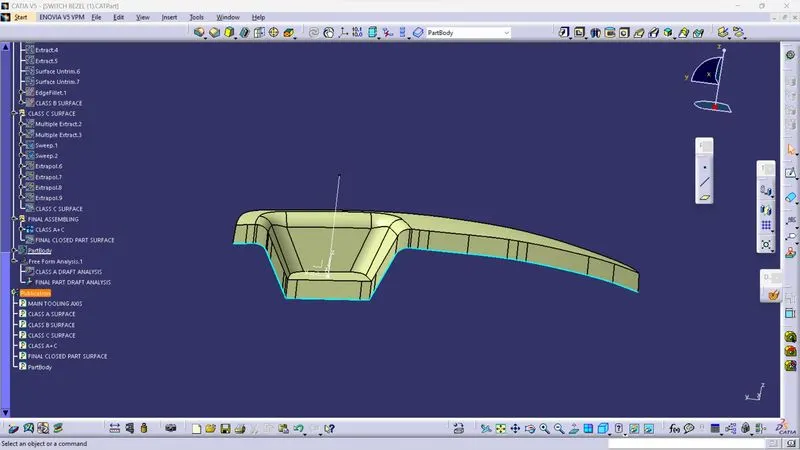

6.6. Final Part body

After the creation of Class A, B and C Surface, Class A and Class C surface's was joined and renamed as Class A+C Surface.

Then finally, the Class A+C Surface was trimmed along the Class B Surface to get the final Close surface of the Part.

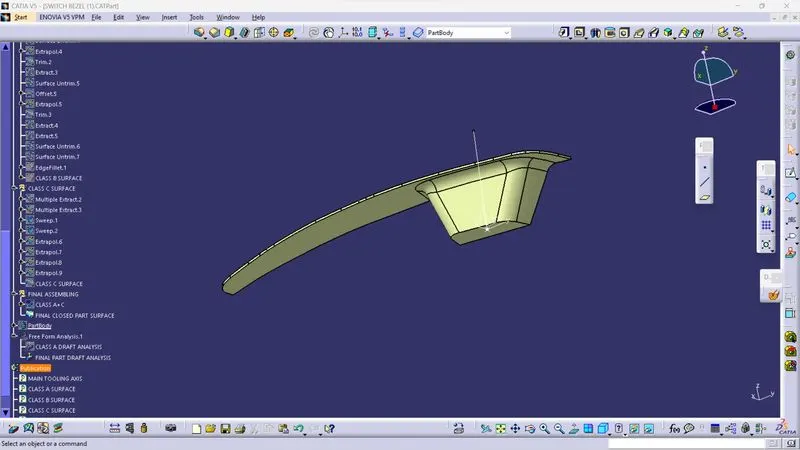

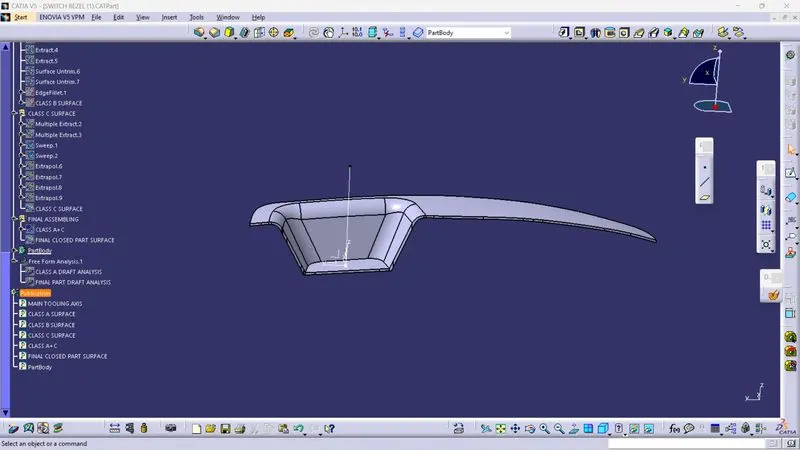

Then moving to Part Workbench, Using Close Surface Tool , the Close surface was converted into a Partbody.

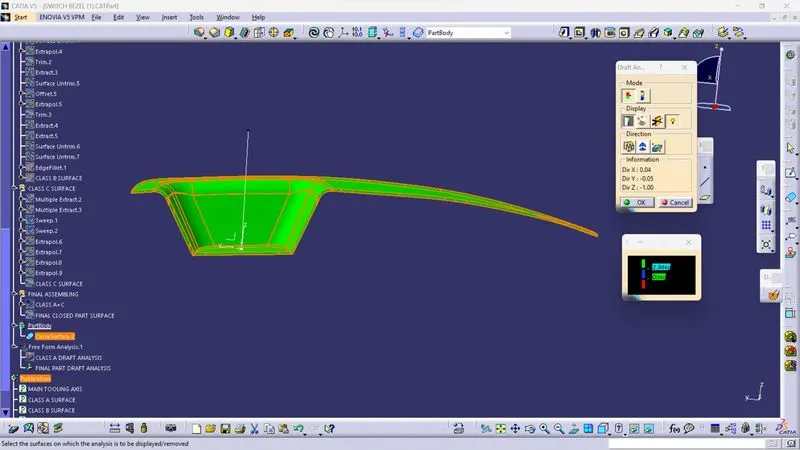

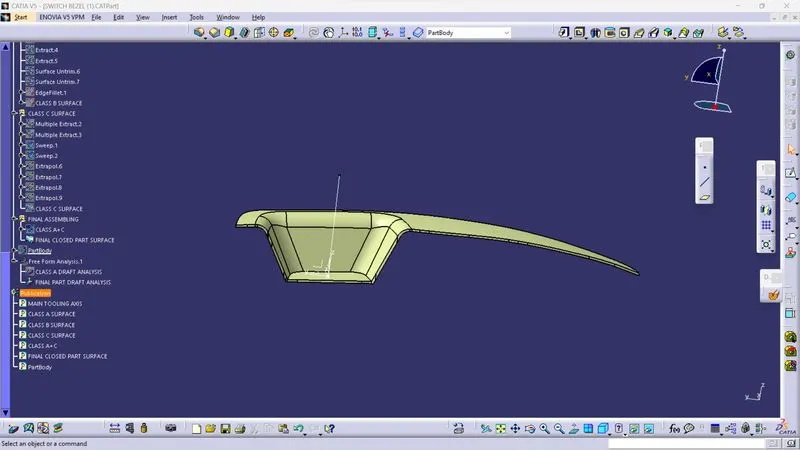

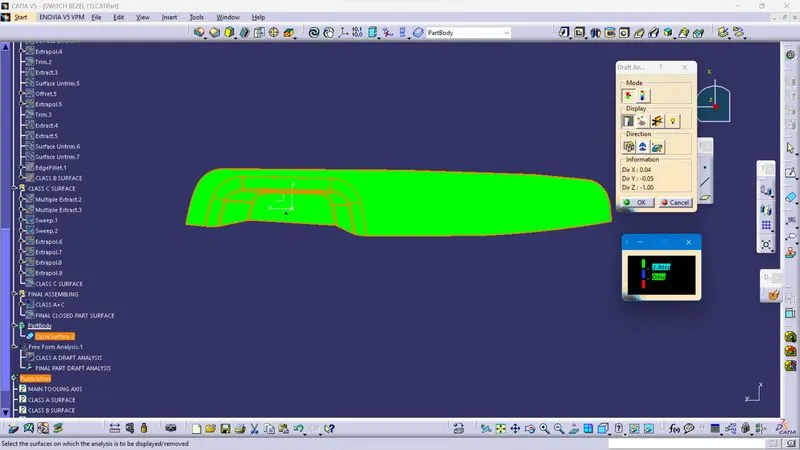

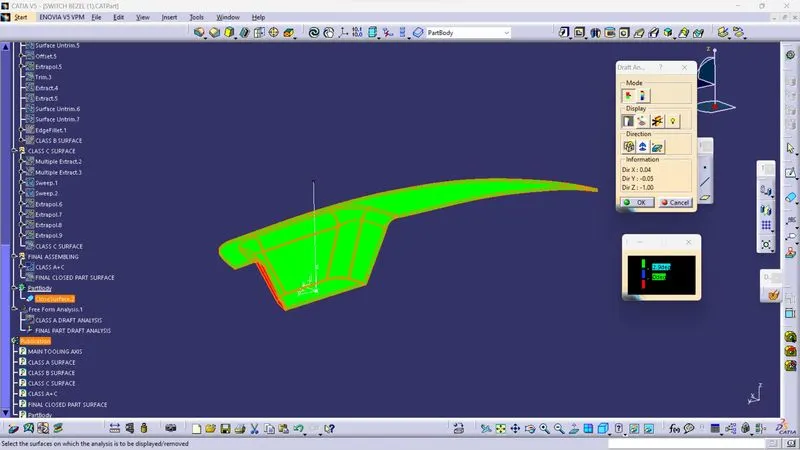

And there was a final draft analysis on the partbody along the tooling axis to make sure the Class A and C Surface along the tooling axis at 3 degree of draft angle gets cleared or not.

7. Conclusion

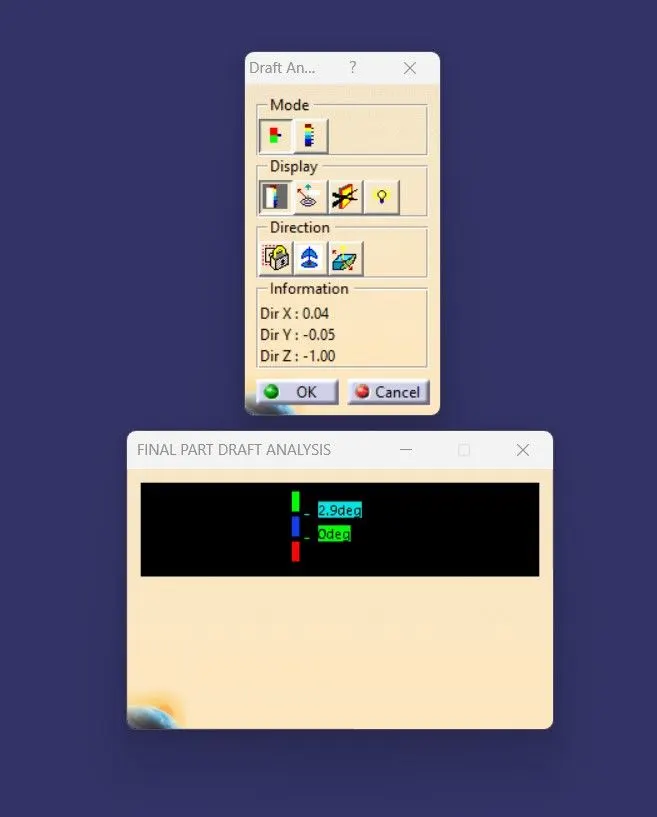

Tooling Axis was created. Class B and C Surface was Created. Part body was created with the input of Class A. Final part body clears the draft analysis along Class A and C surface direction at 2.9 degree of draft angle.
