Week 8 - Challenge 2 - Switch Bezel Design
OBJECTIVE : To Create the Switch Bezel Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.
Take the Thickness of the component to be 2.5 mm
Let us create the component a per given CLASS-A Surface :

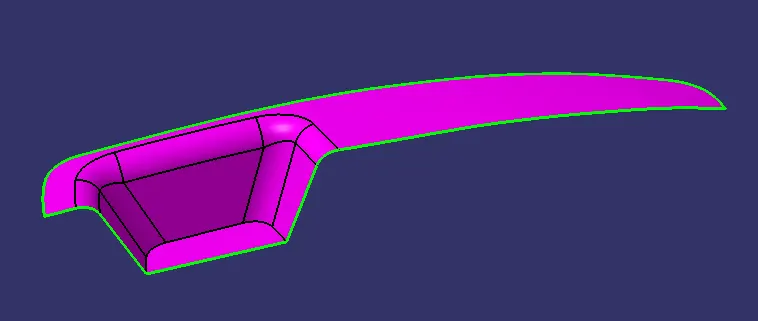

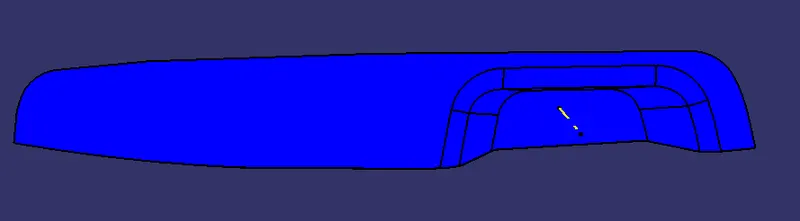

Class-A Surface :-

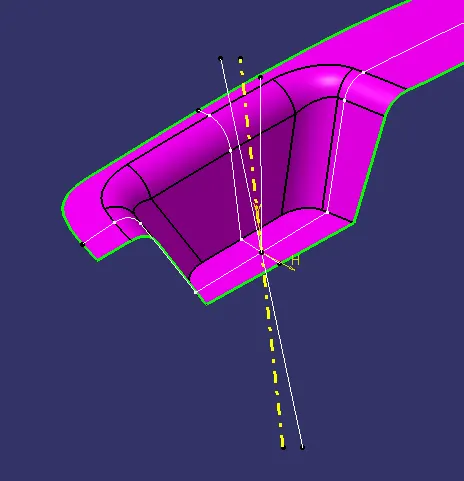

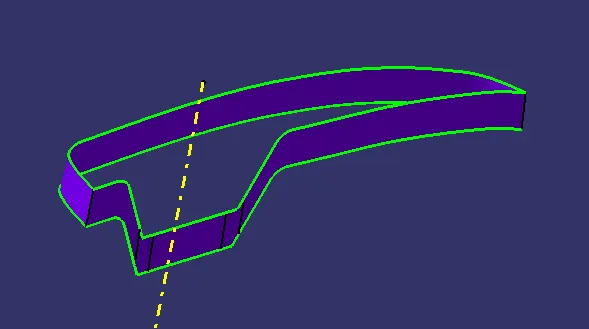

After analising for continuity in the surface joins lets us create tooling direction axis as follows

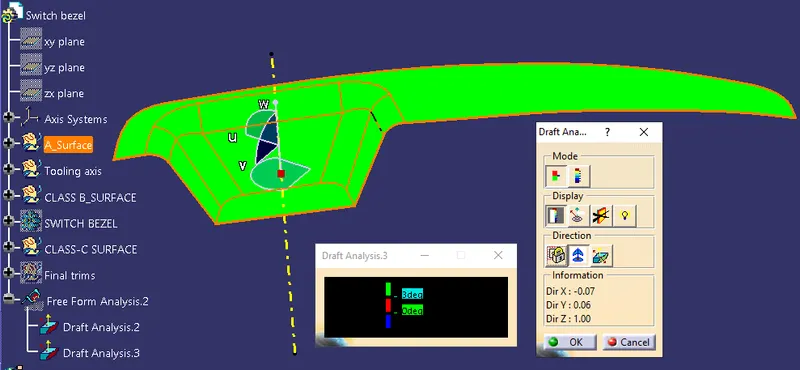

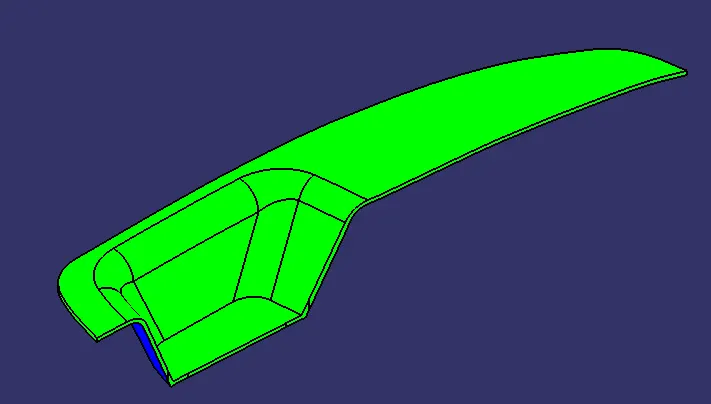

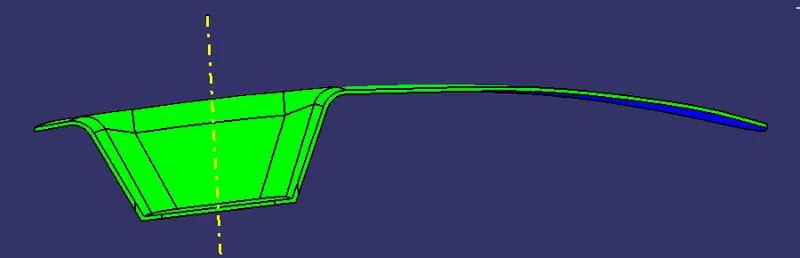

Now with the Tooling Direction let us run Draft analysis as follows:-
Now let us model

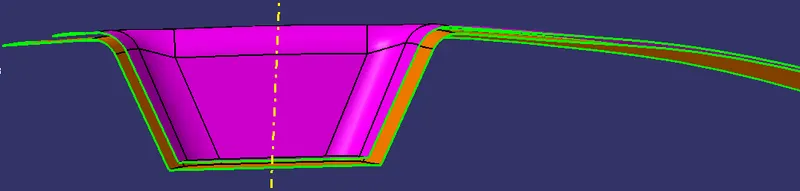

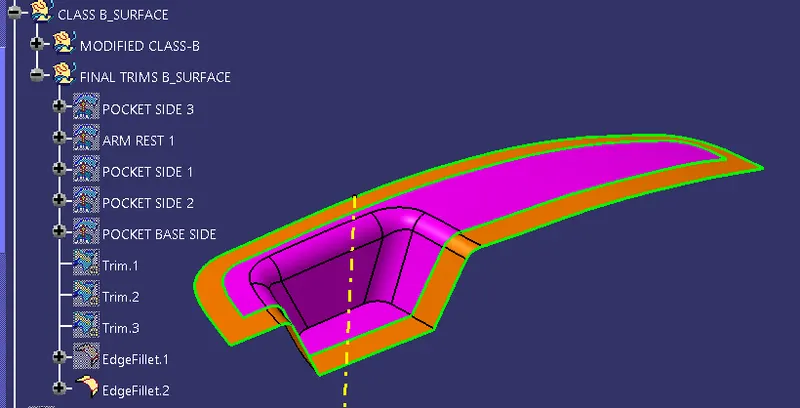

Creating class-B surface from A-Surface as follows :-
Creating Class-c Surface as follows :-
Joining Class-A, Class-B & Class-C, Final Surface is as follows :-

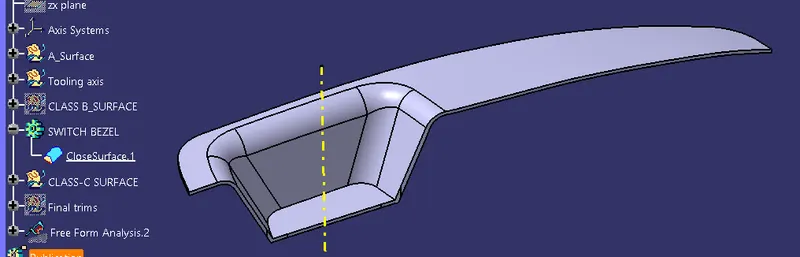

After Solid conversion using Close Surface Command in Part workbench:-

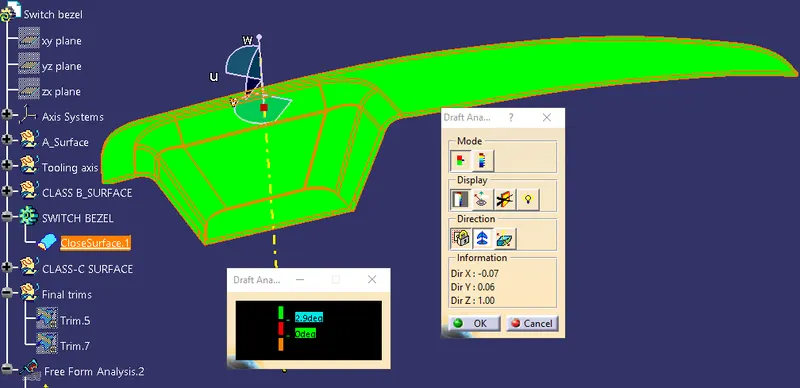

Draft Analysis for final Component as follows :-
Different VIEWS are as follows :-

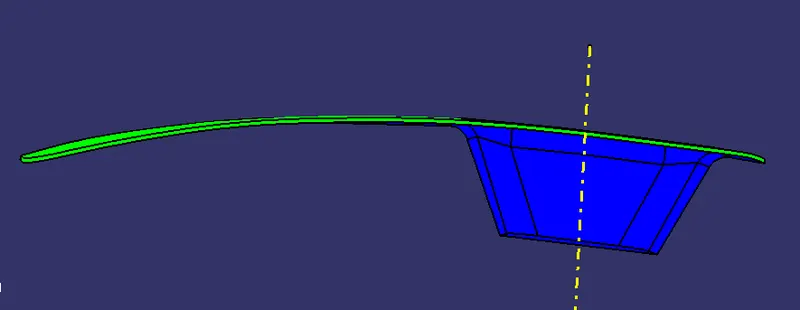

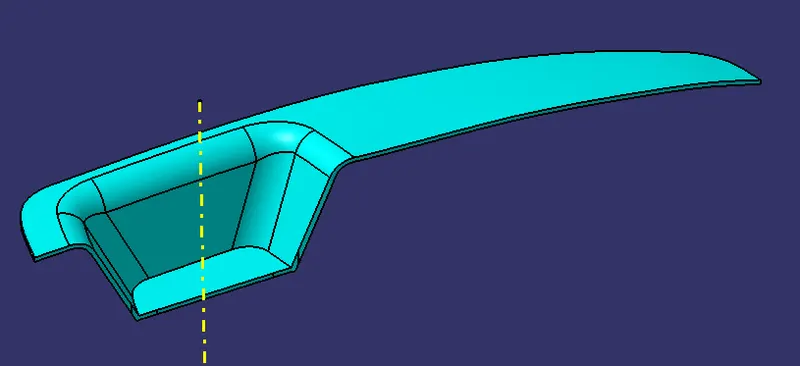

ISO view :-
FRONT view :-
BACK view :-

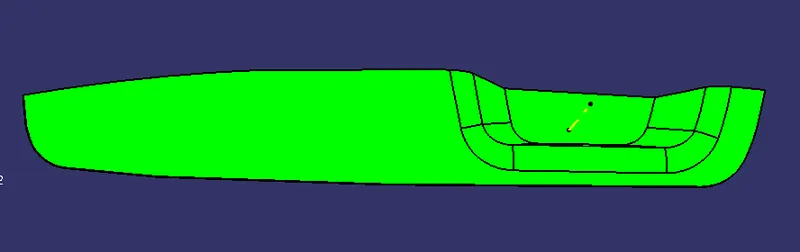

BOTTOM view :-
TOP view :-
