Week 8 - Challenge 2 - Switch Bezel Design

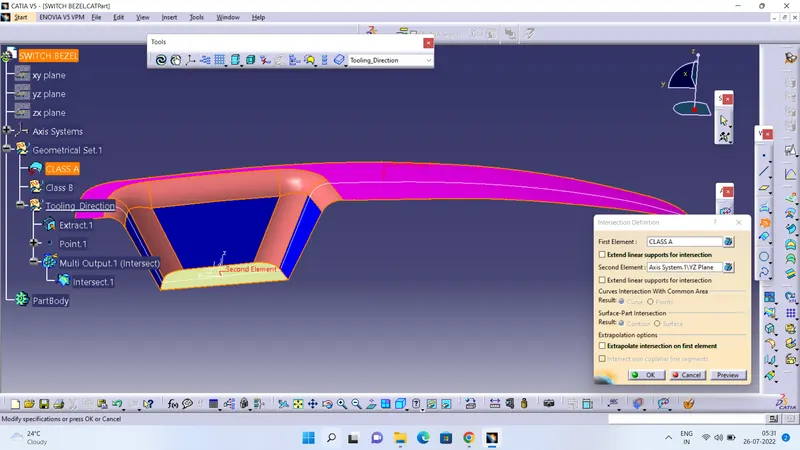

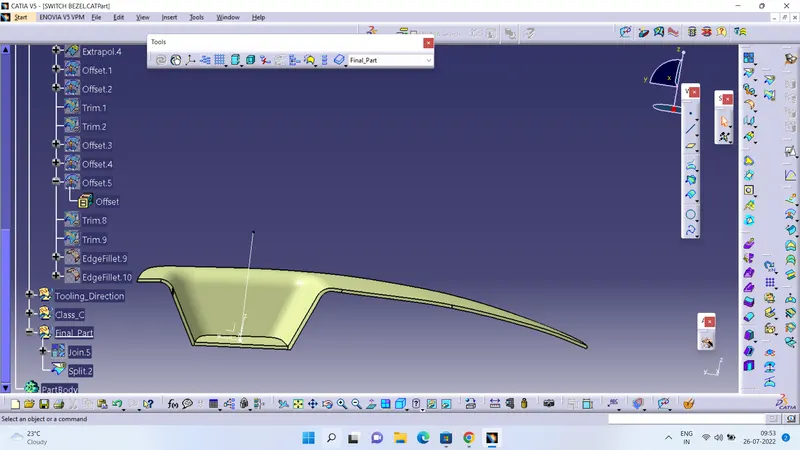

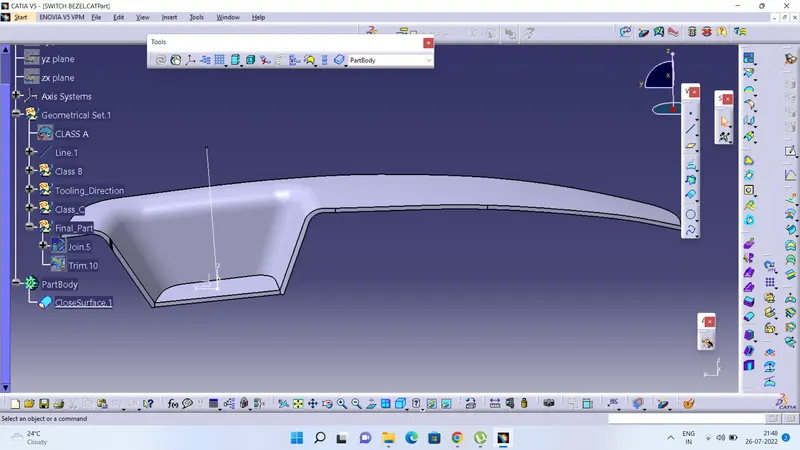

Create the Switch Bezel Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

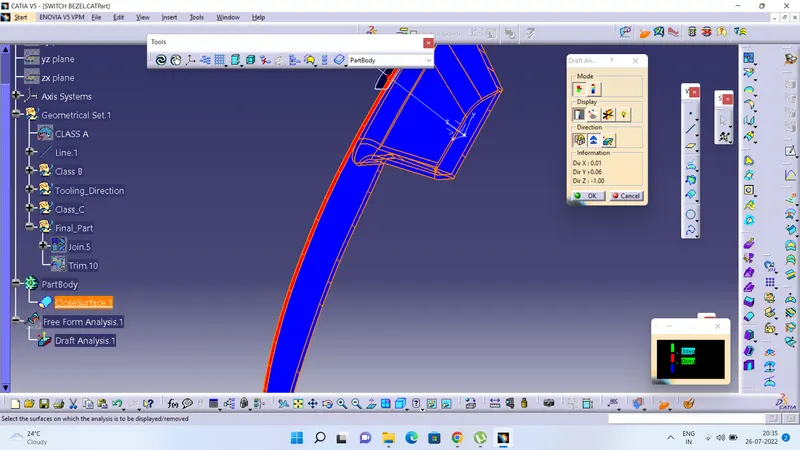

Draft analysis:

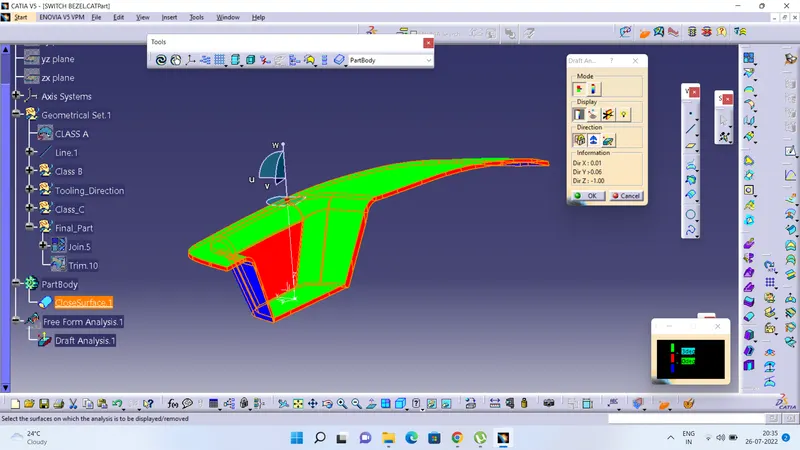

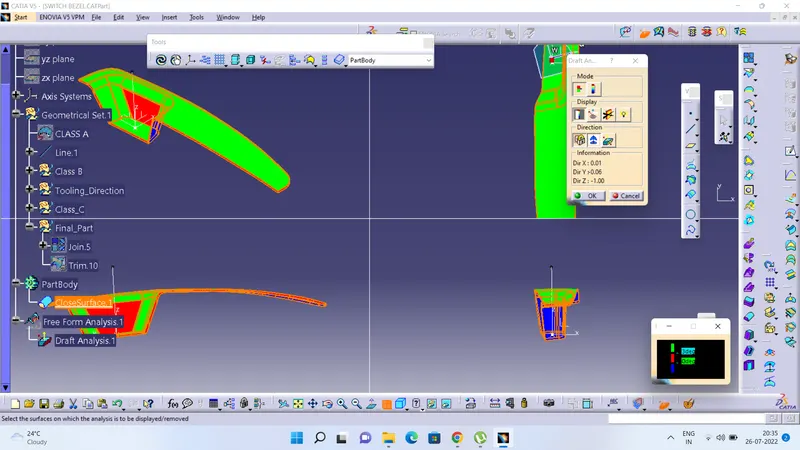

THe front Face Green in Colour is with the draft angle 3deg . The Only Red Coloured portion have the angle zero with respect to tooling axis.
