Switch Bezel Design

It ia a automobile component

STEP 1

Generally use given CLASS A SURFACE and create tooling axis..

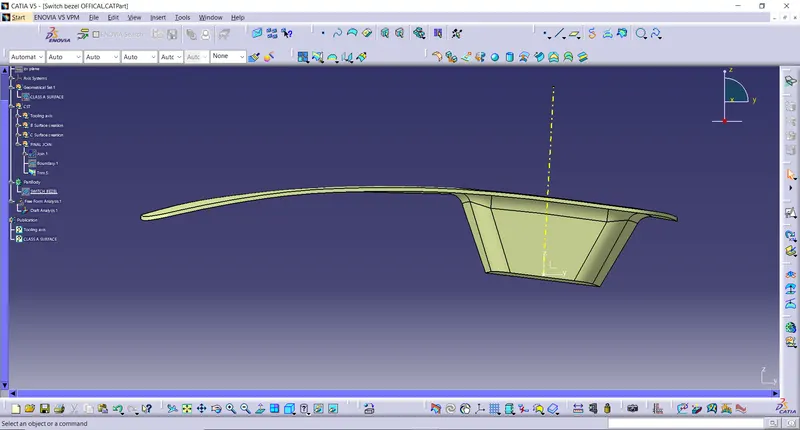

Tooling axis creation

The tooling axis is the direction of drawing a sheet metal where the finished component is easily ejected on a particular direction and axis. The tooling axis is important for removing the material when finished.

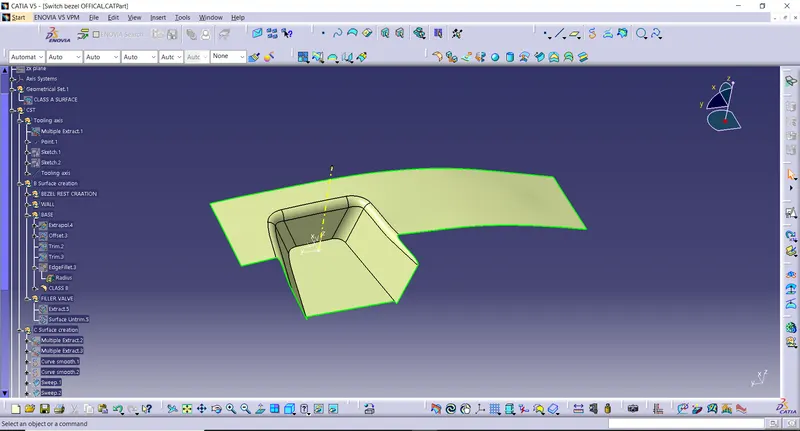

Creation of Class - B and Class - C surfaceE

extracting the class - A surface without the fillets and then untriming and extrapolateing them to join them, and after that offset the surface to 2.5 mm thickness which forms as the Class - B surface.

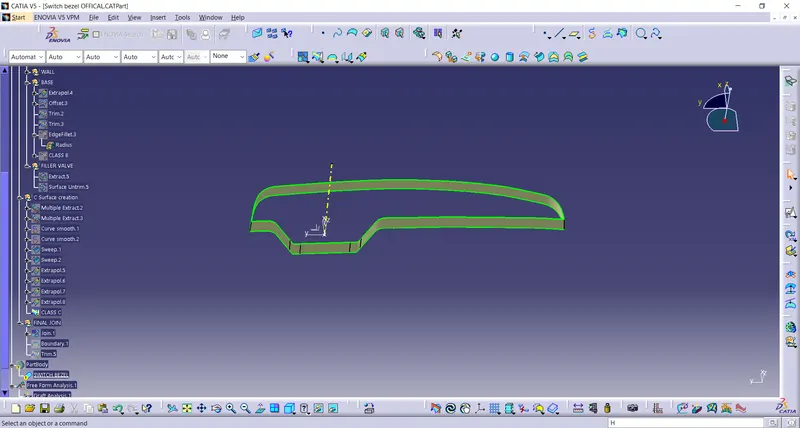

Class - C surface

By extracting the boundary of the class - A surface, the surface required for the class - C is obtained.using the smooth curve option a smooth surface can be obtained by sweeping the line towards the direction of the tooling axis.

using the smooth curve option a smooth surface can be obtained by sweeping the line towards the direction of the tooling axis.

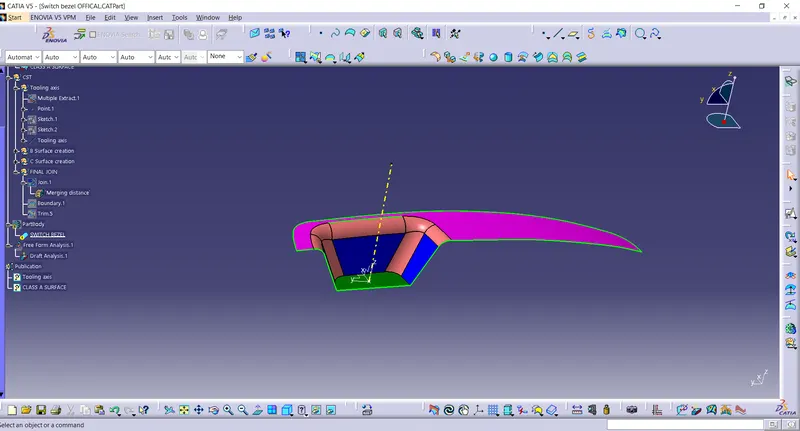

FINAL JOIN CLASS A & C SURFACE

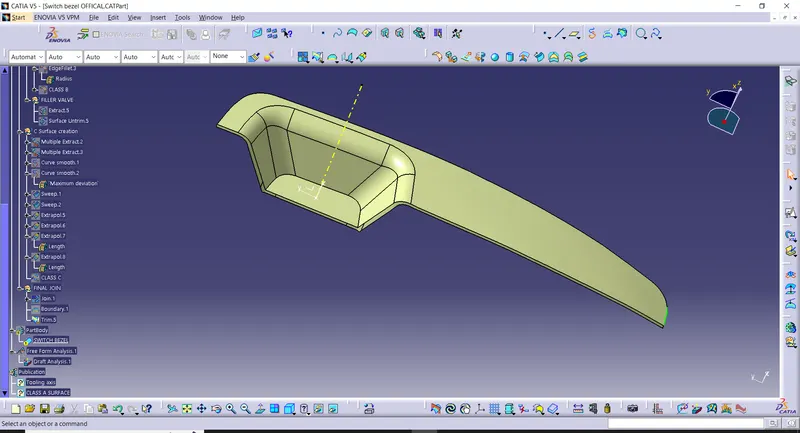

AFTER CLASS B SURFACE ALSO JOIN AND GIVE FIANL OUTPUT SURFACE

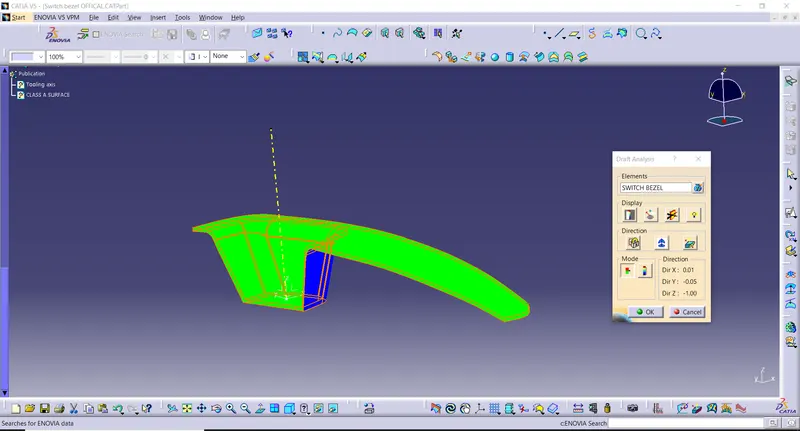

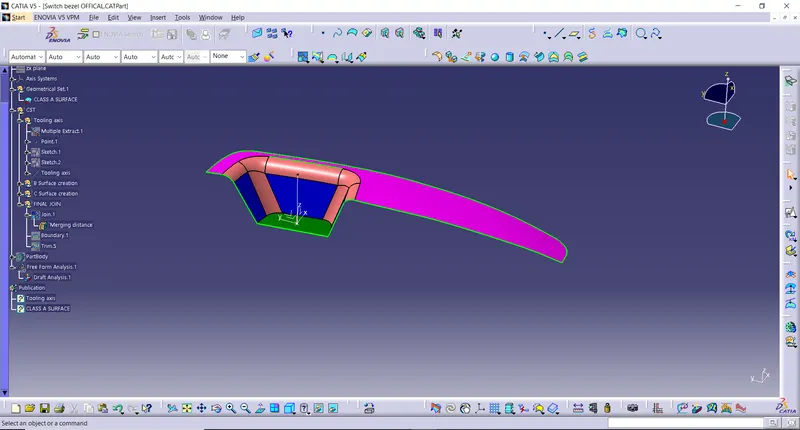

Draft Analysis

When a plastic component is made, we can observe that there is a draft angle given on each side from the base which is lesser than 90 degrees. This is because in the criteria of making a plastic material the mold should release the material when finished. if the mold surfaces are 90 degrees the material won't release from the mold because of friction due to contraction of material when cooled.

To resolve this problem we CAD engineers maintain a standard rule to design the plastic mold or die's in such a way that there is no problem while ejecting the plastic component. So a minimum of .5-3 degrees of draft angle is given to every plastic component while designing.

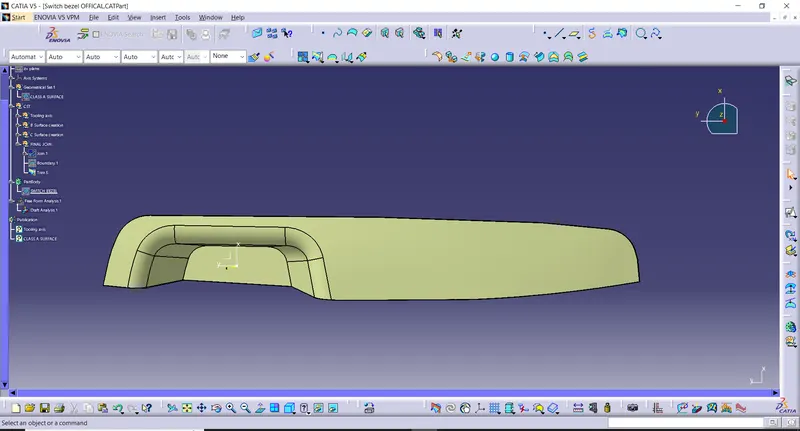

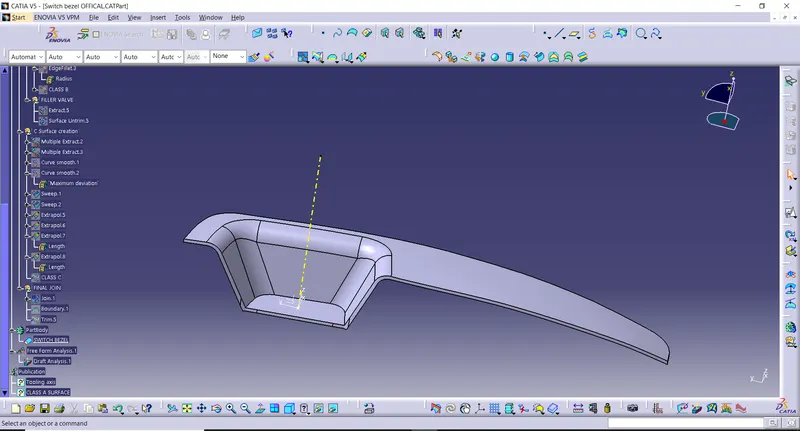

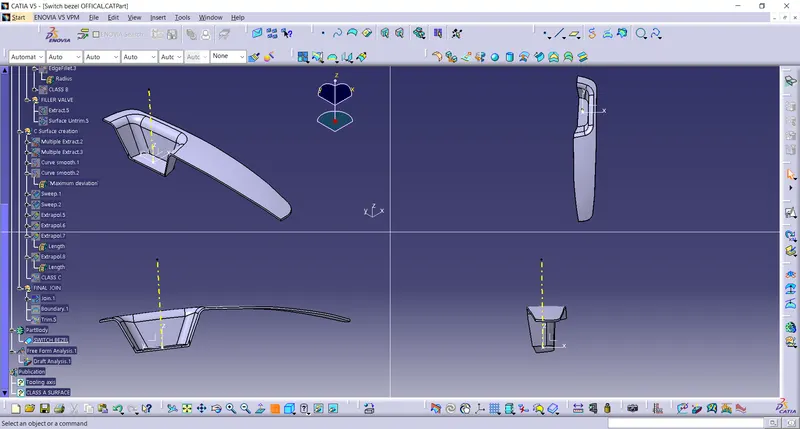

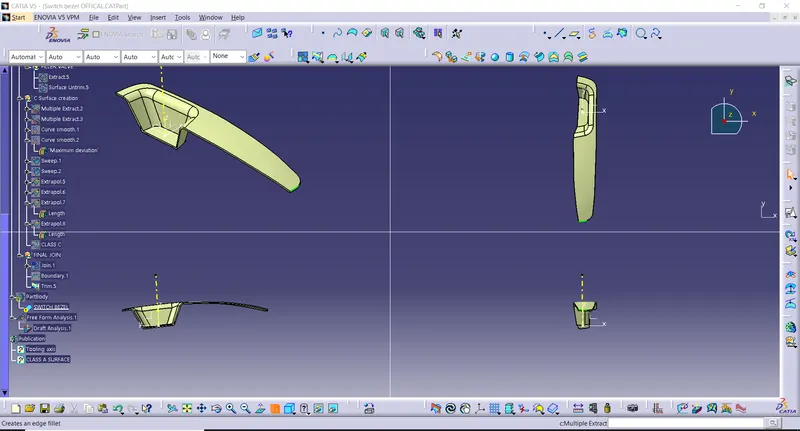

SOME MORE IMAGES
