Week 8 - Challenge 2 - Switch Bezel Design

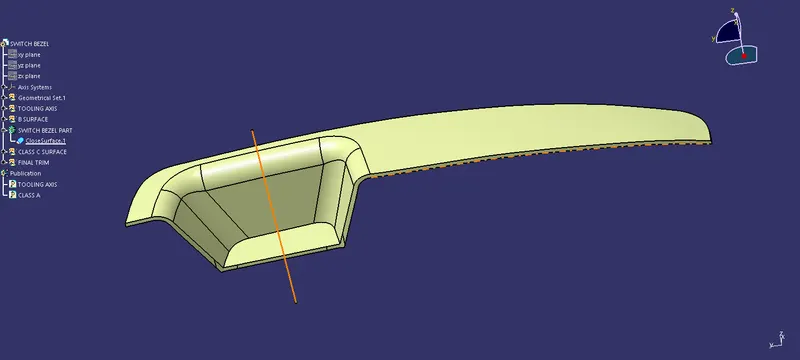

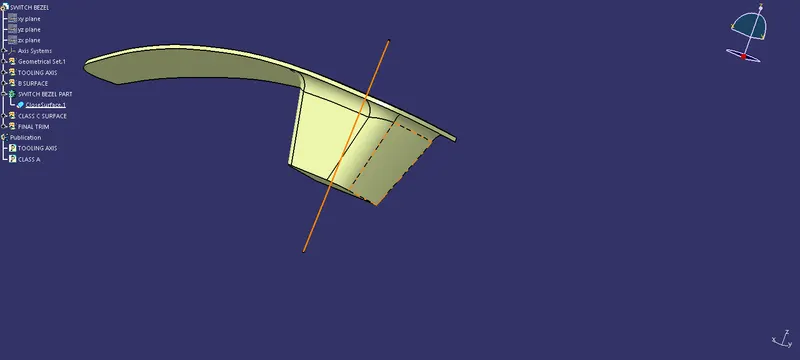

Tooling Axis;

There are 3 walls , incase we have four walls easily we can create the tooling axis based on the bisector methods.

so we need create sketch inthe base by extract tools.

then create the point( O) on the extract surface in the centre of the surface.

sketch positioned in the YZ plane. and two boundary line on the surface verticaly(A ,B) and create middle line by bisector methode through a centre point(O). We named middle line ( y).

sketch positioned in the XZ plane. and two boundary line on the surface verticaly(A' ,B') and create middle line by bisector methode through a centre point(O). We named middle line ( X).

NOW tooling axis create by bisector method  between line and x and Y.
