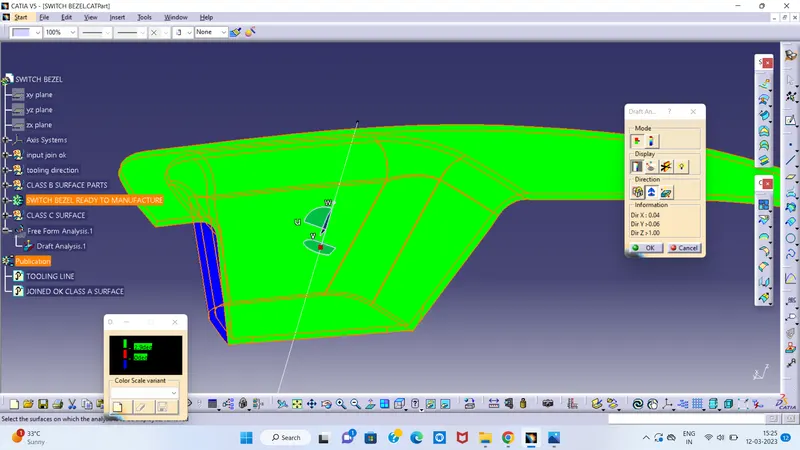

Design of switch bezel with a thickness of 2.5mm: The given class-A surface is shown below. The draft analysis of the given class-A surface. The blue patch indicates the minimum of 3-degree draft angle is not satisfied with the created surface. Tooling axis: The tooling axis is created using the bottom surface as the reference.…

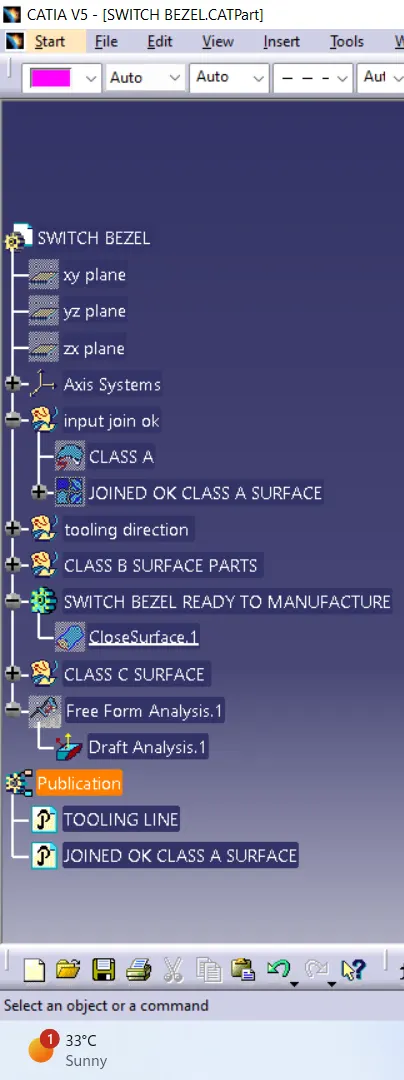

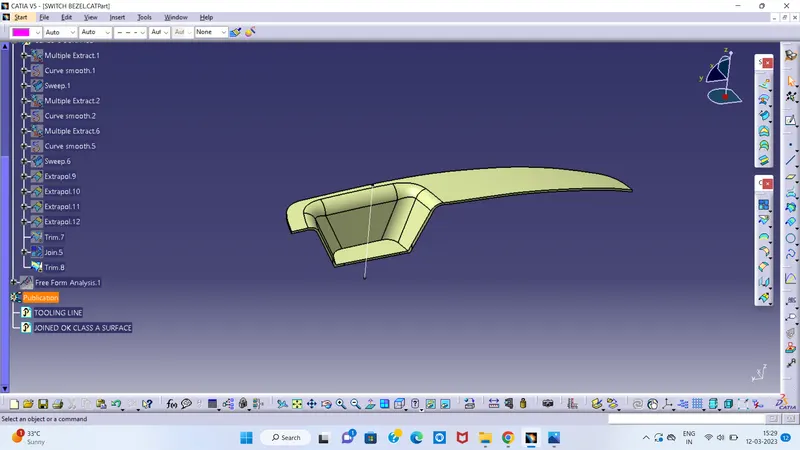

TREE STRUCTURE FOR SWITCH BEZEL

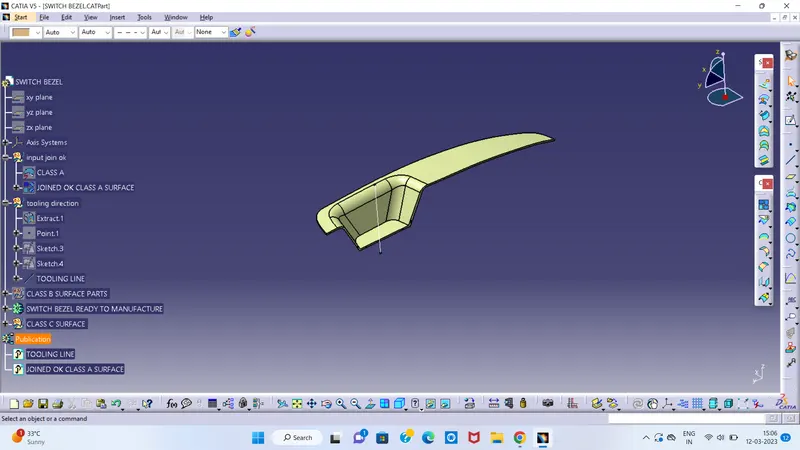

given class a surface

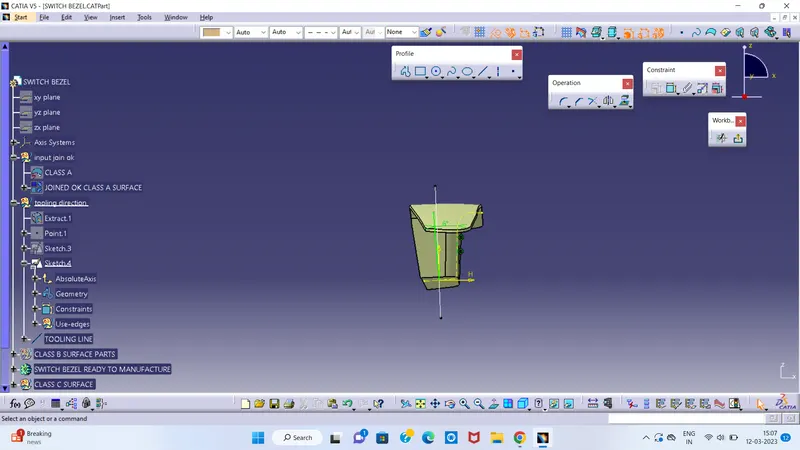

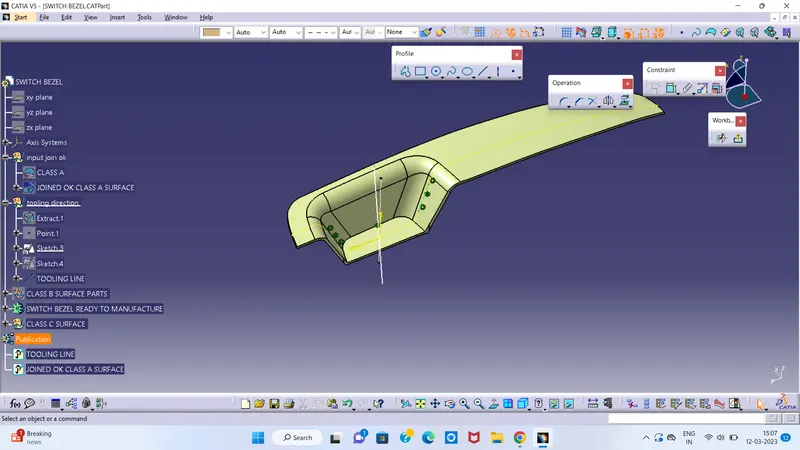

create a tooling axis for given class a surface

Procedure for creating Tooling Axis

1. A Reference Point is created along the Surface zero and new Axis system is created
2. The X Direction along the Class A and Y direction along the Class A were used to create Tooling direction
3. Finally the Tooling axis is created by bisecting the two lines and it is published. Class A Surface as input using surface operation commands Class B is developed
4. The tooling Axis determines the direction of Class C boundary swept with draft direction.
5. When viewing from tooling direction normal all the parts that are drafted should be visible so it gives an rough idea to determine product manufacturing in Injection molding.

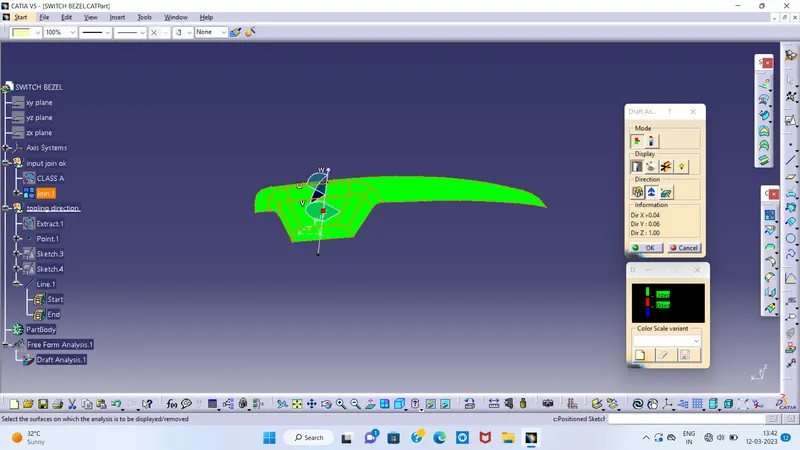

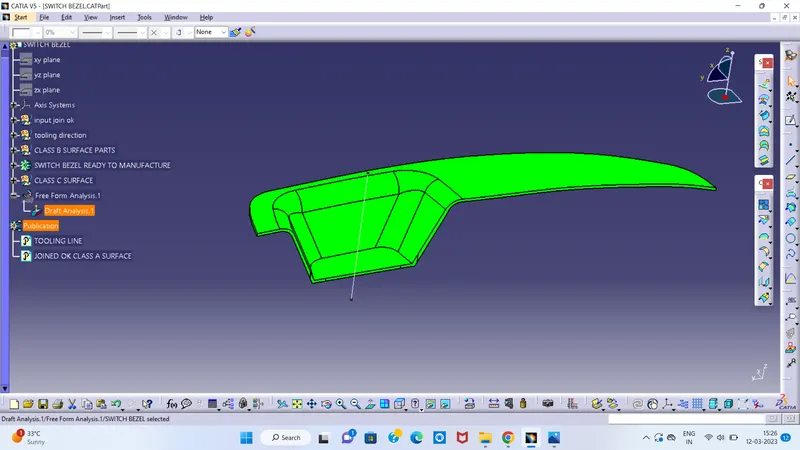

checking class a surface draft analysis

after we will create the b surface

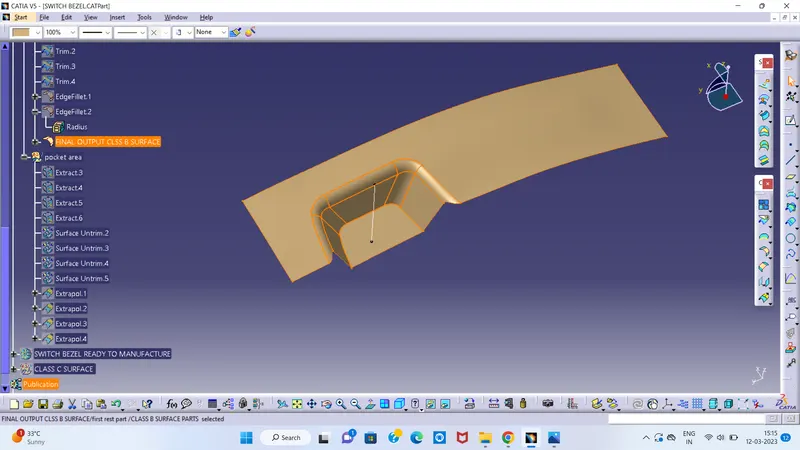

Procedure for B Surface Creation

• The next step is to design B surface for the input which is usually the surface where all engineering aspects and support creations are done.
• The B surface Creation is performed using surface operations in CATIA which is an offset from Class A with dimension proportional to the thickness of the part
• In Switch bezel the B surface is offset 2.5mm from the input which is the thickness of the part
• The B surface is an extrapolated surface compared to A surface and forms the bottom skin of the part.

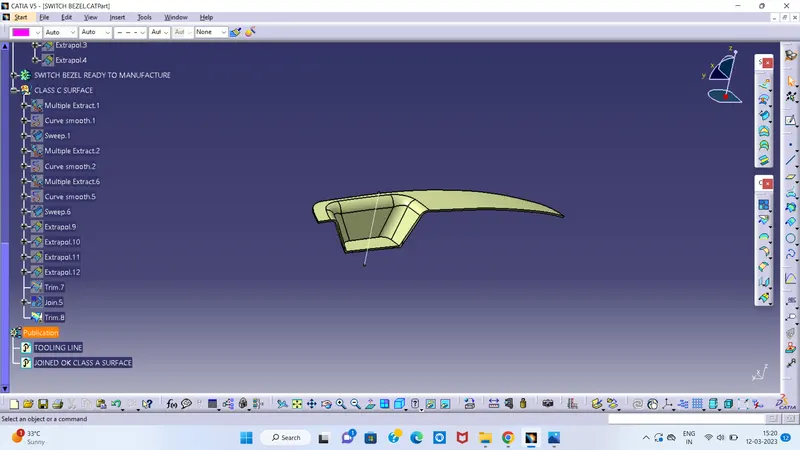

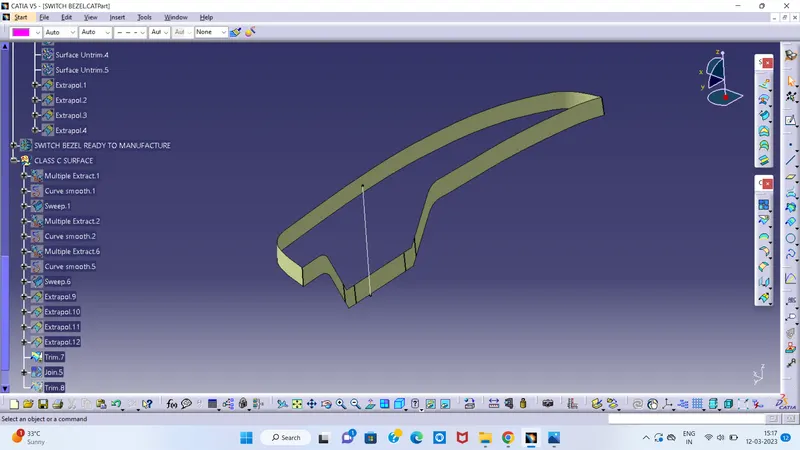

Procedure for C Surface Creation

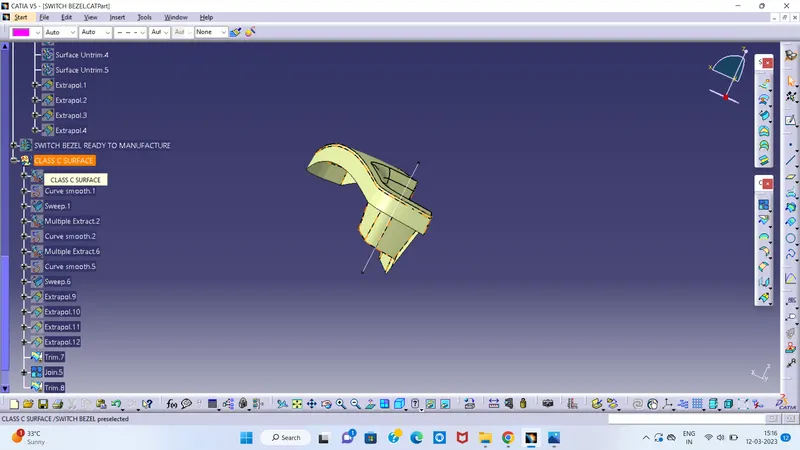

• The Next step is to from the C surface which is an intermediate surface between A and B and is used to give the closed surface appearance to the design
• The C Surface is swept using the profile as boundary line of Class A which is the Guide curve with a subtype along draft direction.
• The Direction of the sweep is the tooling direction formed earlier
• The draft angle for the sweep operation is provided which is 3 Degree and surface is swept for length above the thickness of the specified part
• The C surface is refined using smooth Curve options to remove the complexity and patches along the swept surface
• Finally the Class A and Class C surfaces are joined together and connexity of surfaces should be less than 0.003mm and the surfaces are merged.

join the class a and class c

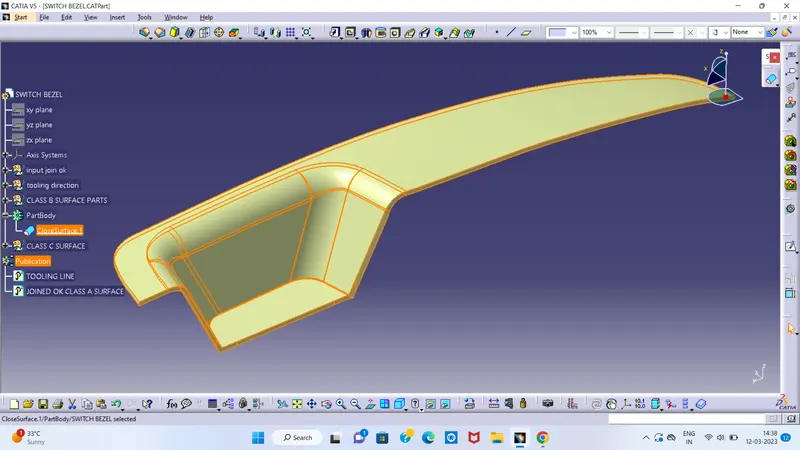

after join the class A and B and C join it

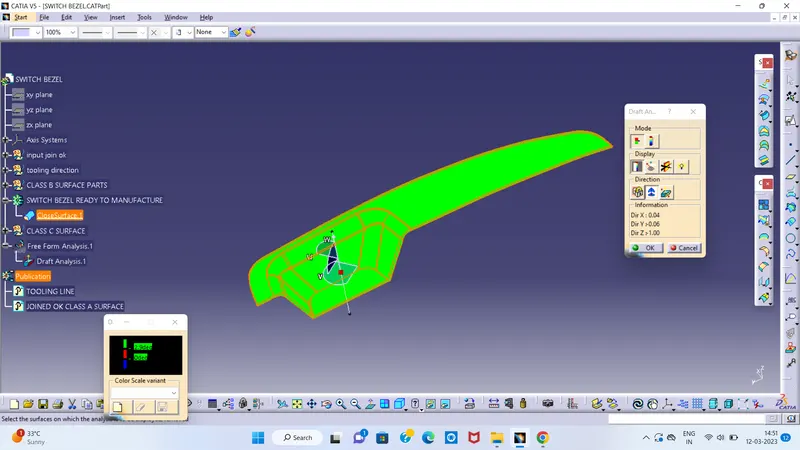

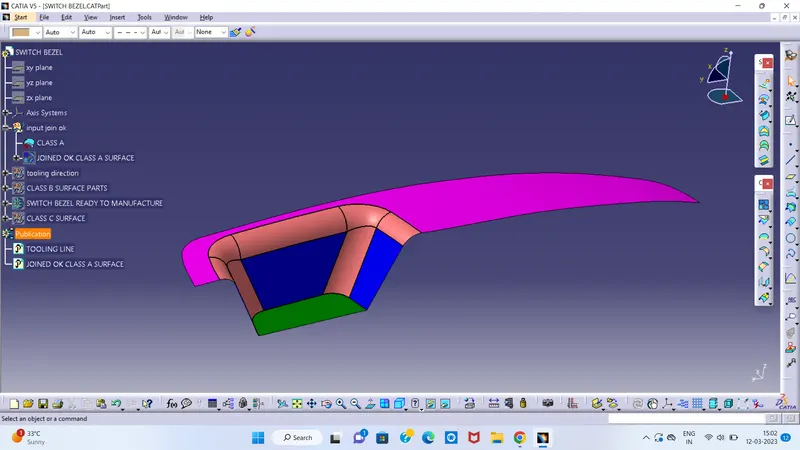

Procedure for Draft Analysis Procedure

• The part created has to be changed to material mode in display frame
• Then by enabling compass definition the axis system is pan along the direction of the part and aligned in line with the tooling direction
• Lock Direction is applied that fixes the compass and then the mode dialog box is formed by snapping at any point on the part
• The Color Codes are classified and Draft Angle are applied
• Then the Running point analysis is used to hover around the part to analyze the permissible draft angles and the analysis is saved

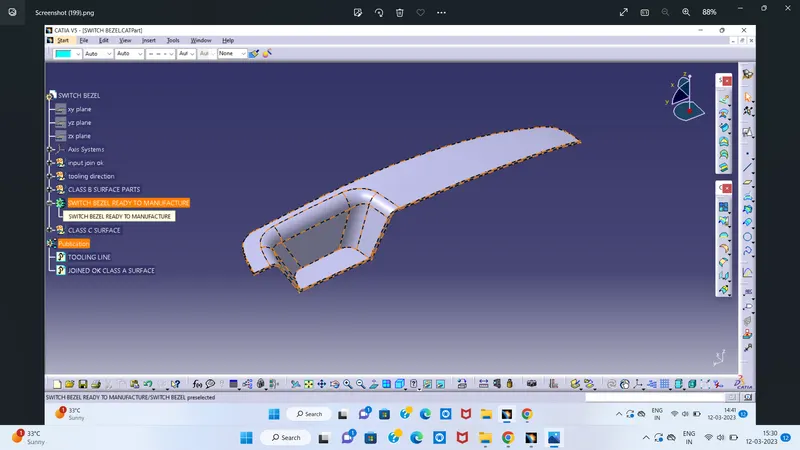

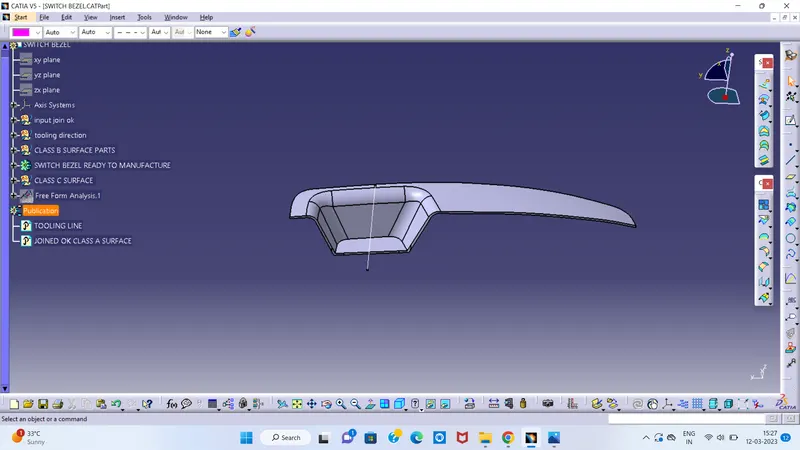

FINAL OUTPUT DIFFEENT VIEWS
