Week 8 - Challenge 2 - Base Bracket Design

STEP 1: CONNECTIVITY OF CLASS-A SURFACE

• irst check the connectivity of the given surface or component
• This is done by creating boundaries or by using Join command
• Ensure that there is no gap between surfce connection

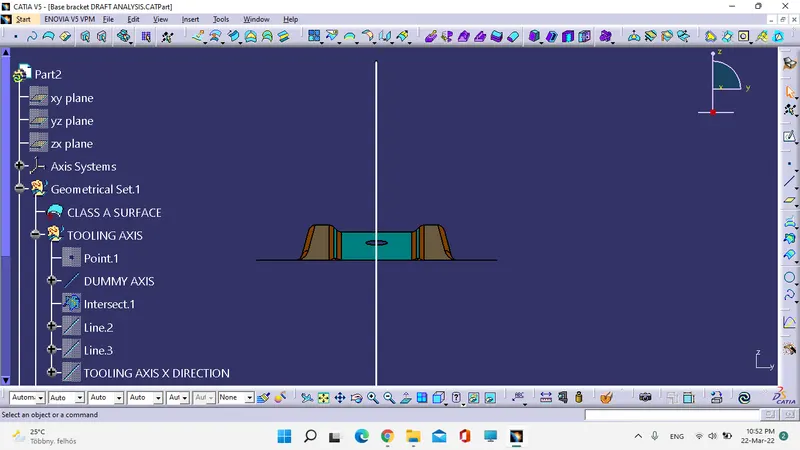

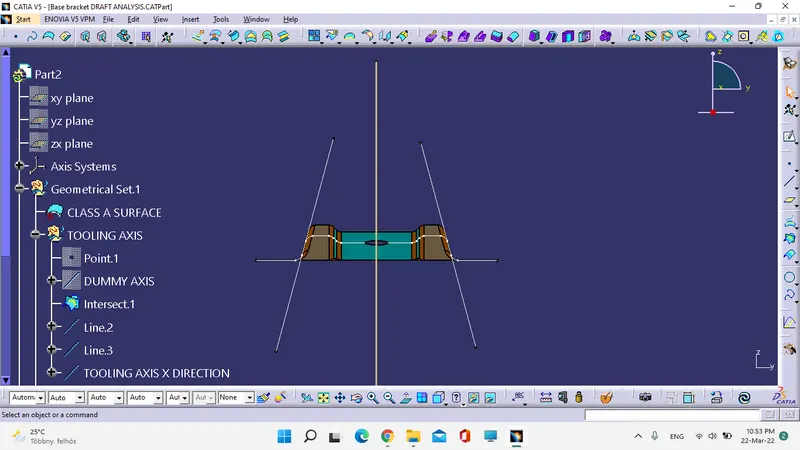

STEP 2: TOOLING AXIS CREATION

• First visually analyse the possible direction of Tooling direction.
• Create dummy tooling axis for possible dolling direction.

• Using the Intersection command create intersection line for all X,Y,Z axis direction.
• Bisecting these X,Y,Z directions tooling axis, the main tooling axis will create, Where the two lines and one point will be selected as inputs

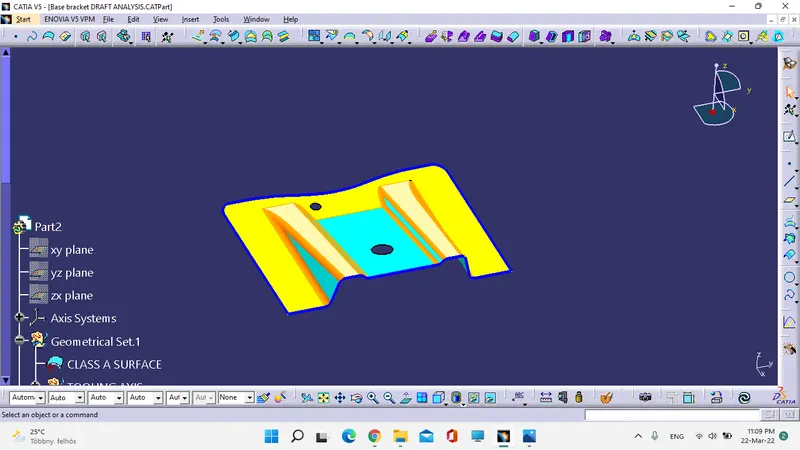

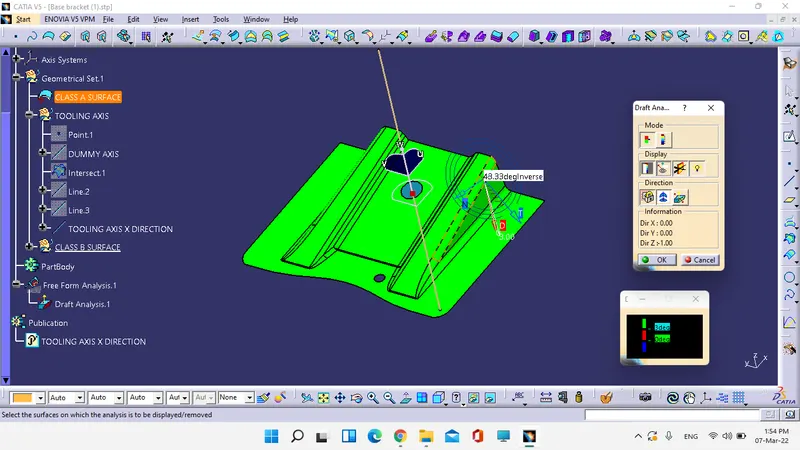

STEP 3: DRAFT ANALYSIS

• Draft analysis is done after determine the tooling axis. Ensure wheather all the surface angles are more than 3 degree along with tooling axis direction.
• There are some color codes are used to easily determine the angle value
• If the all angle are more than 3 degree, then surface color turned into Green for one type scale and for another scale it has 5 color variation.
• Here our surface are has more than 3 degree.

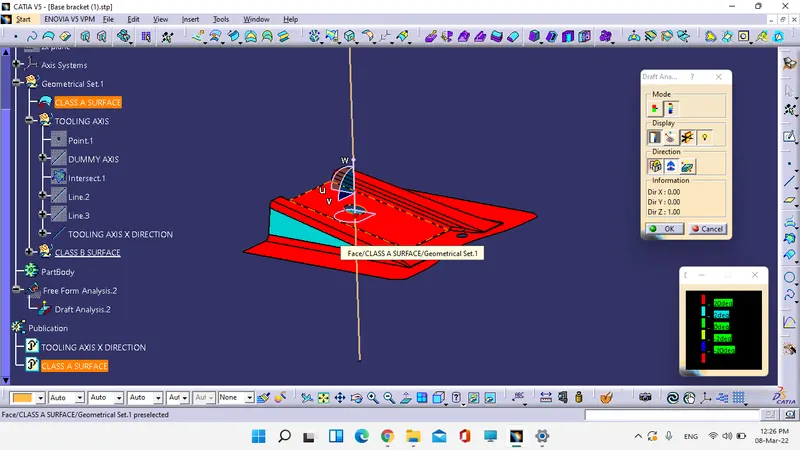

Five color code scale

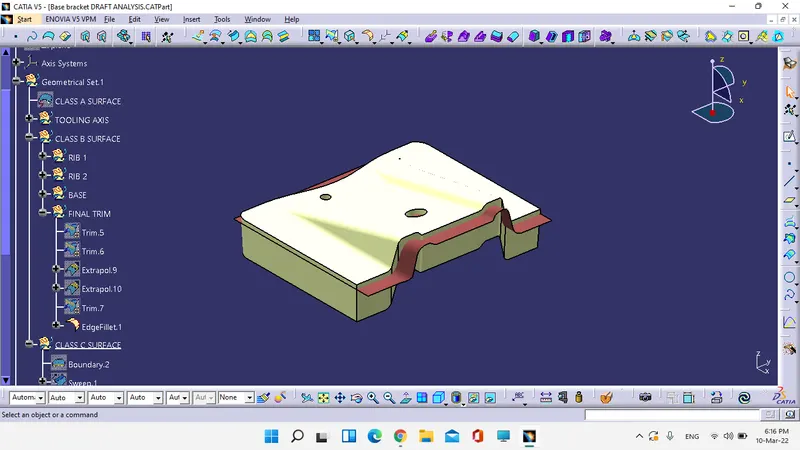

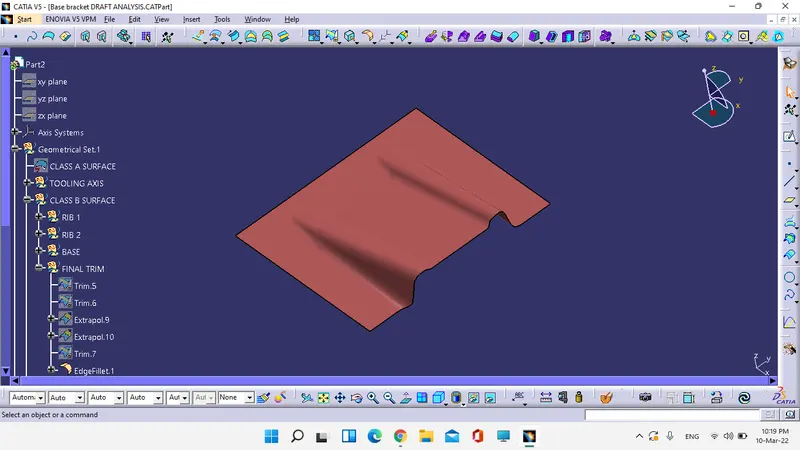

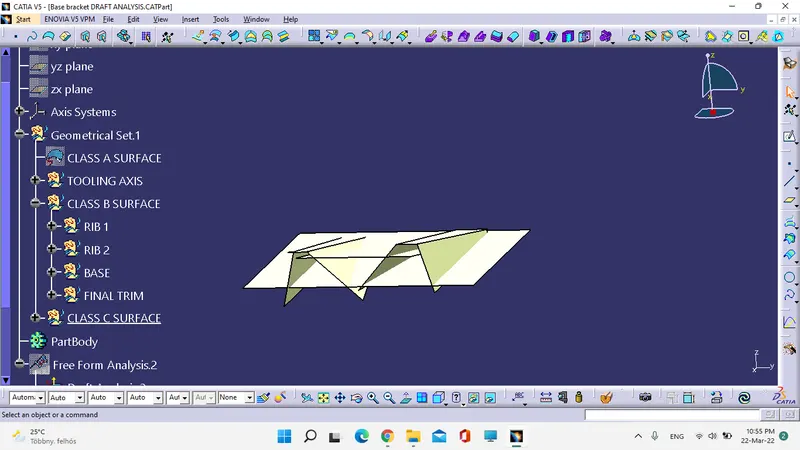

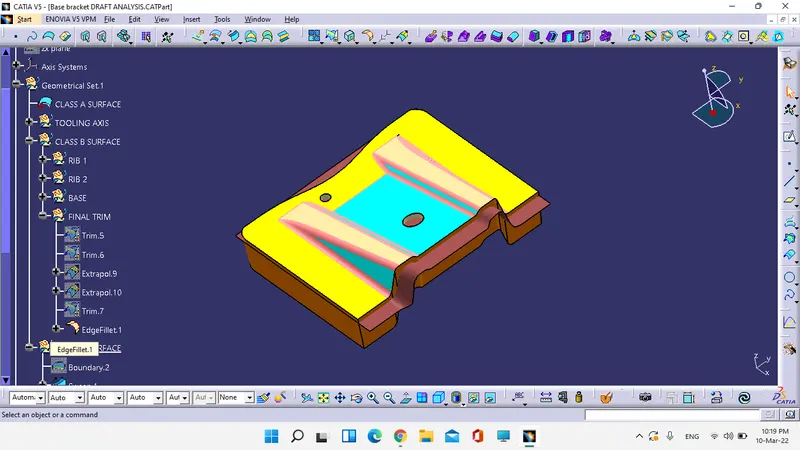

STEP 4: B-SURFACE CREATION

• B-surface creation is done by offseting class-A surface to required thickness.
• Offsetting class-A surface with fillets are more complecated, so go with extract and untrim the surfaces.
• Extract the all the sketch or surfaces used to create object and Untrim.
• Extrapolate the surfaces till intract each relative surfaces.

• Trim the surfaces to get proper surface without fillets.
• Offset it into required thockness of part, then fillet it.

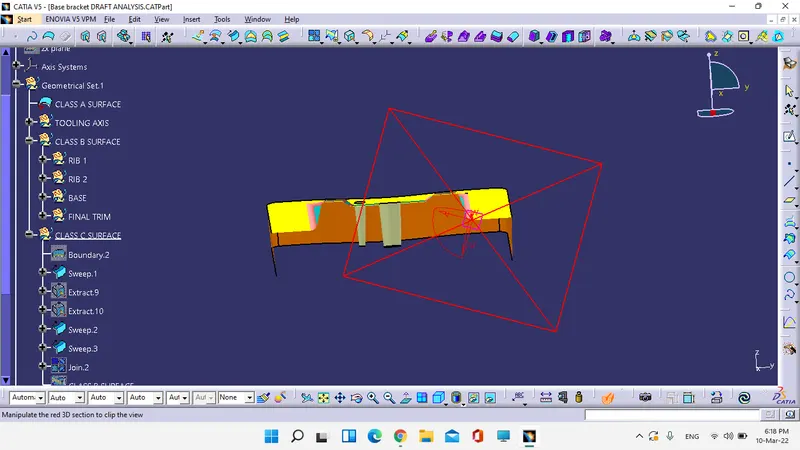

• Sweep the boundry of the class-A surface. Holes are need to make separate sweep action.
• Select direction and sweep angle of surface.

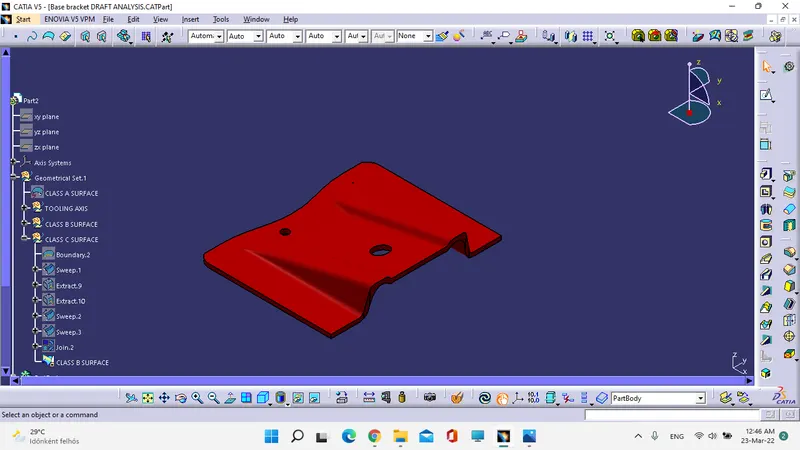

STEP 5: CLASS-C CREATION

• Trim these two surfaces and get C-surface with thickness

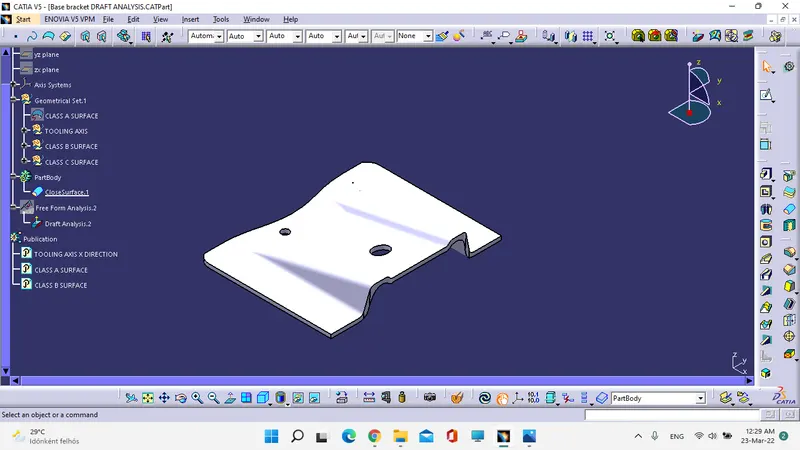

• For make it solid use close command on Part workbench

STEP 6: PUBLICATION

Create publication for Tooling axis, Draft analysis and B&C-surface creation

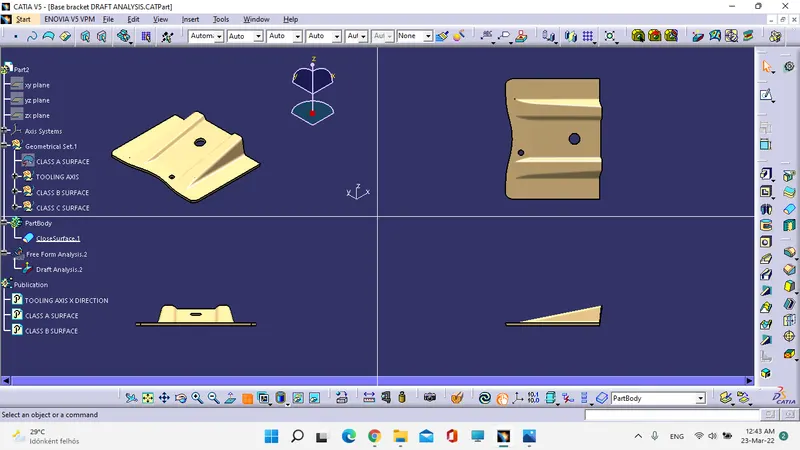

FRONT, TOP, SIDE and ISOMETRIC VIEWS:
