Week 8 - Challenge 2 - Base Bracket Design

Report :

• create a dummy tooling axis using the point and line
• create a plane for the intersection of curves
• using the plane and point got the intersection

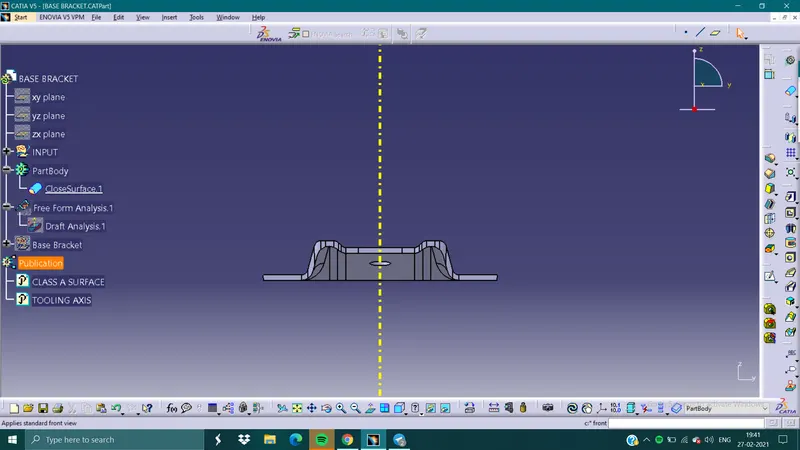

TOOLING AXIS :

• using the bisecting method by extending the lines on both sides
• got the tooling axis

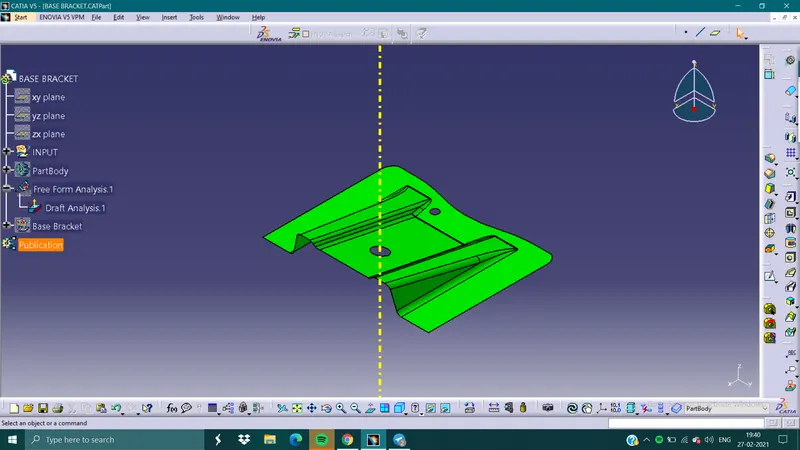

DRAFT ANALYSIS :

• using the axis fix the axis on the suitable tooling axis
• see that the draft angle is 3 deg
• and green in color
• hide the draft analysis

DRIVE LINK :

https://drive.google.com/file/d/11rRfSCAadlt5EHihtXRejK8LVvPs60wo/view?usp=sharing
