Week 8 - Challenge 1 - Draft Analysis on a Fan Cover

REPORT :

1. To create a tooling Axis using the class A surface
2. first, create a dummy tooling axis
3. Using the point and the direction of the z-axis
4. insert an axis system in the point.

Creating the tooling axis by Bisecting method :

• using the axis system and class a surface create an intersection sketch
• by selecting the 2 planes in the axis system and the class A surface will get
• by extending the lines and bisecting with the points

X TOOLING CLEARING X DIRECTION

Y TOOLING CLEARING Y DIRECTION

Using the publication option

Get a Tooling Axis and class a surface

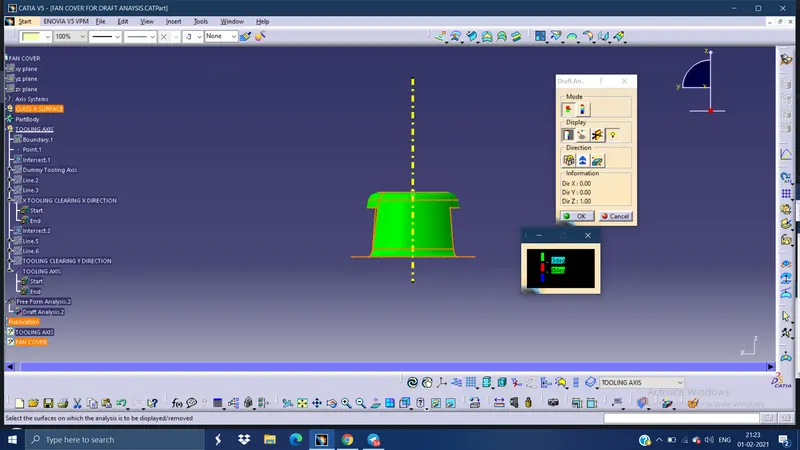

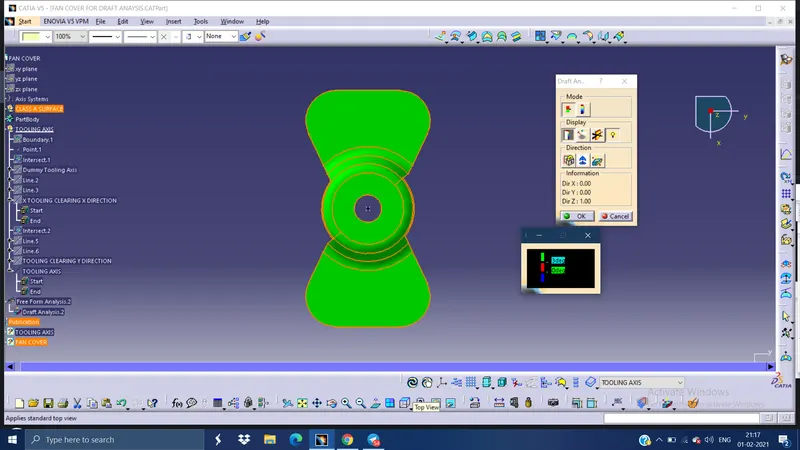

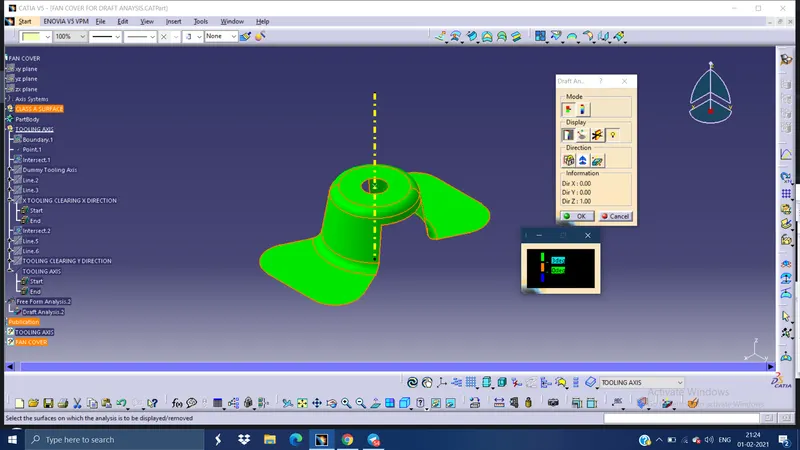

INSERT >ANALYSIS>DRAFT FEATURE ANALYSIS

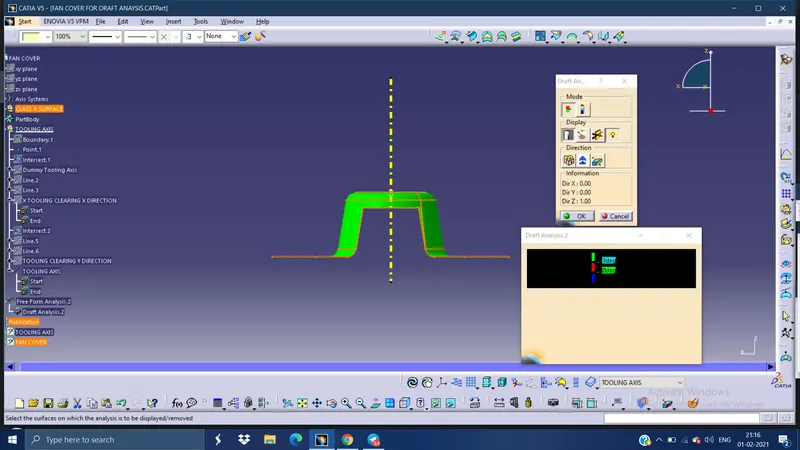

lock the axis with the compass and give the draft degree.
