Week 8 - Challenge 1 - Draft Analysis on a Fan Cover

AIM

Create the tooling axis for the given Fan cover model meeting the requirements of the draft angle and perform the Draft analysis on the model.

THEORY

DRAFT- Draft is the amount of taper for molded or cast parts perpendicular to the parting line.

PULLING DIRECTION- The direction part is part ejected from the mold is called pullin direction. This direction also corresponds to the
reference from which the draft faces are defined.

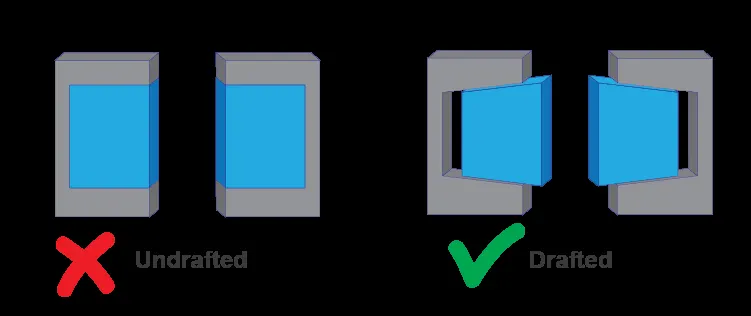

DRAFT ANGEL- A draft angel is a that is applied to each side of the mos t features of an injection molded part. The Angle, which is
positioned to run toward the direction of a mold's pull and parting line, helps with releasing the part from the mold.

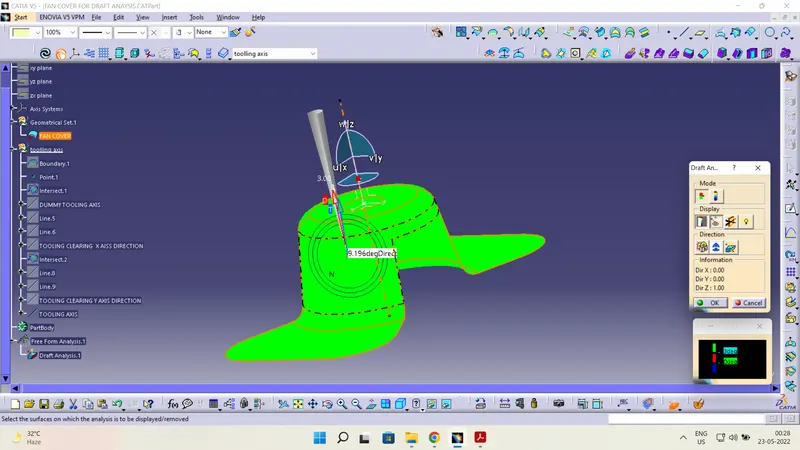

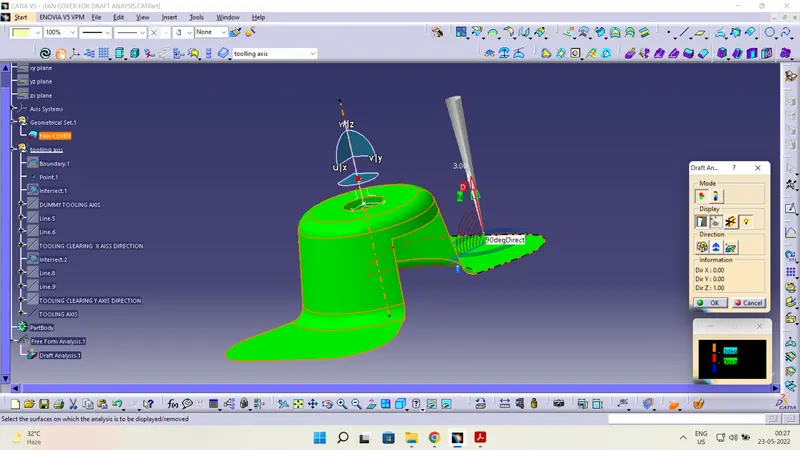

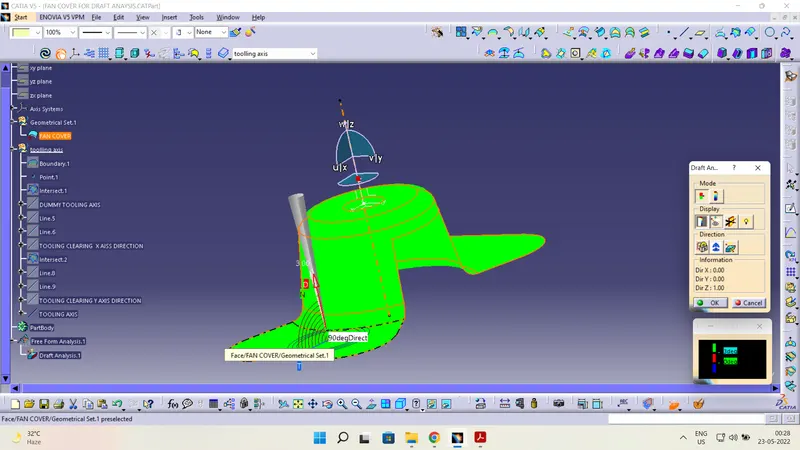

DRAFT ANALYSIS- Draft analysis command enables you to detect if the part you drafted will be easily removed. This type of analysis
is performed based on color ranges identifying xones on the analyzed element where the deivation from the draft direction at any
point corresponds to specified values.

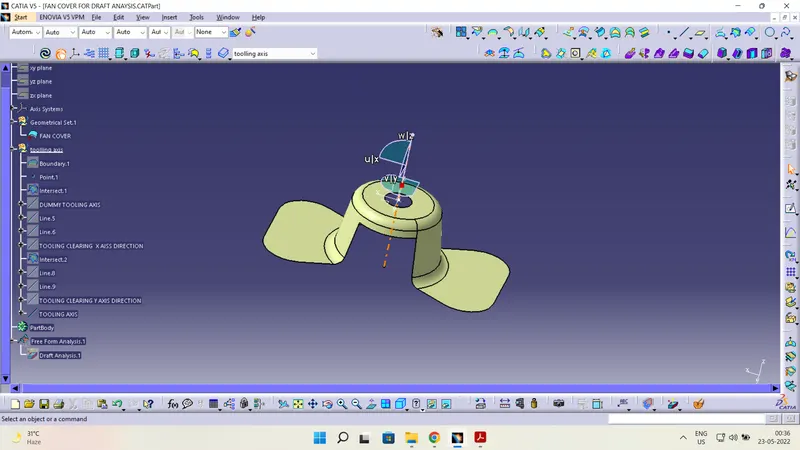

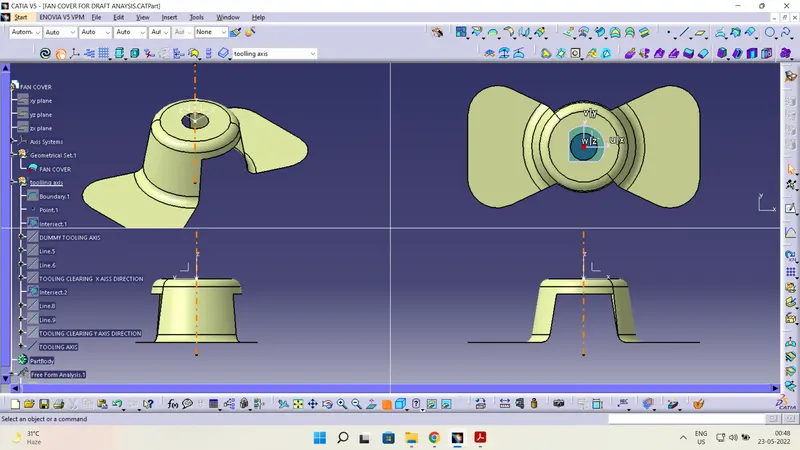

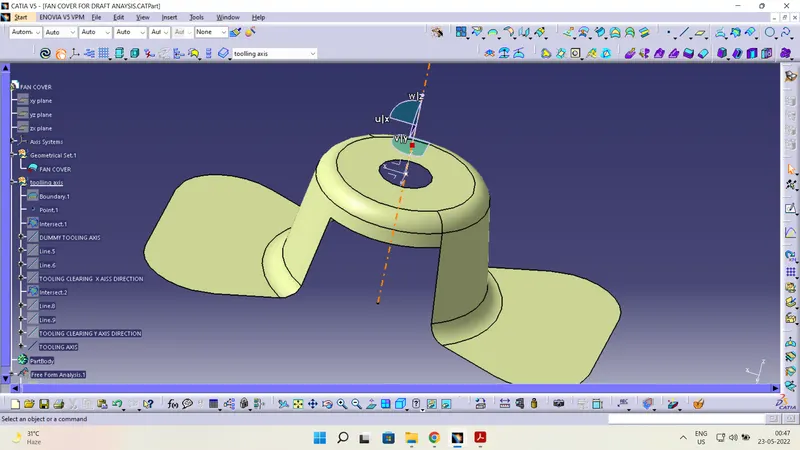

TOOLING AXIS- The defination tab on the tool as dialog controls how you want the tool to orient itself whilst cutting a multi-axis
toolpath total as select to define the tool orientation. The default value is vertical which is used for standard 3-Axis machining an be
fund larger continuously changing orientation.

OPERATIONS

• INSERT/IMPORT PART IMAGE

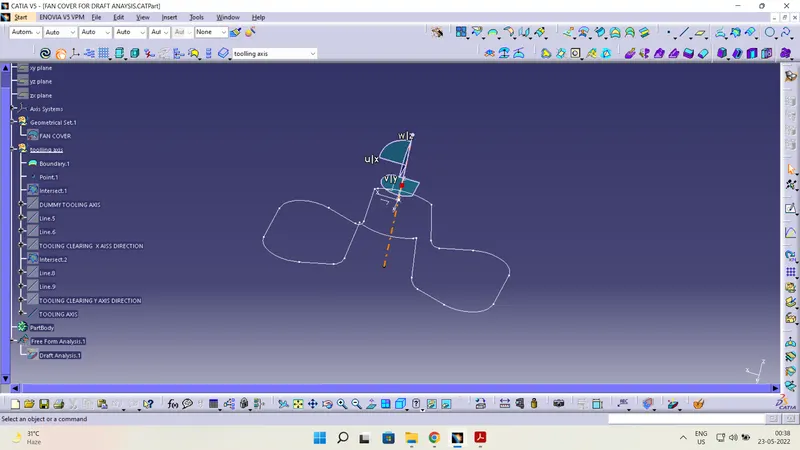

• BOUNDARY CREATION

• PLANE CREATION, POINT CREATION,INTERSECTION,DYMMY TOOLING AXIS ,BISECTING LINE

• DRAFT ANALYSIS

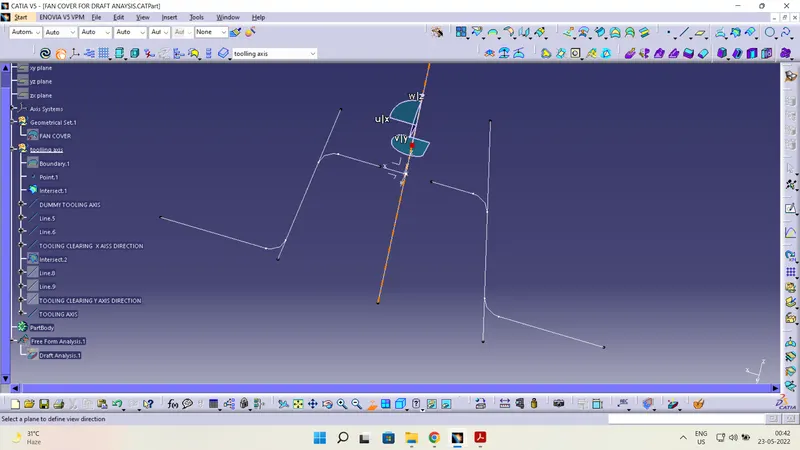

• TOOLING AXIS
