Week 8 - Challenge 1 - Draft Analysis on a Fan Cover

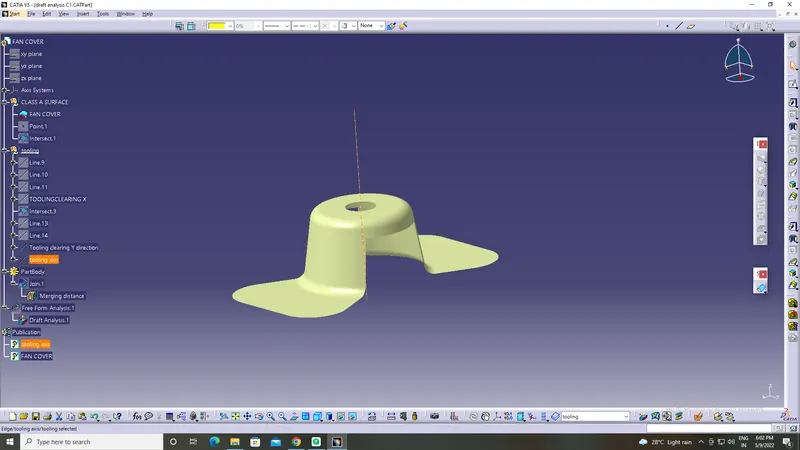

tree and tooling axis

tooling Axis creation :

The tooling axis is created with help of creating a bisecting line with respect to the intersect line we obtain from the class a surface.

We will extend two lines from the edges of intersect lines created with respect to the ZX plane and create the bisecting lines from the two extended lines. the same procedure is applied from the intersect created from the YZ plane and the tolling axis is created.

Draft Analysis :

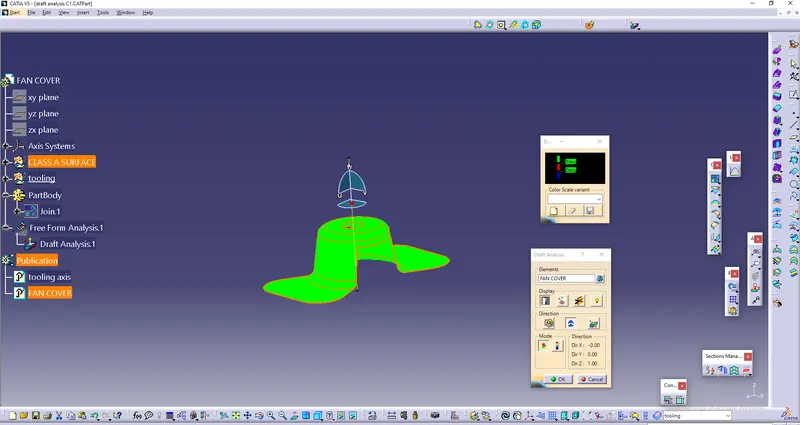

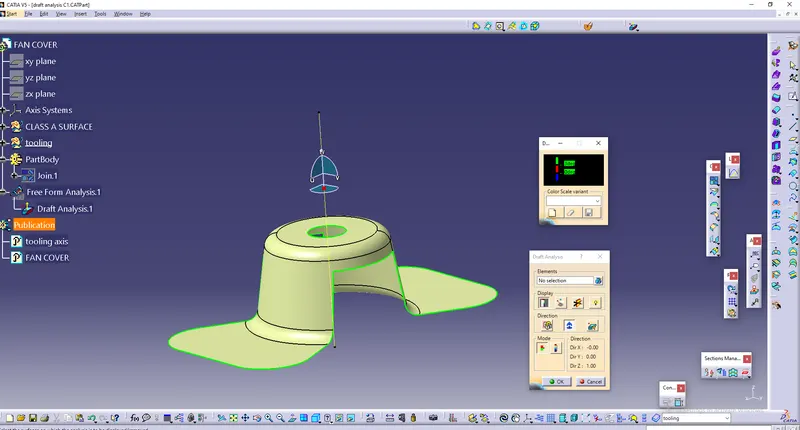

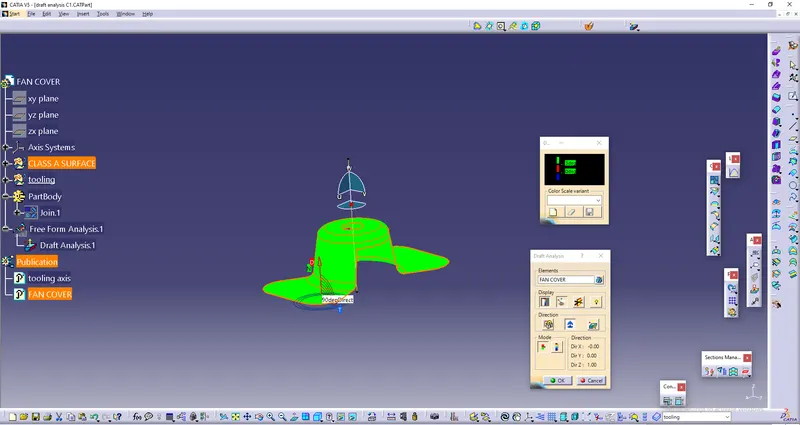

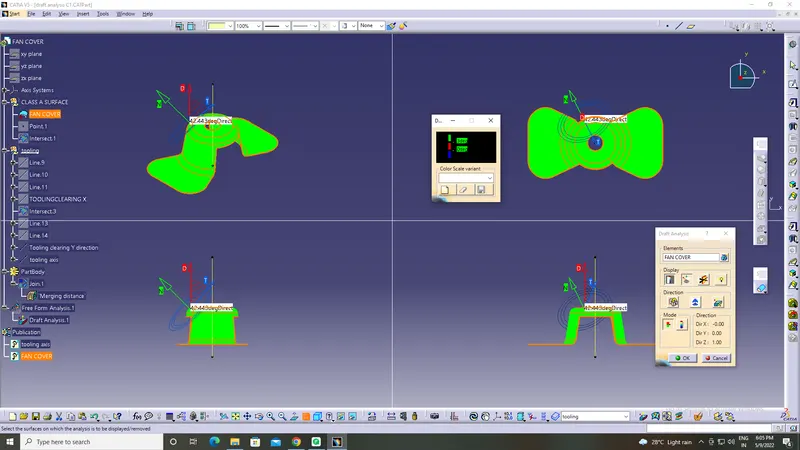

The draft analysis is done to check if the part will be easy to remove from the molds. The toolbar we can get from: insert > analysis > draft analysis. Select the compass toolbar and align the axis according to the tooling axis. Display the color mode and select the face to perform the draft analysis with help of a pointer ( running point icon ) , the draft can be 3deg according to the design rule and you can check for the color codes at isometric, front view of the model. the green color shows it can be drafted and red color shows the difficulty to draft.
