Week 8 - Challenge 1 - Base Bracket Design

OBJECTIVE : To Create the Base Bracket Plastic component through the given Class-A surface. To begin with, the tooling axis for the given Class-A Surface should be created meeting the requirements of the draft angle and at the end perform the Draft analysis on the model.

Thickness of Plastic Part - 2.5 mm

Let us create the component a per given CLASS-A Surface :

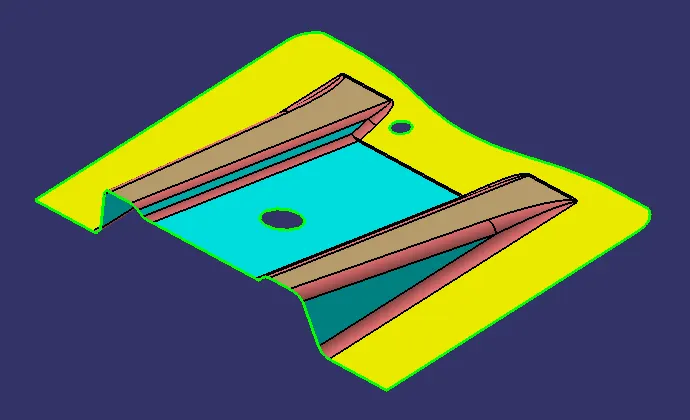

Class-A Surface :-

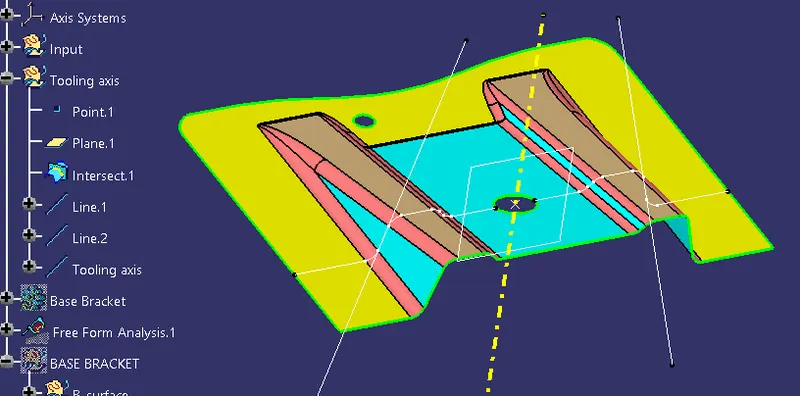

After analising for continuity in the surface joins lets us create tooling direction axis as follows

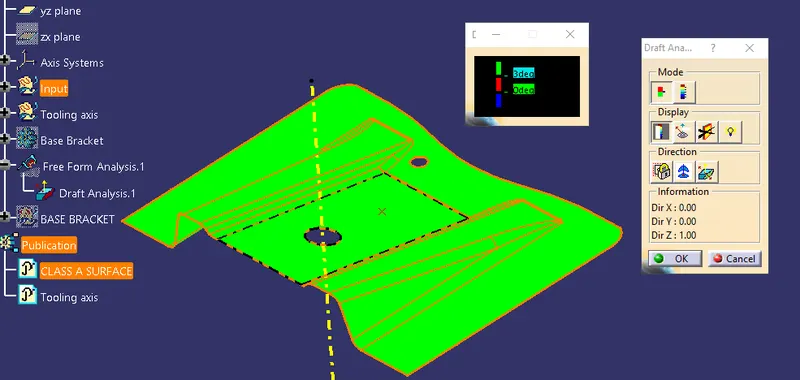

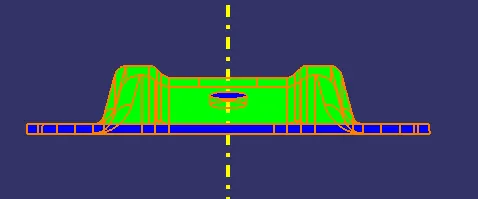

Now with the Tooling Direction let us run Draft analysis as follows:-

Now let us model

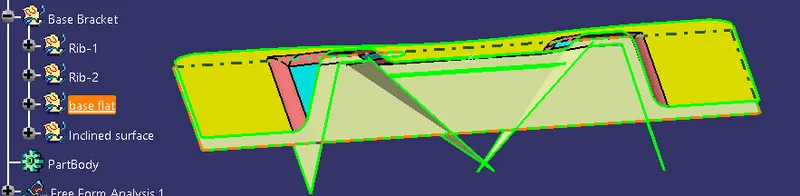

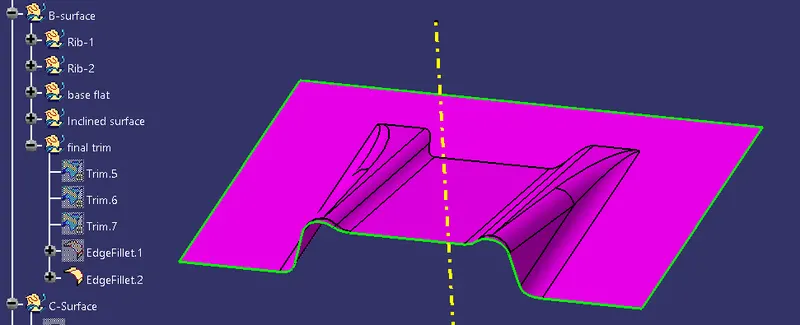

Creating class-B surface as follows :-

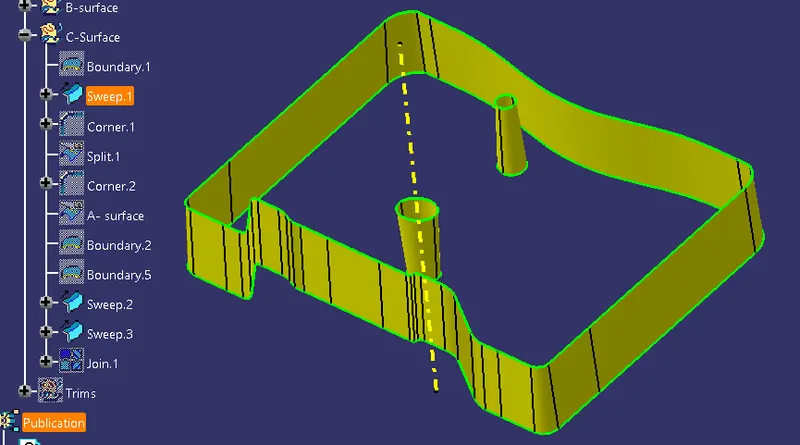

Creating Class-c Surface as follows :-

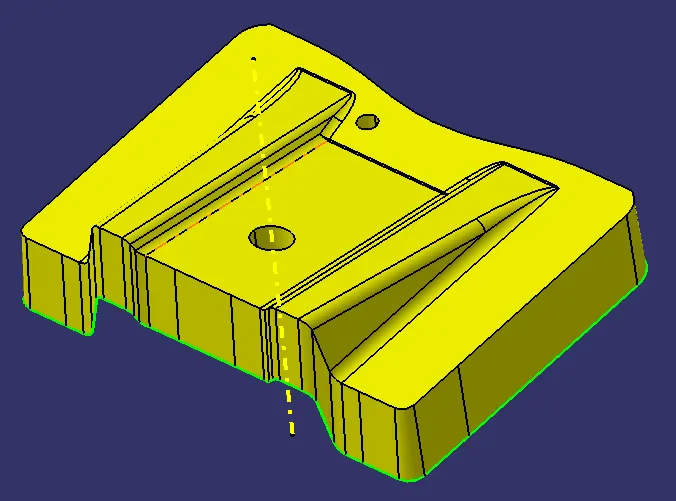

Joining with Class-A and Class-C surface surface

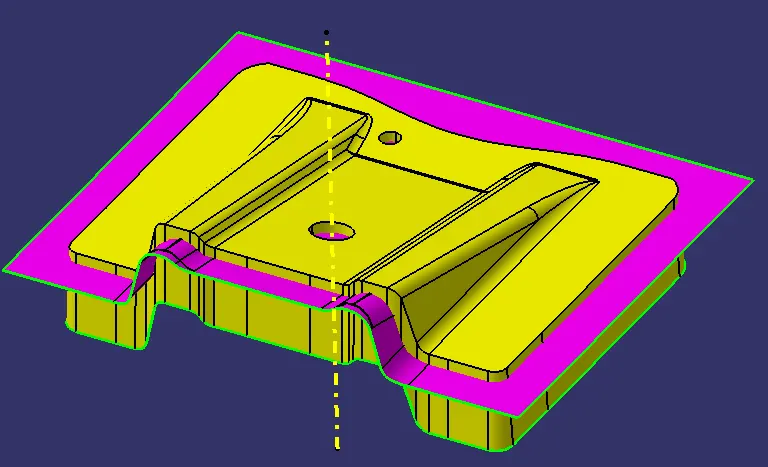

Joining Class-A, Class-B & Class-C as follows :-

Final Surface as follows :-

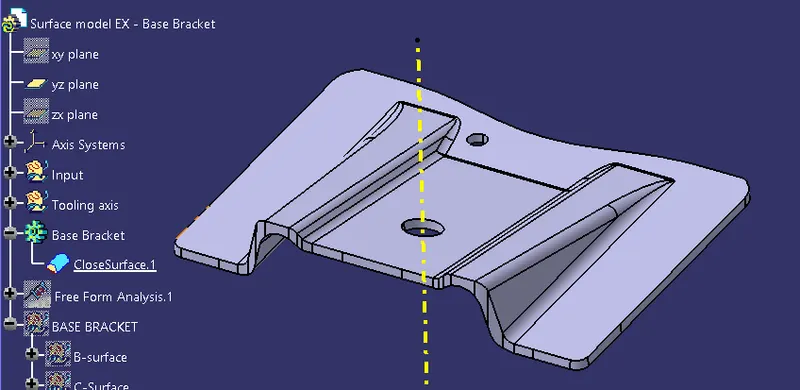

After Solid conversion using Close Surface Command in Part workbench:-

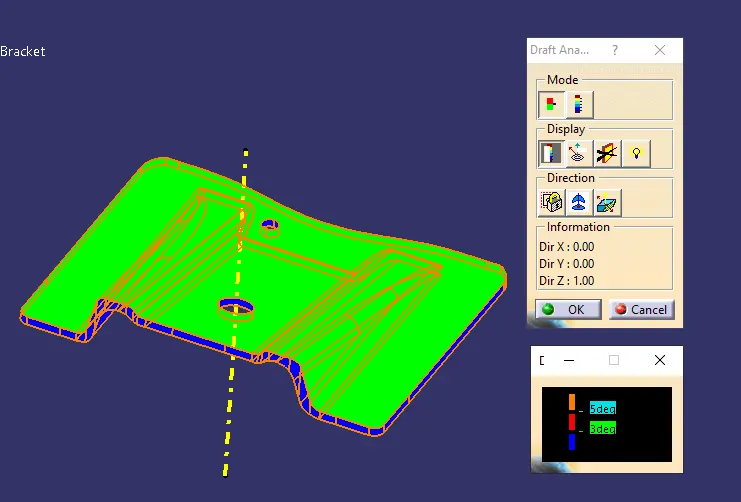

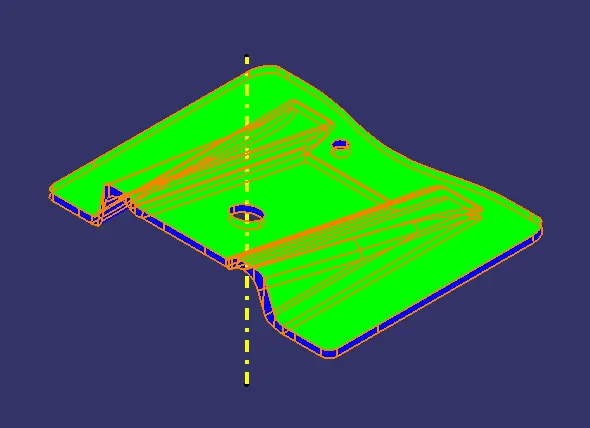

Draft Analysis for final Component as follows :-

Different VIEWS are as follows :-

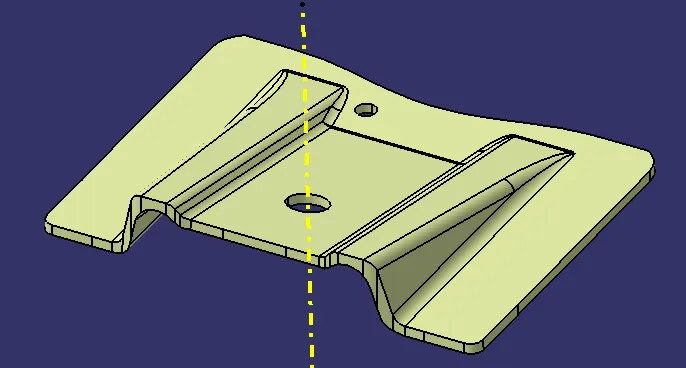

ISO view :-

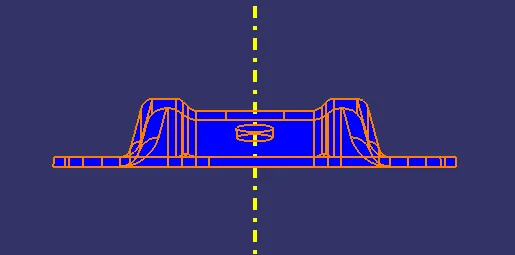

FRONT view :-

BACK view :-

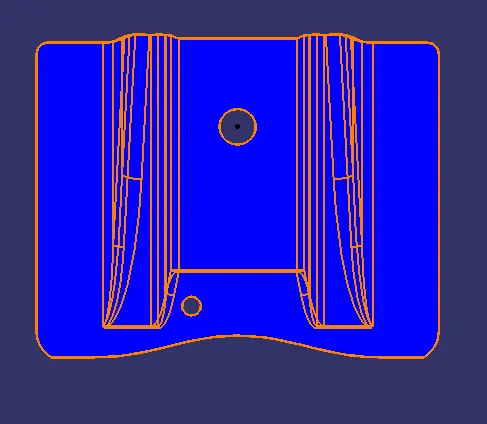

BOTTOM view :-
