Week 8 - Challenge 1 - Base Bracket Design

BASE BRACKET

AIM

To creat a base bracket plastic component through a given class A surface and perform draft analysis on the final plastic component.

Introduction

In this project we are designing a base bracket using given class A surface. The approach includes creation of Class B surface keeping 3 mm thickness in mind for the complete component. The design also included Class C creation from the given parent surface.

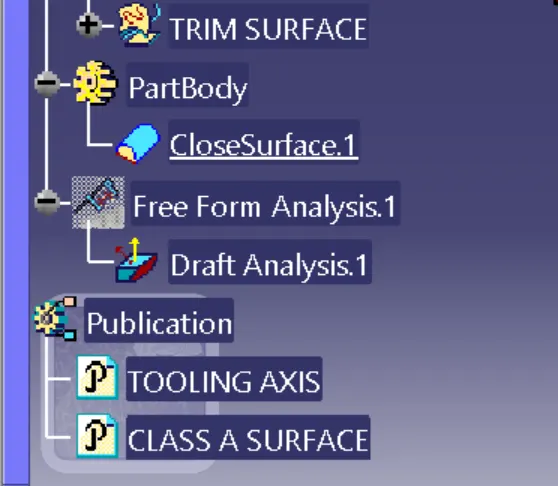

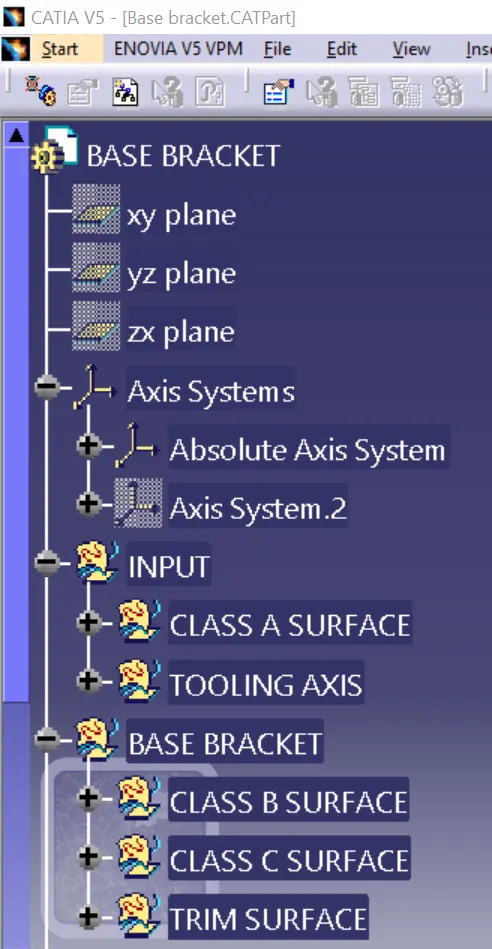

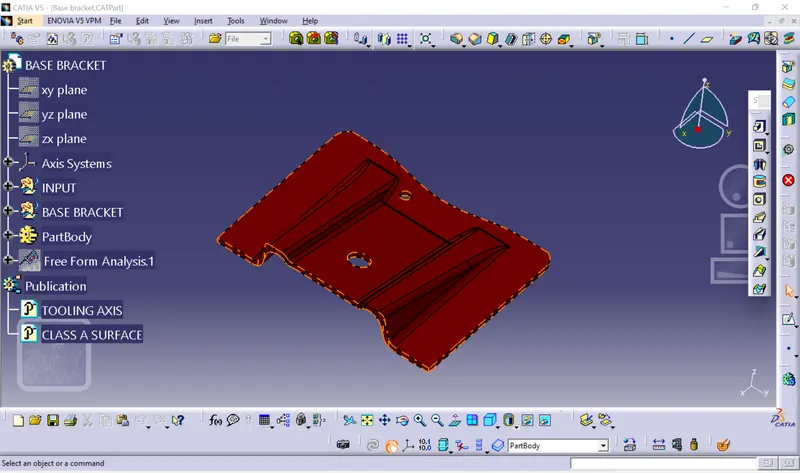

BASE BRACKET CATPART

BSAE BRACKET STEP LIFE

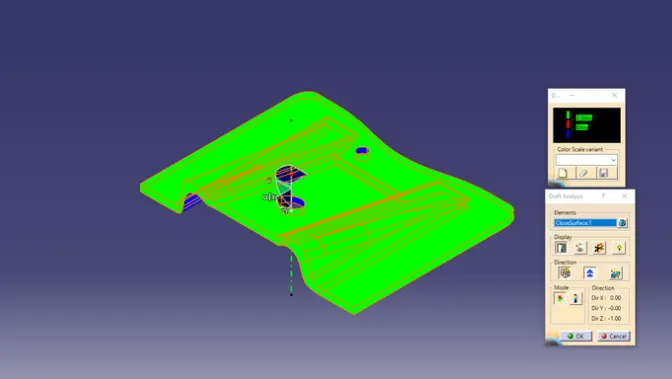

DRAFT ANALYSIS

The analysis is done for 3degree draft. So as can be seen all the surfaces are more than 3deg
