Week 8 - Challenge 1 - Base Bracket Design

Report.

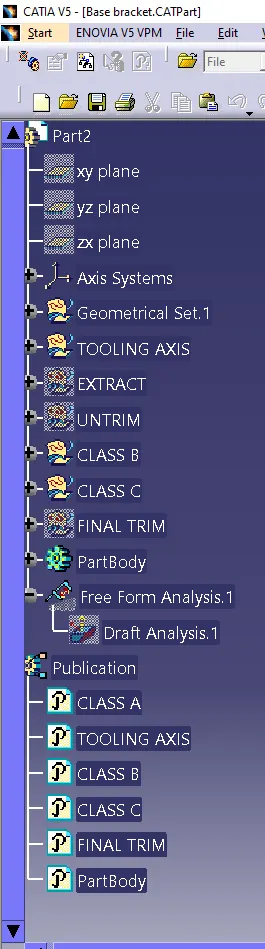

tree structure.

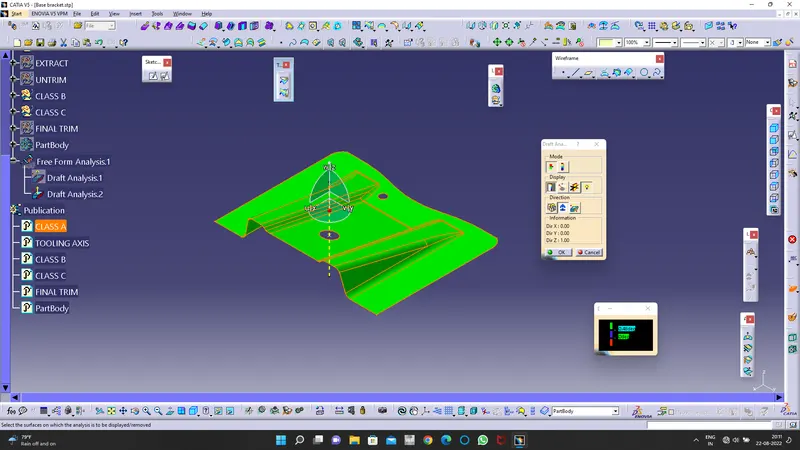

Draft analysis of a surface and final component.

Draft analysis.

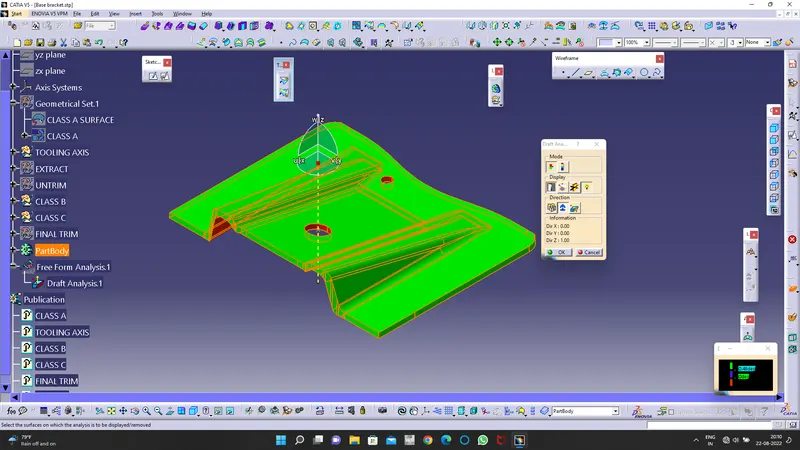

draft analysis is done on both surface and solid bodies.

The green color encodes the minimum draft angle of 2.99 degree

The blue color encodes the minimum draft angle 0 degree

The red color encodes the negative draft angle.

The tooling axis is taken along the Y axis.

From the analysis, we found that almost all the parts of the solid body are showing green color.

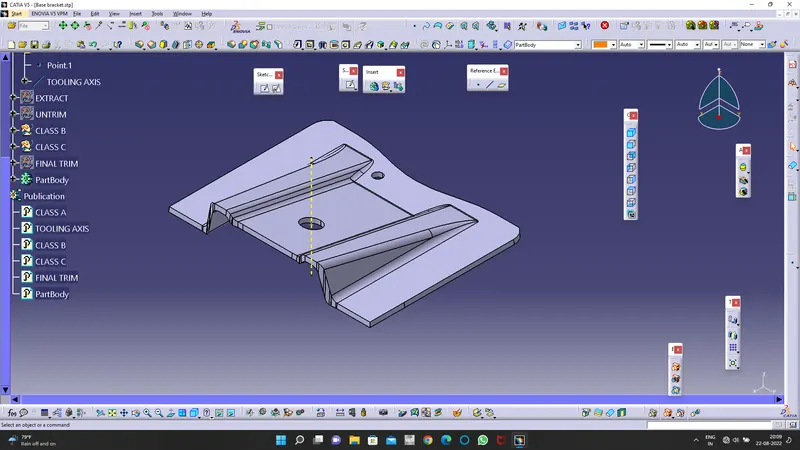

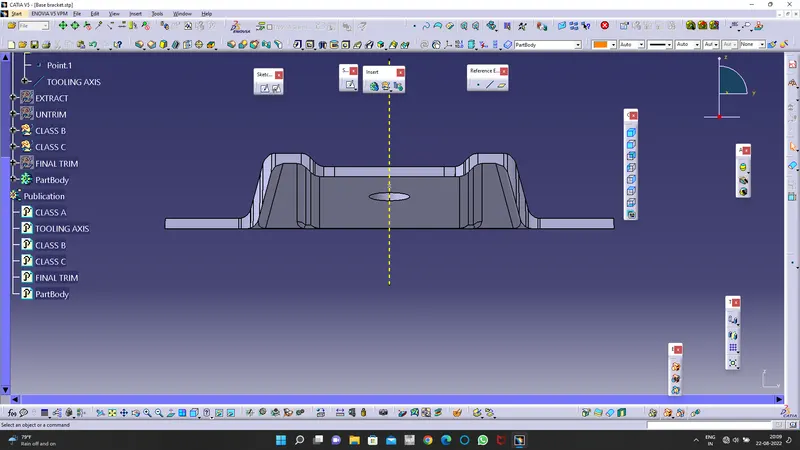

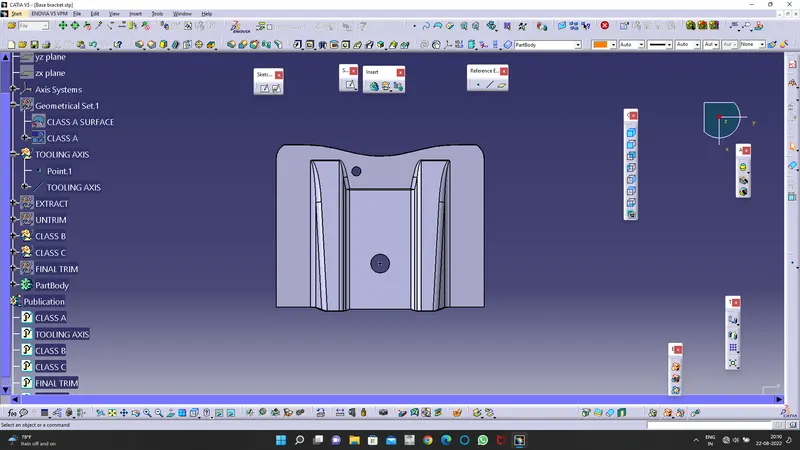

solid body
