Week 10 - Challenge 2- Attachment Feature Creation (Dog House)

tooling axis is created by taking the class A as a reference by extracitng the class A surface

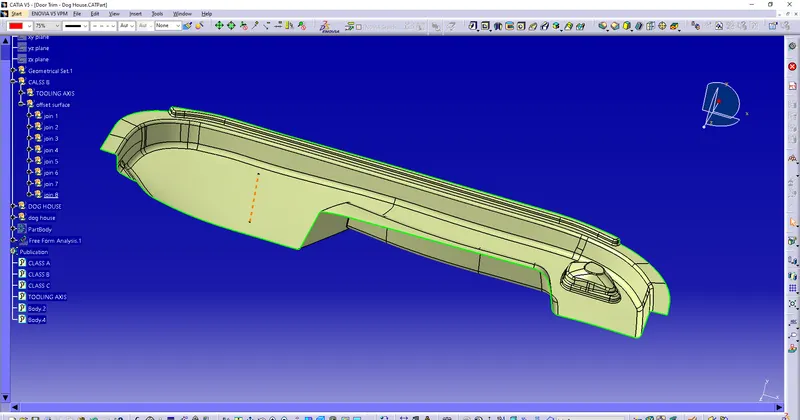

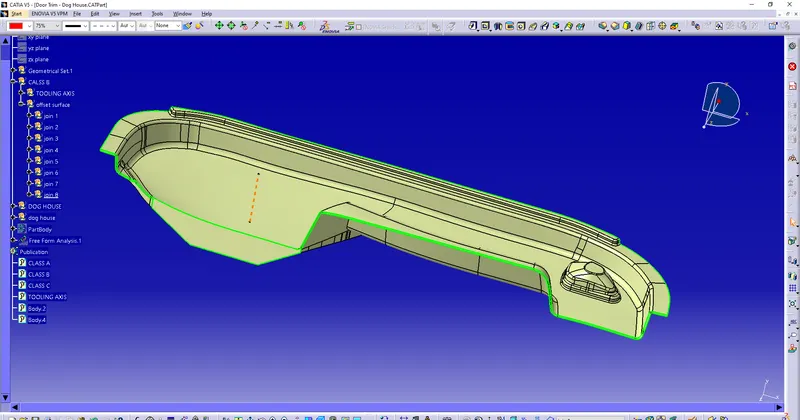

the above picture is class B surface with differents opertions

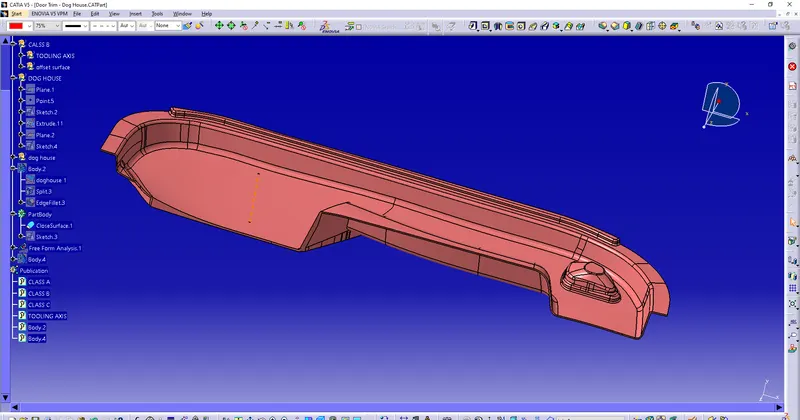

class C surface is given above

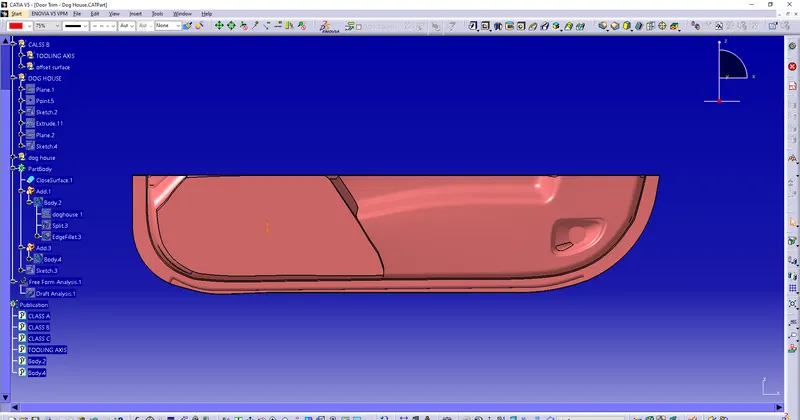

the above picture is front view of te door trim

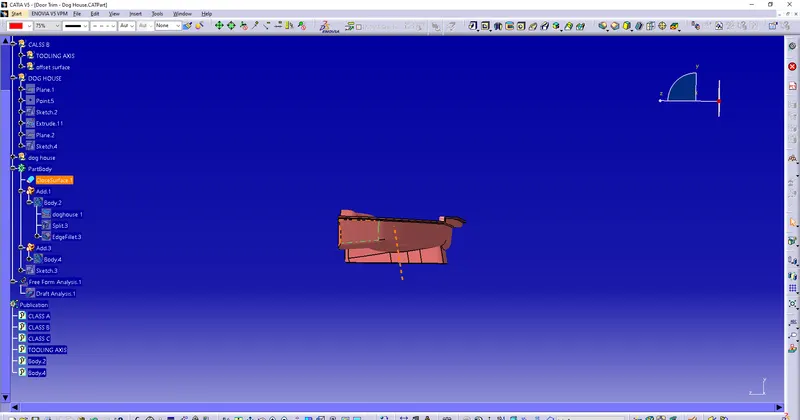

the above picture is top view of the door view

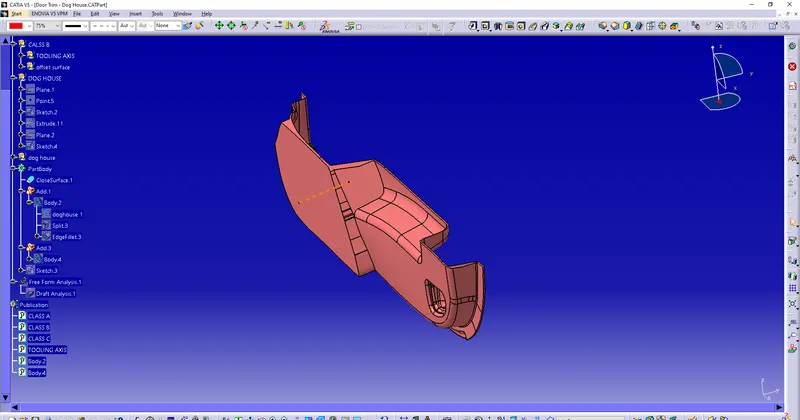

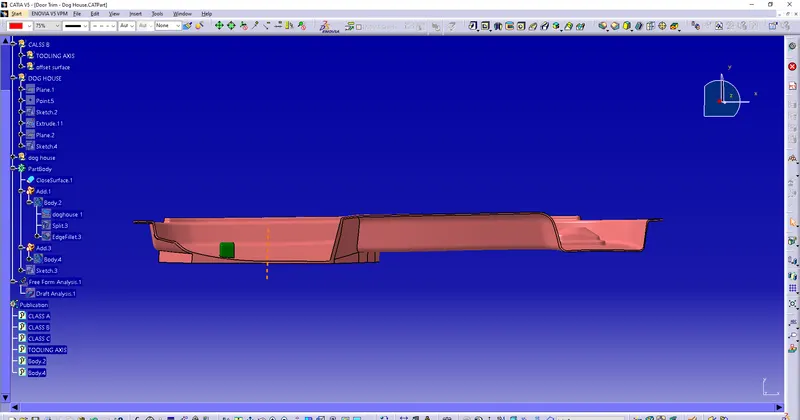

the abov picture is side view of the door trim

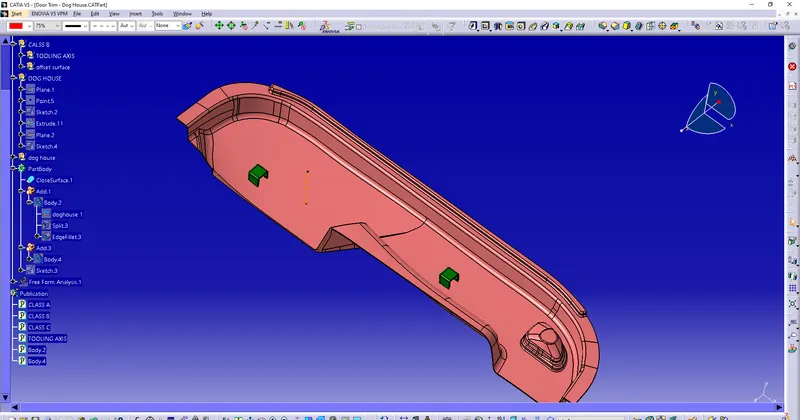

isometric view of the door trim

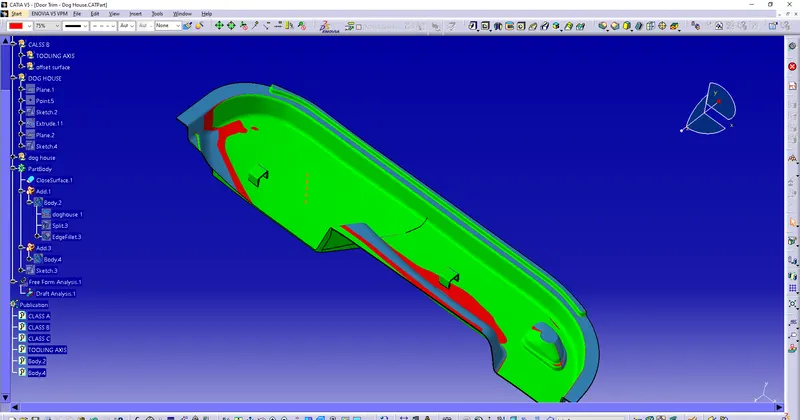

in the draft analysis green part is 2.9 degress and remaining is as shown
